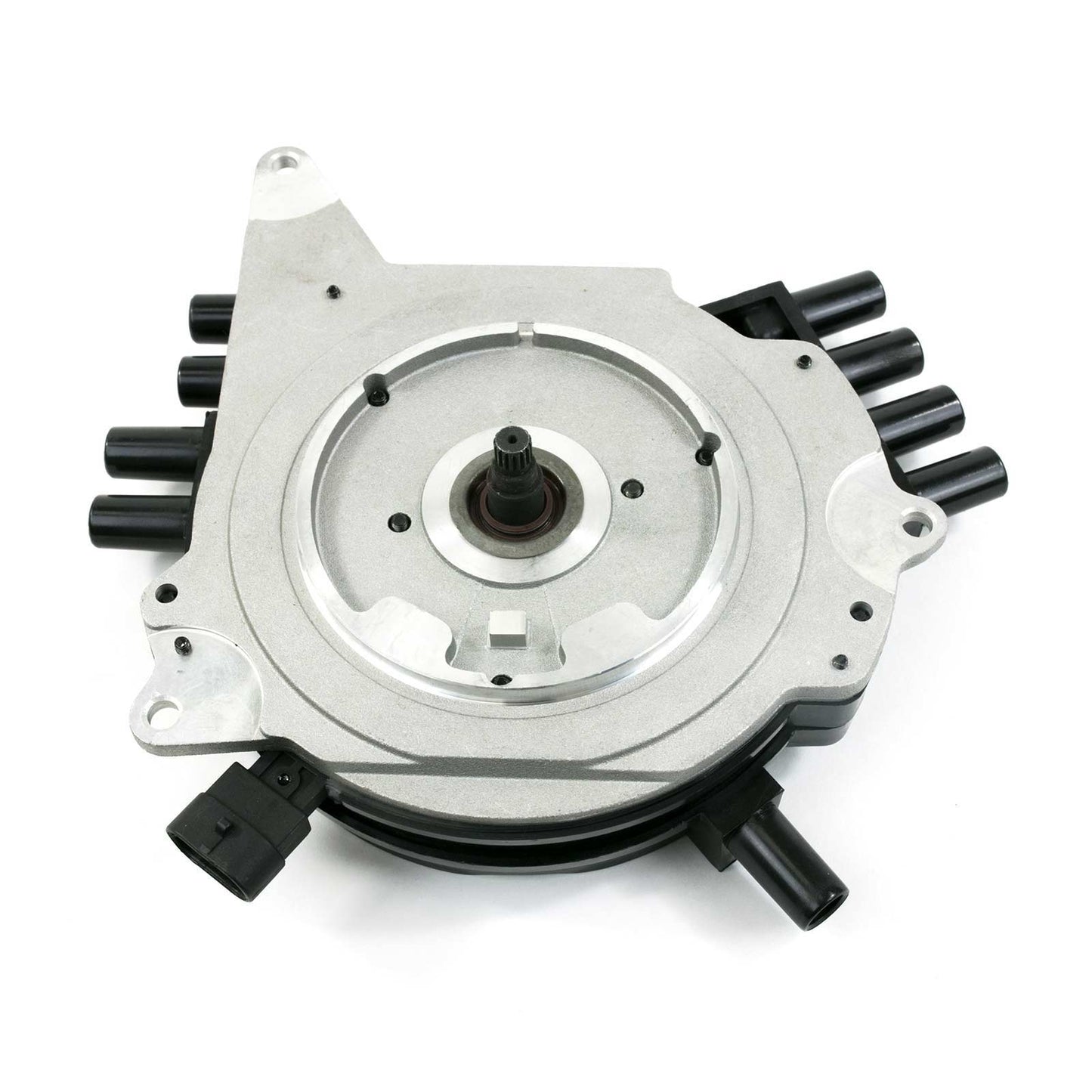

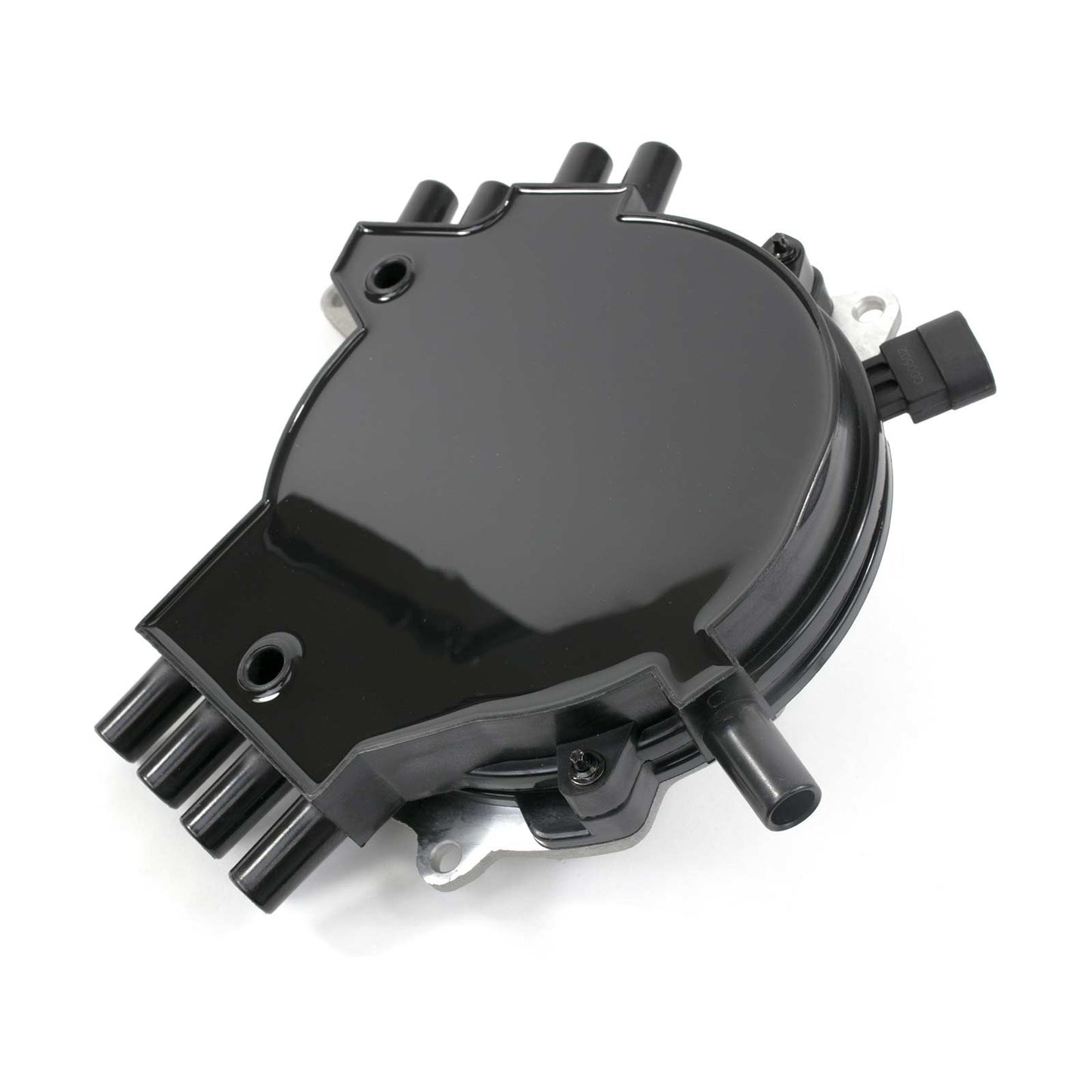

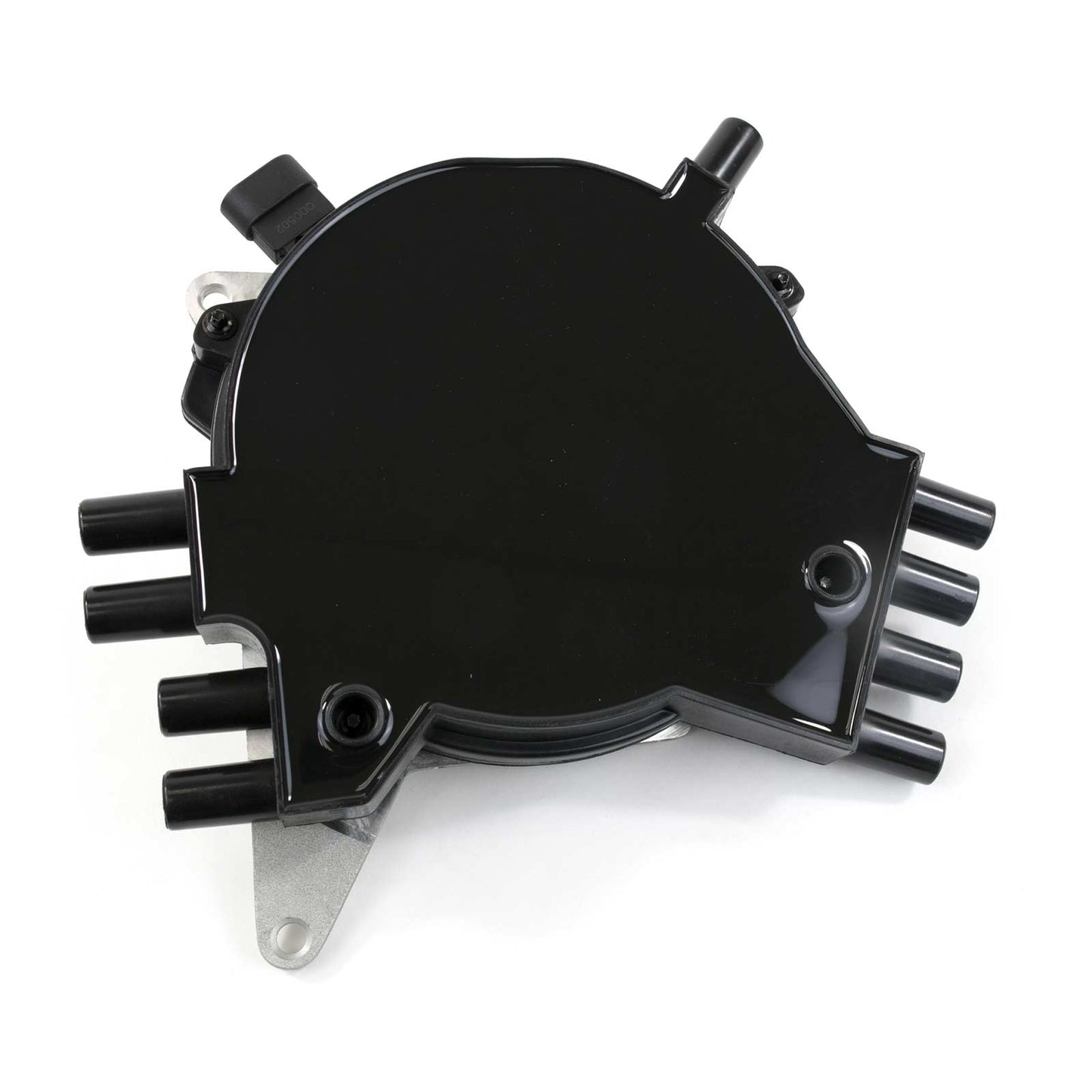

Chevrolet 1992-1994 LT1 Gen. 1 Opti-Spark I Distributor

• Direct factory replacement for 1992–1994 LT1 Opti-Spark I — optical trigger, PCM-controlled timing

• Fits C4 Corvette (1992–1994), Camaro Z28 (1993–1994), Firebird (1993–1994), and B-body LT1s

• Crab-style female cap, vent hose connection required — not compatible with Opti-Spark II (1995–1997)

• Resolves optical trigger failure — inspect water pump for leaks before installation

The TSP Opti-Spark I Distributor is a direct OEM-replacement unit for the Chevrolet Gen. II LT1 optical distributor used in 1992 through 1994 applications. The Opti-Spark I uses an optical (infrared) trigger system to send crank position signals to the PCM — all ignition timing advance is managed electronically by the engine computer, with no mechanical or vacuum advance. This replacement unit restores factory-spec ignition signal accuracy for LT1-powered vehicles experiencing optical trigger failure, rough idle, misfires, hard starting, or distributor-related fault codes.

This is an Opti-Spark I unit — 1992 through 1994 only. The 1995–1997 LT1 uses a redesigned Opti-Spark II with a different connector and different internal design. Opti-Spark I and II are not interchangeable. Verify your model year before ordering.

The #1 cause of Opti-Spark failure is water intrusion. The Opti-Spark mounts at the front of the LT1 engine directly beneath the water pump. A weeping or leaking water pump allows coolant and moisture to enter the distributor housing, destroying the optical trigger assembly. Before installing this or any replacement Opti-Spark unit, inspect the water pump for leaks and replace it if any seepage is present — installing a new distributor on a leaking water pump will result in the same failure. The Opti-Spark I also features vent holes and a vent hose system designed to prevent moisture buildup inside the housing. The vent hose must be connected during installation.

Engine fitment covers the Chevrolet LT1 5.7L (350 CID) Gen. II small block and the 1994-only L99 4.3L (265 CID) "Baby LT1" used in the Caprice. Supported vehicles include the C4 Corvette (1992–1994), Camaro Z28 (1993–1994), Pontiac Firebird Formula and Trans Am (1993–1994), Chevrolet Caprice (1994), Buick Roadmaster (1994), Cadillac Fleetwood (1994), and Chevrolet Impala SS (1994).

Understanding the LT1 Opti-Spark I System
The Opti-Spark distributor is one of the most distinctive ignition systems ever used in a production American V8. Unlike conventional rear-mounted distributors, the Opti-Spark mounts at the front of the LT1 engine block beneath the water pump and is driven directly off the camshaft. Inside the housing, an optical trigger system uses infrared light to read a slotted disc rotating with the camshaft — generating high-resolution crank and cam position signals that feed directly to the PCM. The engine computer uses these signals to control ignition timing with greater precision than a conventional magnetic pickup distributor. All timing advance is managed electronically — there is no distributor advance mechanism to adjust or tune.

This design made the LT1 one of the most precisely timed production engines of its era. But the mounting location — directly under the water pump — made the Opti-Spark vulnerable to moisture from water pump weepage, coolant leaks, and condensation. When moisture reaches the optical assembly, signal accuracy degrades and eventually fails entirely. Symptoms of a failing Opti-Spark include rough idle, misfires, hard starting, poor cold start performance, and PCM fault codes related to distributor signal loss.

Before Installing a Replacement Opti-Spark
Replacing the distributor without addressing the source of moisture will result in the same failure on the new unit. Before installing this replacement:
— Inspect the water pump for any signs of weeping, seepage, or coolant leaks at the pump-to-block interface
— Inspect the vent hoses on the existing distributor for blockage, collapse, or disconnection
— Confirm the distributor housing shows no signs of cracking or physical damage that could allow moisture entry
— Replace the water pump if any leaks are found before installing the new distributor

Opti-Spark I vs. Opti-Spark II — Critical Year Distinction
GM redesigned the Opti-Spark for the 1995 model year. The Opti-Spark I (1992–1994) and Opti-Spark II (1995–1997) use different internal designs and different connector configurations — they are not interchangeable. This listing is for the Opti-Spark I only. Verify your vehicle's model year before ordering.

What vehicles and engines does this distributor fit?
This is an Opti-Spark I replacement distributor for 1992–1994 LT1-powered vehicles. Supported applications include the Chevrolet Corvette C4 (1992–1994), Camaro Z28 (1993–1994), Pontiac Firebird Formula and Trans Am (1993–1994), Chevrolet Caprice (1994) with LT1 5.7L or L99 4.3L, Buick Roadmaster (1994), Cadillac Fleetwood (1994), and Chevrolet Impala SS (1994). This is an Opti-Spark I unit only and is not compatible with 1995–1997 LT1 applications that use the Opti-Spark II.

What is the difference between Opti-Spark I and Opti-Spark II?
The Opti-Spark I was used in LT1 applications from 1992 through 1994. GM redesigned the system for 1995, producing the Opti-Spark II used through 1997. The two designs have different internal components and different electrical connectors, so they are not interchangeable. This listing is for the Opti-Spark I (1992–1994) only. If your vehicle is a 1995, 1996, or 1997 LT1 application, you need the Opti-Spark II.

Why do Opti-Spark distributors fail so often
The Opti-Spark mounts at the front of the LT1 engine block directly beneath the water pump. This location makes it vulnerable to moisture from water pump weepage, coolant leaks, and condensation. When moisture reaches the optical trigger assembly inside the housing, the precision infrared signal degrades and eventually fails, causing rough idle, misfires, hard starting, and PCM fault codes. Before installing a replacement unit, inspect and correct any water pump leaks. Installing a new distributor while a water pump leak is present can result in the same failure occurring again.

Do I need to set timing after installing this distributor?
The LT1 PCM controls all ignition timing electronically, so there is no distributor advance mechanism to adjust. However, after installation, verify base timing using the LT1 timing check procedure: ground Terminal B of the ALDL diagnostic connector to place the ECM in bypass mode, then check timing with a timing light at idle. Correct base timing for the LT1 in bypass mode is 0° BTDC. Disconnect the ALDL ground after verification to restore normal PCM operation.

What plug wires are compatible with this distributor?
This distributor uses the Opti-Spark I crab-style female cap connector, a proprietary connector style specific to the 1992–1994 LT1 Opti-Spark I. Replacement plug wire sets must be specifically designed for the 1992–1994 LT1 Opti-Spark I. Standard HEI or universal spark plug wire sets are not compatible.

Does this distributor include an ignition coil?
No. The LT1 ignition system uses an external remote-mounted ignition coil separate from the distributor. The coil is not included and must be sourced separately. Use a coil that is compatible with the LT1 ignition system.

Do I need an ignition control box or CDI unit?
No. The factory PCM handles all ignition control for the LT1 system. No additional ignition box or CDI unit is required for a direct replacement installation.

Does the vent hose need to be connected during installation?
Yes. The Opti-Spark I has vent holes and a vent hose system designed to prevent moisture from accumulating inside the distributor housing. The vent hose must be connected and routed correctly during installation. A blocked, disconnected, or improperly routed vent hose can allow moisture to accumulate inside the housing and damage the optical trigger assembly.

Can this distributor be used with a performance tune or aftermarket PCM?
This distributor provides the same crankshaft and camshaft position signals as the factory Opti-Spark I. It is compatible with the factory PCM and with most aftermarket engine management systems designed for the LT1 that use Opti-Spark I signal inputs. Confirm compatibility with your specific aftermarket ECU before ordering.

Is this compatible with the LT4 engine?
No. The 1996 Corvette LT4 uses the Opti-Spark II design, which is not compatible with this Opti-Spark I unit.
