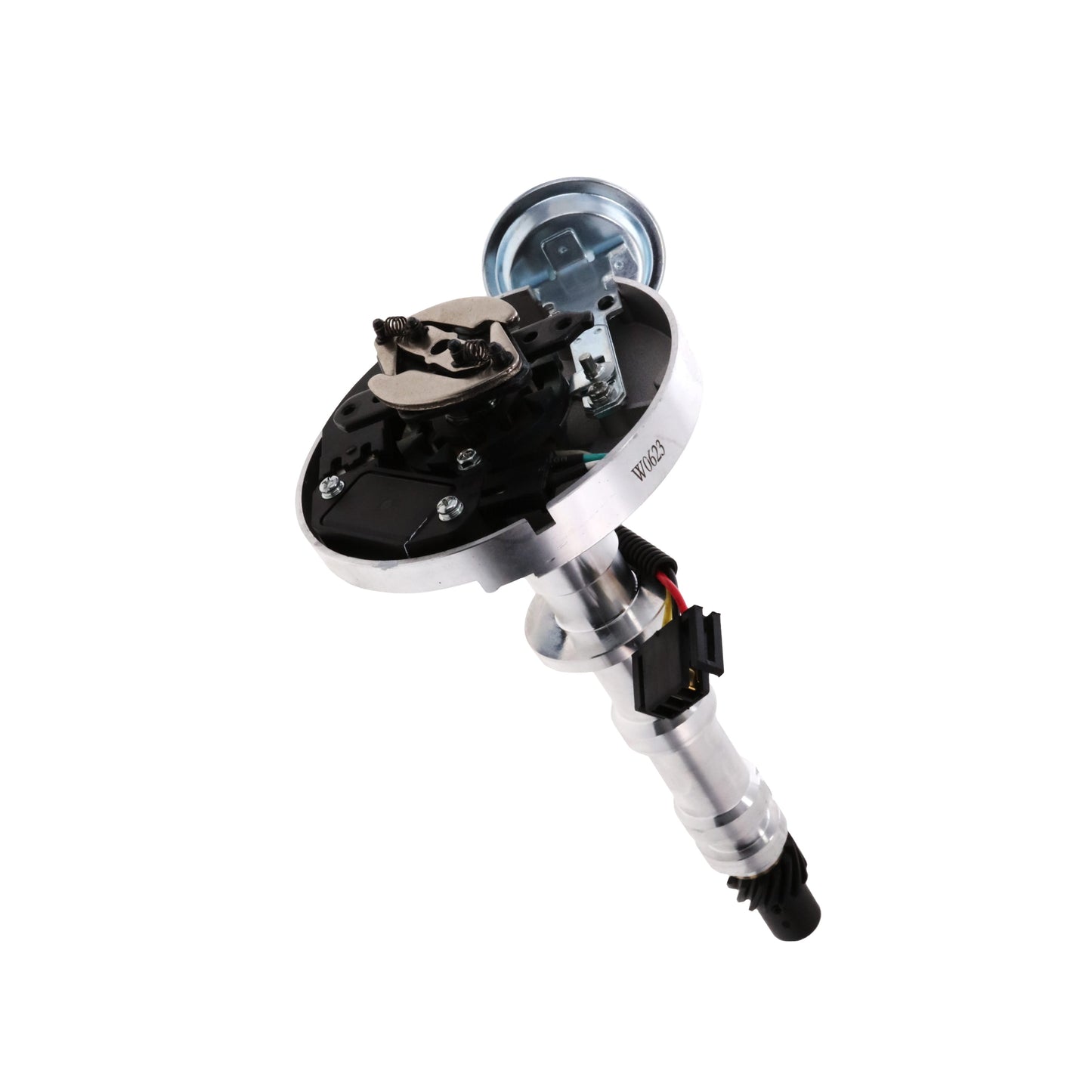

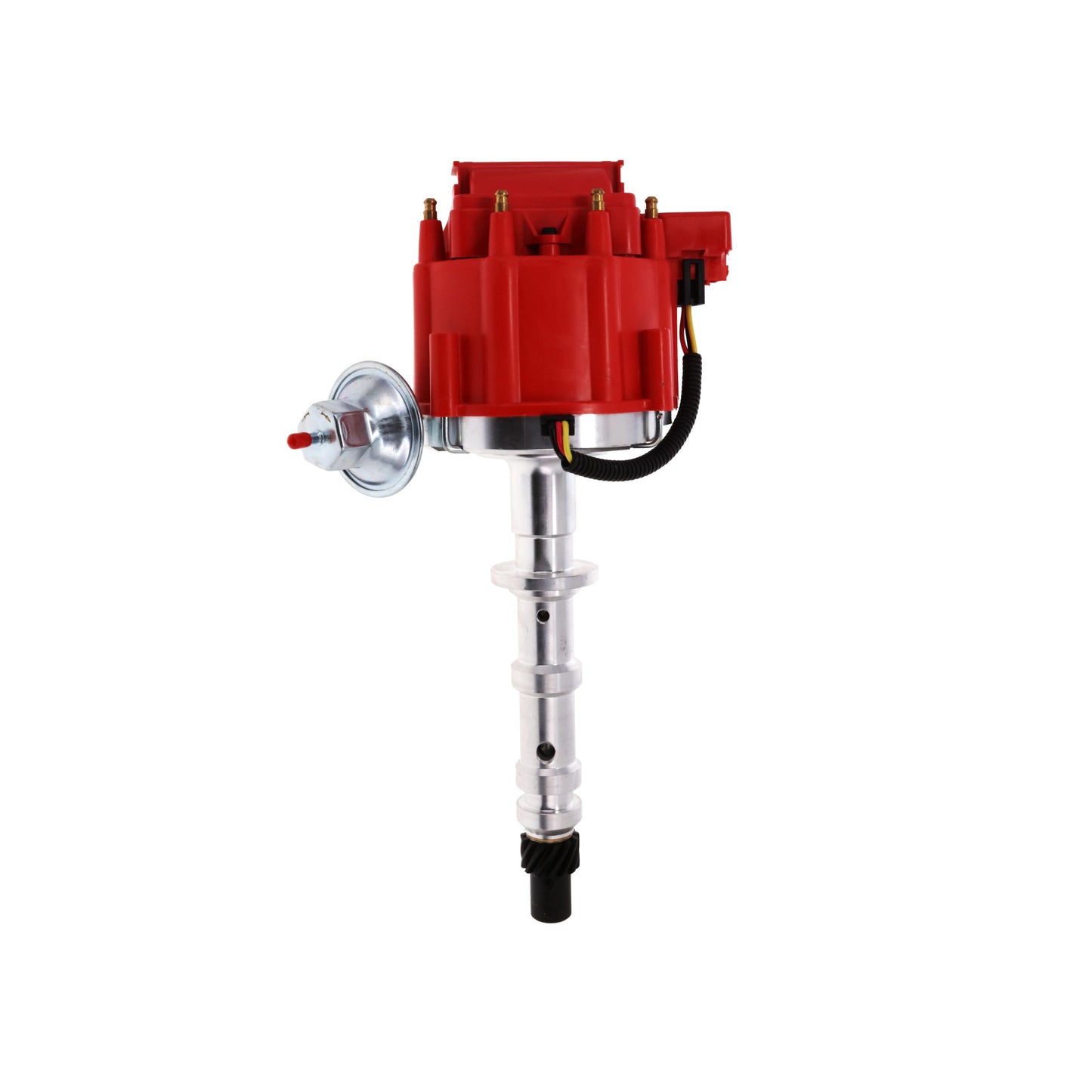

Chevy BB 348/409 V8 HEI Distributor

• Fits Chevy W-series big block 348 and 409 CID V8 — 1958–1965 carbureted applications

• 65,000-Volt internal HEI coil — single 12V wire, no external coil or box needed

• Not compatible with standard BBC 396–454 — W-series only, different engine family

• Fits Impala, Bel Air, Biscayne, El Camino, and C-series trucks — with year ranges

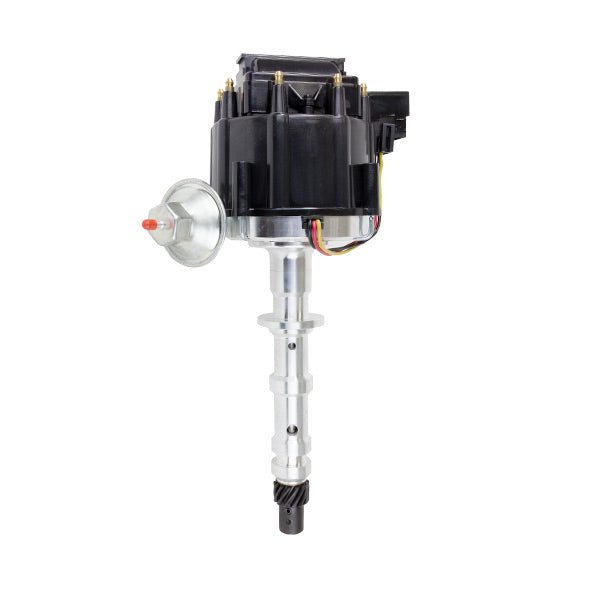

The TSP HEI Distributor for the Chevy W-Series Big Block is a self-contained large-cap HEI ignition upgrade for the Chevrolet 348 CID (5.7L) and 409 CID (6.7L) W-series engines in carbureted applications from 1958 through 1965. The integrated HEI design combines the ignition coil, ignition module, cap, and rotor into a single unit, connecting to a single 12-volt source with no external coil, ignition box, or condenser required.

The Chevy 348/409 W-Series is not the same engine as the later Chevy big block. The W-Series — informally known as the "Porcupine" engine for its staggered valve arrangement — is a completely separate engine family from the Mark IV big block (396, 402, 427, 454) introduced in 1965. If your engine is a 396, 402, 427, or 454, this distributor is not the correct unit — see the TSP Chevy standard big block HEI distributor for those applications.

The 409 CID is one of the most iconic American V8 engines of the early 1960s, powering the full-size Chevrolet B-body lineup — Impala, Bel Air, Biscayne, and Caprice — as well as the El Camino and C-series trucks in their highest-performance configurations. Replacing the aging factory points-style ignition on a 348 or 409 with an HEI upgrade is one of the most impactful bolt-on improvements available for these vintage Chevrolets.

The 65,000-volt internal HEI coil delivers substantially stronger spark than a factory points-style distributor, supporting easier cold starts, cleaner idle quality, and more consistent ignition performance across the RPM range. A magnetic pickup trigger replaces the mechanical points contact and requires no routine maintenance. Both mechanical and vacuum advance are included, with a vacuum advance adjustment tool shipped with the distributor.

The Chevy W-Series Big Block — 348 and 409
The Chevrolet W-Series V8 was produced from 1958 through 1965 in two displacements — the 348 CID (5.7L) from 1958 to 1961, and the 409 CID (6.7L) from 1961 to 1965. Named for the "W" shape formed by its valve covers when viewed from above, and nicknamed the "Porcupine" for its unusually angled valve arrangement, the W-Series was Chevrolet's first true performance big block. The 409 in particular became one of the defining performance engines of the early muscle car era, powering multiple Super Stock drag racing championship seasons and immortalized in popular culture.

The W-Series is a completely different engine architecture from the later Chevy Mark IV big block (396, 402, 427, 454) that replaced it in 1965. The two families share no distributor compatibility — verify your engine is a W-Series 348 or 409 before ordering.

Performance Benefit
The 65,000-volt internal HEI coil fires spark plugs more consistently than a factory points setup across the full RPM range. Stronger, more consistent spark translates to easier cold starts, cleaner idle quality, and improved throttle response — particularly meaningful on vintage 348 and 409 applications where original ignition components may be sixty-plus years old. The magnetic pickup trigger holds timing accurately without the wear and drift that accumulates with points contact over time. Both mechanical and vacuum advance are included, and the vacuum advance adjustment tool allows the curve to be tuned for your specific engine combination.

What engines does this distributor fit?
This distributor fits the Chevrolet W-Series big block V8—the 348 CID (5.7L, 1958–1961) and the 409 CID (6.7L, 1961–1965)—in carbureted applications. The W-Series is a completely separate engine family from the later Chevy Mark IV big block (396, 402, 427, and 454). If your engine is a 396, 402, 427, or 454, this distributor is not the correct unit for your application.

What is the difference between the Chevy W-Series 348/409 and the standard Chevy big block 396/454?
The 348 and 409 belong to the Chevrolet W-Series big block, a distinct engine family produced from 1958 to 1965, often called the "Porcupine" engine for its unusual staggered valve arrangement. The 396, 402, 427, and 454 belong to the Chevrolet Mark IV big block, a completely different architecture introduced in 1965 as the W-Series replacement. The two families share no interchangeable components and require different distributors. Verify your engine displacement and production year before ordering.

What vehicles used the Chevy 348 and 409 W-Series engine?
The W-Series 348 (1958–1961) and 409 (1961–1965) powered the full-size Chevrolet B-body lineup, including the Impala, Impala SS, Bel Air, Biscayne, and Caprice (1965), as well as the El Camino and C-Series trucks in applicable years. The Corvette, Camaro, and Nova did not use the 348 or 409 engine.

Does this distributor fit the Corvette?
No. The Chevrolet Corvette was never equipped with the 348 or 409 W-Series engine. The Corvette used small block and later Mark IV big block engines exclusively. For Corvette HEI applications, see the TSP Chevy small block or standard big block HEI distributor listings.

Does this distributor fit a Chevrolet Camaro?
No. The Chevrolet Camaro was introduced in 1967, two years after the 409 was discontinued in 1965. The Camaro never used the 348 or 409 W-Series engine.

Does this distributor include an ignition coil?

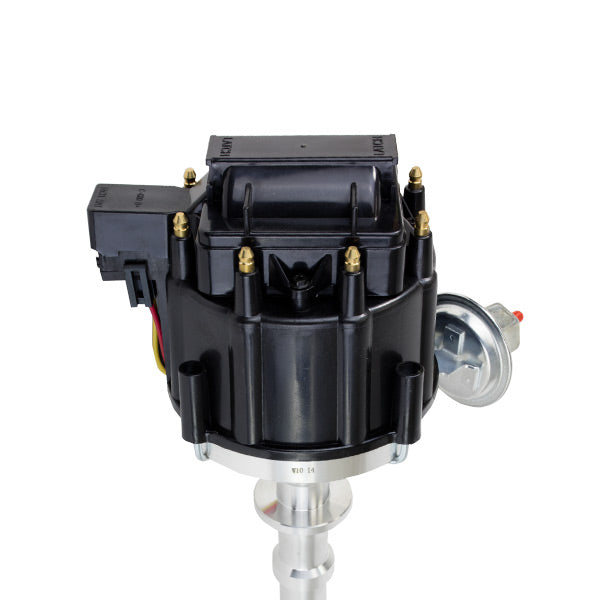

Yes. The ignition coil is built into the distributor cap as part of the HEI design. No external coil is required. The only external connection needed is a single 12-volt hot wire.

Do I need an external ignition box or control module?
No. The ignition control module is integrated internally within the distributor. No external ignition box, CDI unit, points, or condenser is required.

What is the coil output voltage?
This distributor produces 65,000 volts of coil output, significantly higher than a factory points-style distributor, delivering a stronger, more consistent spark for improved cold starts, idle stability, and throttle response across the RPM range.

What type of advance does this distributor use?
This distributor uses both mechanical (centrifugal) advance and vacuum advance. Mechanical advance increases ignition timing as engine RPM rises. Vacuum advance adds additional timing under light throttle and cruise conditions. A vacuum advance adjustment tool is included to allow tuning of the vacuum advance curve for your application.

What type of distributor gear is included, and what camshafts is it compatible with?

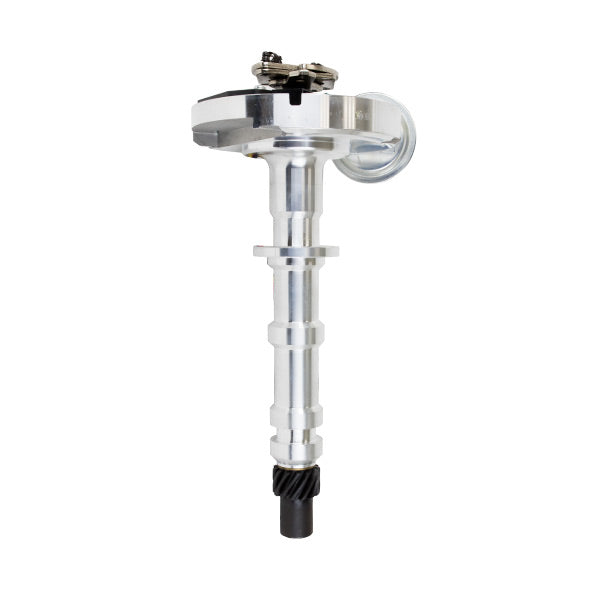

This distributor includes a steel distributor gear. The gear is most compatible with cast iron hydraulic or solid flat tappet camshafts. For roller camshaft applications, consult your camshaft manufacturer for the recommended gear material, as a mismatched gear and cam combination will cause accelerated wear on both components.

Do I need to set ignition timing after installation?
Yes. Base ignition timing must be set with a timing light after installation. For most carbureted Chevy 409 applications, a starting point of 8–12 degrees BTDC at idle is a common reference, though the optimal setting will vary based on your compression ratio, camshaft profile, and carburetor tune.

Is this distributor compatible with a 6-volt system or generator?
No. This distributor requires a 12-volt electrical system with a charging alternator. It is not compatible with 6-volt systems, generators, or ballast resistors.
