LS Style 58 PSI Fuel Filter Pressure Regulator
LS Style 58 PSI Fuel Filter Pressure Regulator
SKU: SKU: 81095
In stock
Product Details
Features
- Corvette-style fuel filter with built-in 58 PSI return regulator
- One inlet, two outlets — engine feed plus tank return
- Requires 3/8" return line, mounted near the tank for correct PSI
- Not compatible with returnless fuel system designs
Description

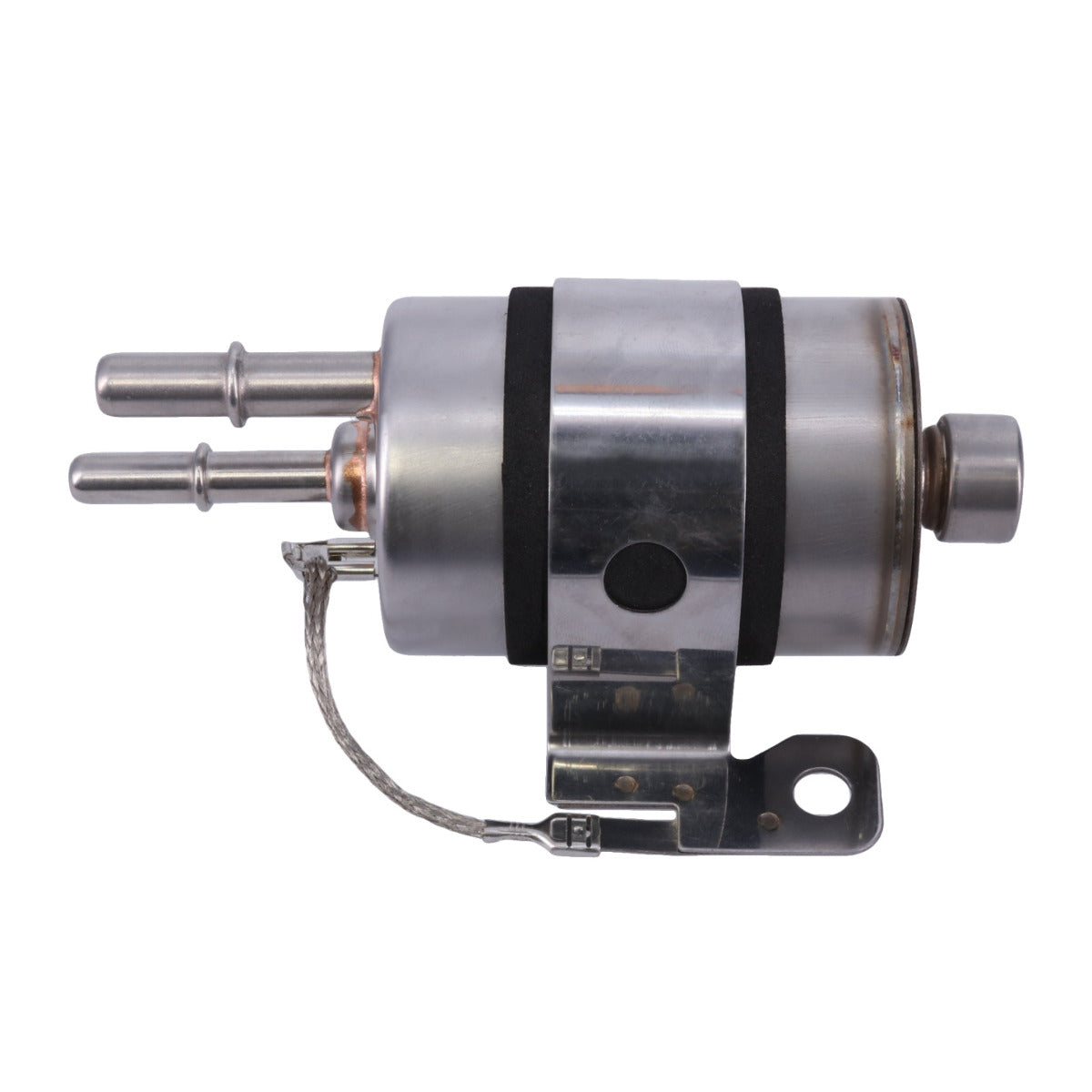

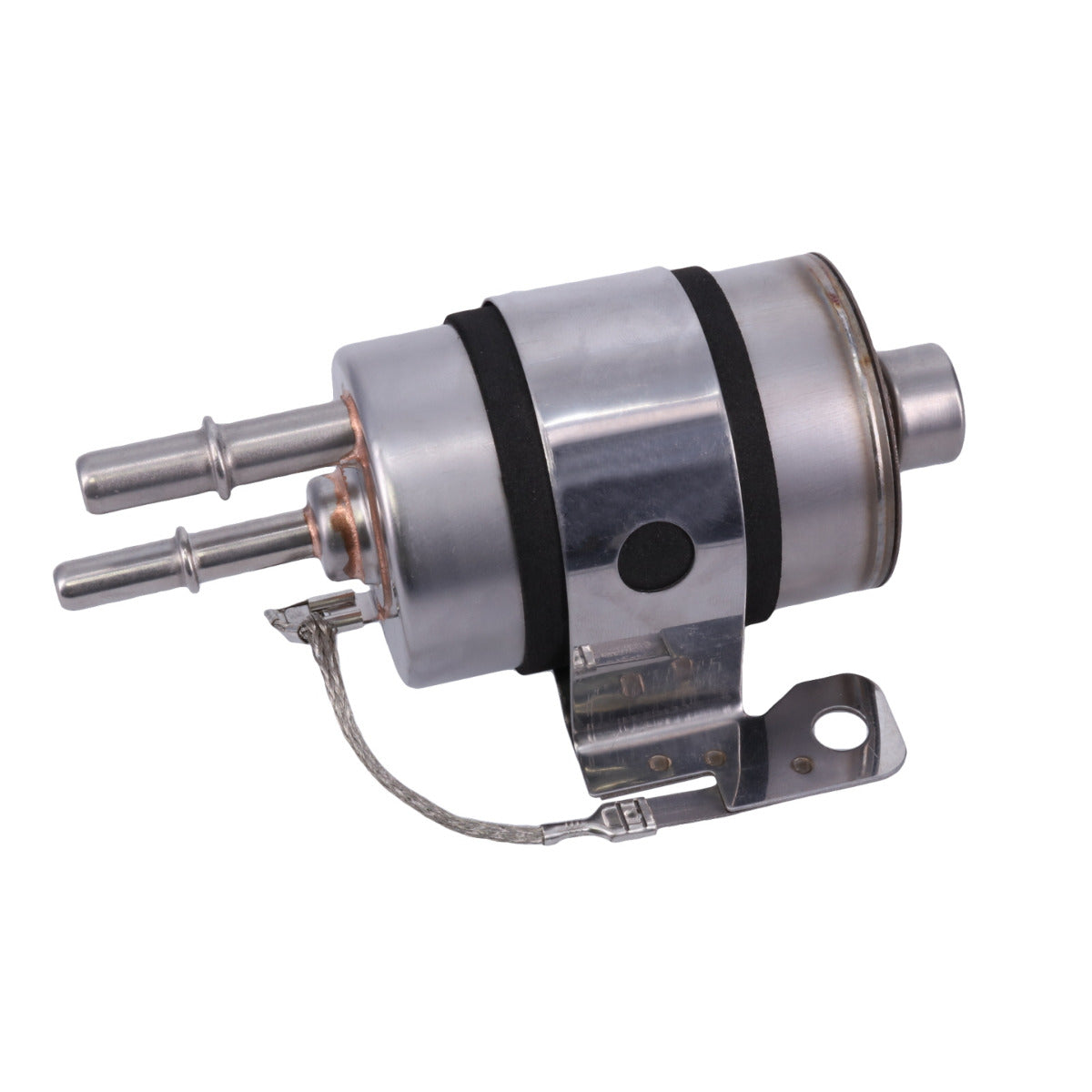

TSP's 58 PSI fuel filter regulator is a great way to get through your LS engine swap fuel-system setup. This Corvette-style filter has a built-in regulator, with a bypass design running one inlet and two outlets — one to the engine and a return outlet to the tank.
This is a return-style regulator — it requires a return line back to the fuel tank and is not compatible with returnless fuel system designs. For the regulator to operate at its rated 58 PSI, use a 3/8" return line and mount it as close to the fuel tank as possible.
A paper filter element (5-micron) and mounting bracket are included; fittings and clamps are not included and should be sourced separately. Commonly used for GM LS-style engine swaps, street performance applications, and custom fuel-system builds.
Applications
Universal, gasoline only. Commonly used for GM LS-style engine swaps, street performance applications, restoration projects, and custom fuel-system builds.
Regulator Type
Return-style — requires a return line to the fuel tank. Not compatible with returnless fuel system designs.
Sizing
5.660" overall length, 2.175" outside diameter, one inlet, two outlets, 5-micron paper filter element, 58 PSI maximum.
Specs
| Filter Style | Inline |
| Inlet Quantity | One |
| Outlet Quantity | Two |
| Filter Element | Included |
| Smallest Particle Filtered | 5 Microns |
| Element Material | Paper |
| Housing Material | Steel |
| Housing Finish | Natural |
| Overall Length | 5.660" |
| Outside Diameter | 2.175" |
| Mounting Bracket | Included |
| Fittings | Not Included |
| Clamps | Not Included |
| Regulator Style | Return |
| Maximum Pressure | 58 PSI |
Engine Fitment
COMPATIBLE WITH
Universal — gasoline only.
NOTES
• Return-style regulator — requires a return line back to the fuel tank. Not compatible with returnless fuel system designs.
• Use a 3/8" return line and mount as close to the fuel tank as possible for correct 58 PSI regulation.
• Filter element included; fittings and clamps not included.
• Commonly used for GM LS-style engine swaps.
COMMON VEHICLE APPLICATIONS
Street performance applications
Restoration projects
Custom fuel-system builds (GM LS engine swaps)
Q&A
Will this work with a returnless fuel system?
No — this is a return-style fuel pressure regulator and requires a return line back to the fuel tank. It is not designed for returnless fuel systems.
How do I get this to regulate at 58 PSI?
Use a 3/8" return line and mount the regulator as close to the fuel tank as possible. Return-line sizing and regulator placement can affect its ability to maintain the rated 58 PSI pressure.
Does this include the filter element?
Yes — a 5-micron paper filter element is included, along with a mounting bracket.
Does this include fittings and clamps?
No — fittings and clamps are not included and must be sourced separately.
What engines is this commonly used with?
It's commonly used for GM LS-style engine swaps, but it can also be used with other compatible gasoline fuel systems that use a return line and require its specified fuel pressure.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
