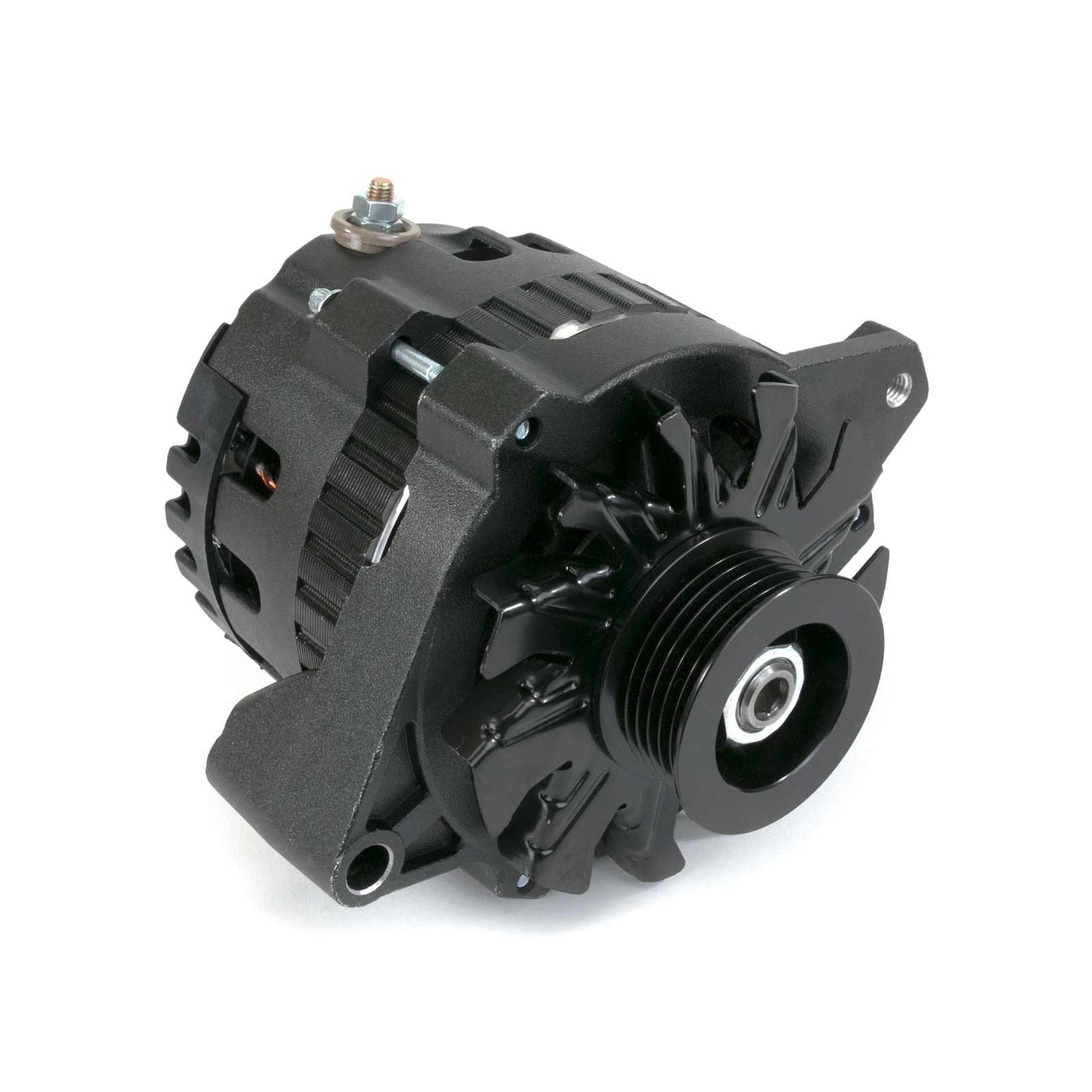

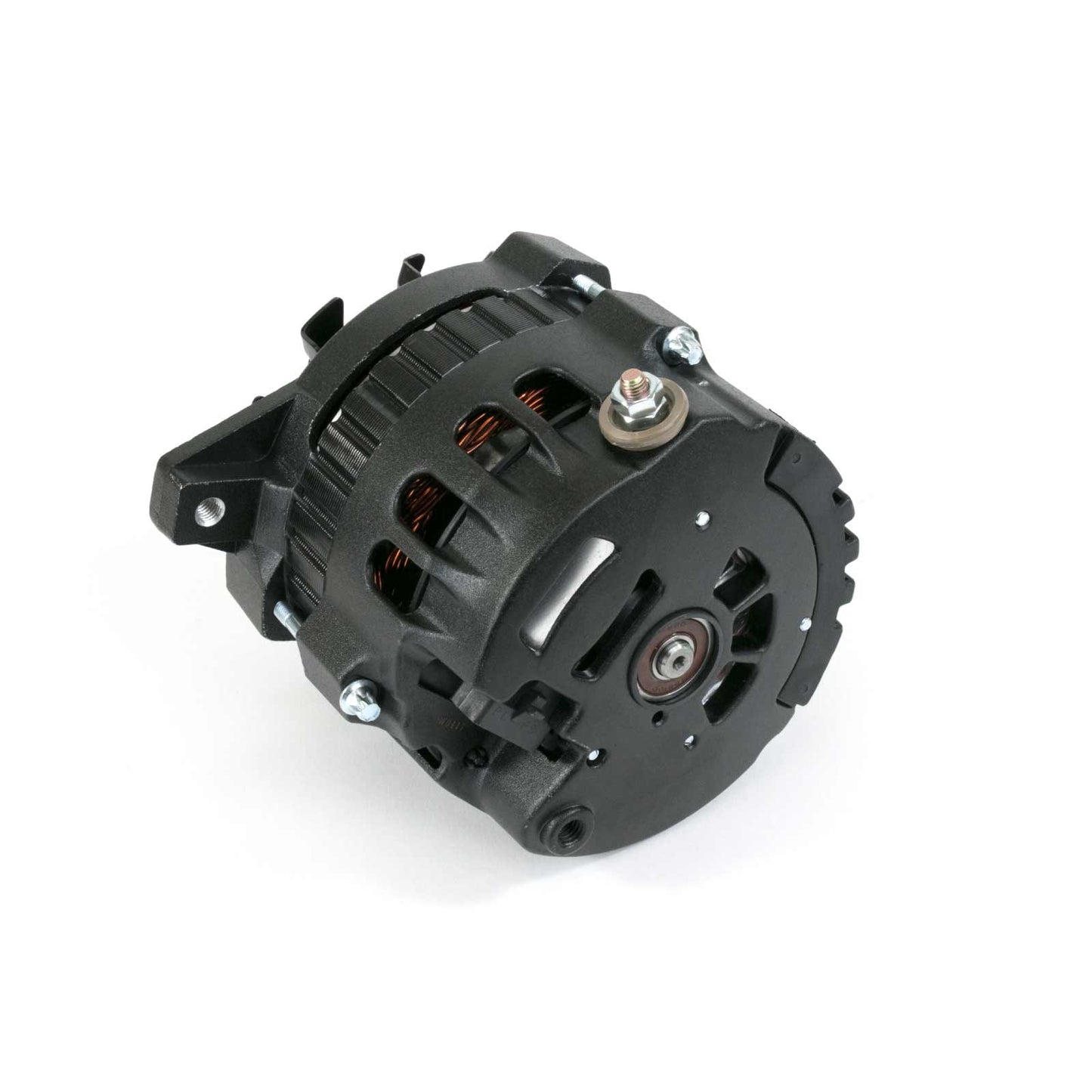

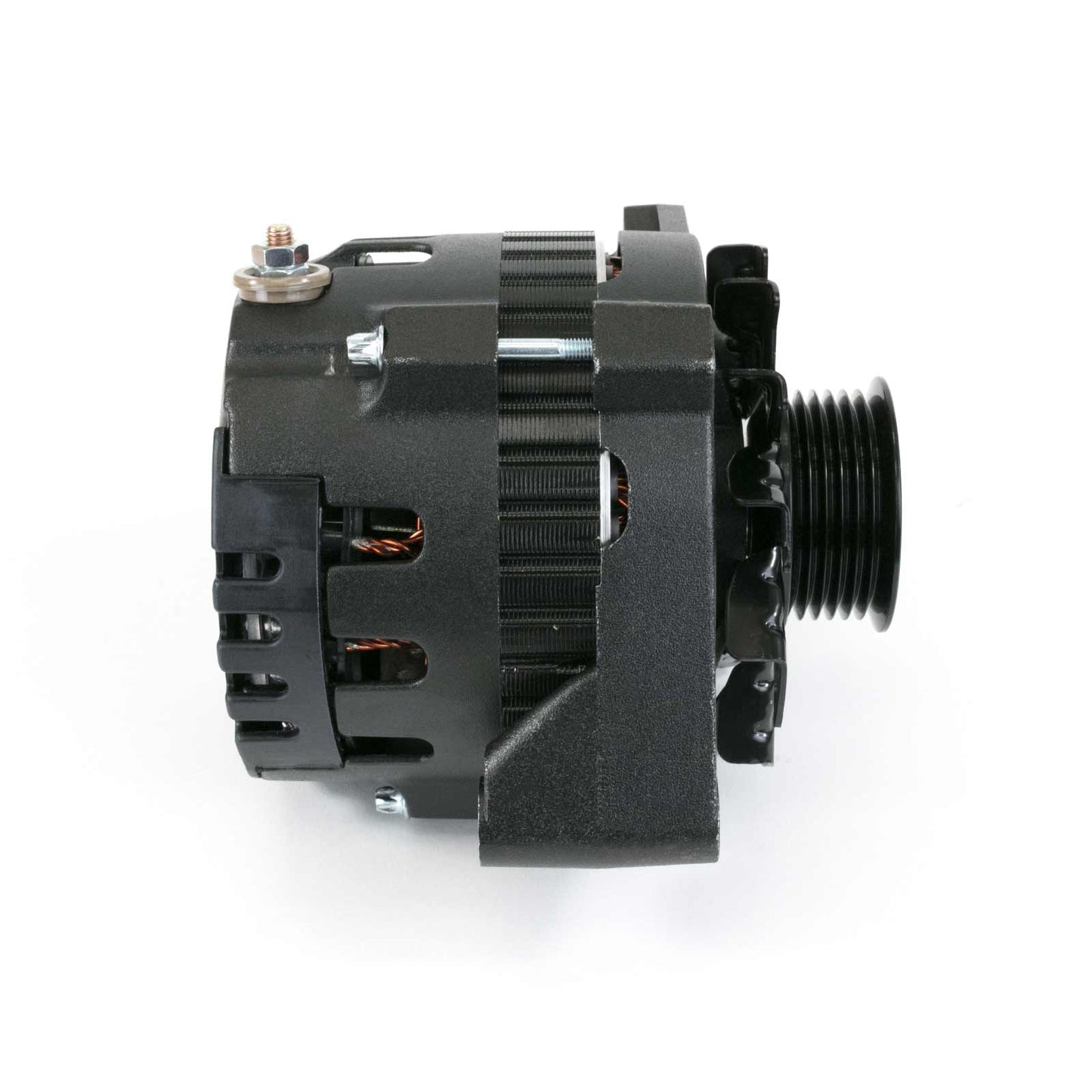

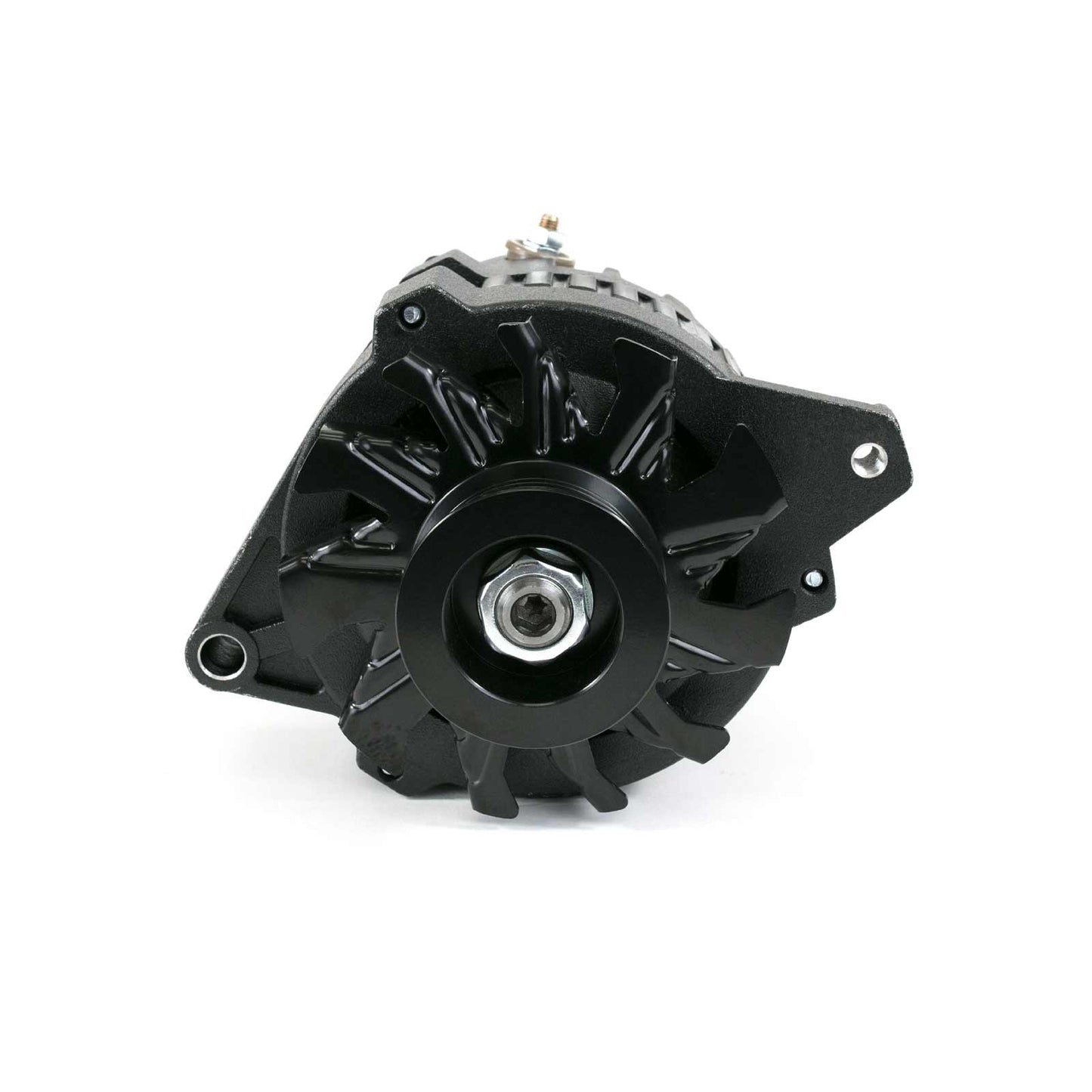

GM CS130 Style 160 Amp Alternator with Serpentine Pulley - Black

• 160 Amp High-Output Charging: Supports electric fans, EFI systems, fuel pumps, lighting, and upgraded accessories.

• Serpentine Pulley Configuration: Designed for compatible GM serpentine belt drive systems.

One-Wire Capable Design: Simplifies wiring for street rods, restomods, and custom builds.

• GM CS130 Style Housing: Compatible with many GM CS130 charging system applications.

This CS130 style alternator supports GM charging-system applications with 160 A charging output, a 12 VDC electrical system, and application-focused mounting details for reliable system operation.

Charging Output & System Support
The 160 A amperage rating helps support electric fans, lighting, ignition components, fuel pumps, audio equipment, and additional electrical accessories. The 12 VDC rating keeps it aligned with common automotive charging-system requirements. The CS130 case family provides the charging-system layout used for compatible brackets, wiring, and mounting geometry. This makes it useful for street-driven builds, restorations, and upgraded accessory systems.

Pulley & Belt Alignment
The Serpentine, 6-groove, 2.610 in. outside diameter pulley setup is intended to match the selected accessory drive arrangement. Verify belt type, pulley offset, and bracket position before installation.

Case Construction & Cooling
The aluminum case uses a powder-coated finish with a 15.710 in. case circumference to balance durability, serviceability, and underhood presentation. The external fan design helps support heat management during accessory load and engine-bay operation. External fan included: Yes.

Installation & System Matching
Mounting details include split mount configuration with 6.610 in. between mounting feet and mounting configuration code 15. Regulator type: Internal. External regulator included: No. One-wire capable: Yes. Plug type: 4-pin. Terminal quantity: 5. Ground type: Case ground. Rotation direction: Clockwise. Verify charge-wire size, connector style, pulley alignment, bracket spacing, and engine-bay clearance before installation.

What applications is this alternator compatible with?
This alternator is designed for compatible applications including CHEVROLET BIG BLOCK V8 GEN. II (MARK IV), CHEVROLET BIG BLOCK V8 GEN. V, CHEVROLET SMALL BLOCK V8 GEN. I, GM DIESEL V8, GM INLINE 4, GM INLINE 6, GM V6, and OLDSMOBILE V8.

Will this alternator fit common Chevy and GM applications?
Yes, this alternator is designed for compatible Chevy and GM applications listed in the fitment details.

Is this alternator a good upgrade over a stock charging system?
Yes, this alternator is a strong upgrade for compatible applications that need reliable charging performance and support for modern electrical demands.

What voltage system is this alternator designed for?
This alternator is built for a 12 vdc charging system.

What type of regulator does this alternator use?
This alternator uses a internal regulator setup, which helps control charging output for the intended application.

Is this alternator easy to wire into a compatible vehicle?
Wiring should always be matched to the intended application, but this alternator is designed for straightforward installation on compatible setups.

Does alternator rotation matter for installation?
Yes, rotation matters for belt-driven accessories, so the alternator should be matched to the correct belt routing and engine setup.

Do I need to verify pulley compatibility before installation?
Yes, pulley style and belt alignment should always be confirmed against your bracket and belt setup before installation.

Does alternator cooling matter on high-demand applications?
Yes, proper alternator cooling is important when electrical demand is higher, especially on performance builds with added accessories.

Should I check bracket and clearance before installation?
Yes, bracket style, case position, and wiring clearance should always be confirmed before installation.

Is mounting style important when choosing an alternator?
Yes, mounting style is critical because the alternator must match the bracket system used on the engine or vehicle.

What is this alternator made from?
It uses a aluminum case, helping support durability and dependable charging performance.

Will this alternator help support added electrical accessories?
Yes, a higher-output alternator can help support added electrical loads such as fans, fuel pumps, ignition upgrades, and lighting when matched to the correct application.

Is this a good upgrade from a stock alternator?
Yes, this alternator is a strong upgrade for compatible applications that need improved charging reliability, support for accessories, and performance-oriented fit and finish.

Does the black finish affect performance?
No, the black finish does not change the alternator's performance characteristics—it mainly changes appearance and gives it a more aggressive look.

What is a GM CS130 alternator?
The GM CS130 is a widely used alternator platform known for improved charging performance, internal voltage regulation, and compatibility with many GM charging system applications.

Is this alternator a good upgrade for electric cooling fans?
Yes. The 160 amp output helps support electric cooling fans, fuel pumps, EFI systems, upgraded ignition systems, lighting upgrades, and other electrical accessories.

Is this a one-wire alternator?
Yes. This alternator is one-wire capable and can simplify wiring in many street rod, restoration, and custom vehicle applications.

Will this alternator work with a serpentine belt system?
Yes. This alternator includes a 6-groove serpentine pulley and is designed for compatible serpentine accessory drive systems.

Is this alternator suitable for EFI conversions?
Yes. The increased charging capacity helps support electronic fuel injection systems, sensors, electric fuel pumps, ignition systems, and other modern electrical upgrades.

Why upgrade from a factory alternator?
A higher-output alternator helps maintain stable charging voltage when running modern electrical accessories and performance upgrades that place additional demand on the charging system.
