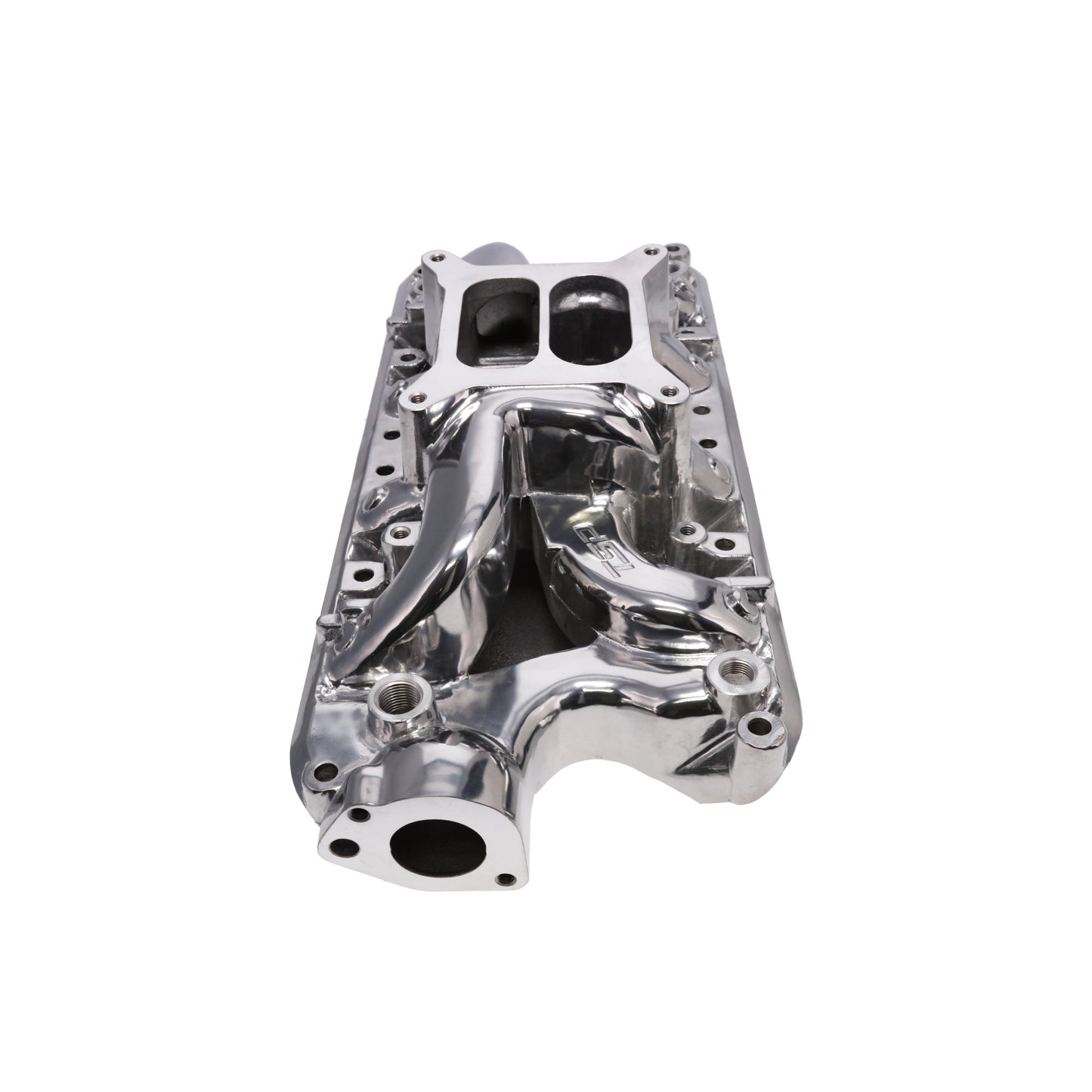

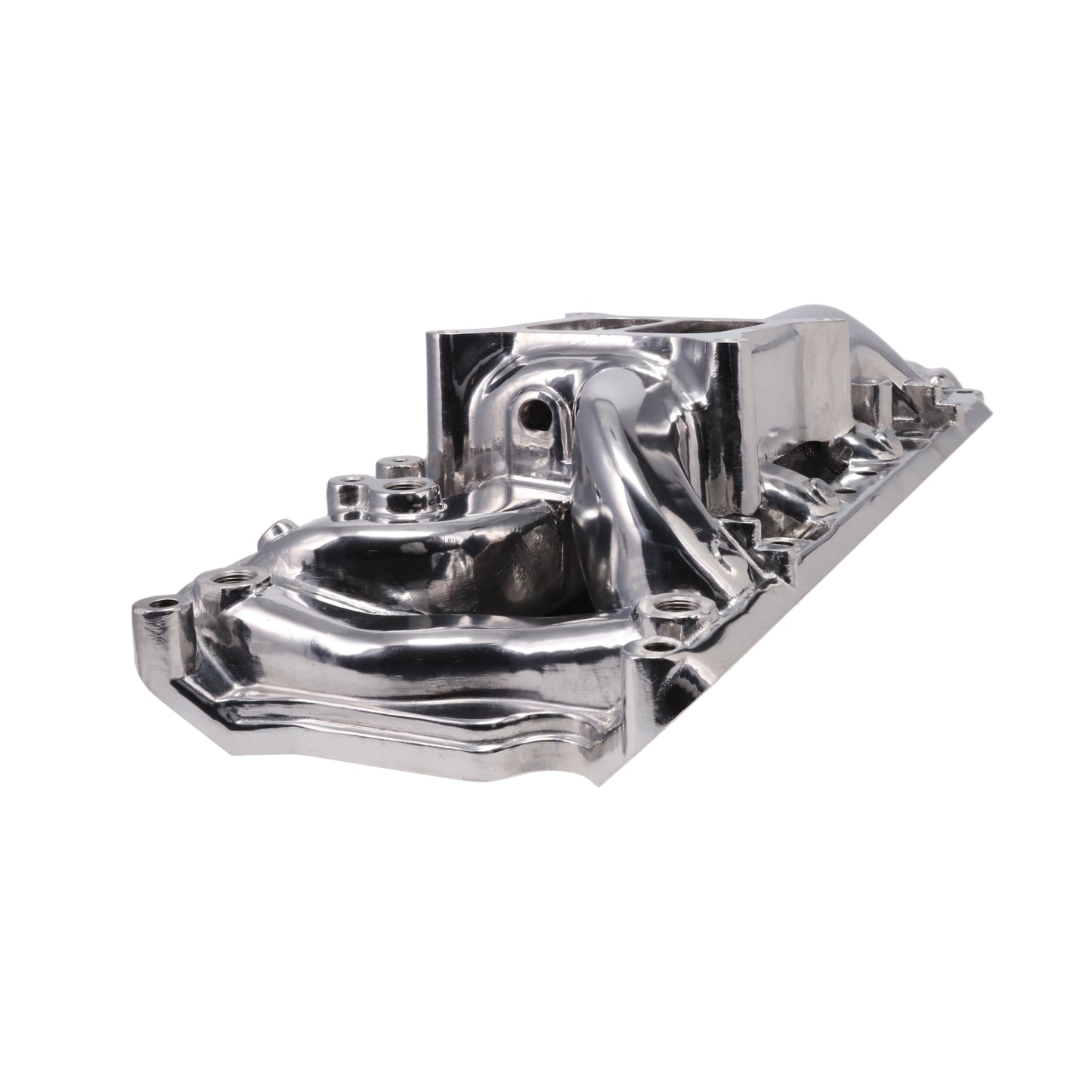

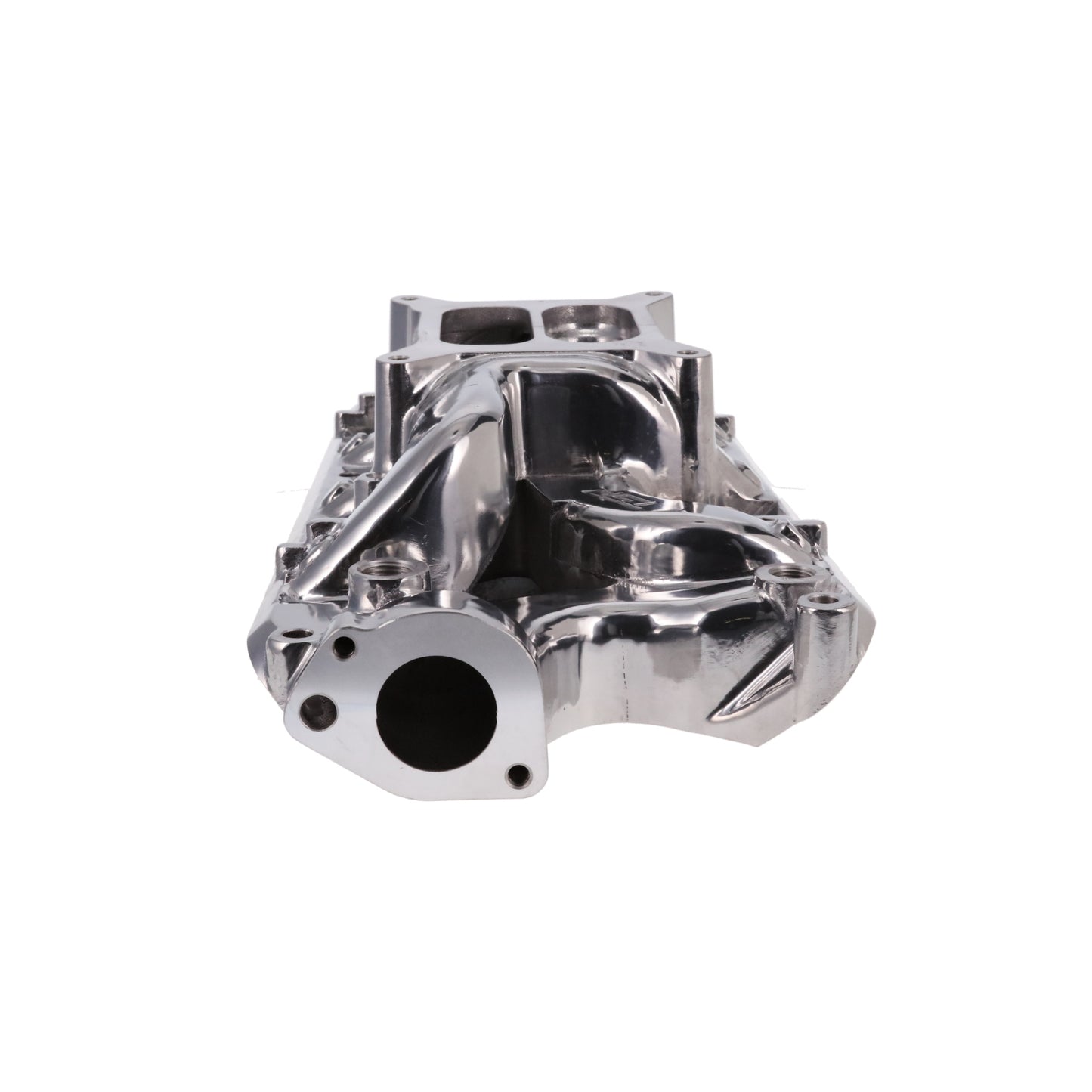

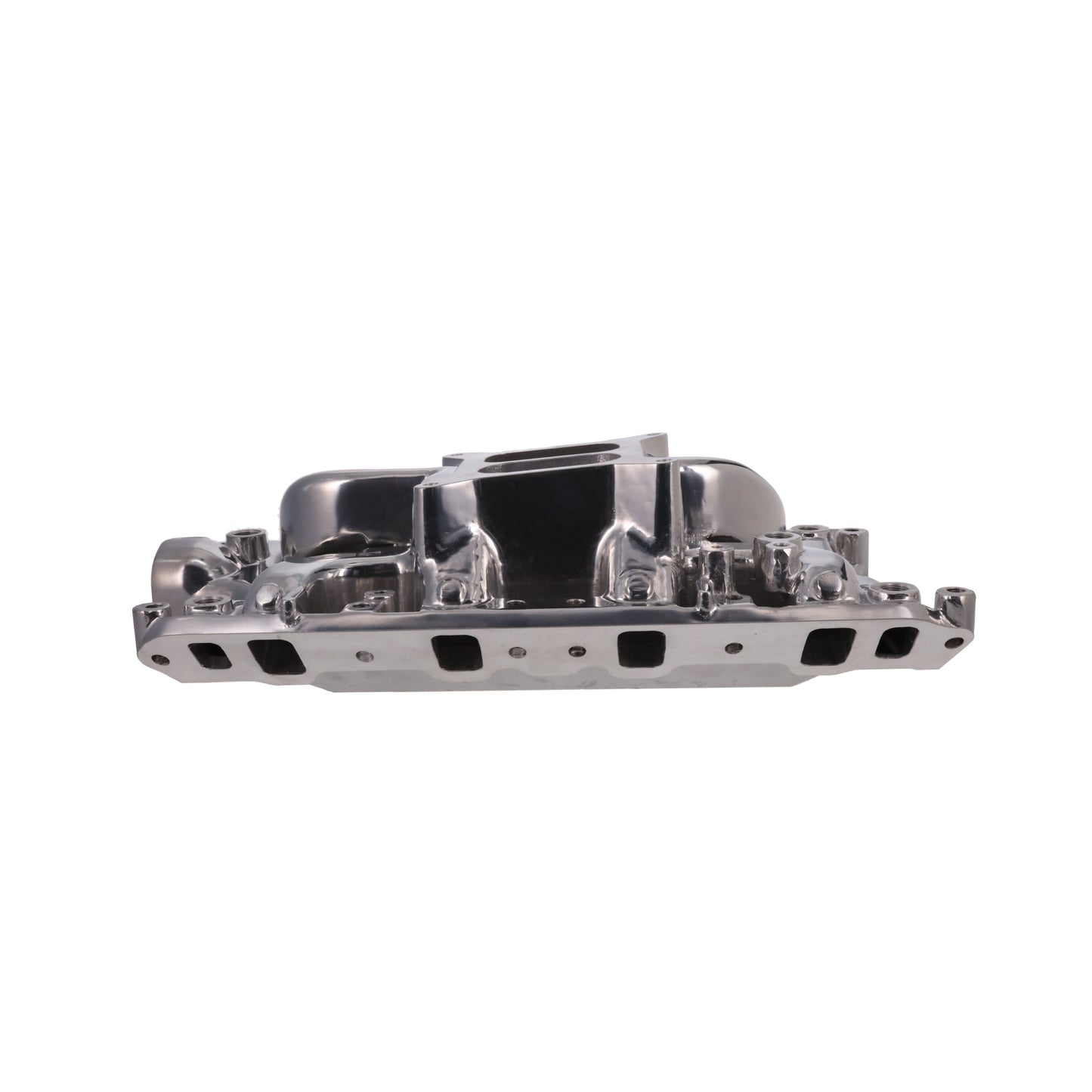

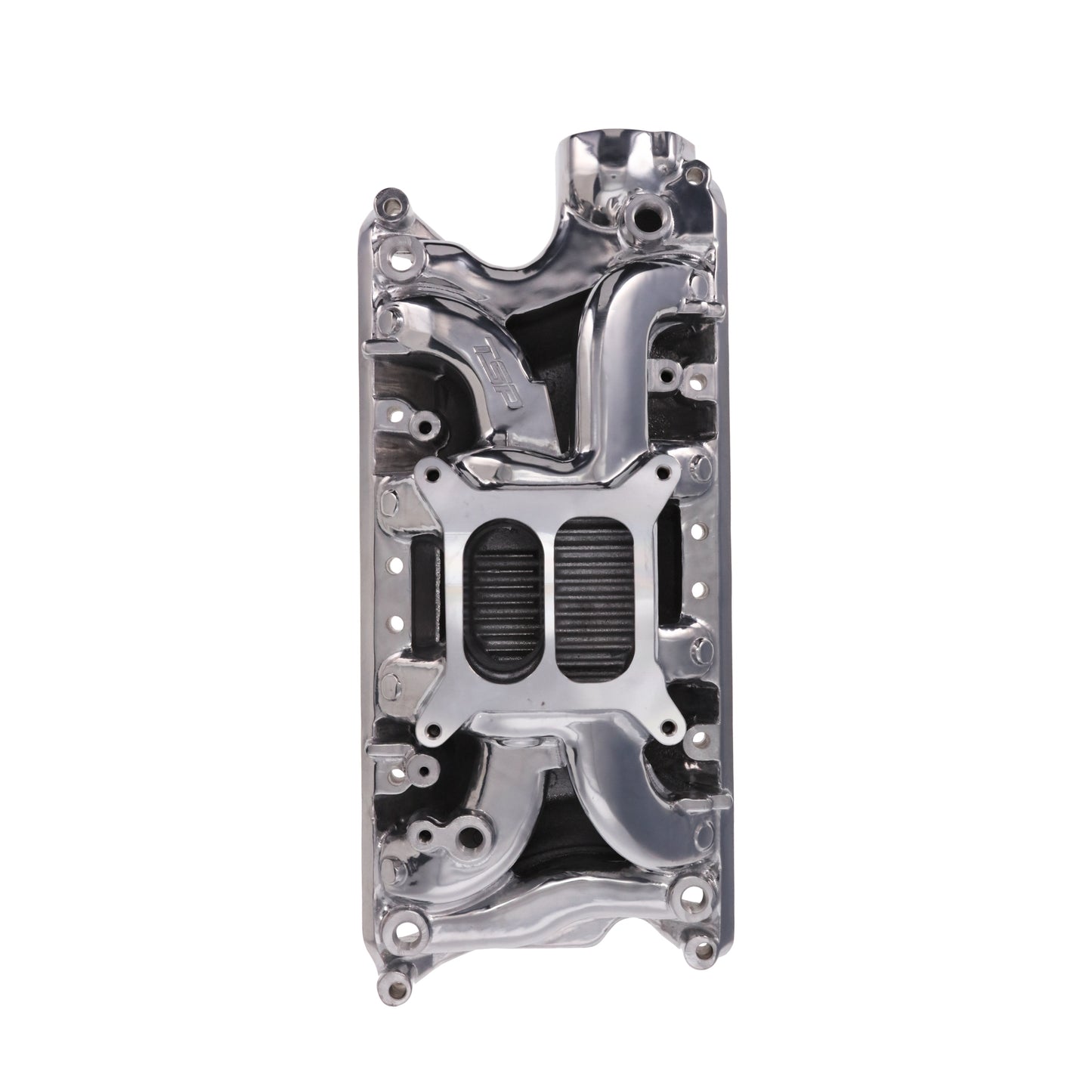

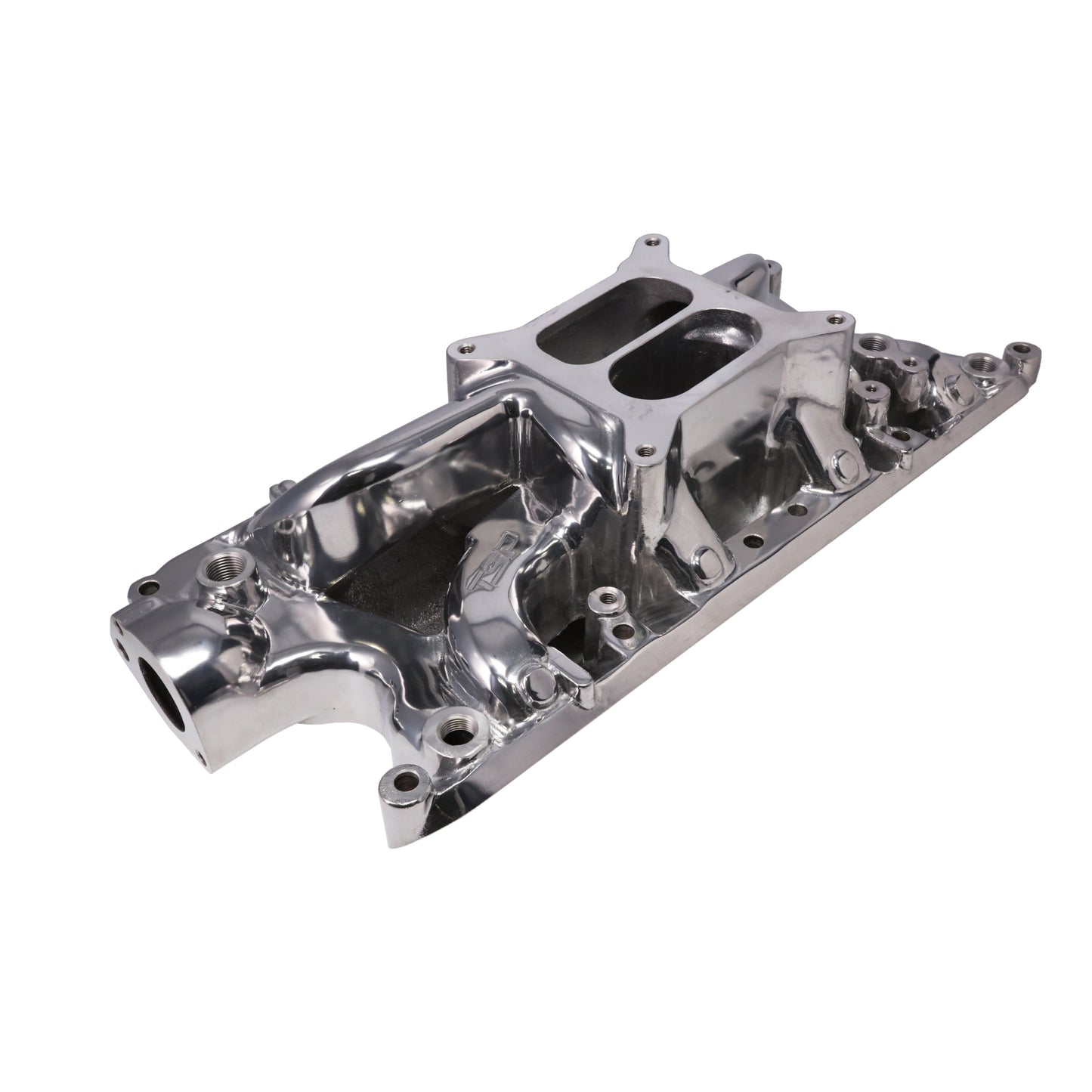

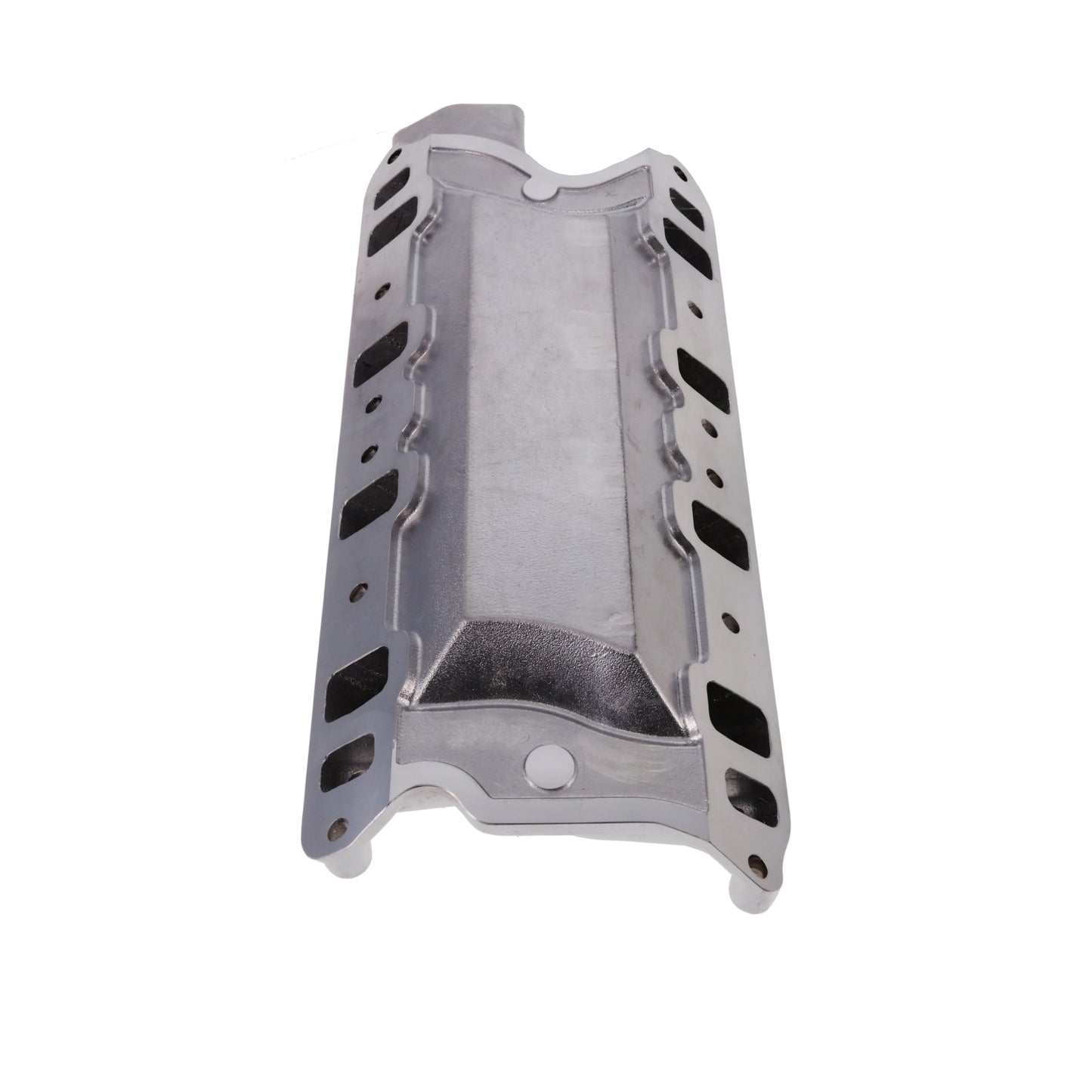

Ford Small Block Carbureted Polished Aluminum Dual Plane Air Gap Intake Manifold
Ford Small Block Carbureted Polished Aluminum Dual Plane Air Gap Intake Manifold
SKU: SKU: 84025
In stock
Product Details
Features
- Air-gap design helps reduce heat transfer
- Dual-plane runners improve torque and throttle response
- Fits Ford Small Block 221, 260, 289 & 302 engines
- Polished aluminum construction with square-bore flange
Description
Upgrade your Ford Small Block with the Top Street Performance Dual Plane Air Gap Intake Manifold. Designed for carbureted 221, 260, 289, and 302 Ford Windsor engine applications, this polished aluminum intake manifold combines the low-end torque and drivability of a traditional dual-plane design with the airflow advantages of an air-gap intake manifold. It is an excellent choice for street performance builds, classic Mustangs, hot rods, restomods, street trucks, and weekend strip applications.
The air-gap plenum design creates an open space beneath the intake runners to help reduce heat transfer from the engine into the air/fuel mixture. By helping maintain a cooler intake charge, the manifold supports improved combustion efficiency, throttle response, and power production throughout the RPM range. Unlike many race-oriented intake manifolds, the dual-plane configuration maintains excellent street manners while supporting strong mid-range and upper-RPM performance.
Engineered to perform best from approximately 1,500 to 6,500 RPM, this intake manifold delivers a broad power curve suitable for everything from daily-driven classics to street/strip combinations. The runner and plenum design help provide balanced airflow distribution between cylinders, supporting dependable performance across a wide range of engine combinations.
Cast from lightweight aluminum, the manifold reduces weight compared to factory cast iron intake manifolds while providing a polished finish that enhances engine bay appearance. Additional performance features include integrated nitrous bosses, a rear water crossover with auxiliary ports, a square-bore carburetor flange, and a low-profile design that can help improve hood clearance in many applications.
Whether you're building a carbureted 302 street machine, upgrading a classic 289 Mustang, finishing a hot rod project, or improving airflow on a Ford Windsor-powered performance build, the TSP Air Gap Intake Manifold delivers the airflow capability, drivability, and appearance enthusiasts expect from a premium induction upgrade.
Air-Gap Design
The open air-gap plenum helps isolate the intake runners from engine heat, reducing heat transfer into the air/fuel mixture. This design helps maintain a cooler intake charge during street and performance driving conditions.
Street & Strip Performance
Designed to operate from 1,500 to 6,500 RPM, the dual-plane runner layout provides strong low-end torque, responsive acceleration, and dependable street drivability while supporting increased airflow at higher engine speeds.
Performance Features
Additional features include a square-bore carburetor flange, integrated nitrous bosses, rear water crossover provisions with auxiliary ports, and a low-profile design that can help improve hood clearance in many performance applications.
Specs
| Basic Operating RPM Range | 1,500-6,500 RPM |
| Carburetor Flange Style | 4150 Square Bore |
| Carburetor Quantity | 1 |
| Center Maximum Height | 4.900 in. |
| CNC Ported | No |
| Color | Polished |
| Deck Height | Standard |
| EGR | No |
| Front Maximum Height | 4.300 in. |
| Fuel System Type | Carbureted |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Intake Port Shape | Rectangle |
| Material | Aluminum |
| Rear Maximum Height | 5.500 in. |
| Single Or Dual Plane Type | Dual Plane |
Engine Fitment
COMPATIBLE WITH
FORD SMALL BLOCK WINDSOR V8
Carbureted applications with Square-Bore carburetor flange
• 3.6 L / 221 in3
• 4.3 L / 260 in3
• 4.7 L / 289 in3
• 4.9 L / 302 in3 generally referred to as 5.0 L
COMMON VEHICLE APPLICATIONS
Ford Mustang
Ford Falcon
Ford Fairlane
Ford Ranchero
Ford F-100
NOTES
• Air-gap design helps reduce intake charge temperatures
• Designed for square-bore carburetors
• Includes nitrous bosses and rear water crossover provisions
• Verify hood clearance before installation
• Check cylinder head, distributor, and accessory compatibility prior to installation
• Will not fit 255, Boss 302, or 351 Windsor engines
• Manifold is stock replacement and street legal for 289 engines with factory style carb from 1965-1966.
Q&A
Will this intake manifold fit a Ford 302 engine?
Yes. This intake manifold is designed for Ford Small Block Windsor applications including 302 cubic inch engines.
What is the benefit of an air-gap intake manifold?
The air-gap design helps reduce heat transfer into the intake runners, helping maintain a cooler air/fuel charge for improved performance.
Does this intake manifold fit a 351 Windsor?
No. This intake manifold is not designed for 351 Windsor applications.
What carburetor flange does this intake use?
The manifold utilizes a square-bore 4-barrel carburetor flange.
What RPM range is this intake designed for?
The dual-plane air-gap design performs best between approximately 1,500 and 6,500 RPM.
Will this intake fit under a stock hood?
The low-profile design helps improve hood clearance, but final clearance depends on carburetor, spacer, air cleaner, and vehicle combination.
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
