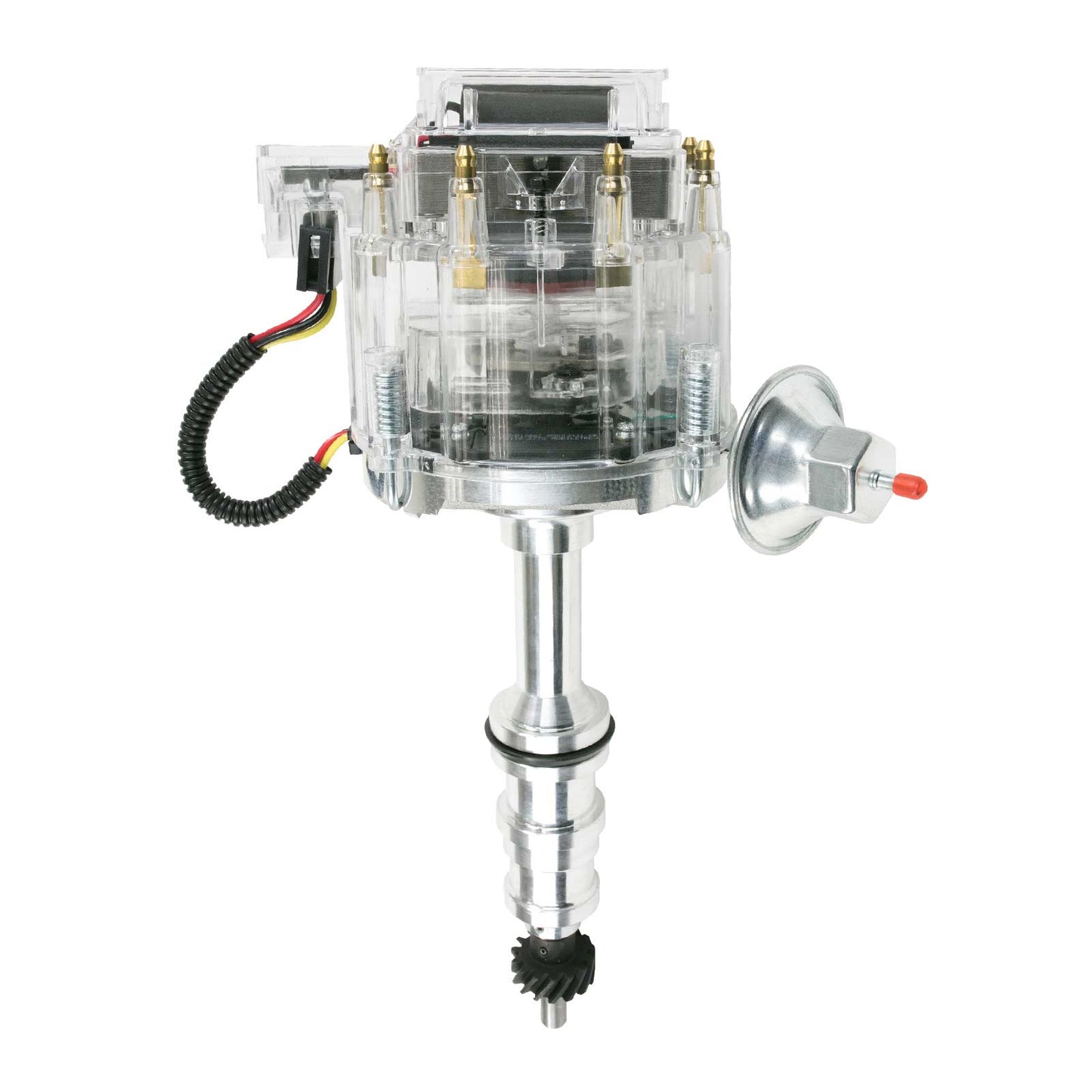

• Top Street Performance Ford FE V8 HEI Distributor - for street and performance builds

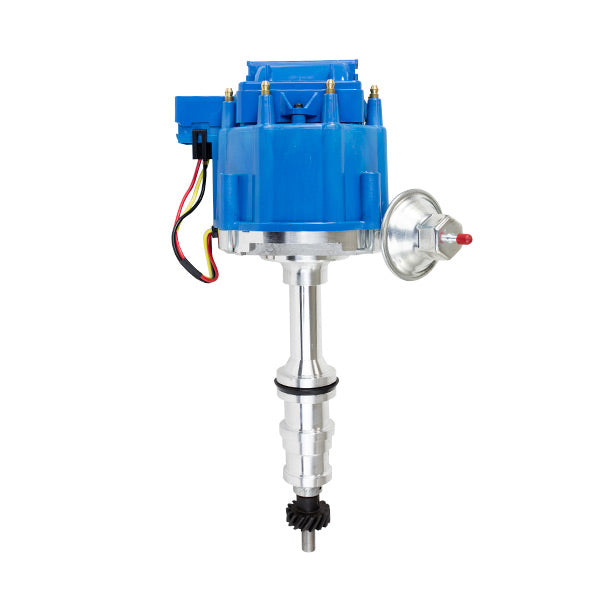

  • Top Street Performance Ford FE V8 HEI Distributor - front view - for street and performance builds

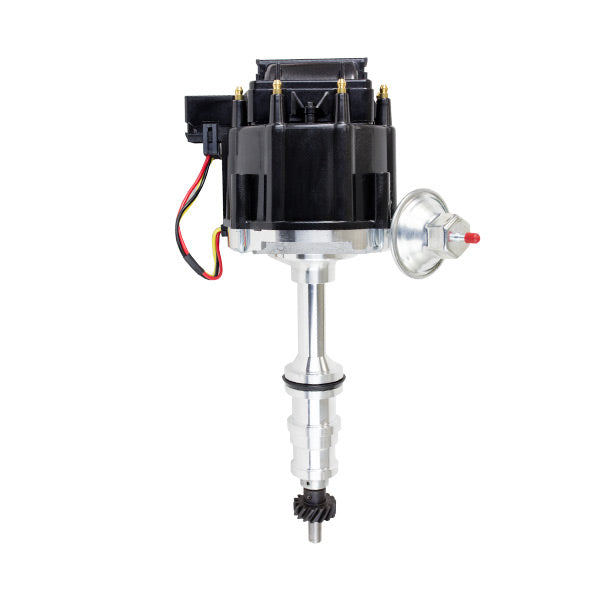

  • Top Street Performance Ford FE V8 HEI Distributor - side view - for street and performance builds
  • Top Street Performance Ford FE V8 HEI Distributor - close-up - for street and performance builds
1 4
Top Street Performance

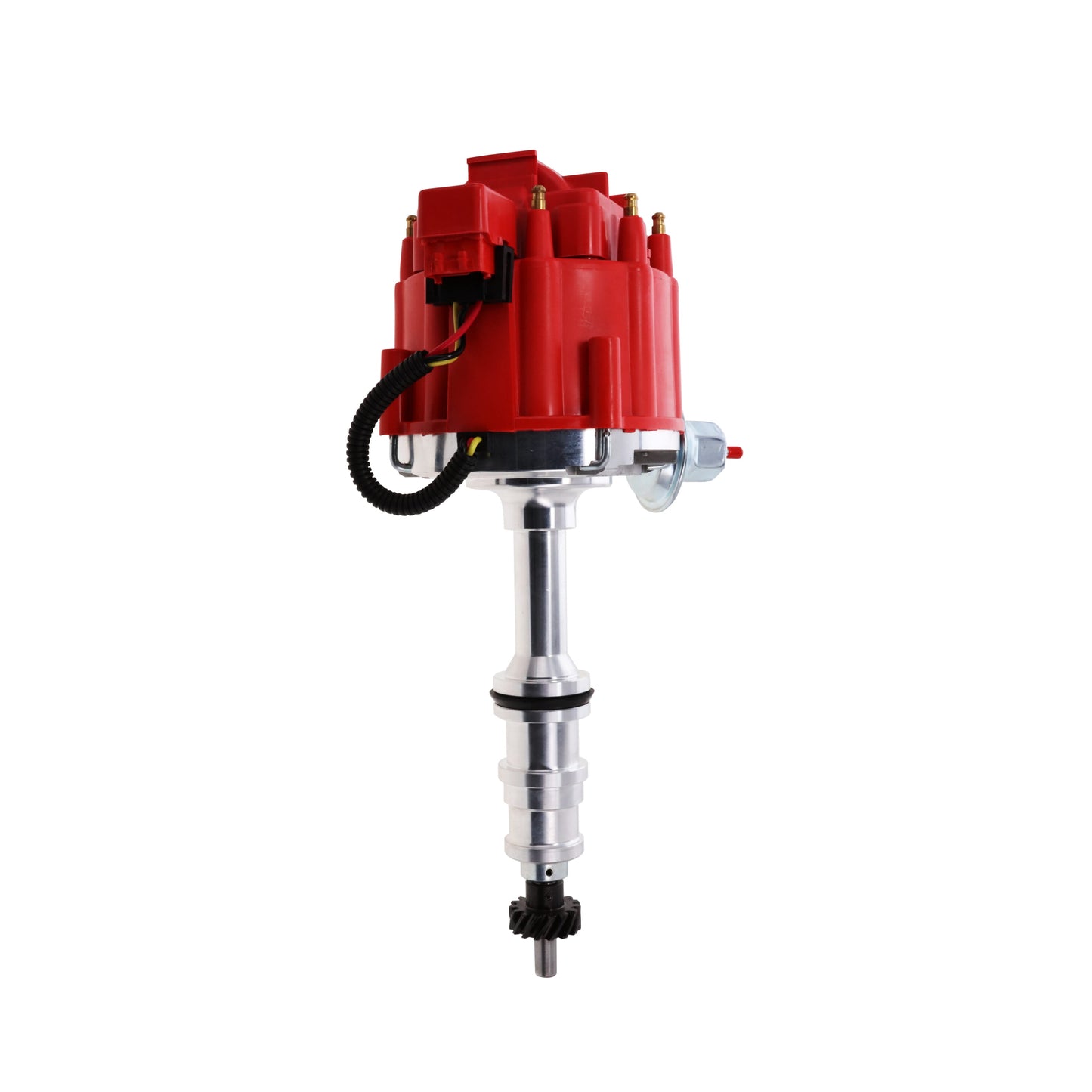

Ford FE V8 HEI Distributor

Ford FE V8 HEI Distributor

SKU: JM6508R

$135.81
$135.81 $154.33
Shipping calculated at checkout.

In stock

Top Street Performance (TSP) is committed to providing high-quality performance parts while complying with emissions regulations. This product is designed for use on vehicles that comply with federal emissions regulations. It is the customer’s responsibility to verify that this part is legal for use in their state or local jurisdiction. Check with your local emissions authority before purchasing.

Product Details

Features

  • Internal 65,000V coil delivers stronger spark for FE big block V8s
  • One-wire hookup — no external coil or ignition box required
  • Direct fit for light-duty FE V8s: 330/352/360/390/406/410/427/428
  • Machined aluminum housing with included vacuum advance tool

Description

Upgrade your Ford FE big block V8 ignition system with this HEI-style distributor, built around a magnetic trigger and a 65,000-volt coil housed directly in the unit — so there's no external coil or ignition box to wire in separately. The one-wire hookup simplifies installation on Galaxie, Fairlane, Mustang, Thunderbird, F-Series, Cougar, and Comet applications running an FE engine.

This distributor is built for standard light-duty FE engines using a 1/4-inch oil pump/distributor shaft and will not fit heavy-duty FE/FT truck applications with a 5/16-inch shaft. The housing is machined aluminum with a steel drive gear, and the mechanical/vacuum advance is tuned for carbureted street and performance driving. This distributor requires a 12-volt electrical system with an alternator; it is not compatible with generator-based charging systems or vehicles still running an active ballast resistor in the ignition circuit — the resistor should be removed or bypassed as part of installation.


What Is an HEI Distributor?
HEI (High Energy Ignition) replaces the external coil and breaker points used in factory FE ignition systems with a magnetic trigger and a high-output coil built directly into the distributor housing. Without points to wear or require periodic gap adjustment, timing holds more consistently, and this single unit replaces both the original distributor and ignition coil.

Performance Benefits
The 65,000-volt internal coil produces stronger spark output than a factory points-style FE distributor, supporting more consistent spark delivery across the RPM range in street and performance applications. The magnetic trigger holds timing accurately without the point wear and drift common to older ignition systems. Mechanical and vacuum advance are both included, with a vacuum advance adjustment tool in the box so the timing curve can be tuned for the specific engine and driving conditions.

Specs

Distributor Type HEI
Engine Platform Ford FE Big Block V8
Trigger Type Magnetic
Rotation Direction Counterclockwise
Advance Type Mechanical and Vacuum
Color Available in Black, Blue, Red, Clear
Terminal Gender Male
Mechanical Tach Drive No
Slip Collar No
Coil Included Yes
Coil Type Internal
Coil Output 65,000 V
Gear Material Steel
Housing Material Machined Aluminum
Ignition Box Required No
Marine Use No
Cylinders 8
Voltage Requirement 12 V electrical system with alternator
Included Vacuum Advance Adjustment Tool
Installation Instructions

Engine Fitment

COMPATIBLE WITH
Ford FE Big Block V8
• 5.4 L / 330 in³ (light-duty)
• 5.8 L / 352 in³
• 5.9 L / 360 in³
• 6.4 L / 390 in³
• 6.7 L / 406 in³
• 6.7 L / 410 in³ (Mercury only)
• 7.0 L / 427 in³
• 7.0 L / 428 in³

NOTES
• Designed for standard light-duty Ford FE passenger car engines using a ¼ in. oil pump/distributor shaft.
• Will not fit heavy-duty FE/FT truck applications with a 5/16 in. shaft.
• The 406 was produced in 1962–1963 only; the 410 was used exclusively in 1966–1967 Mercury vehicles.
• Designed for carbureted applications only.
• This distributor is designed for a 12 volt electrical system with an alternator.
• It is not compatible with a generator and cannot be used with a ballast resistor.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult camshaft manufacturer for recommended gear material before installation.

COMMON VEHICLE APPLICATIONS
Ford Galaxie (352/390/406/427/428, 1958–1971)
Ford Fairlane (390/427/428, 1966–1969)
Ford Torino (390/428, 1968–1971)
Ford Mustang (390/427/428, 1967–1970)
Ford Thunderbird (352/390/428, 1958–1971)
Ford Ranchero (390/428, 1967–1971)
Ford LTD (390/428, 1966–1971)
Ford F-Series (352/360/390, 1965–1976)
Mercury Monterey (352/390/428, 1958–1971)
Mercury Cougar (390/410/427/428, 1967–1970)
Mercury Cyclone (390/427/428, 1966–1969)
Mercury Montego (390/428, 1968–1969)

Q&A

Will this distributor fit my FE big block truck?
It depends on the oil pump/distributor shaft size. This distributor is designed for light-duty Ford FE engines with a 1/4-inch shaft and is not compatible with heavy-duty FE/FT truck engines that use a 5/16-inch shaft.

What direction does the rotor turn on this distributor?
Counterclockwise, matching the standard rotation direction used by the Ford FE big block engine family.

Do I need an external ignition box with this distributor?
No. This HEI distributor features an integrated 65,000-volt ignition coil and internal ignition module, so no external ignition box or separate coil is required. Installation requires only a switched 12-volt power connection.

Does this fit a 427 or 428 Cobra Jet engine?
Yes. This distributor fits Ford FE 427 and 428 CID engines, provided they use the standard light-duty 1/4-inch oil pump/distributor shaft. It is not compatible with heavy-duty FE/FT applications using a 5/16-inch shaft.

Can I run this on a generator-equipped or ballast resistor ignition system?
No. This distributor requires a 12-volt electrical system with a charging alternator. It is not compatible with generator-equipped vehicles or ballast resistor ignition circuits.

What type of advance system does this distributor use?
This distributor uses both mechanical (centrifugal) advance and vacuum advance. A vacuum advance adjustment tool is included, allowing you to fine-tune the ignition timing curve for your specific application.

Emissions Notice

This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.

What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
