Ford 5.0L Coyote Hydraulic Power Steering Kit - Black

• Billet bracket mounts GM Type 2 (Saginaw TC) pump + Sanden SD7-style A/C compressor

• Fits Ford Coyote 5.0L swap engines in classic Ford chassis conversions

• Press-fit pulley attachment, idler pulley and mounting hardware included

• Reservoir, belt, and second factory water pump pulley required, sold separately

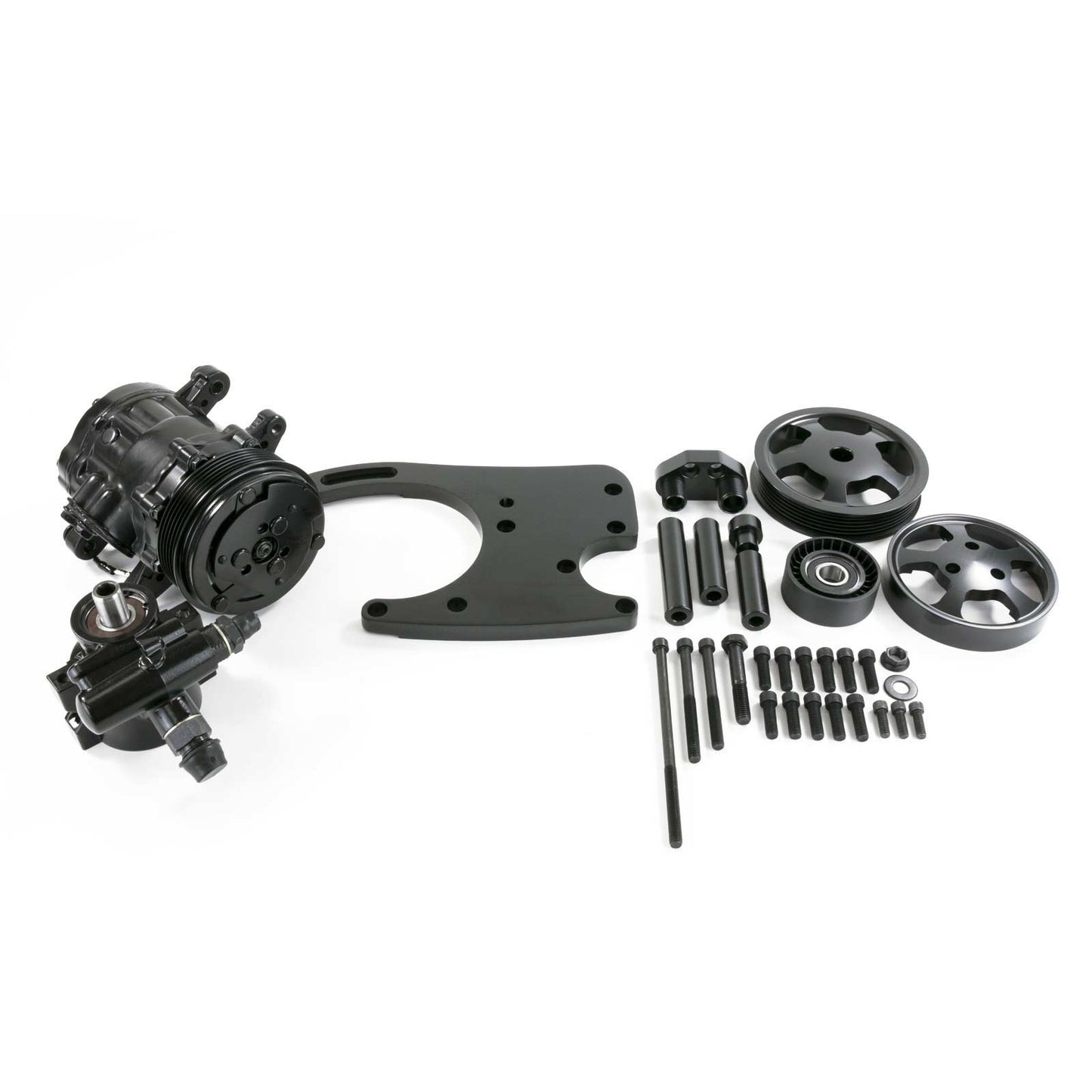

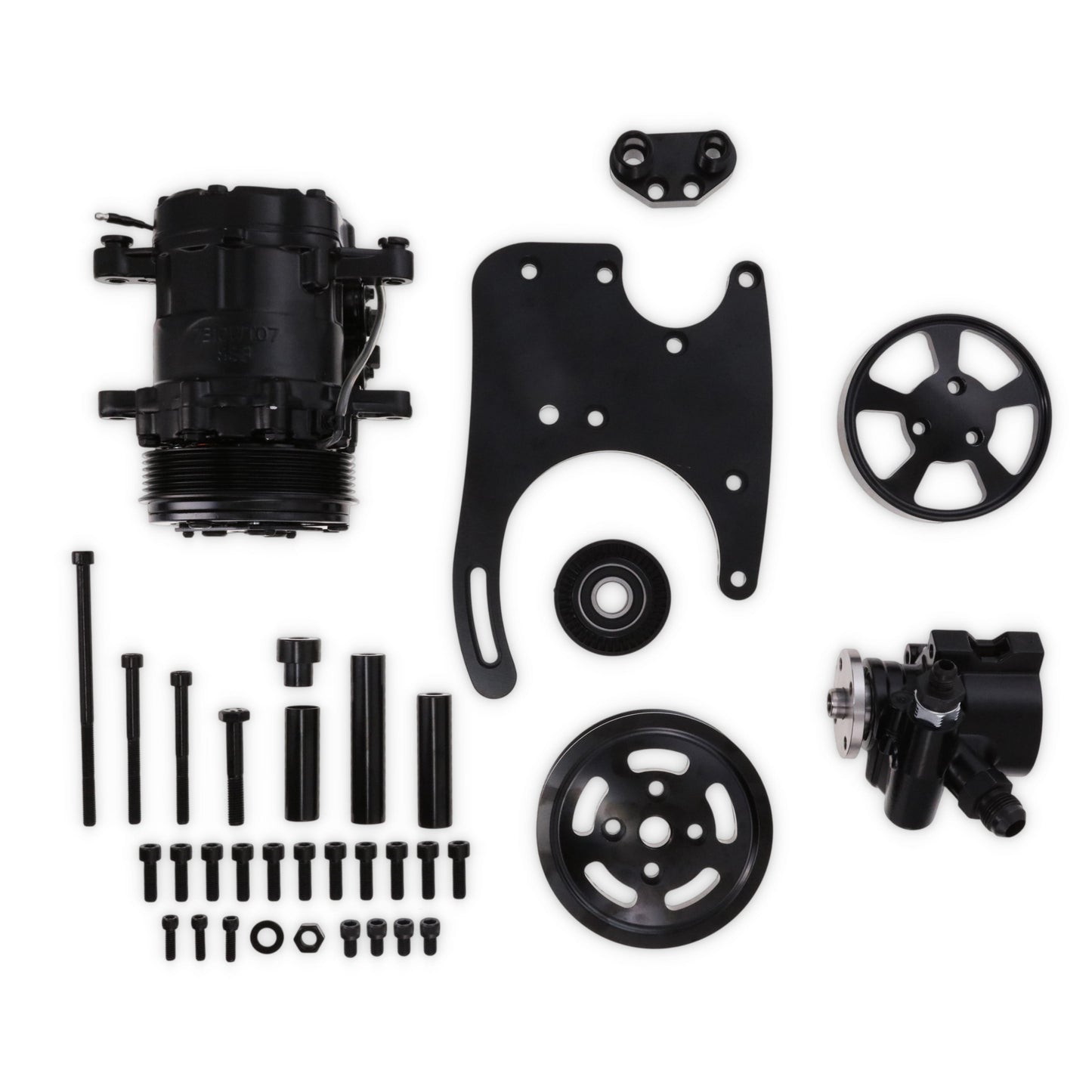

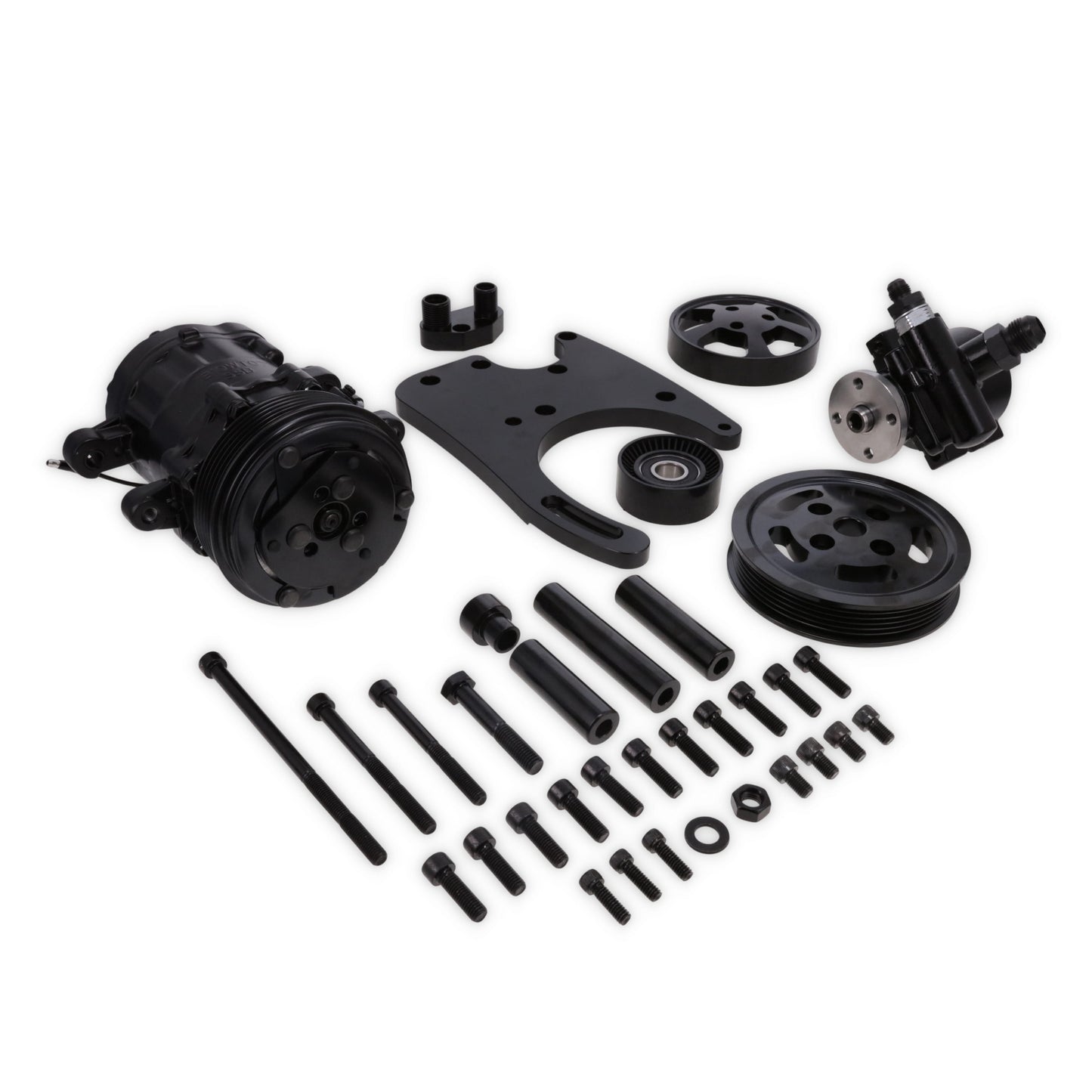

TSP's hydraulic power steering and A/C conversion kit is built for Ford Coyote 5.0L swaps, giving you a complete bracket setup for both power steering and air conditioning in one kit. It's built around the GM Type 2 (Saginaw TC-series) power steering pump — a common, proven choice for engine swaps — paired with a Sanden SD7-style A/C compressor, pre-oiled for straightforward installation.

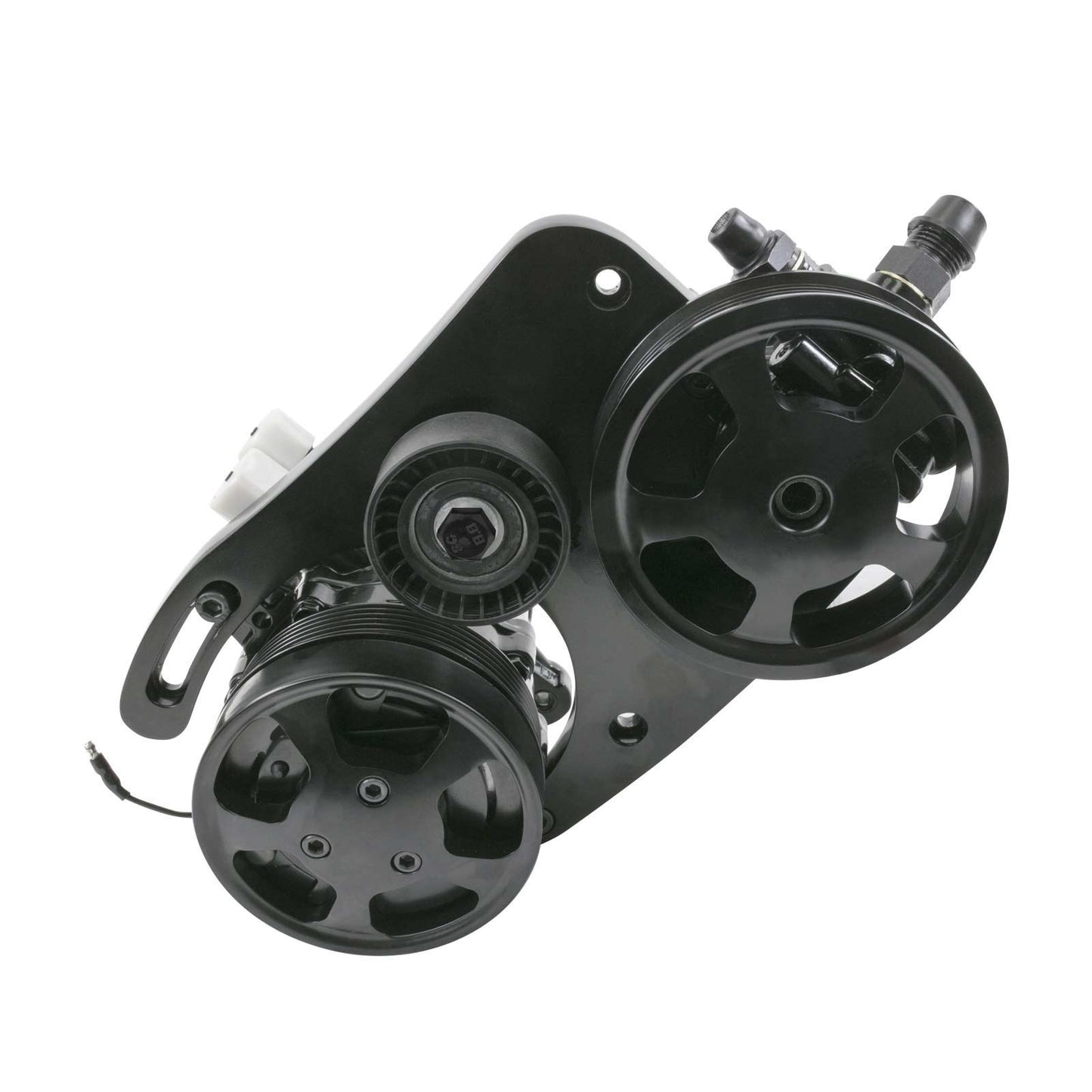

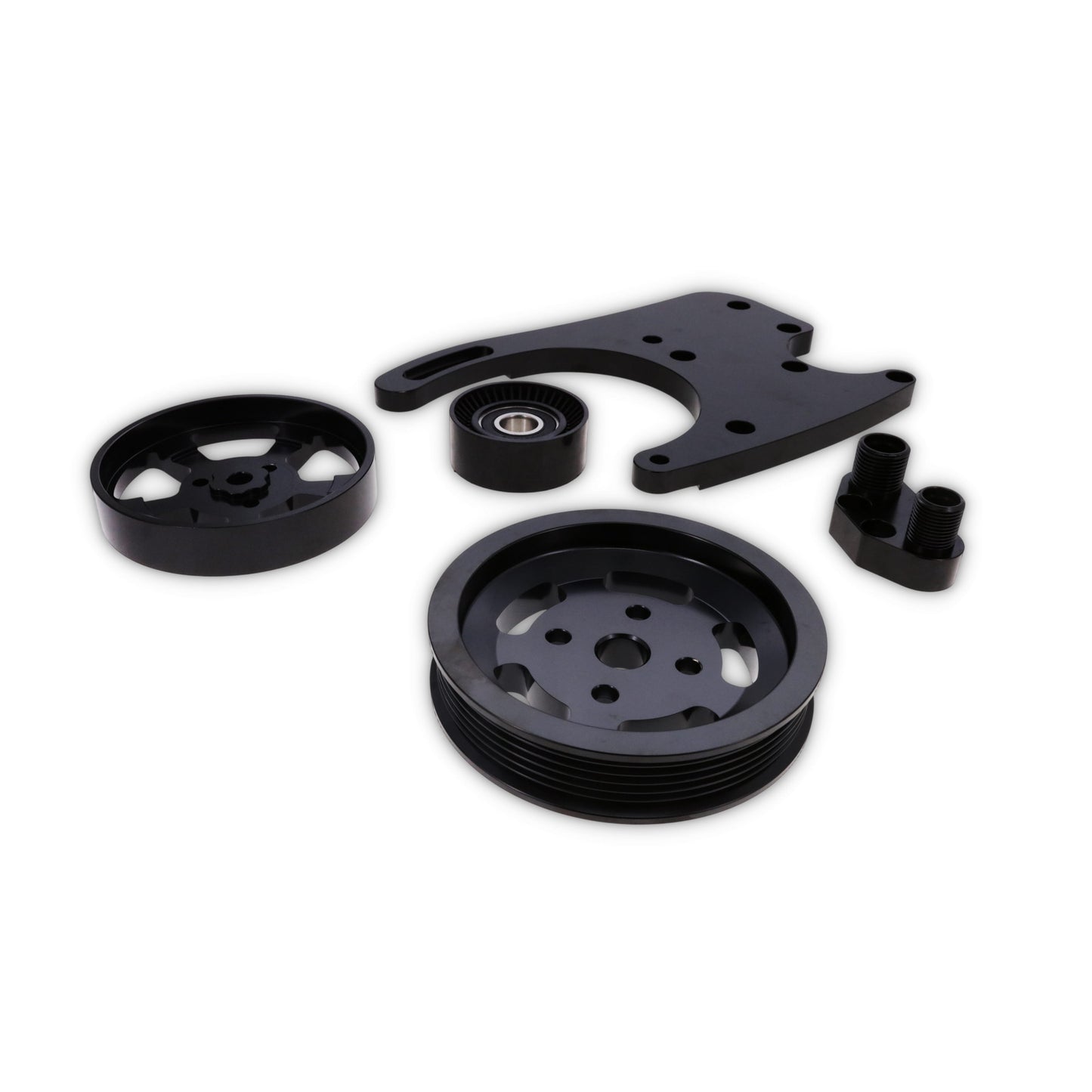

The billet aluminum bracket mounts both components on the lower passenger side, along with billet aluminum pulleys, an idler pulley, and all necessary mounting hardware. This kit requires a second factory water pump pulley, which is not included.

This kit does not include a remote power steering reservoir or accessory belt — both must be sourced separately. If you need a remote reservoir, confirm your pump's inlet/outlet fitting sizes before selecting one.

Applications
Fits Ford Modular V8 5.0L "Coyote" engines swapped into classic Ford chassis, including Mustang (1965–1973), Bronco (1966–1977), and F-100 platforms, along with Torino, Fairlane, and Ranchero swap builds.

Installation
Mounts the GM Type 2 power steering pump and Sanden SD7-style A/C compressor to a shared billet aluminum bracket on the lower passenger side, using press-fit pulleys, an idler pulley, and included hardware. Requires a second factory water pump pulley, which is not included. Confirm belt alignment, pressure fitting style, pulley offset, and reservoir clearance before final installation.

Does this kit include the A/C compressor, or just power steering?
This kit includes both a GM Type II (Saginaw TC-series) power steering pump and a Sanden SD7-style air conditioning compressor, mounted on a shared billet aluminum bracket.

Does this kit include a reservoir?
No. A remote power steering reservoir is required for installation but is not included. Be sure to select a reservoir with fittings compatible with the included GM Type II power steering pump.

Does this kit include a belt?
No. The accessory drive belt is not included and must be selected separately based on your engine and accessory drive configuration.

What else do I need that's not included in this kit?
In addition to the components included in the kit, you will need a second factory water pump pulley, a remote power steering reservoir, and the appropriate accessory belt to complete the installation.

What power steering pump does this kit use?

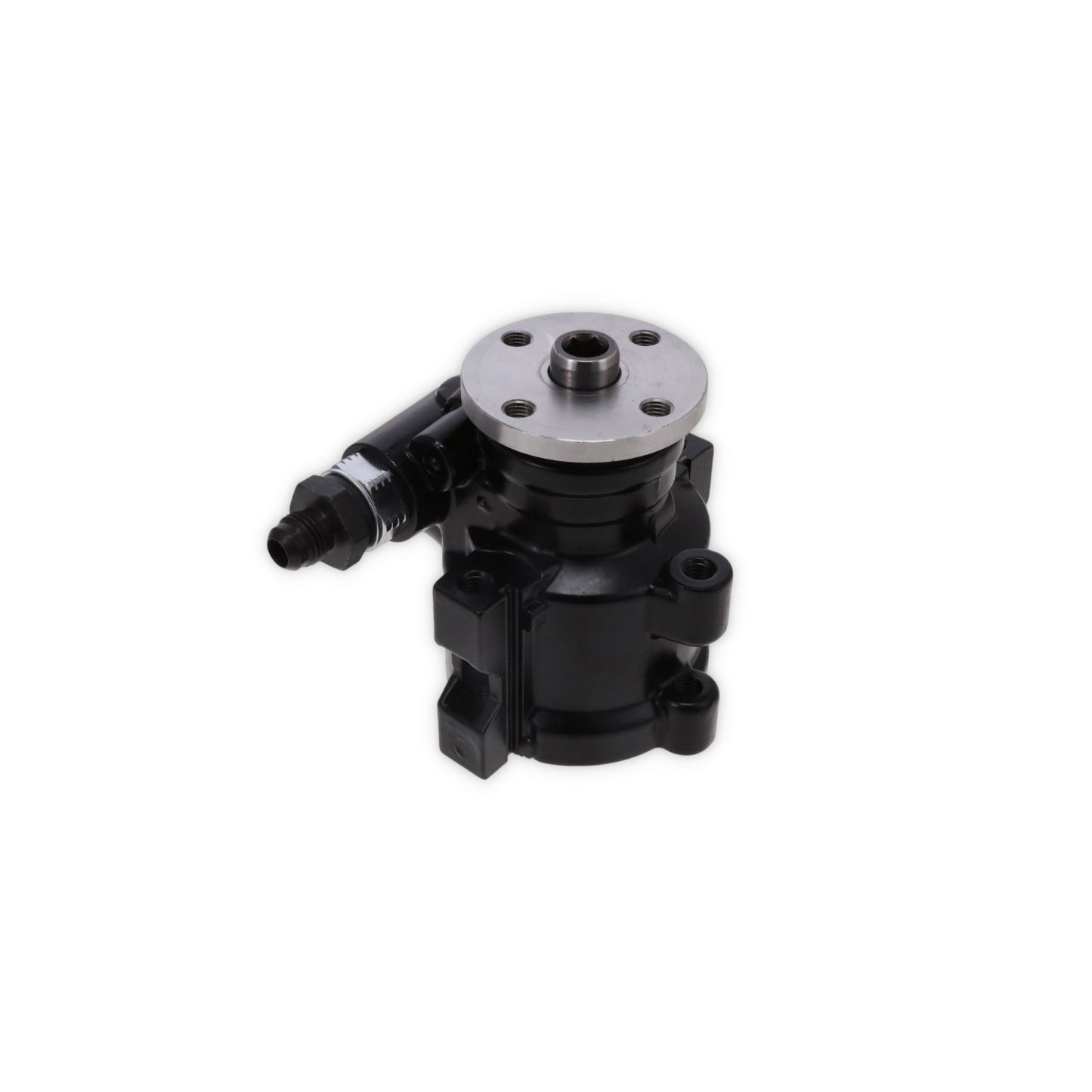

This kit includes a GM Type II (Saginaw TC-series) power steering pump, a compact, lightweight design commonly used in performance applications and engine swap projects.

Is the A/C compressor ready to install, or does it need servicing first?

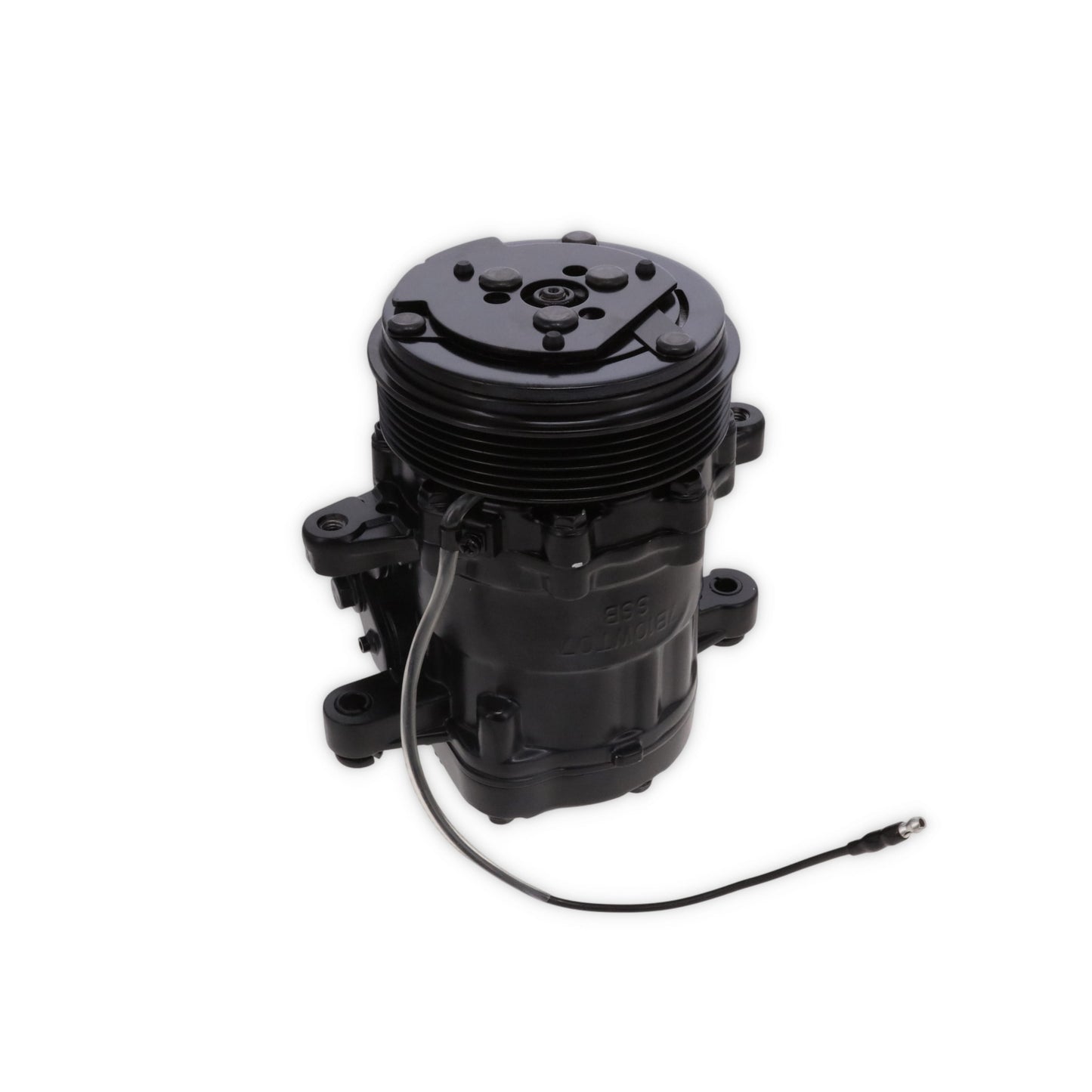

The included Sanden SD7-style A/C compressor comes pre-oiled and is ready for installation. Always verify the correct oil type and quantity for your vehicle's air conditioning system before charging the system.
