Fittings for EFI Inline Fuel Pump
Fittings for EFI Inline Fuel Pump
SKU: SKU: JM1040BK-2
In stock
Product Details
Features
- 6-piece AN fitting set connects an EFI inline fuel pump to fuel line
- Includes -8 AN, -10 AN & -6 AN sizes for feed/return line flexibility
- Push-lock hose barb fittings at 45° and straight angles for clean routing
- Ideal pairing for TSP's electric inline EFI fuel pump (JM1040BK)
Description
This EFI inline fuel pump fitting set provides the connector hardware needed to route AN fuel line plumbing at a compatible inline electric fuel pump. The fittings support cleaner fuel feed or return line installation during EFI conversions and performance fuel system service.

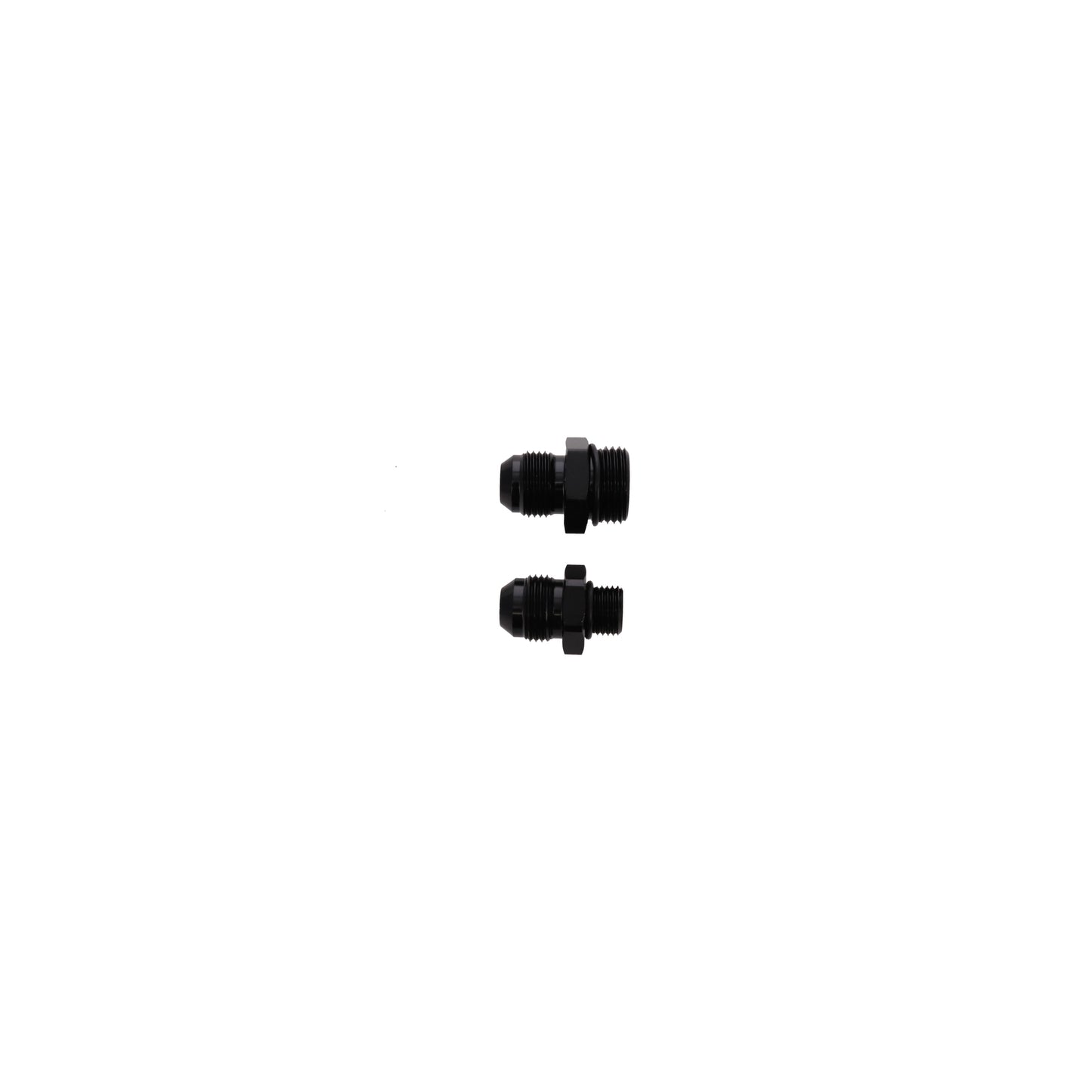

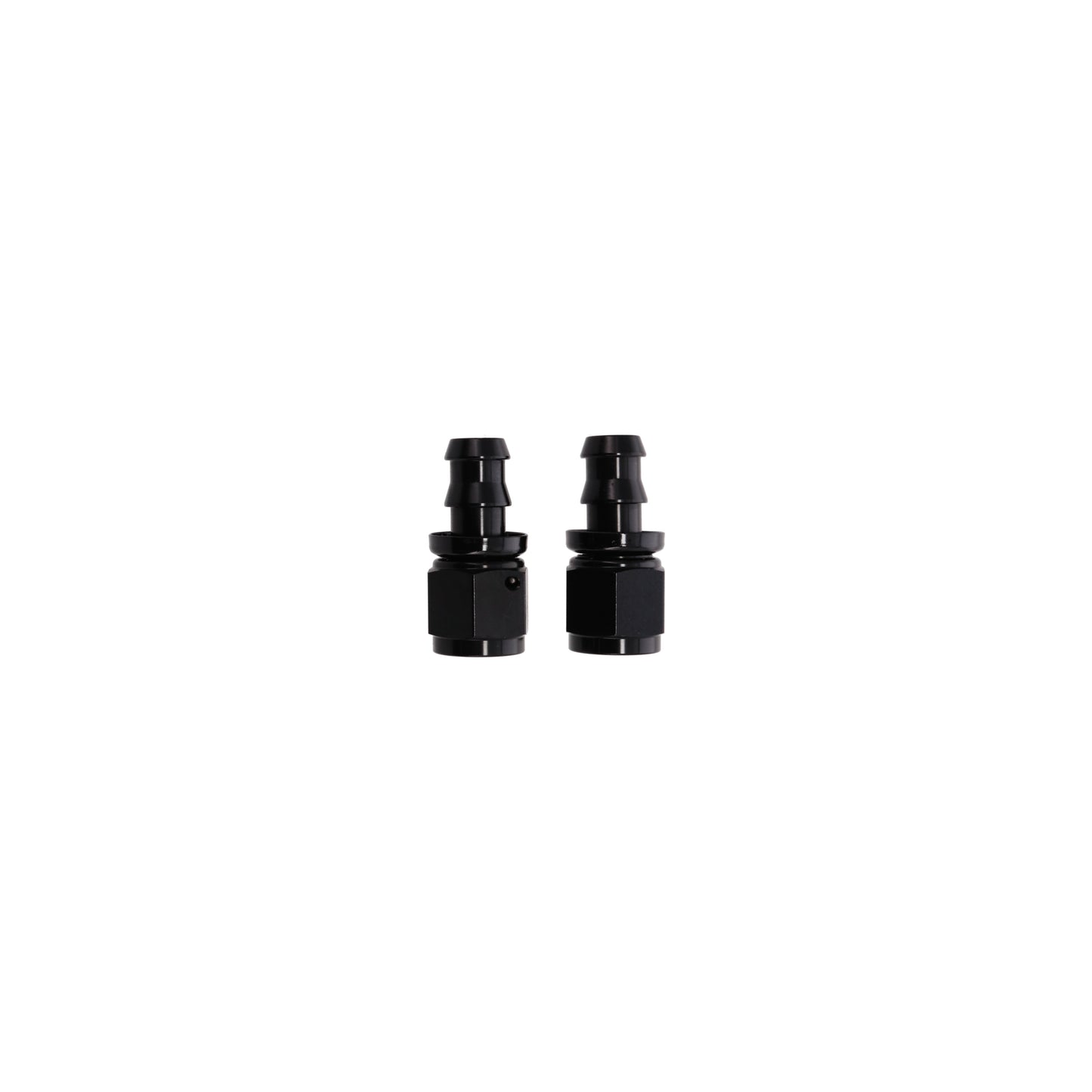

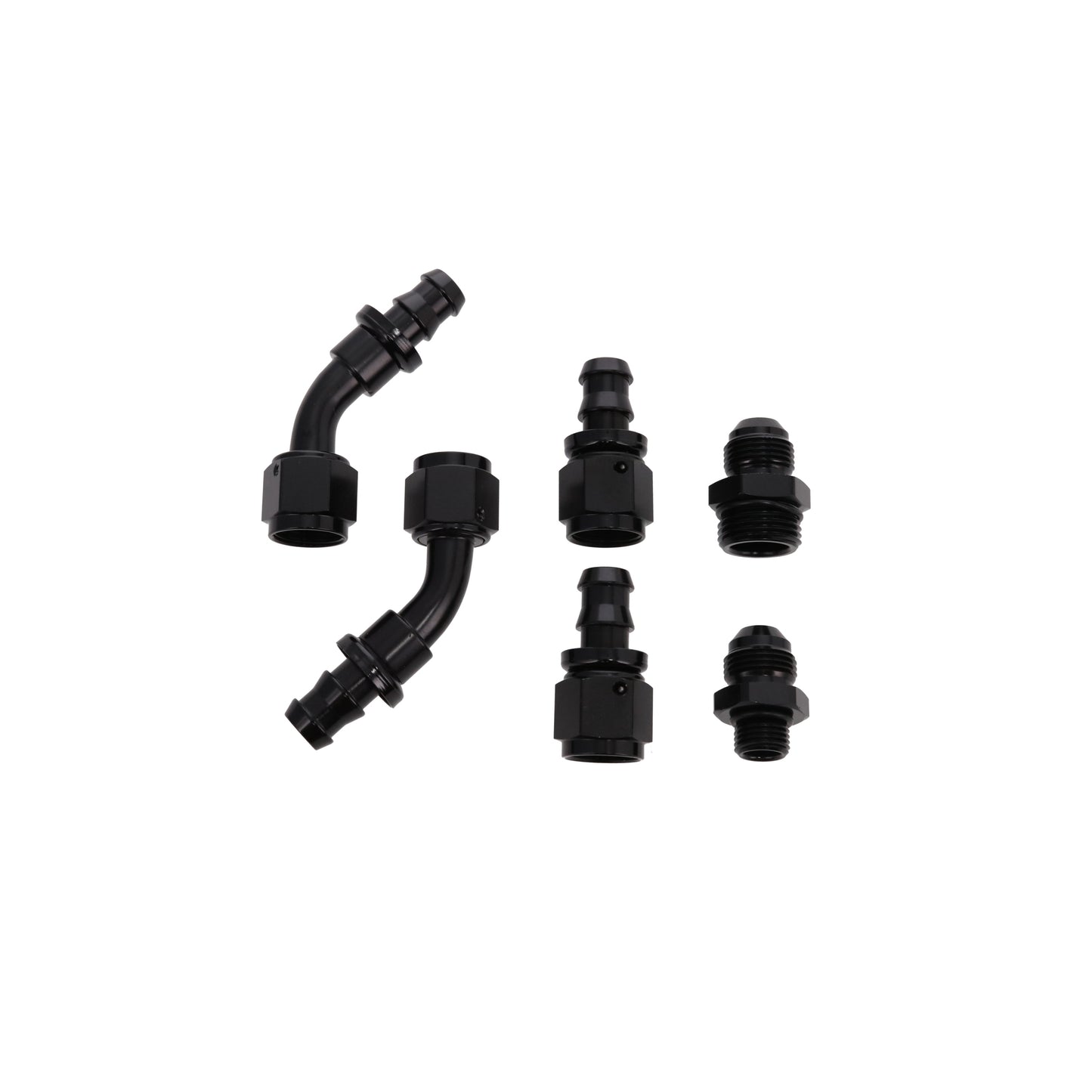

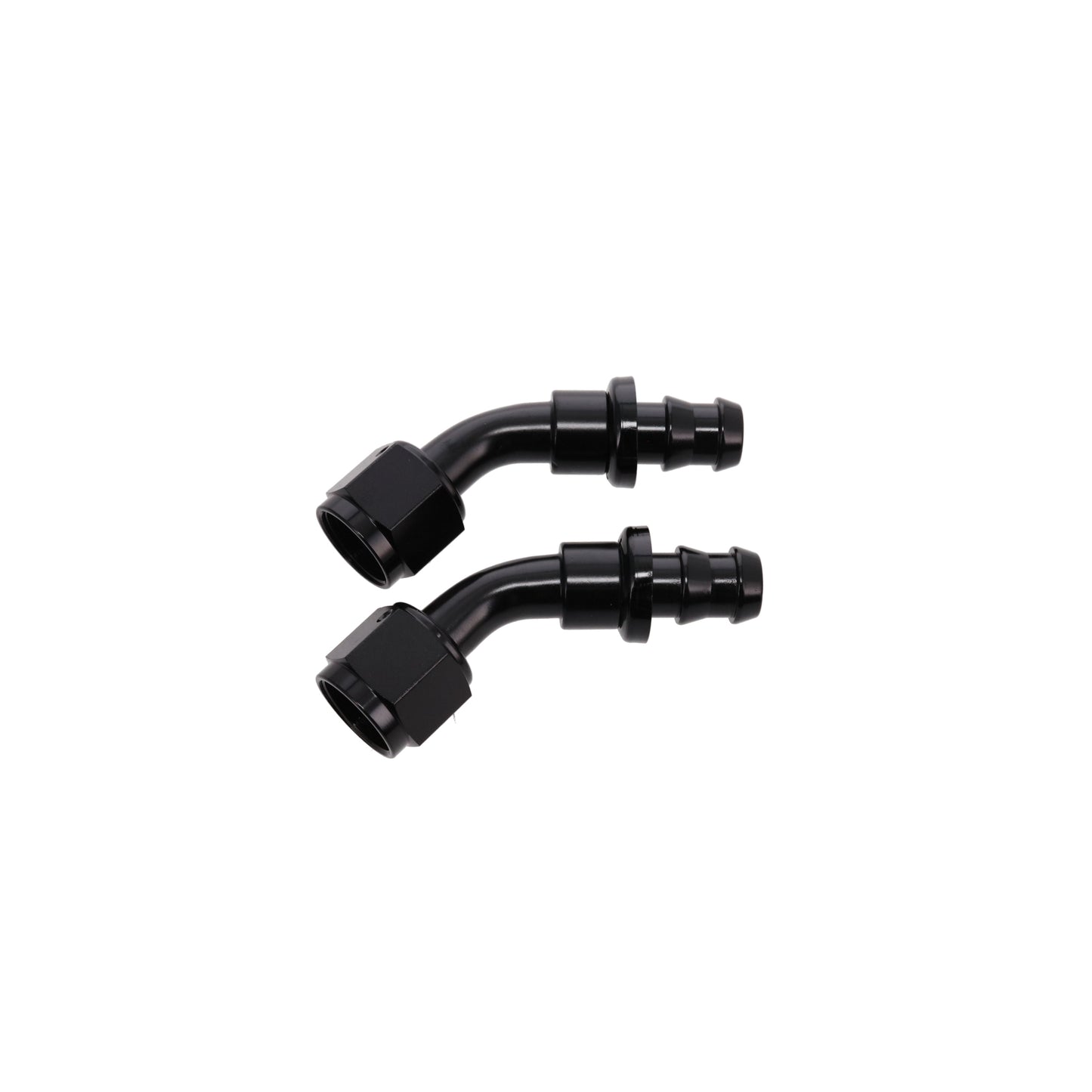

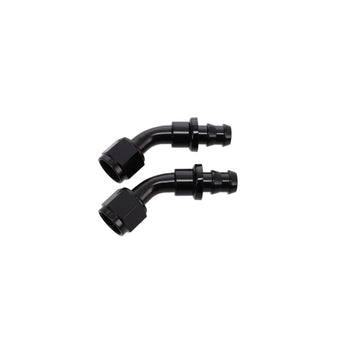

The set includes six aluminum fittings: two -8 AN to hose barb at 45°, two -8 AN to hose barb straight (both push-lock style), one -8 AN to -10 AN straight, and one -8 AN to -6 AN straight — covering common size transitions for feed and return line plumbing. Use the set when installing, replacing, or replumbing an inline EFI fuel pump. Confirm pump inlet and outlet sizes, AN hose size, fuel type, sealing method, and line routing before installation. This set is ideal for use with TSP's electric inline EFI fuel pump (JM1040BK).
Applications
Universal fit for AN fuel line plumbing at a compatible inline electric fuel pump. Ideal for use with TSP's electric inline EFI fuel pump (JM1040BK). Common for EFI conversion projects, fuel system upgrades and replumbing, and custom fuel feed/return line builds.
Installation
Confirm pump inlet and outlet sizes, AN hose size, fuel type, sealing method, and line routing before installation.
Specs
| Color | Black |
| Fitting 1 Angle | 45° |
| Fitting 1 End 1 | -8 AN |
| Fitting 1 End 2 | Hose Barb |
| Fitting 1 Quantity | 2 |
| Fitting 1 Type | Push Lock AN |
| Fitting 2 Angle | Straight |
| Fitting 2 End 1 | -8 AN |
| Fitting 2 End 2 | Hose Barb |
| Fitting 2 Quantity | 2 |
| Fitting 2 Type | Push Lock |
| Fitting 3 Angle | Straight |
| Fitting 3 End 1 | -8 AN |
| Fitting 3 End 2 | -10 AN |
| Fitting 4 Angle | Straight |
| Fitting 4 End 1 | -8 AN |
| Fitting 4 End 2 | -6 AN |
| Material | Aluminum |
Engine Fitment
COMPATIBLE WITH
UNIVERSAL
NOTE: Ideal for use with TSP's electric inline EFI fuel pump (JM1040BK).
NOTES
Verify pump inlet and outlet sizes, AN hose size, fuel type, sealing method, and line routing before installation.
COMMON VEHICLE APPLICATIONS
EFI conversion projects
Fuel system upgrades and replumbing
Custom fuel feed/return line builds
Q&A
What fittings are included in this set?
Six aluminum fittings: two -8 AN to hose barb at 45°, two -8 AN to hose barb straight (push-lock style), one -8 AN to -10 AN straight, and one -8 AN to -6 AN straight.
What pump is this fitting set designed for?
It's ideal for use with TSP's electric inline EFI fuel pump (JM1040BK), though it's a universal AN fitting set that can work with other compatible inline pumps.
What AN sizes does this set cover?
-6 AN, -8 AN, and -10 AN, across the six included fittings.
Are these push-lock or standard AN fittings?
The hose barb fittings (45° and straight) are push-lock style. The -8 to -10 AN and -8 to -6 AN fittings are standard AN-to-AN adapters.
What's this fitting set made of?
Aluminum, with a black finish.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
Fittings for EFI Inline Fuel Pump
This EFI inline fuel pump fitting set provides the connector hardware needed to route AN fuel line plumbing at a compatible inline electric fuel pump. The fittings support cleaner fuel feed or return line installation during EFI conversions and performance fuel system service.
The set includes six aluminum fittings: two -8 AN to hose barb at 45°, two -8 AN to hose barb straight (both push-lock style), one -8 AN to -10 AN straight, and one -8 AN to -6 AN straight — covering common size transitions for feed and return line plumbing. Use the set when installing, replacing, or replumbing an inline EFI fuel pump. Confirm pump inlet and outlet sizes, AN hose size, fuel type, sealing method, and line routing before installation. This set is ideal for use with TSP's electric inline EFI fuel pump (JM1040BK).
Applications
Universal fit for AN fuel line plumbing at a compatible inline electric fuel pump. Ideal for use with TSP's electric inline EFI fuel pump (JM1040BK). Common for EFI conversion projects, fuel system upgrades and replumbing, and custom fuel feed/return line builds.
Installation
Confirm pump inlet and outlet sizes, AN hose size, fuel type, sealing method, and line routing before installation.
COMPATIBLE WITH
UNIVERSAL
NOTE: Ideal for use with TSP's electric inline EFI fuel pump (JM1040BK).
NOTES
Verify pump inlet and outlet sizes, AN hose size, fuel type, sealing method, and line routing before installation.
COMMON VEHICLE APPLICATIONS
EFI conversion projects
Fuel system upgrades and replumbing
Custom fuel feed/return line builds
SPECIFICATIONS
Color: Black
Fitting 1 Angle: 45°
Fitting 1 End 1: -8 AN
Fitting 1 End 2: Hose Barb
Fitting 1 Quantity: 2
Fitting 1 Type: Push Lock AN
Fitting 2 Angle: Straight
Fitting 2 End 1: -8 AN
Fitting 2 End 2: Hose Barb
Fitting 2 Quantity: 2
Fitting 2 Type: Push Lock
Fitting 3 Angle: Straight
Fitting 3 End 1: -8 AN
Fitting 3 End 2: -10 AN
Fitting 4 Angle: Straight
Fitting 4 End 1: -8 AN
Fitting 4 End 2: -6 AN
Material: Aluminum
