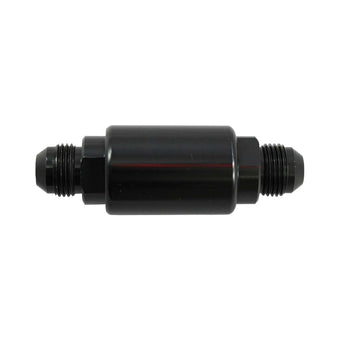

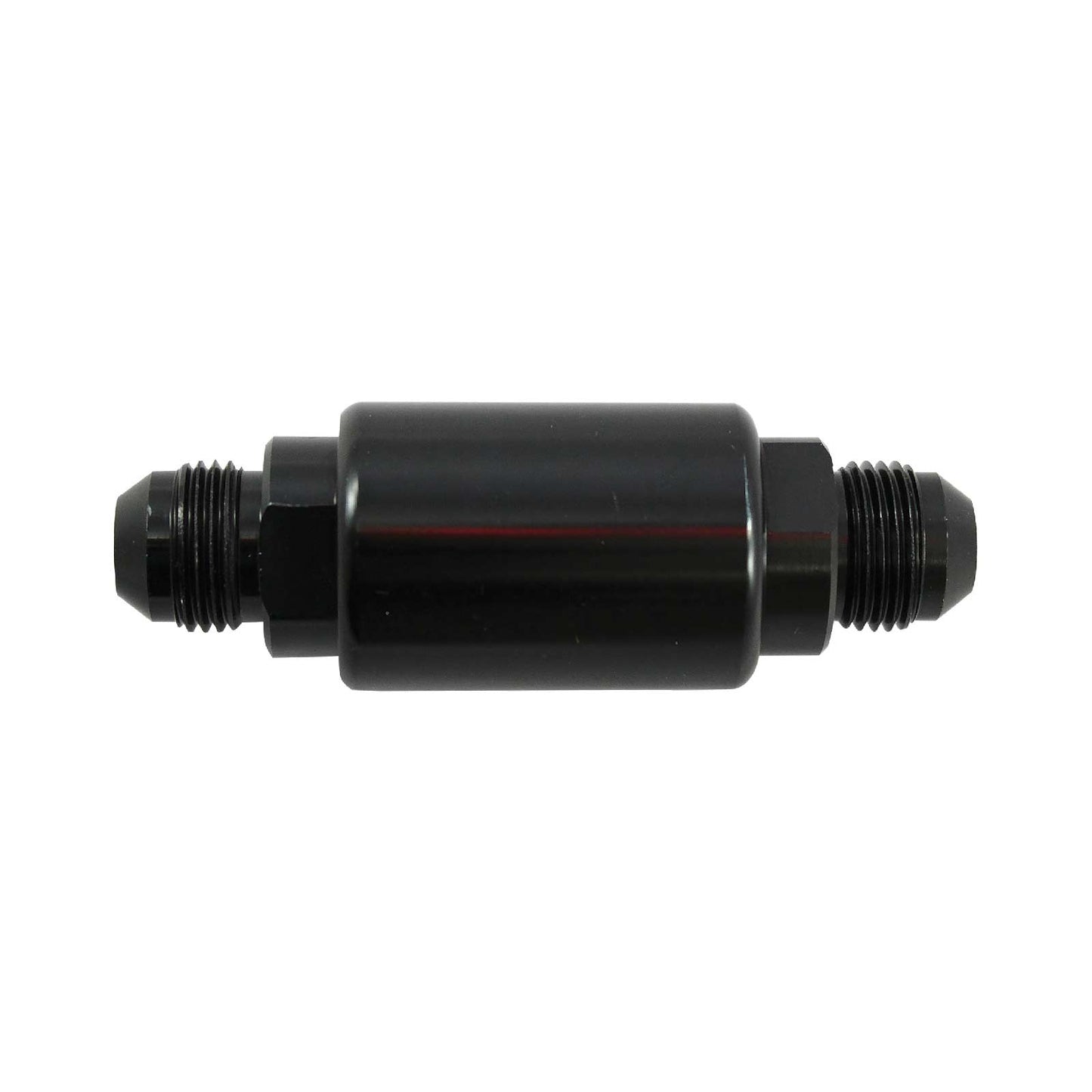

6 AN 40 Micron Aluminum Fuel Filter
6 AN 40 Micron Aluminum Fuel Filter
SKU: SKU: SP9275
Low stock
Product Details
Features
- 40 Microns filtration with stainless steel mesh helps protect downstream fuel-system components.
- Aluminum body construction with black finish supports corrosion resistance and clean service access.
- -6 An inlet and -6 An outlet thread configuration should be matched to hose ends and fuel-line layout.
- verify micron rating, fuel type, and mounting clearance before installation.
Description
Built for dependable fuel filtration, this component supports clean fuel flow, fuel-system serviceability, and installation flexibility in properly matched applications.
Fuel Filtration & Flow Performance
The 40-microns filtration rating helps capture particles before they reach the pump, carburetor, regulator, or EFI components. Match filtration level to the pump location and fuel-system requirements before installation.
Construction & Fuel-System Durability
The aluminum body uses a black finish with stainless steel mesh filtration media to support durability, corrosion resistance, and service access in the engine bay or chassis-mounted locations.
Sizing, Ports & Installation Details
Connection details include -6 An inlet threads and -6 An outlet threads with fittings listed as Not Included .
System Matching & Serviceability
Confirm fuel type, micron rating, hose ends, mounting clearance, and service access before final assembly.
Specs
| Filter Type | Inline |
| Inlet Size | -6 An |
| Inlet Attachment | Male |
| Outlet Size | -6 An |
| Outlet Attachment | Male |
| Smallest Particle Filtered | 40 Microns |
| Element Material | Stainless Steel Mesh |
| Housing Material | Aluminum |
| Housing Finish | Black |
| Housing Length | 3" |
| Housing Diameter | 1 1/8" |
| Clamps | Not Included |
| Mount | Not Included |
| Fittings | Not Included |
Engine Fitment
COMPATIBLE WITH
UNIVERSAL
COMMON VEHICLE APPLICATIONS
Street performance applications
Restoration projects
Custom fuel-system builds
Q&A
What are the inlet and outlet sizes?
This filter uses -6 AN male inlet and -6 AN male outlet connections.
What is this filter's micron rating?
40 microns, using a stainless steel mesh filter element.
Are AN fittings, clamps, or a mount included?
No — fittings, clamps, and mounting hardware are not included. You'll need compatible -6 AN connections and a suitable mounting solution separately.
Is this filter serviceable/cleanable?
Stainless steel mesh elements are generally cleanable and reusable. Confirm the manufacturer's recommended cleaning procedure and service interval for this specific filter.
What are the housing dimensions?
The housing measures 3 inches long and 1⅛ inches in diameter.
Where should this filter be installed — before or after the fuel pump?
The current specifications do not identify this filter as pre-pump or post-pump. Confirm the recommended installation location with the manufacturer before installing it.
Is this compatible with E85 or alcohol-based fuels?
Fuel compatibility is not specified for this filter. Confirm with the manufacturer before using it with E85 or other alcohol-blended fuels.
Is this filter compatible with EFI systems, or carbureted only?
The maximum operating pressure is not specified. Confirm the filter's pressure rating with the manufacturer before using it in a high-pressure EFI fuel system.
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
6 AN 40 Micron Aluminum Fuel Filter
Built for dependable fuel filtration, this component supports clean fuel flow, fuel-system serviceability, and installation flexibility in properly matched applications.
Fuel Filtration & Flow Performance
The 40-micron filtration rating helps capture particles before they reach the pump, carburetor, regulator, or EFI components. Match filtration level to the pump location and fuel-system requirements before installation.
Construction & Fuel-System Durability
The aluminum body uses a black finish with stainless steel mesh filtration media to support durability, corrosion resistance, and service access in the engine bay or chassis-mounted locations.
Sizing, Ports & Installation Details
Connection details include -6 An inlet threads and -6 An outlet threads with fittings listed as Not Included .
System Matching & Serviceability
Confirm fuel type, micron rating, hose ends, mounting clearance, and service access before final assembly.
COMPATIBLE WITH
UNIVERSAL
COMMON VEHICLE APPLICATIONS
Street performance applications
Restoration projects
Custom fuel-system builds
SPECIFICATIONS
Filter Type: Inline
Inlet Size: -6 An
Inlet Attachment: Male
Outlet Size: -6 An
Outlet Attachment: Male
Smallest Particle Filtered: 40 Microns
Element Material: Stainless Steel Mesh
Housing Material: Aluminum
Housing Finish: Black
Housing Length: 3"
Housing Diameter: 1 1/8"
Clamps: Not Included
Mount: Not Included
Fittings: Not Included
