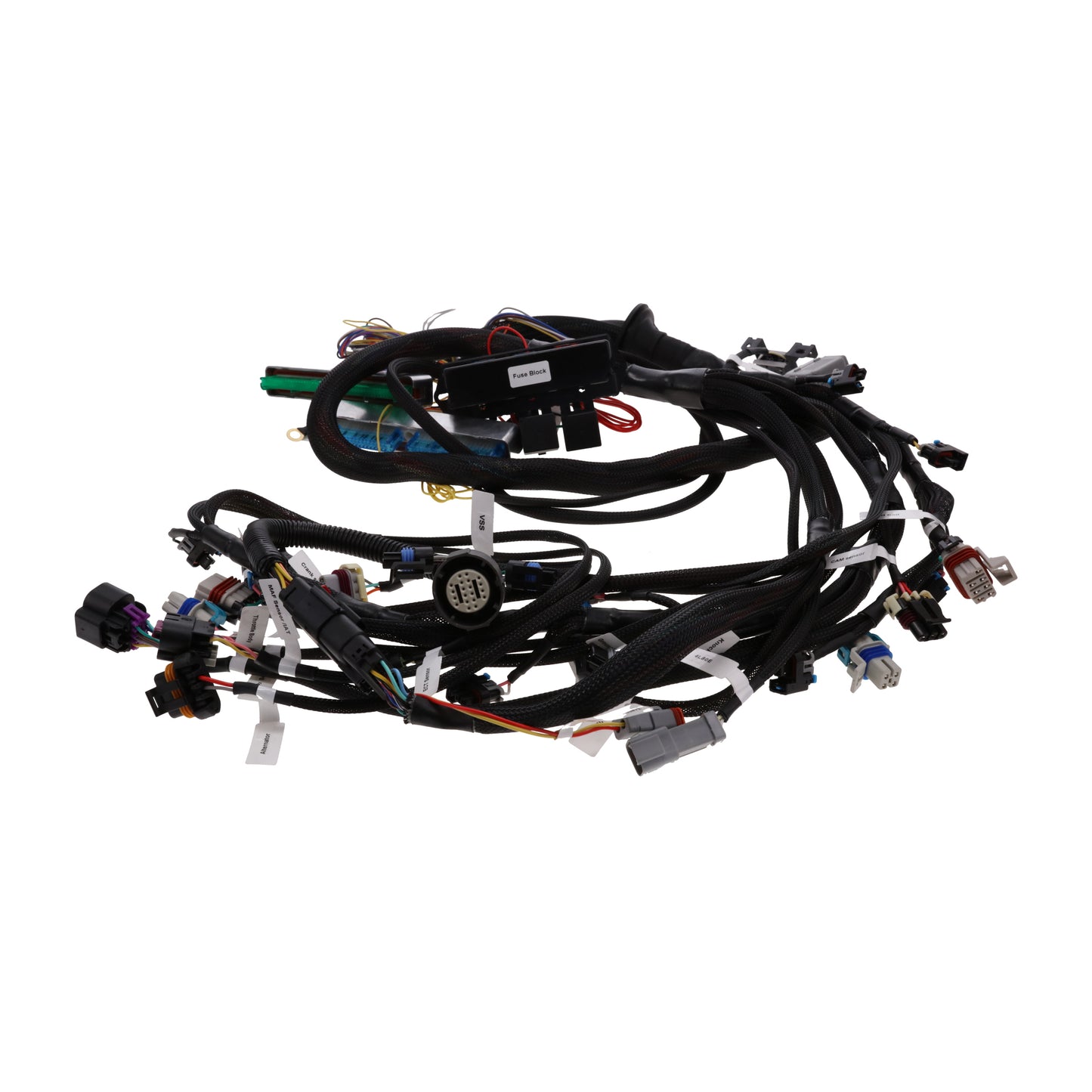

• Top Street Performance 03-07 GM LS Truck EV6 Injector Drive-by-Wire Engine and 4L80E Transmission Wiring Harness

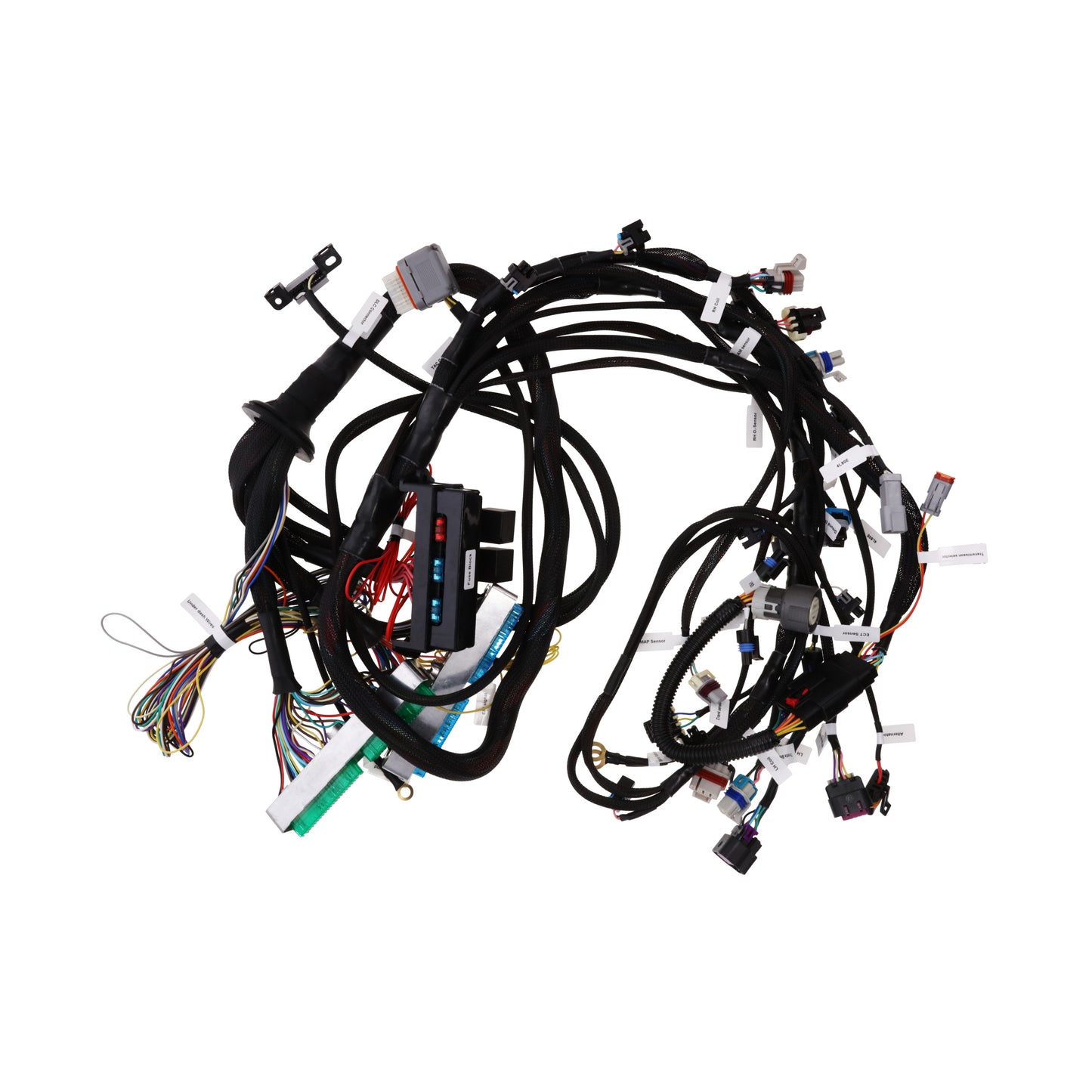

  • Top Street Performance 03-07 GM LS Truck EV6 Injector Drive-by-Wire Engine and 4L80E Transmission Wiring Harness - front view
1 2
Top Street Performance

03-07 GM LS Truck EV6 Injector Drive-by-Wire Engine and 4L60E 13-Pin Transmission Wiring Harness

03-07 GM LS Truck EV6 Injector Drive-by-Wire Engine and 4L60E 13-Pin Transmission Wiring Harness

SKU: WH1212

$488.88
$488.88 $555.55
Shipping calculated at checkout.

In stock

Top Street Performance (TSP) is committed to providing high-quality performance parts while complying with emissions regulations. This product is designed for use on vehicles that comply with federal emissions regulations. It is the customer’s responsibility to verify that this part is legal for use in their state or local jurisdiction. Check with your local emissions authority before purchasing.

Product Details

Features

  • Standalone DBW engine harness for 03–07 GM LS trucks + 96–04 4L60E 13-pin trans
  • Uses EV6-style injector connectors; includes fuse/relay box, sensor wiring
  • Requires a separate PCM/ECM matched to your engine code and TAC module
  • Confirm TAC module, pedal style, and 13-pin transmission connector before ordering

Description

03-07 GM LS Truck EV6 Injector Drive-by-Wire Engine and 4L60E 13-Pin Transmission Wiring Harness

This 03-07 GM LS Truck EV6 Injector Drive-by-Wire Engine and 4L60E 13-Pin Transmission Wiring Harness is built for standalone Drive-by-Wire engine management with 4L60E automatic transmission. The harness integrates the fuse/relay box, sensor connectors, engine control wiring, fuel pump control, fan control, OBD2 connection, and supporting outputs needed for a clean LS/LT engine control installation.

Use this harness when the engine code, throttle type, transmission connector, ECU strategy, and sensor layout match the compatibility section. The Multitec Injector injector plug style should be matched to the engine and injector set. Confirm transmission pin count, pedal and throttle body requirements, oxygen sensor layout, MAP/MAF connections, and power/ground routing before installation.

Specs

Throttle Drive-by-Wire
Injector Plug Style EV6
Harness Length Standard
Fuse Block Included
Quantity Sold as a Kit
Included Fuse/Relay Box
Fuel Pump Control
Fan Controls
Check Engine Light
Speedometer
Tachometer
OBD2
Accelerator Pedal and Throttle Body Control
MAF Sensor
MAP Sensor
Engine Coolant Temp Sensor
Alternator Control
(2) Upstream Oxygen Sensors
Crankshaft Position
Camshaft Position
Fuel Injectors
Coil Packs
Transmission Control
Knock Sensors

Engine Fitment

COMPATIBLE WITH
• 2003-2007 GM LS Truck engines with drive-by-wire throttle control
• Transmission side: matches the 13-pin connector used on 1996-2004 4L60E automatic transmissions — confirm which engine model years within 2003-2007 actually pair with a 13-pin (vs. 15-pin) transmission connector before ordering

NOTES
• Standalone harness — requires a compatible PCM/ECM matched to your engine code and TAC (throttle actuator control) module.
• Uses EV6-style injector connectors — confirm your engine's injectors use this style before ordering.
• Confirm TAC module style before ordering: 2003–2006 (and 2007 "Classic" body style) trucks use the plastic TAC module with metal mounting bracket; earlier all-plastic TAC modules are not interchangeable.
• Confirm accelerator pedal style: 2003–2005 trucks use a steel-arm pedal; 2006-and-later trucks use a redesigned plastic-arm pedal with a different connector — pedal and TAC sub-harness must match.
• Verify your 4L60E uses the 13-pin connector (not the 15-pin style) before installation.
• Does not include a PCM/ECM, throttle body, or accelerator pedal — confirm these separately before ordering.

COMMON VEHICLE APPLICATIONS
- Chevrolet Silverado / GMC Sierra (2003–2007)
- Chevrolet Tahoe/Suburban, GMC Yukon/Yukon XL (2003–2007)
- Cadillac Escalade (2003–2006)
- Hummer H2 (2003–2007)
- Chevrolet Avalanche (2003–2007)
- LS engine swap applications using a 2003–2007 truck-style DBW engine with EV6-style injectors and a 13-pin 4L60E transmission connector

Q&A

What year trucks and transmissions is this harness compatible with?
This standalone wiring harness is designed for 2003–2007 GM LS truck engines with drive-by-wire throttle control and is compatible with 4L60E automatic transmissions that use the 13-pin transmission connector found on many 1996–2004 applications.

What injector connector style does this harness use?
This harness uses EV6-style fuel injector connectors. Verify that your engine is equipped with EV6 injectors before ordering.

How is this different from TSP's other 4L60E harness?
This version is designed for 4L60E transmissions equipped with the earlier 13-pin connector. TSP also offers a version for later 4L60E transmissions that use a 15-pin connector. Verify your transmission connector before ordering to ensure compatibility.

Does this include a PCM/ECM?
No. This is a standalone engine wiring harness and does not include a PCM/ECM. A compatible PCM/ECM matched to your engine, TAC module, and vehicle configuration is required.

How do I know which TAC module I need?
This harness is designed for the 2003–2006 GM truck TAC module and the 2007 Classic body style trucks, which use a plastic TAC module with a metal mounting bracket. Earlier all-plastic TAC modules are not compatible.

Does the accelerator pedal matter?
Yes. The accelerator pedal, TAC module, and TAC sub-harness must all match. Most 2003–2005 GM trucks use a steel-arm accelerator pedal, while most 2006-and-later trucks use a plastic-arm pedal with a different connector.

What's included in this harness kit?
This harness includes wiring for the fuse/relay box, fuel pump control, electric fan controls, OBD2 diagnostic port, accelerator pedal and throttle body control, MAF sensor, MAP sensor, engine coolant temperature sensor, alternator control, two upstream oxygen sensors, crankshaft position sensor, camshaft position sensor, fuel injectors, coil packs, transmission control, and knock sensors.

Does this include the throttle body or accelerator pedal?
No. The throttle body and accelerator pedal are not included and must be purchased separately. Be sure to select components that match the required TAC module and harness configuration.

Emissions Notice

This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
