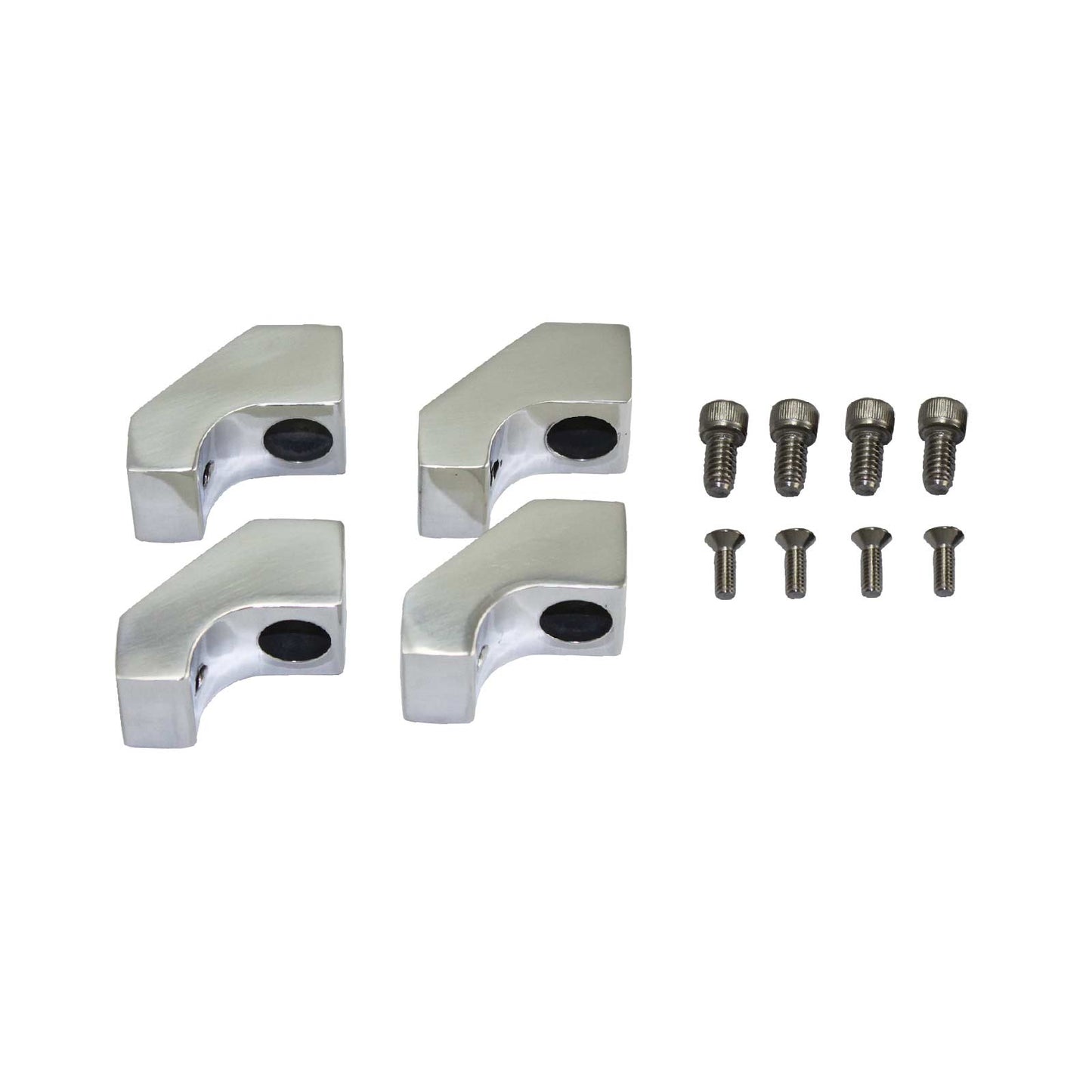

Chevy Small Block Center-Bolt Wire Loom Mounting Kit

• Polished aluminum brackets mount TSP wire looms to center-bolt small block heads

• Attaches via existing exhaust heat shield bolt holes — no drilling required

• Fits Chevy small block center-bolt valve covers only, not perimeter-bolt

• Sized for 7mm–9mm plug wires in a horizontal loom position

Mount a set of TSP wire looms to your center-bolt Chevy small block with these polished aluminum brackets — no drilling or extra hardware sourcing required. The brackets attach directly to the cylinder head using the existing exhaust heat shield bolt holes, positioning your wire looms horizontally alongside the valve cover.

Sized for 7mm–9mm plug wires, these brackets are built specifically for center-bolt valve cover configurations — not perimeter-bolt, and not big block Chevy. For the cleanest fit, pair with TSP's universal (uncut) wire sets; pre-cut wire sets may not route or fit correctly with this bracket's positioning.

Hardware is included, and the set comes ready to install.

Applications
Fits Chevrolet small block V8 engines with center-bolt valve covers only — including Chevelle, Camaro, Nova, Corvette, and C/K truck small block builds. Not compatible with perimeter-bolt valve covers or big block Chevy engines.

Installation
Bracket attaches via the cylinder head's exhaust heat shield bolt holes, positioning wire looms horizontally alongside the valve cover. Designed for 7mm–9mm plug wires. For correct fit, use with TSP's universal (uncut) wire sets — pre-cut wire sets may not route correctly with this bracket position.

Will this fit a perimeter-bolt valve cover?
No. This bracket is designed specifically for center-bolt Chevy small block valve covers and is not compatible with perimeter-bolt configurations.

Does this fit a big block Chevy?
No. This kit is designed for Chevy small block engines only.

How do I know if I have center-bolt or perimeter-bolt valve covers?
Center-bolt valve covers have fasteners positioned along the centerline of the cover, while perimeter-bolt covers have fasteners around the outer edge. Check your valve cover configuration before ordering, since this bracket only fits center-bolt applications.

What size plug wires does this bracket work with?
7mm to 9mm spark plug wires.

Do I need to drill anything to install this?
No. The bracket attaches using the cylinder head's existing exhaust heat shield bolt holes.

Will this work with my pre-cut wire set?
It's designed to work best with TSP's universal (uncut) wire sets. Pre-cut wire sets may not route or fit correctly with the bracket's horizontal loom position.

What finish do these brackets have?
Polished aluminum.

Does this kit include mounting hardware?
Yes. Mounting hardware is included, and the brackets are sold as a complete set.

Will this fit my Nova or Camaro small block?
Yes, provided the engine uses the compatible center-bolt Chevy small block valve cover configuration.
