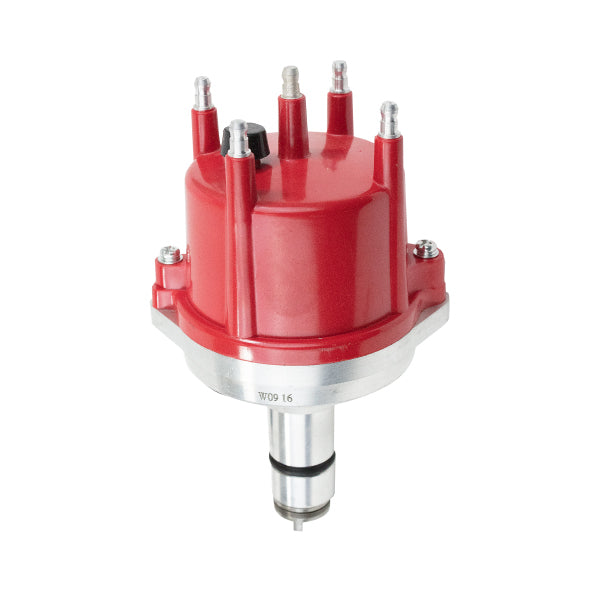

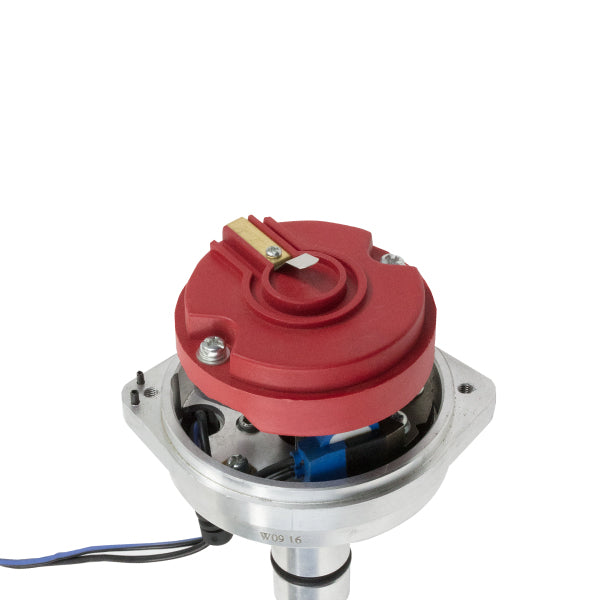

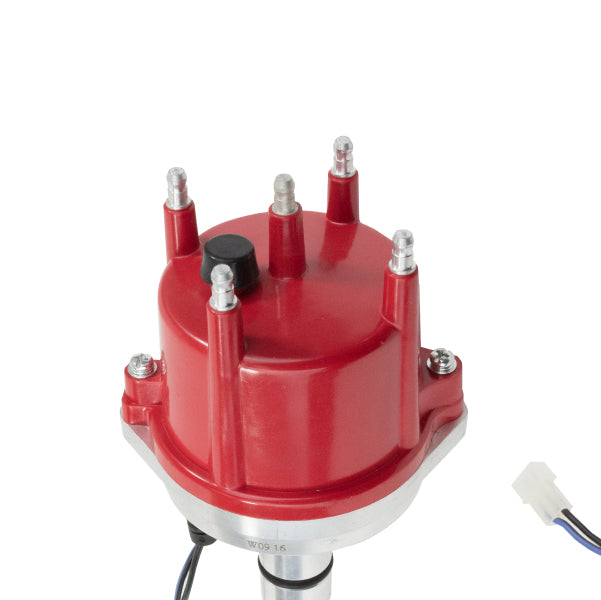

Volkswagen Air-Cooled Flat 4 Pro Billet Distributor with Red Cap
Volkswagen Air-Cooled Flat 4 Pro Billet Distributor with Red Cap
SKU: SKU: JM7650R
In stock
Product Downloads
Product Details
Features

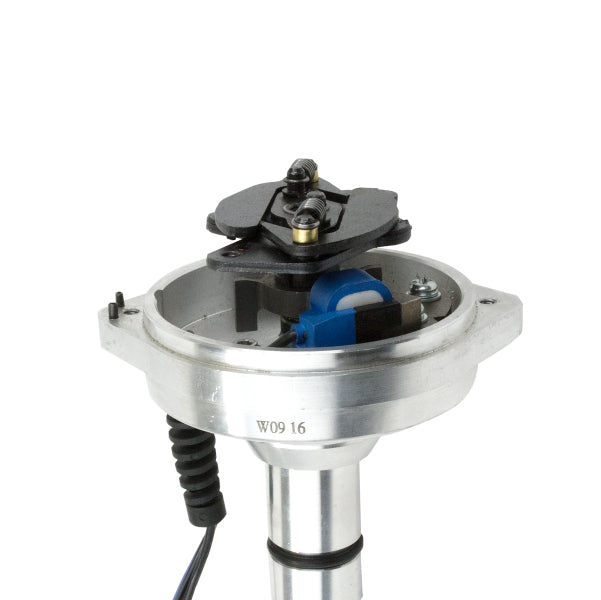

- Magnetic pickup trigger for precise timing with an external ignition box
- Pairs with a 35,000V+ coil and ignition box for high-output builds
- Direct fit for VW air-cooled flat-4: 1200/1300/1500/1600
- Machined aluminum housing for durable, precise timing control
Description
Upgrade your Volkswagen air-cooled flat-4 — 1200, 1300, 1500, or 1600cc — with this Pro Billet distributor, built with a magnetic pickup trigger for use with a compatible external ignition box and coil. This setup is designed for higher-output ignition systems on Beetle, Karmann Ghia, Thing, Type 2 Bus, sand rail, Baja Bug, and dune buggy applications.
The housing is machined aluminum, and rotation is clockwise, standard for the air-cooled flat-4 platform. Requires a compatible external ignition box and a coil rated at 35,000 volts or higher; this distributor requires a 12-volt electrical system with an alternator and is not compatible with generator-based charging systems or vehicles still running an active ballast resistor in the ignition circuit — the resistor should be removed or bypassed as part of installation. Timing is set through mechanical advance only.
What Is a Pro Billet Distributor?
A Pro Billet distributor uses a magnetic pickup trigger but, unlike Ready-to-Run designs, requires a separate external ignition box in addition to an external coil rather than housing that control on board. This setup is common in higher-output or race-oriented ignition systems where the buyer wants to pair the distributor with a specific external box and coil combination rather than an all-in-one unit.
Performance Benefits
The magnetic pickup trigger delivers consistent, wear-free timing signal without the point drift of older breaker-point systems — a meaningful upgrade for air-cooled VW builds, from stock Beetles to sand rails and dune buggies. Because the ignition box and coil are external and separately selected, this setup allows the ignition system to be matched to higher-output requirements than a self-contained distributor typically supports. Mechanical advance handles the timing curve, keeping the system straightforward to set up and tune.
Specs
| Distributor Type | Pro Billet |
| Trigger Type | Magnetic |
| Advance Type | Mechanical |
| Rotation Direction | Clockwise |
| Cap Color | Red |
| Terminal Gender | Male |
| Mechanical Tach Drive | No |
| Slip Collar | No |
| Coil Included | No |
| Coil Type | External |
| Coil Output | 35,000+ Volt Recommended |
| Housing Material | Machined Aluminum |
| Ignition Box Required | Yes |
| Marine Use | No |
| Cylinders | 4 |

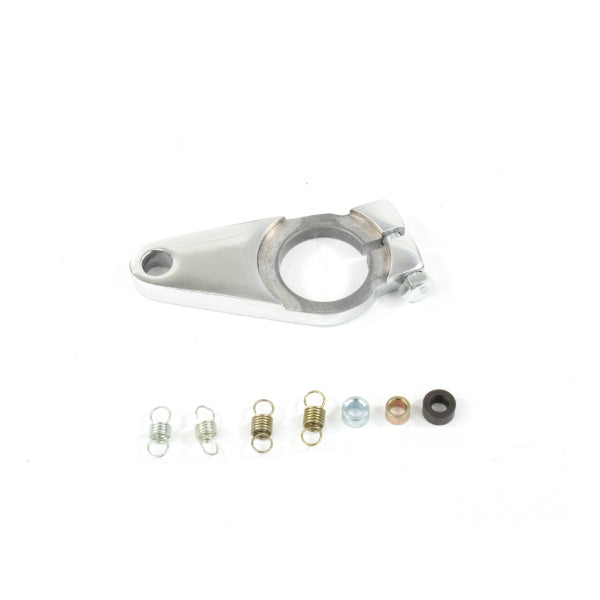

| Included | 3 Bushings and 4 Springs for Mechanical Advance Color-Matched Spark Plug Wire Retainer with Screws |
Engine Fitment
COMPATIBLE WITH
VOLKSWAGEN AIR-COOLED FLAT 4 (TYPE 1)
• 1.2 L / 1,192cc
• 1.3 L / 1,285cc
• 1.5 L / 1,457cc
• 1.6 L / 1,584cc
NOTES
• Designed for carbureted Volkswagen Type 1 air-cooled flat-four applications.
• Not compatible with Type 4 engines (used in VW 411, 412, and late Type 2 Buses from 1972 onward) — those are a larger, distinct engine family.
• Not compatible with water-cooled Volkswagen engines.
This distributor requires a separate external ignition control box — not a ready-to-run unit.
• Requires an external coil with a minimum output of 35,000V.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult camshaft manufacturer for recommended gear material before installation.
COMMON VEHICLE APPLICATIONS
Volkswagen Beetle / Super Beetle (1.2L/1.3L/1.5L/1.6L, 1954–1979)
Volkswagen Karmann Ghia (1.2L/1.3L/1.5L/1.6L, 1955–1974)
Volkswagen Type 2 Bus / Transporter (1.2L/1.5L/1.6L, 1950–1971)
Volkswagen Type 3 Squareback / Fastback / Notchback (1.5L/1.6L, 1961–1973)
Volkswagen Thing / Type 181 (1.6L, 1969–1980)
Sand Rail / Baja Bug / Dune Buggy (Type 1 engine applications)
Q&A
Do I need an external ignition box with this distributor?
Yes. This Pro Billet distributor requires a compatible external ignition box in addition to an external ignition coil. Unlike Ready-to-Run or HEI distributors, it will not operate without an ignition box.
Will this fit my dune buggy or sand rail with a VW-based engine?
Yes. This distributor is compatible with dune buggies, sand rails, kit cars, and other custom vehicles powered by an air-cooled Volkswagen flat-4 engine in 1200cc, 1300cc, 1500cc, or 1600cc displacement.
What direction does the rotor turn on this distributor?
Clockwise, viewed from above, matching the standard rotation direction of the air-cooled Volkswagen flat-4 engine family.
What type of advance does this distributor use?
This distributor uses mechanical (centrifugal) advance only. Three advance bushings and four advance springs are included, allowing you to customize the advance curve for your engine combination.
Does this distributor include a coil or ignition box?
No. Neither the ignition coil nor the ignition box is included. This distributor requires an external ignition coil rated at 35,000 volts or higher and a compatible external ignition box, both sold separately.
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
