Velocity High-Flow Fuel Injectors for LS3 and LS7, 100 lbs/hr
Velocity High-Flow Fuel Injectors for LS3 and LS7, 100 lbs/hr
SKU: SKU: 81051-100
Out of stock
Product Details
Features
- Configured for GM LS3/L92 rectangular-port applications
- 100 lbs./hr. flow rate for high-demand fuel delivery
- USCAR plug style with included O-rings for a proper seal

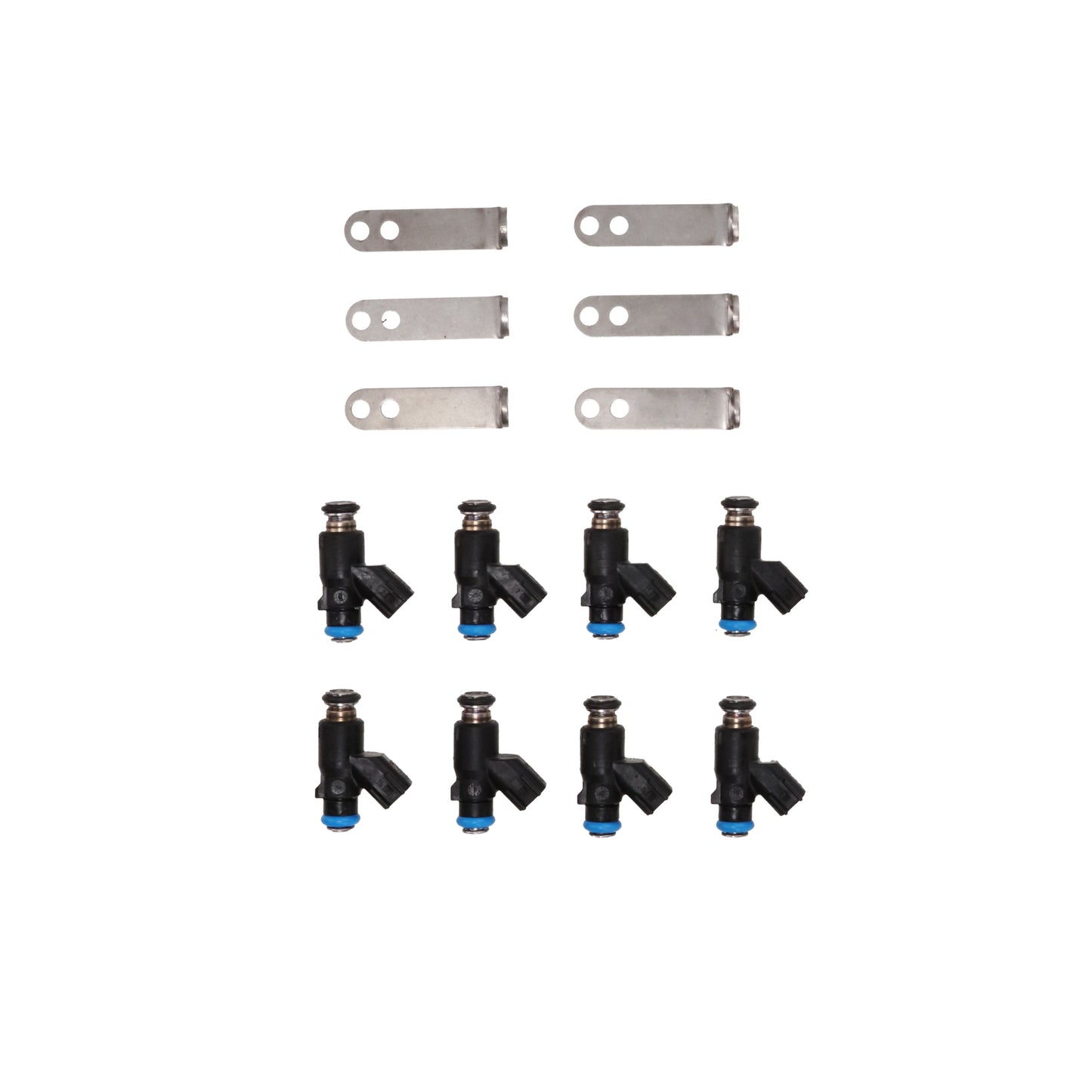

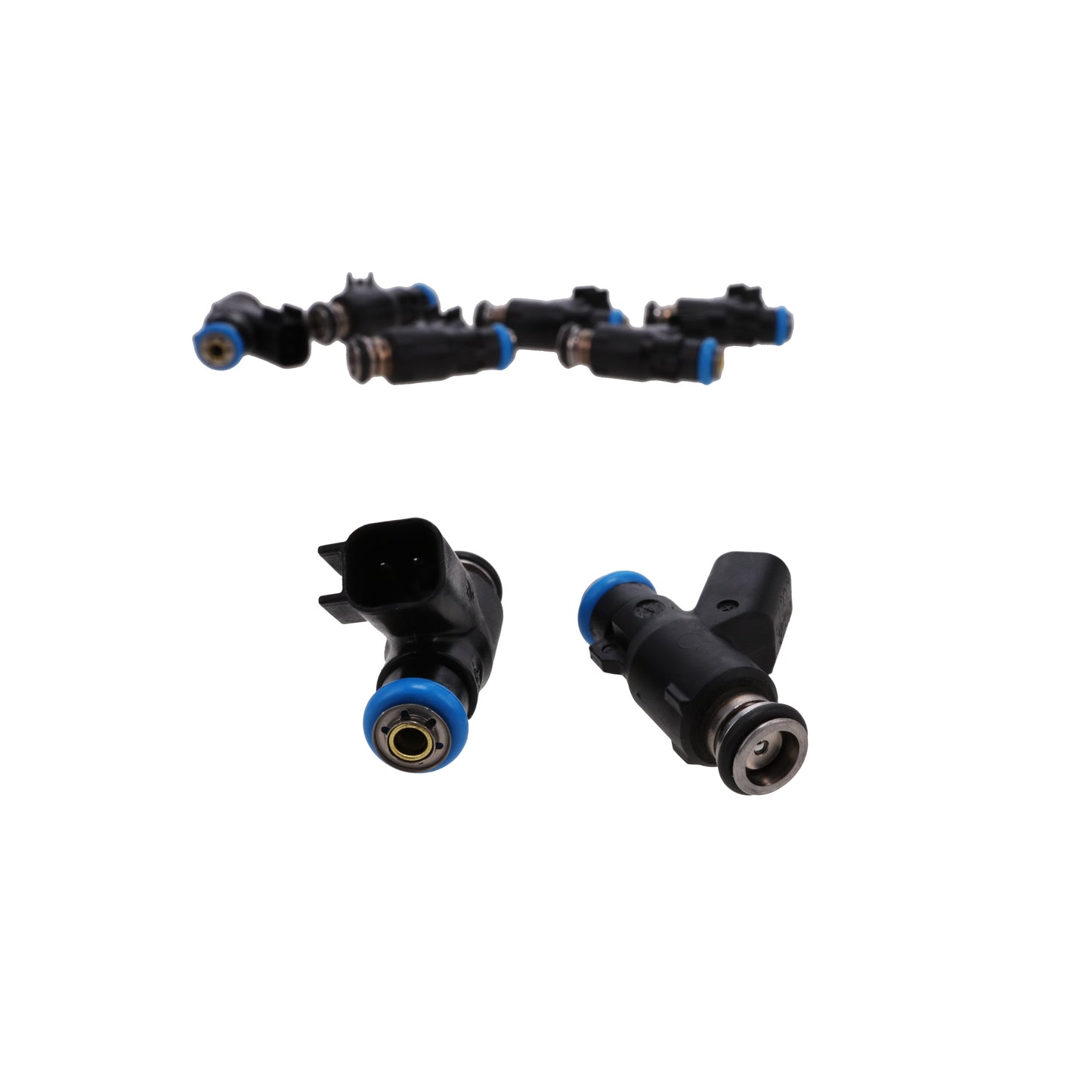

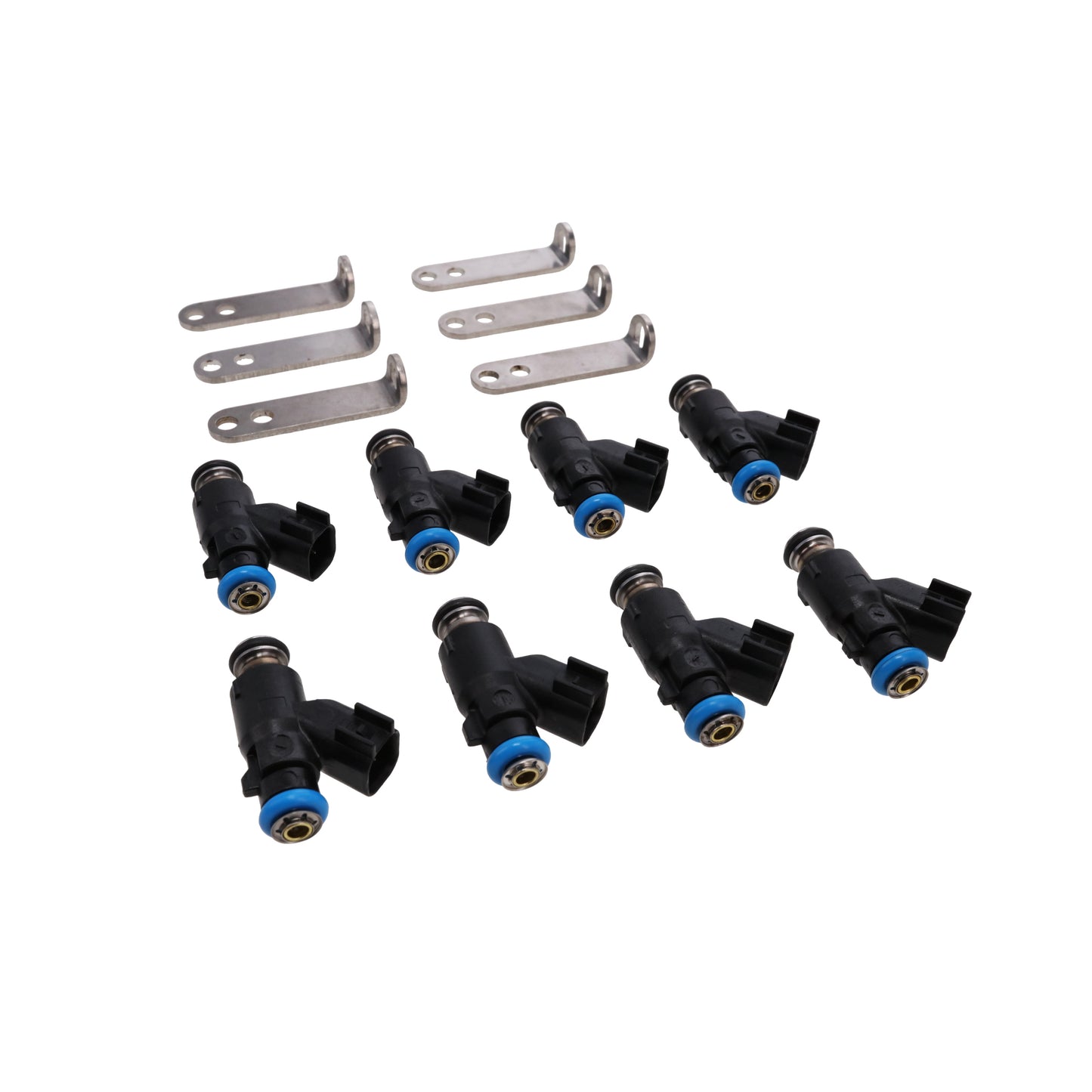

- Set of 8 injectors, precision-matched for even cylinder delivery
Description
Configured for GM LS3/L92 rectangular-port applications, this fuel injector set supports precise fuel metering, consistent cylinder-to-cylinder delivery, and EFI calibration flexibility. Flow rate is 100 lbs./hr., with a high-impedance, 12V saturated circuit driver — match these specs to your ECU, fuel pressure, and engine fuel demand.
This set uses a USCAR plug style with male blade terminals (2 per connector). Seat-to-seat height is 1.480", with a maximum outside diameter of 0.580". O-rings are included: 0.580" manifold O-ring and 0.551" rail O-ring. Confirm fuel rail fit, intake fit, and injector depth before installation.
These injectors are designed for TSP Velocity intake/fuel rail combinations only and will not work with stock applications — flow rate, plug style, impedance, and calibration must be matched to your EFI system before startup.
Applications
Fits the following TSP Velocity combinations: 81003 LS3 Intake Manifold with 81009 Fuel Rails, or 81007 LS7 Intake Manifold with 81011 Fuel Rails. Not compatible with stock intake/fuel rail setups.
Specifications
100 lbs./hr. flow rate, high impedance, 12V saturated circuit driver, USCAR plug style, male blade terminals (2), 1.480" seat-to-seat height, 0.580" max outside diameter.
Specs
| Driver Type | 12V Saturated Circuit |
| Flow Rate | 100 lbs./hr. |
| Fuel Injection Type | Multi-port |
| Fuel Rail O-ring Outer Diameter | 0.551 in. |
| Fuel Type | Gas |
| Impedance | High |
| Injector Plug Style | USCAR |
| Manifold O-ring Outer Diameter | 0.580 in. |
| Maximum Outside Diameter | 0.580 in. |
| O-Ring Quantity | 2 |
| O-rings Included | Yes |
| Quantity | Set of 8 |
| Seat to Seat Height | 1.480 in. |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
Engine Fitment
COMPATIBLE WITH
FITS THE FOLLOWING TSP VELOCITY COMBINATIONS
• 81003 LS3 Intake Manifold with 81009 Fuel Rails
• 81007 LS7 Intake Manifold with 81011 Fuel Rails
NOTES
Will not work with stock applications
COMMON VEHICLE APPLICATIONS
Chevrolet Silverado
GMC Sierra
Chevrolet Camaro
Chevrolet Tahoe
Q&A
What applications are these fuel injectors compatible with?
These fuel injectors are designed for FITS THE FOLLOWING TSP VELOCITY COMBINATIONS.
Will these injectors fit GM LS applications?
Yes, these injectors are designed for compatible GM LS-based applications and should be matched to your fuel system and tuning setup.
What size are these fuel injectors?
These injectors are rated at 100 lbs./hr., which determines how much fuel they can deliver and should be matched to your horsepower goals.
What impedance are these injectors?
These injectors are high, so they should match your ECU and wiring setup.
What fuel type are these injectors designed for?
These injectors are designed for use with gas.
Will I need tuning after installing these injectors?
Yes, larger or different injectors typically require ECU tuning to ensure proper fueling and performance.
Do these injectors come ready to install?
These injectors are designed for installation, but seals, adapters, or tuning may be required depending on your setup.
Are these a good upgrade over stock injectors?
Yes, performance fuel injectors can support higher horsepower levels and improved fuel delivery when matched to the correct setup.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
Velocity High-Flow Fuel Injectors for LS3 and LS7, 100 lbs/hr
Configured for GM LS3/L92 rectangular-port applications, this fuel injector set supports precise fuel metering, consistent cylinder-to-cylinder delivery, and EFI calibration flexibility. Flow rate is 100 lbs./hr., with a high-impedance, 12V saturated circuit driver — match these specs to your ECU, fuel pressure, and engine fuel demand.
This set uses a USCAR plug style with male blade terminals (2 per connector). Seat-to-seat height is 1.480", with a maximum outside diameter of 0.580". O-rings are included: 0.580" manifold O-ring and 0.551" rail O-ring. Confirm fuel rail fit, intake fit, and injector depth before installation.
These injectors are designed for TSP Velocity intake/fuel rail combinations only and will not work with stock applications — flow rate, plug style, impedance, and calibration must be matched to your EFI system before startup.
Applications
Fits the following TSP Velocity combinations: 81003 LS3 Intake Manifold with 81009 Fuel Rails, or 81007 LS7 Intake Manifold with 81011 Fuel Rails. Not compatible with stock intake/fuel rail setups.
Specifications
100 lbs./hr. flow rate, high impedance, 12V saturated circuit driver, USCAR plug style, male blade terminals (2), 1.480" seat-to-seat height, 0.580" max outside diameter.
COMPATIBLE WITH
FITS THE FOLLOWING TSP VELOCITY COMBINATIONS
• 81003 LS3 Intake Manifold with 81009 Fuel Rails
• 81007 LS7 Intake Manifold with 81011 Fuel Rails
NOTES
Will not work with stock applications
COMMON VEHICLE APPLICATIONS
Silverado
Sierra
Camaro
Tahoe
SPECIFICATIONS
Driver Type: 12V Saturated Circuit
Flow Rate: 100 lbs./hr.
Fuel Injection Type: Multi-port
Fuel Rail O-ring Outer Diameter: 0.551 in.
Fuel Type: Gas
Impedance: High
Injector Plug Style: USCAR
Manifold O-ring Outer Diameter: 0.580 in.
Maximum Outside Diameter: 0.580 in.
O-Ring Quantity: 2
O-rings Included: Yes
Quantity: Set of 8
Seat to Seat Height: 1.480 in.
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
