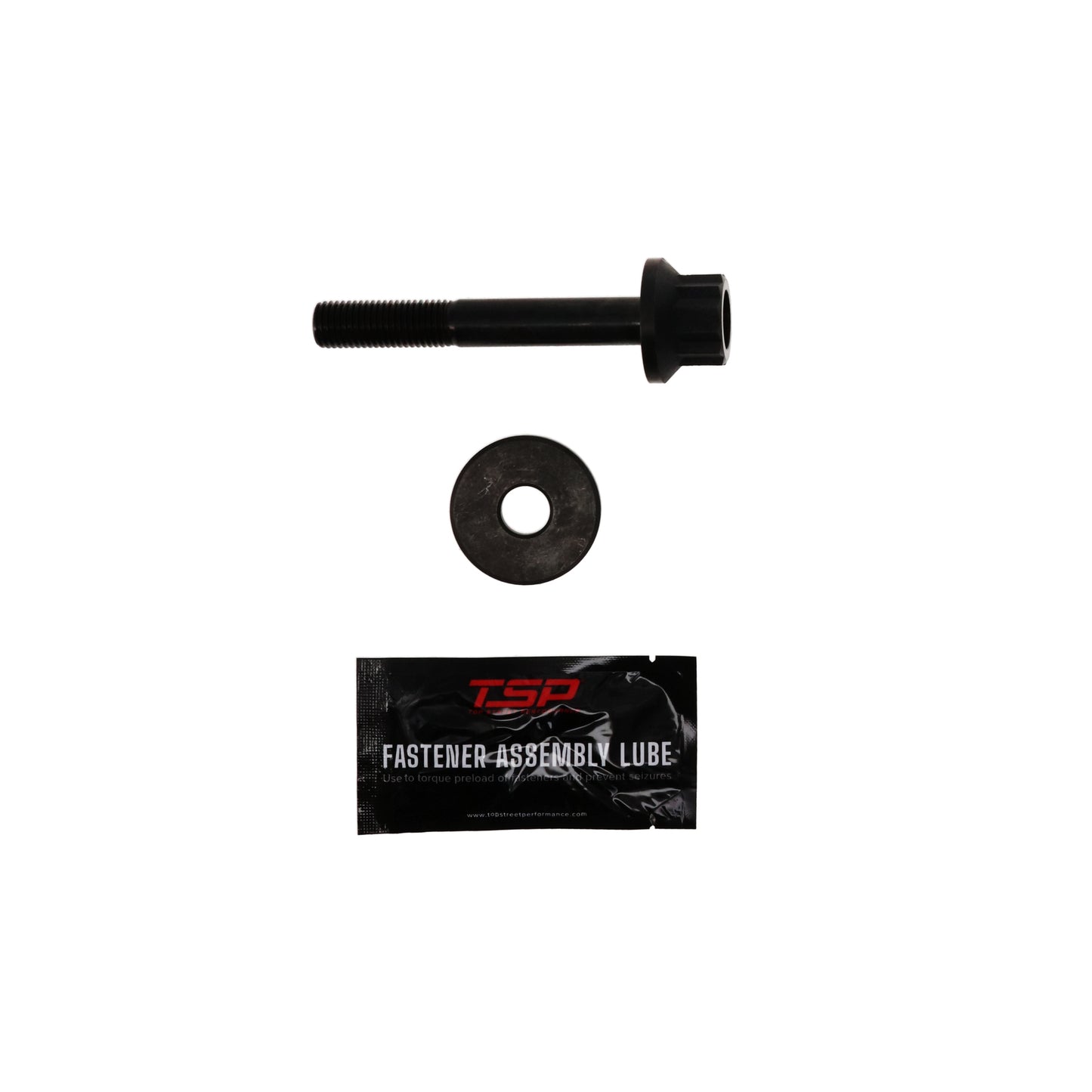

• Top Street Performance Pro Series GM Gen III/IV LS Harmonic Balancer Damper Bolt Kit

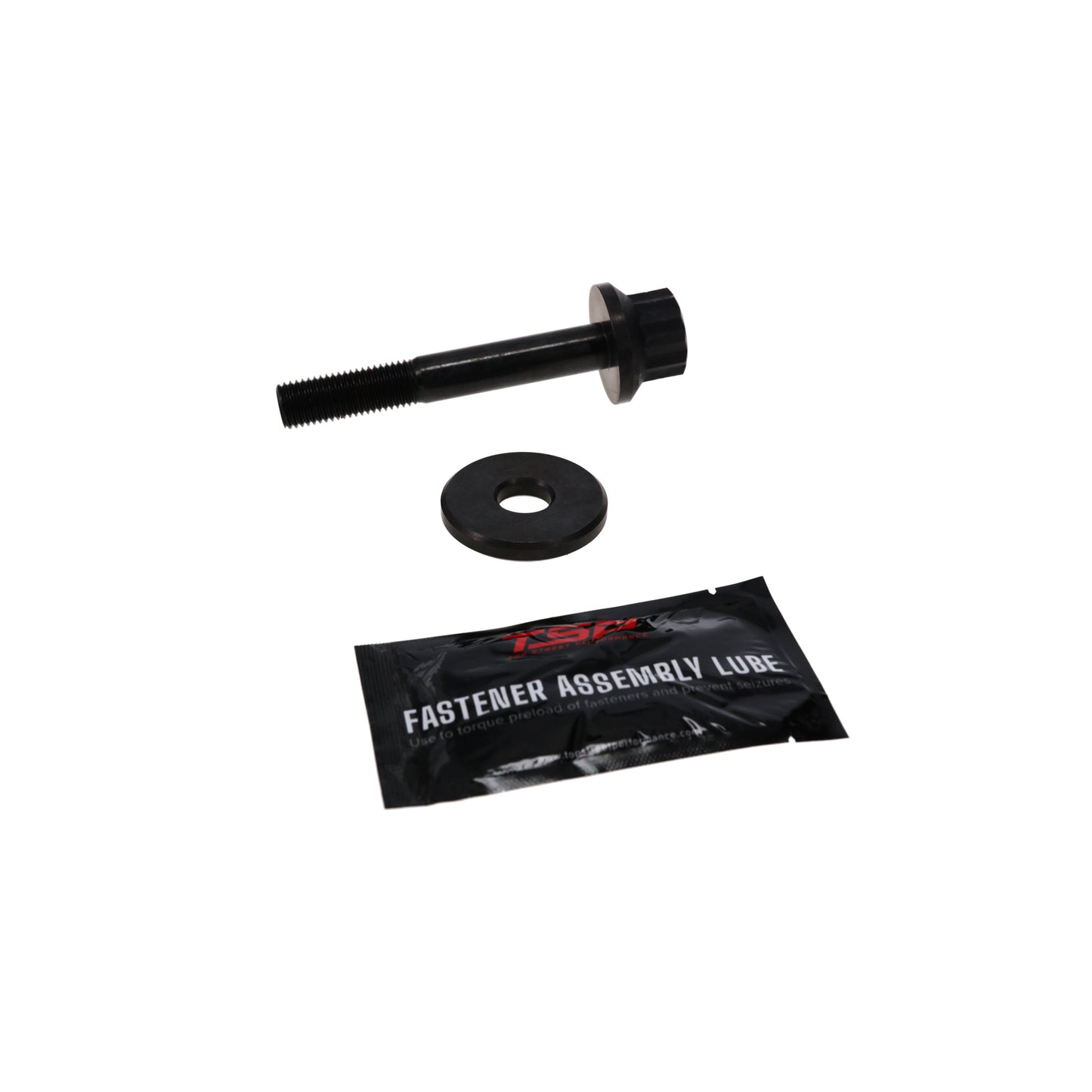

  • Top Street Performance Pro Series GM Gen III/IV LS Harmonic Balancer Damper Bolt Kit - front view
1 2
Top Street Performance

Pro Series GM Gen III/IV LS Harmonic Balancer Damper Bolt Kit

Pro Series GM Gen III/IV LS Harmonic Balancer Damper Bolt Kit

SKU: 734-42074

$22.00
$22.00 $25.00
Shipping calculated at checkout.

In stock

Top Street Performance (TSP) is committed to providing high-quality performance parts while complying with emissions regulations. This product is designed for use on vehicles that comply with federal emissions regulations. It is the customer’s responsibility to verify that this part is legal for use in their state or local jurisdiction. Check with your local emissions authority before purchasing.

Product Details

Features

  • 35 chromoly steel bolt secures the harmonic balancer to the crankshaft
  • 12-point head design eases socket engagement during installation
  • Fits GM Gen III/IV LS engines from 4.8L to 6.2L — not LS7
  • 190,000 PSI tensile strength with black oxide, oil-coated finish

Description

This harmonic balancer bolt is manufactured from heat-treated 35 chromoly steel with a minimum tensile strength of 190,000 PSI, providing secure crankshaft damper retention for GM Gen III and Gen IV LS engines. The 12-point head design eases socket engagement during installation and removal.

It's designed for LS engines from 4.8L (293 in³) through 6.2L (376 in³) — including LS1, LS2, LS3, LS6, LQ4, and LQ9 applications — and finished in black oxide with an oil coating for corrosion resistance. This kit does not fit LS7 engines.


Applications
Fits GM LS Series V8 engines: 4.8L/293 in³ (LR4, LY2), 5.3L/325 in³ (LM7, L59, L33, LC9, LH6, LY5, LMG), 5.7L/346 in³ (LS1, LS6), 6.0L/364 in³ (LQ4, LQ9, LY6, L76, L96), and 6.2L/376 in³ (LS2, LS3, L92, L99, LSA). Not compatible with LS7 (7.0L/427 in³), Gen I Small Block Chevy, Gen V LT, or Big Block Chevy engines.

Installation
Threads are rolled after heat treatment and tested for tensile and yield strength. Torque to 240 ft-lbs for proper crankshaft damper retention.

Specs

Torque 240 ft-lbs
Color Black
Fastener Style Bolt
Grade Performance
Head Style 12-point
Material 35 Chromoly Steel
Quantity Sold as a kit

Engine Fitment

COMPATIBLE WITH
GM LS SERIES V8 ENGINES
• 4.8L / 293 in³ (LR4, LY2)
• 5.3L / 325 in³ (LM7, L59, L33, LC9, LH6, LY5, LMG)
• 5.7L / 346 in³ (LS1, LS6)
• 6.0L / 364 in³ (LQ4, LQ9, LS2, LY6, L76, L96) (moved LS2 here)
• 6.2L / 376 in³ (LS3, L92, L99, LSA, L9H, L94)

NOTES
Designed for GM Gen III/IV LS harmonic balancer damper bolt applications.
Will not fit LS7 7.0L / 427 in3 engines.
Not compatible with Gen I Small Block Chevy, Gen V LT, or Big Block Chevy engines.

COMMON VEHICLE APPLICATIONS
Chevrolet Silverado / GMC Sierra (LS equipped)
Chevrolet Camaro / Corvette (LS equipped)
Chevrolet Tahoe / Suburban / Yukon (LS equipped)
Pontiac GTO / G8 (LS equipped)
LS swap, street/strip, and performance builds

Q&A

What LS engines does this bolt kit fit?
GM Gen III/IV LS engines from 4.8L (293 in³) through 6.2L (376 in³), including LS1, LS2, LS3, LS6, LQ4, and LQ9 applications.

Does this fit an LS7 engine?
No — this kit does not fit the LS7 (7.0L/427 in³) engine.

What torque spec should this bolt be installed to?
240 ft-lbs.

What material is this bolt made from?
Heat-treated 35 chromoly steel with rolled threads, a 12-point head, black oxide finish, and oil coating.

What is the minimum tensile strength of this bolt?
190,000 PSI.

Can this be used with an aftermarket harmonic balancer?
In most cases, yes — provided the aftermarket balancer uses the factory LS mounting configuration.

Is this a direct replacement for factory hardware?
Yes, it's designed as a direct-fit replacement for compatible Gen III/IV LS applications.

Emissions Notice

This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
