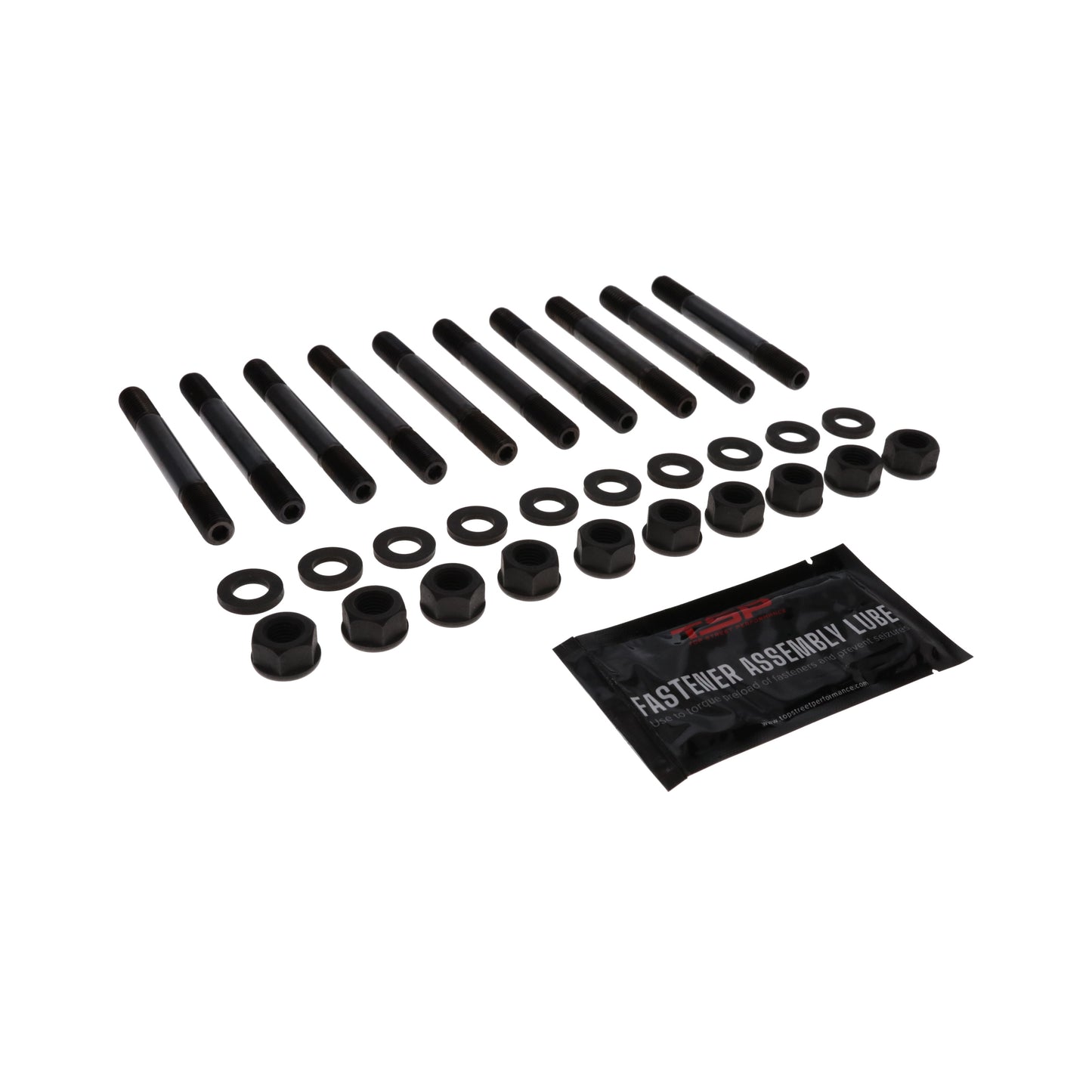

• Top Street Performance Pro Series Ford Small Block 289-302 Main Stud Kit - Engine Main Bearing Cap Stud

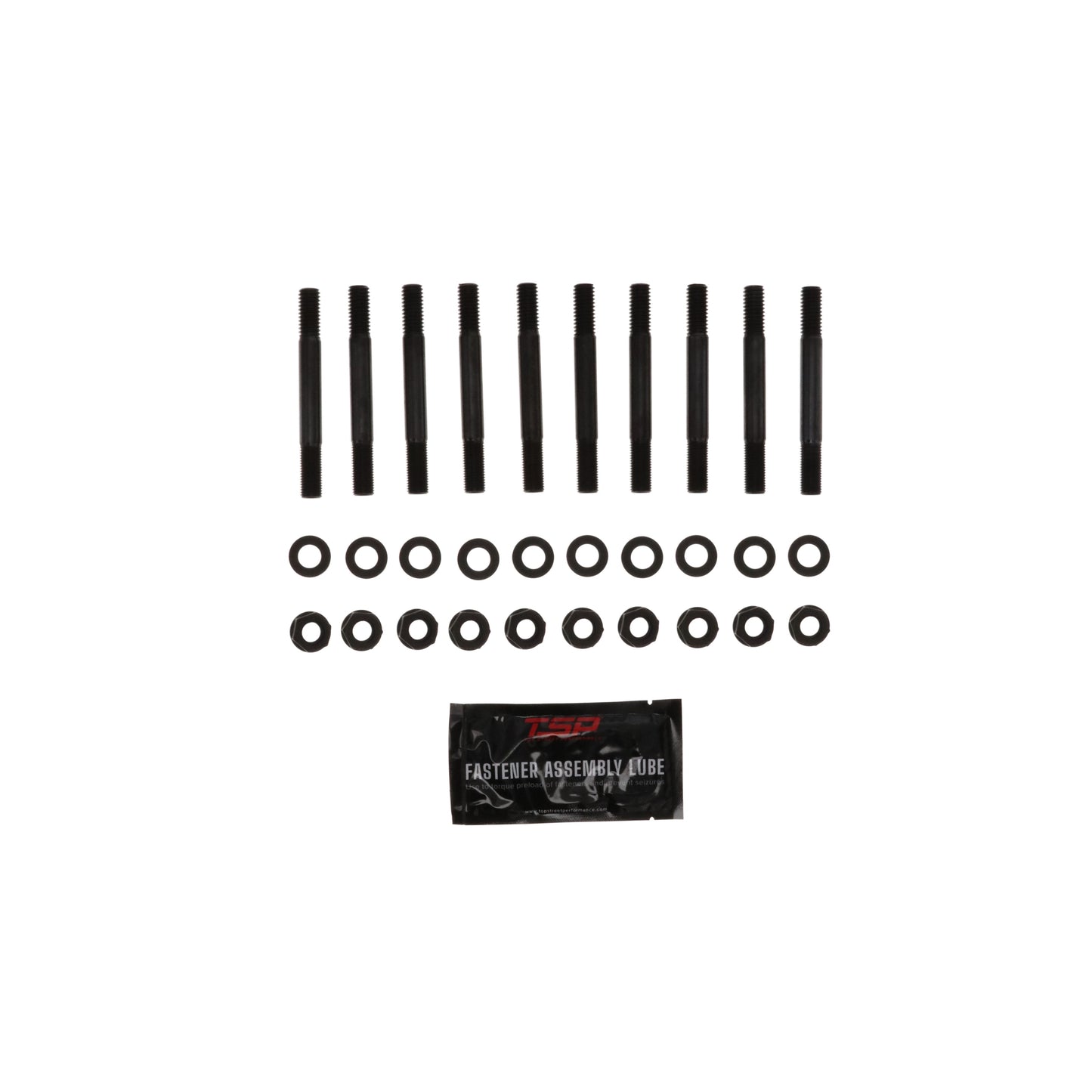

  • Top Street Performance Pro Series Ford Small Block 289-302 Main Stud Kit - front view
1 2
Top Street Performance

Pro Series Ford Small Block 289-302 Main Stud Kit

Pro Series Ford Small Block 289-302 Main Stud Kit

SKU: 619-131952

$56.14
$56.14 $63.80
Shipping calculated at checkout.

In stock

Top Street Performance (TSP) is committed to providing high-quality performance parts while complying with emissions regulations. This product is designed for use on vehicles that comply with federal emissions regulations. It is the customer’s responsibility to verify that this part is legal for use in their state or local jurisdiction. Check with your local emissions authority before purchasing.

Product Details

Features

  • Hardware set matched for ford small block 289 and 302 windsor v8 applications
  • Black finish/style supports a clean installed appearance
  • Hardware set matched for Ford Small Block 289/302/255/260 Windsor V8 main cap applications.
  • Helpful for replacing missing, worn, or mismatched installation hardware

Description

This main stud kit is manufactured from heat-treated 35 chromoly steel with a minimum tensile strength of 190,000 PSI, matched for Ford Small Block Windsor V8 engines. Stud-style fasteners thread permanently into the block and secure with a nut, providing more consistent clamping force than conventional main bolts.

Threads are rolled after heat treatment and finished in black oxide with an oil coating for corrosion resistance. This kit is a good fit for replacing missing, worn, or mismatched main cap hardware during a rebuild.


Applications
Fits Ford Small Block Windsor V8 engines: 4.2L/255 in³, 4.3L/260 in³, 4.7L/289 in³, and 5.0L/302 in³, including Mustang and other classic Ford small block V8 applications.

Installation
Torque in three steps: 25 ft-lbs, then 50 ft-lbs, then 75 ft-lbs. Confirm your block's main cap configuration before ordering.

Specs

Torque 3 steps up to 75 ft-lbs / step 1 25 ft-lbs / step 2 50 ft-lbs / step 3 75ft-lbs
Color Black
Fastener Style Stud
Grade Performance
Head Style Hex
Material 35 Chromoly Steel
Quantity Sold as a kit

Engine Fitment

COMPATIBLE WITH
Ford Small Block Windsor V8
• 4.2 L / 255 in³
• 4.3 L / 260 in³
• 4.7 L / 289 in³
• 5.0 L / 302 in³

NOTES
• Designed for Ford Small Block Windsor 255, 260, 289, and 302 applications.
• Not compatible with 351W, 351C Cleveland, 351M, 400M, FE, or 385-series Big Block Ford engines — 351W uses a separate, dedicated main stud kit due to its different bottom-end architecture.

COMMON VEHICLE APPLICATIONS
• Ford Mustang small block Windsor engine builds
• Classic Ford small block V8 engine installations

Q&A

What does this main stud kit fit?
Ford Small Block Windsor V8 engines: 255, 260, 289, and 302 in³.

Does this fit a 351W block?
No — this kit is scoped to the 255-302 in³ Windsor small block range. A separate main stud kit is available for 351W applications.

What torque procedure does this kit use?
A 3-step sequence: 25 ft-lbs, then 50 ft-lbs, then 75 ft-lbs.

What material are these studs made from?
Heat-treated 35 chromoly steel with a black oxide finish and oil coating for corrosion resistance.

Why use studs instead of main bolts?
Studs thread permanently into the block and are secured with a nut, which can provide more consistent clamping force and improved main cap alignment compared to conventional main bolts.

Why replace main studs during a rebuild?
Fresh main cap hardware helps ensure proper clamping force and reliable main bearing cap retention.

Emissions Notice

This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
