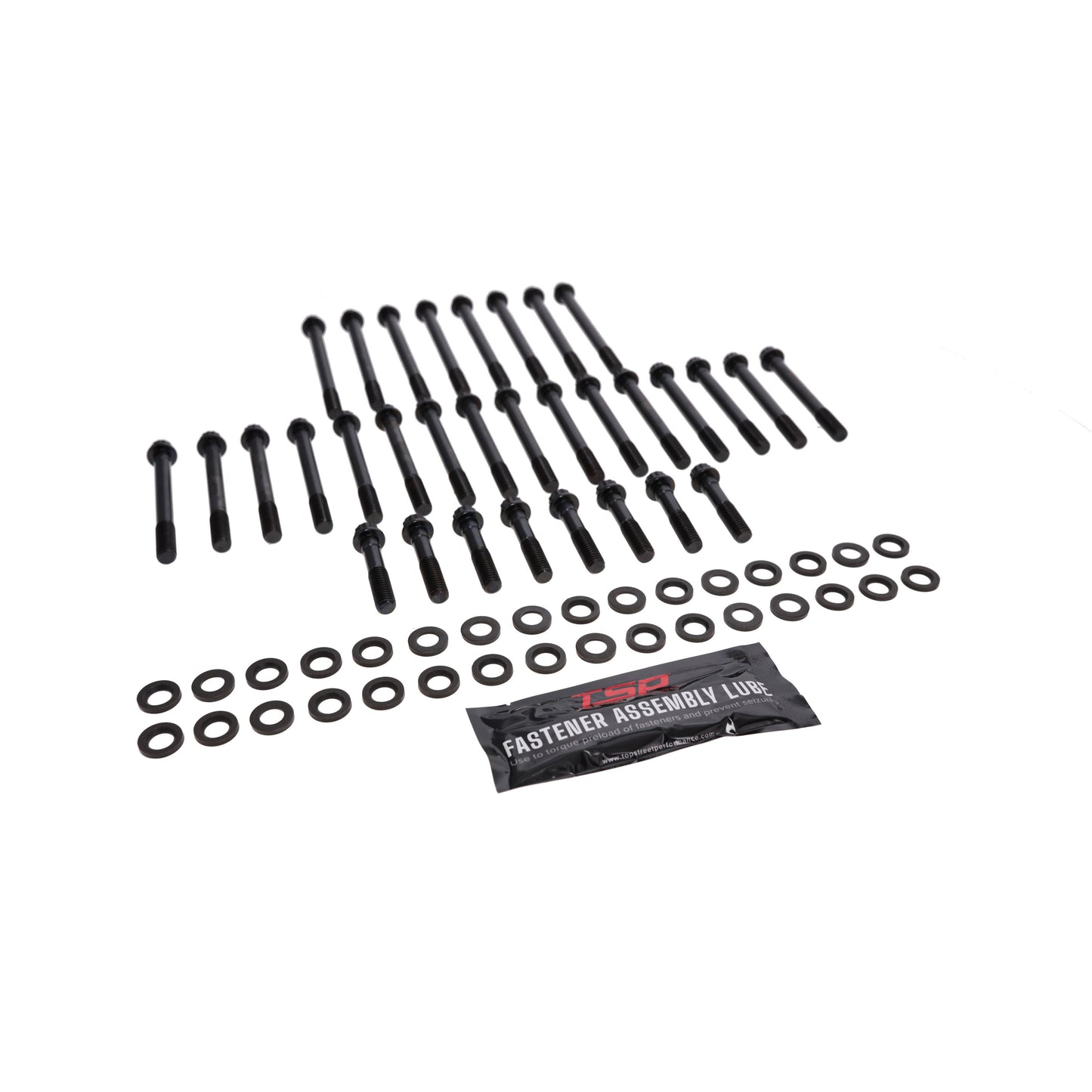

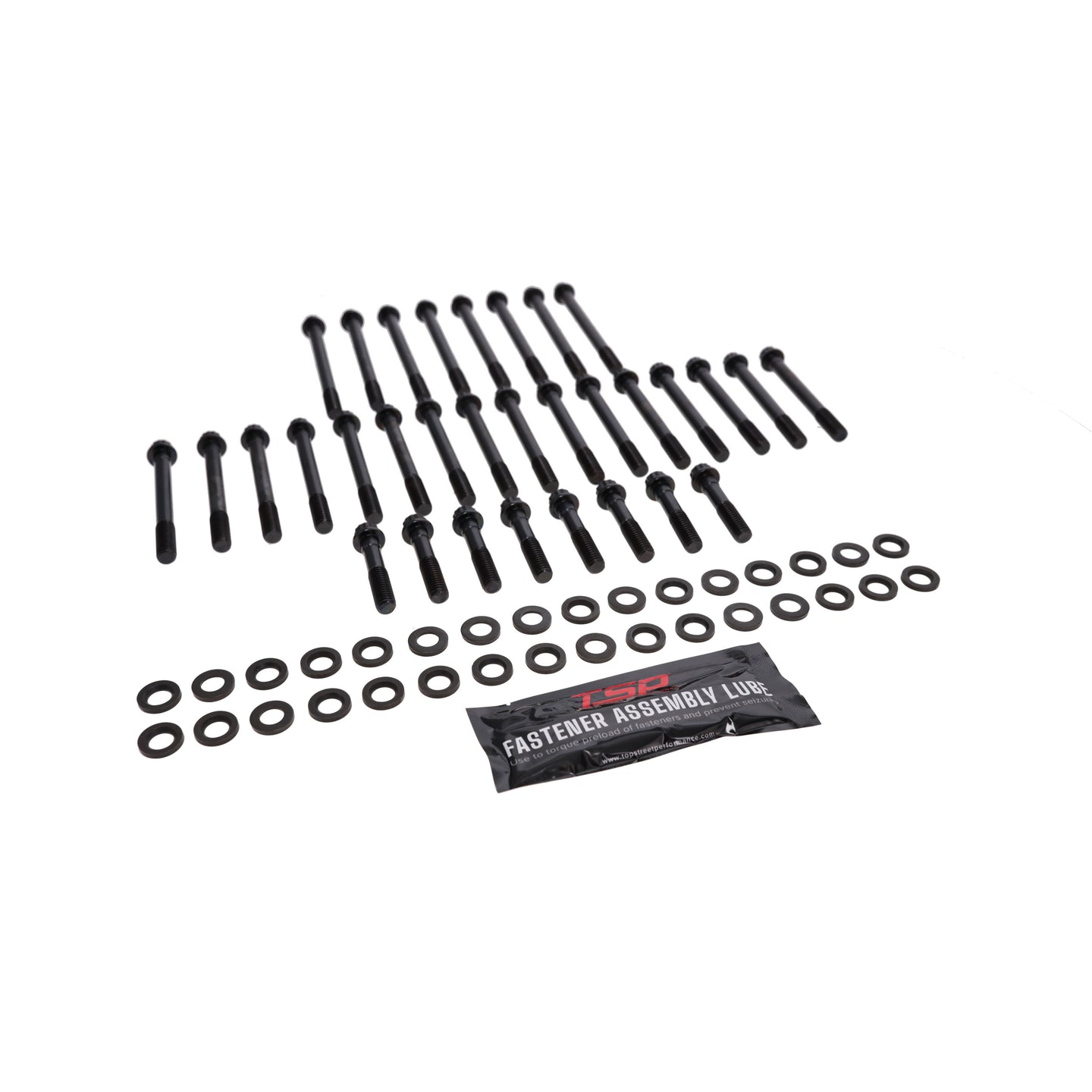

Pro Series Chevy Big Block Bowtie / Dart / Merlin / Pro Top / World Products Cylinder Head 12-point Bolt Kit

• Fits Aftermarket BBC Cylinder Heads: Designed for Bowtie, Dart, Merlin, Pro Top, and World Products applications.

• 190,000 PSI Tensile Strength: Heat-treated 35 chromoly steel construction.

• 12-Point Head Design: Provides accurate torque readings and improved serviceability.

• Supports Reliable Head Gasket Sealing: Helps maintain consistent cylinder head clamping force.

Build or rebuild your aftermarket Big Block Chevy combination with confidence using the Top Street Performance Pro Series 12-Point Cylinder Head Bolt Kit, engineered specifically for Chevrolet Big Block Mark IV engines equipped with Bowtie, Dart, Merlin, Pro Top, and World Products aftermarket cylinder heads. Manufactured from heat-treated 35 Chromoly steel with a minimum tensile strength of 190,000 PSI and threads rolled after heat treatment, this BBC head bolt kit delivers the clamping force, installation accuracy, and long-term durability that high-performance and racing engine builds demand.

Aftermarket Big Block Chevy cylinder heads — including the popular Dart Pro 1, Merlin iron and aluminum heads, late Bowtie aluminum heads, Pro Top Line heads, and World Products iron heads — require head-specific fastener kits that match their unique bolt hole geometry and length requirements. Using factory-style head bolts on these aftermarket heads can result in improper thread engagement, inaccurate clamping force, and compromised head gasket sealing. This kit is engineered to the correct bolt lengths and specifications for these five aftermarket head families, ensuring proper thread engagement and consistent clamping force across all sealing surfaces.

The 12-point head design provides a key installation advantage over standard hex head bolts in high-performance engine applications: the smaller wrenching profile of the 12-point head allows bolt access and torque application in tighter clearance situations — and critically, allows re-torquing of the cylinder heads on assembled engines without requiring valve cover removal. TSP specifies a four-step torque procedure for this kit: Step 1 — 25 ft-lbs, Step 2 — 50 ft-lbs, Step 3 — 75 ft-lbs, Step 4 — 85 ft-lbs on long bolts / 75 ft-lbs on short bolts. Always follow the cylinder head manufacturer's recommended torque sequence and lubricant specification.

Finished with a black oxide coating and protective oil finish for corrosion resistance during storage and installation. Not compatible with factory cast iron Big Block Chevy heads — those applications use a different bolt kit. Not compatible with Small Block Chevy, LS, or LT engine platforms.

Pro Series 12-Point Bolt Technology
Aftermarket Big Block Chevy cylinder heads are designed with fastener hole geometry, bolt lengths, and thread engagement requirements that differ from factory Mark IV cast iron heads. Using incorrect head bolts on Bowtie, Dart, Merlin, Pro Top, or World Products heads can result in insufficient thread engagement in the block, uneven clamping load distribution across the head gasket, and the potential for head gasket failure under the cylinder pressure and thermal cycling of performance operation. TSP's Pro Series 12-Point Bolt Kit is engineered specifically for these five aftermarket head families on the Mark IV block architecture, providing the correct bolt lengths and specifications for proper thread engagement and even clamping force at every cylinder head position. Bolts are manufactured from 35 Chromoly steel with threads rolled after heat treatment — achieving a minimum tensile strength of 190,000 PSI — and are finished with a black oxide coating and protective oil finish for corrosion resistance. The 12-point socket head design allows precise torque application with a matching 12-point socket and provides a reduced wrenching profile compared to standard hex head bolts, enabling access in tight clearance situations and the ability to re-torque cylinder heads on assembled engines without valve cover removal.

Performance Benefits
At 190,000 PSI minimum tensile strength, these head bolts are engineered to handle the cylinder pressure demands of street performance, drag racing, marine, and high-compression Big Block Chevy combinations running aftermarket cylinder heads. The four-step torque procedure — 25 / 50 / 75 / 85 ft-lbs on long bolts, 75 ft-lbs on short bolts — ensures even and progressive clamping load is applied across all head gasket sealing surfaces, reducing the risk of gasket distortion or uneven compression that can occur when full torque is applied in a single step. The published torque procedure eliminates guesswork from the assembly process and helps ensure accurate, repeatable results across professional and experienced home builder applications alike. Combined with the correct thread engagement provided by application-matched bolt lengths, this kit supports the reliable head gasket sealing and cylinder pressure retention that serious BBC performance builds require.

What cylinder heads does this bolt kit fit?
This kit is designed for Chevrolet Big Block Mark IV engines equipped with Bowtie Late Aluminum, Dart Pro 1, Merlin, Pro Top Line, and World Products iron cylinder heads. It is not compatible with factory-style Big Block Chevy cast iron heads.

Why do aftermarket Big Block Chevy heads need a different bolt kit than factory heads?
Aftermarket Big Block Chevy cylinder heads use different bolt hole geometry, bolt lengths, and thread engagement requirements than factory cast iron heads. This kit provides application-specific bolt lengths to ensure proper clamping force and reliable head gasket sealing.

What is the torque procedure for this head bolt kit?
TSP recommends a four-step torque sequence: 25 ft-lbs, 50 ft-lbs, 75 ft-lbs, and a final torque of 85 ft-lbs on long bolts and 75 ft-lbs on short bolts. Always follow the cylinder head manufacturer's recommended tightening sequence and use the specified lubricant.

What is the advantage of 12-point head bolts over hex head bolts?
The 12-point design provides improved tool access in tight engine compartments and allows cylinder heads to be re-torqued on many applications without removing the valve covers. It is a popular choice for performance and racing engines where serviceability is important.

What engines does this kit fit?
This kit is designed for Chevrolet Big Block Mark IV V8 engines in 396 (6.5L), 402 (6.6L), 427 (7.0L), and 454 (7.4L) displacements equipped with the specified aftermarket cylinder heads.

What is the tensile strength of these head bolts?
These head bolts are manufactured from heat-treated 35 chromoly steel with rolled threads and provide a minimum tensile strength of 190,000 PSI.

Can this kit be used with factory Big Block Chevy cast iron heads?
No. This kit is designed specifically for the listed aftermarket cylinder head families. Factory Big Block Chevy cast iron heads require a different application-specific head bolt kit.

Will this kit work with Dart Big Chief, AFR, or Brodix cylinder heads?
No. This kit is designed for Bowtie Late Aluminum, Dart Pro 1, Merlin, Pro Top Line, and World Products cylinder heads. Dart Big Chief, AFR, Brodix, and other aftermarket head families require their own application-specific fastener kits.

Is this kit suitable for drag racing and high-compression Big Block Chevy builds?
Yes. With a minimum tensile strength of 190,000 PSI and application-specific bolt lengths, this kit is well suited for street performance, drag racing, marine, and high-compression Big Block Chevy engine combinations using the specified cylinder heads.

Does this kit include washers?

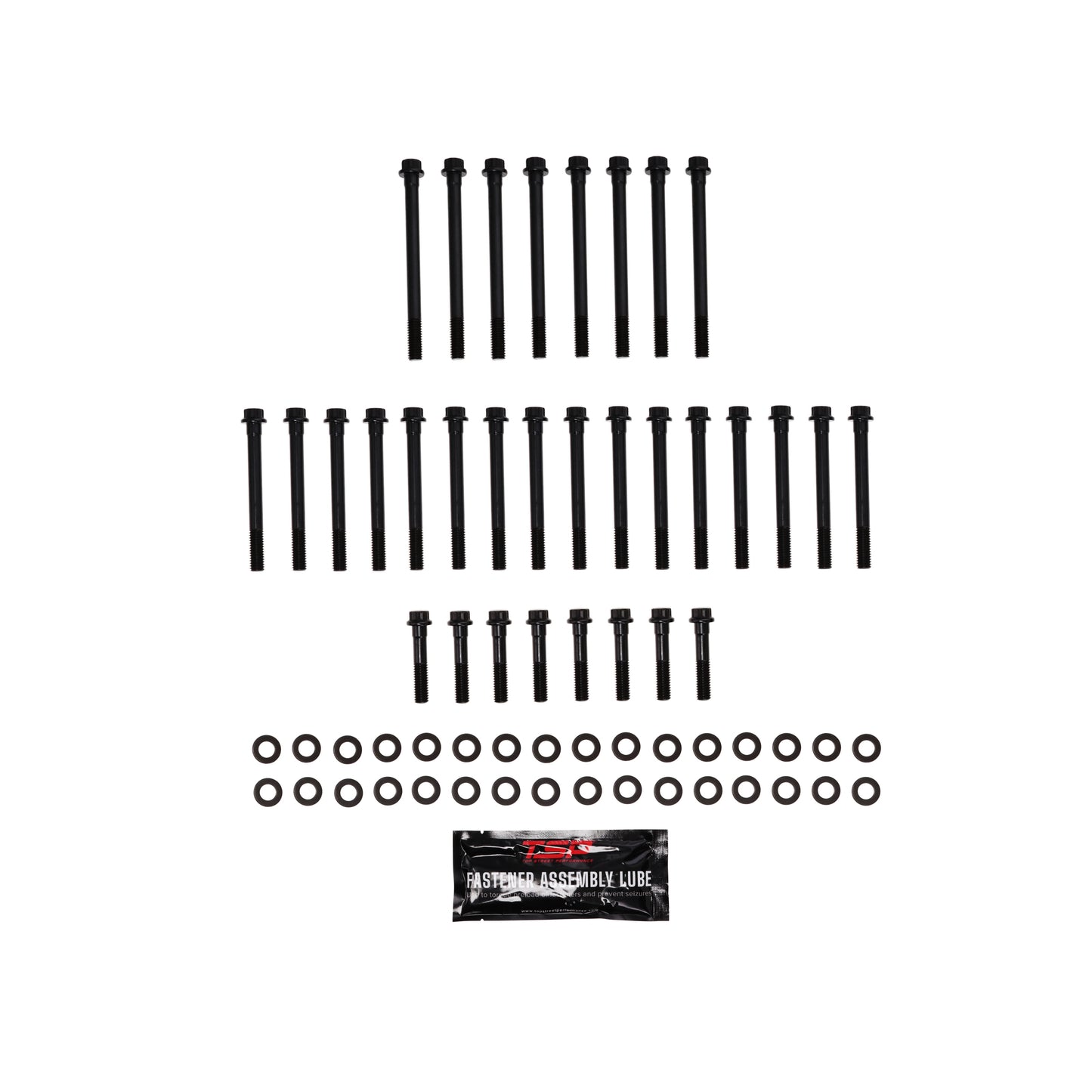

Yes. This is a complete application-specific head bolt kit that includes the required hardened washers for installation.

Is this kit compatible with Small Block Chevy, LS, or LT engines?
No. This kit is designed exclusively for Chevrolet Big Block Mark IV V8 engines and is not compatible with Small Block Chevy, LS, LT, or other Chevrolet engine platforms.
