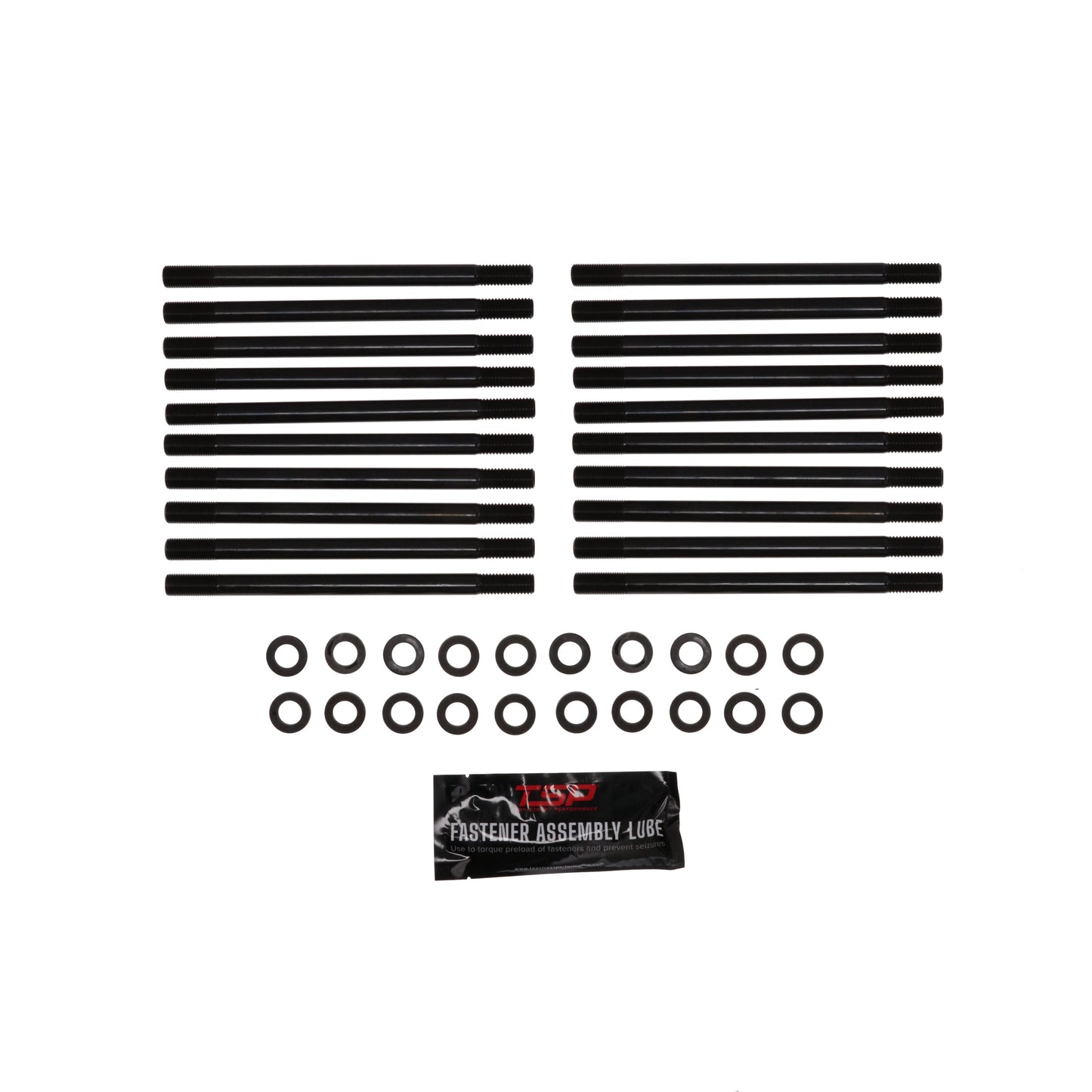

• Top Street Performance Pro Series 03-07 Ford Power Stroke 6.0L Cylinder Head Stud Kit

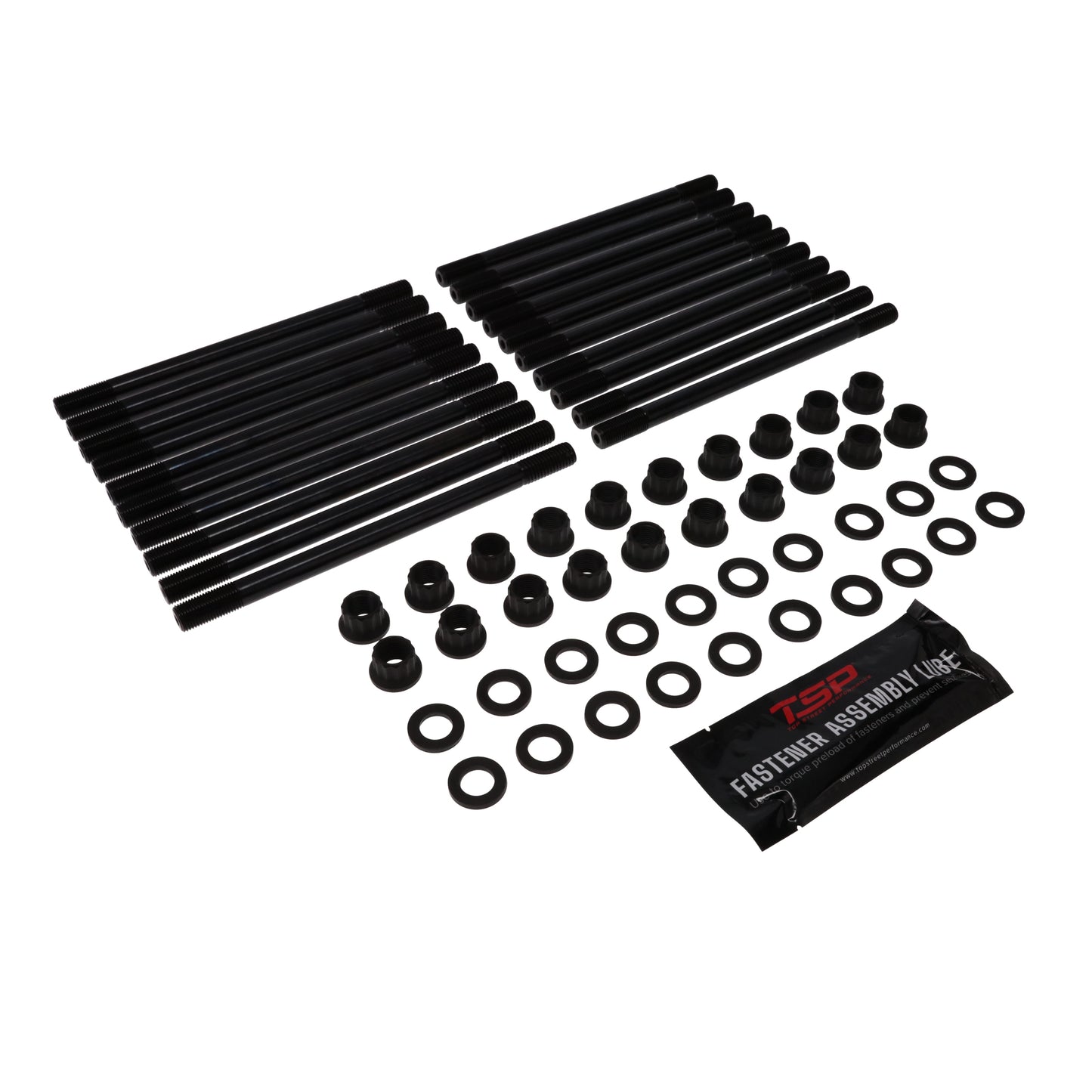

  • Top Street Performance Pro Series 03-07 Ford Power Stroke 6.0L Cylinder Head Stud Kit - front view
1 2
Top Street Performance

Pro Series 03-07 Ford Power Stroke 6.0L Cylinder Head Stud Kit

Pro Series 03-07 Ford Power Stroke 6.0L Cylinder Head Stud Kit

SKU: 616-81976

$176.33
$176.33 $200.38
Shipping calculated at checkout.

In stock

Top Street Performance (TSP) is committed to providing high-quality performance parts while complying with emissions regulations. This product is designed for use on vehicles that comply with federal emissions regulations. It is the customer’s responsibility to verify that this part is legal for use in their state or local jurisdiction. Check with your local emissions authority before purchasing.

Product Details

Features

  • Fits Ford Power Stroke diesel applications; verify model year and engine displacement before ordering
  • Stud kit with 12-point hardware and 35 Chromoly Steel construction for performance engine builds
  • Provides strong, consistent clamping force to support head gasket sealing and cylinder pressure control
  • Application-specific torque procedure listed in specs: 3 steps, to 210 ft-lbs

Description

This cylinder head stud kit is manufactured from heat-treated 35 chromoly steel with a minimum tensile strength of 190,000 PSI, designed specifically for the 2003-2007 Ford 6.0L Power Stroke diesel V8 (365 in³). The 12-point head design supports secure installation and accurate torque readings under the high cylinder pressures typical of diesel applications.

Threads are rolled after heat treatment and finished in black oxide with an oil coating for corrosion resistance. This kit is not compatible with 7.3L, 6.4L, or 6.7L Power Stroke engines, which use different head stud patterns.


Applications
Fits the 2003-2007 Ford 6.0L Power Stroke diesel V8, as used in F-250/F-350 Super Duty trucks and the Ford Excursion.

Installation
Torque in five steps: 30 ft-lbs, 75 ft-lbs, 115 ft-lbs, 165 ft-lbs, then 210 ft-lbs. Verify model year, head gasket selection, and engine configuration before installation.

Specs

Torque 5 steps up to 210ft-lbs / step 1 30ft-lbs / step 2 75 ft-lbs / step 3 115ft-lbs / step 4 165ft-lbs / step 5 210ftlbs
Color Black
Fastener Style Stud
Grade Performance
Head Style 12-point
Material 35 Chromoly Steel
Quantity Sold as a kit

Engine Fitment

COMPATIBLE WITH
FORD POWER STROKE DIESEL V8
• 6.0L / 365 in³ Power Stroke

NOTES
• Designed for 6.0L Power Stroke cylinder head stud applications.
• Verify model year, head gasket selection, torque procedure, and engine configuration before installation.
• Not compatible with 7.3L, 6.4L, or 6.7L Power Stroke engines.

COMMON VEHICLE APPLICATIONS
Ford F-250 / F-350 Super Duty (2003–2007 6.0L Power Stroke)
Ford Excursion (6.0L Power Stroke equipped)
Performance towing and diesel repair applications

Q&A

What does this stud kit fit?
2003-2007 Ford 6.0L Power Stroke diesel V8 (365 in³) engines.

Does this fit a 7.3L, 6.4L, or 6.7L Power Stroke?
No — this kit is specific to the 6.0L Power Stroke and is not compatible with 7.3L, 6.4L, or 6.7L Power Stroke engines, which use different head stud patterns.

What torque procedure does this kit use?
A 5-step sequence: 30 ft-lbs, 75 ft-lbs, 115 ft-lbs, 165 ft-lbs, then 210 ft-lbs.

What material are these studs made from?
Heat-treated 35 chromoly steel with a black oxide finish and oil coating for corrosion resistance.

What head style do these studs use?
12-point.

Why upgrade to head studs on a 6.0L Power Stroke?
The 6.0L Power Stroke is known for head gasket failure under high cylinder pressure. Upgraded studs help provide more consistent, reliable clamping force than the factory head bolts, which can reduce the risk of gasket failure in this application.

What vehicles use the 6.0L Power Stroke?
Ford F-250/F-350 Super Duty (2003-2007) and the Ford Excursion.

Emissions Notice

This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
