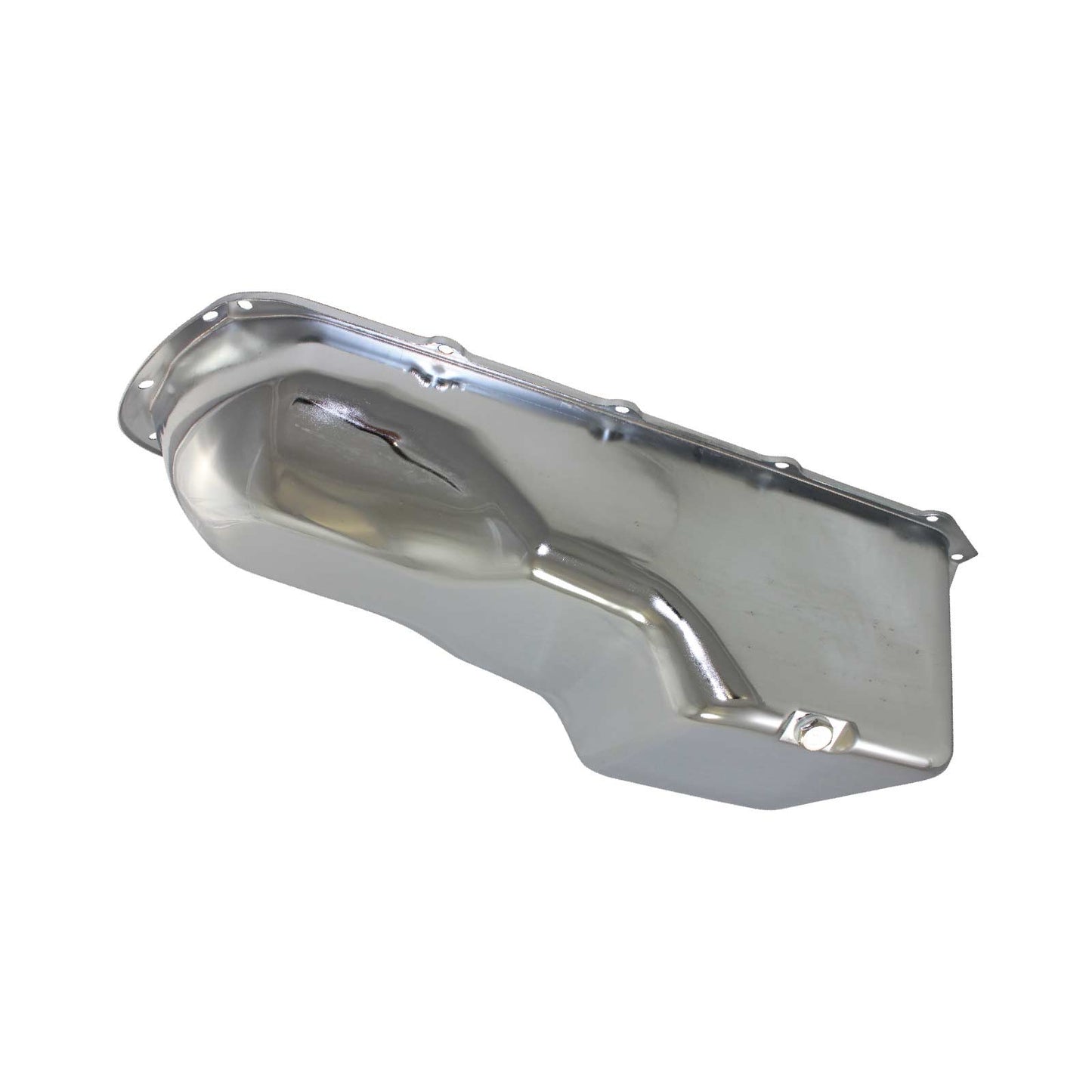

Pontiac V8 Steel Oil Pan - Chrome
Pontiac V8 Steel Oil Pan - Chrome
SKU: SKU: SP7455
Low stock
Product Details
Features
- Steel oil pan covers wide range of Pontiac V8 displacements
- Matches factory 2-piece rear main seal and rear-sump oiling layout
- Fits 265-455 CI Pontiac V8s; not 347 or 370 CID engines
- Baffled 4-qt. chrome steel pan for classic Pontiac engine bays
Description
Pontiac's V8 lineup spans both short-deck (265, 301) and standard-deck (326 through 455) engine architectures, and this chrome-plated steel pan is built to fit both. It covers Pontiac V8 displacements from 4.3L (265 in³) through 7.5L (455 in³), including 301, 326, 350, 389, 400, 421, and 428 cubic inches.
The pan holds 4 quarts and includes internal baffling to help manage oil movement during acceleration and cornering. It uses a wet-sump design with the sump located at the rear, matching the factory 2-piece rear main seal Pontiac V8 layout. It has a 1/2"-20 drain plug thread with the drain plug included. The gasket, oil pickup, windage tray, and dipstick are not included and will need to be sourced separately to complete installation.
This pan does not fit 347 or 370 cubic-inch stroker configurations.
Constructed from steel with a chrome finish, the pan adds a polished, show-quality appearance to Pontiac V8 engine bays.
Applications
Fits Pontiac V8 engines: 4.3L (265 in³), 5.0L (301 in³) short-deck architecture, and 5.3L (326 in³), 5.7L (350 in³), 6.4L (389 in³), 6.6L (400 in³), 6.9L (421 in³), 7.0L (428 in³), and 7.5L (455 in³) standard-deck architecture. Two-piece rear main seal. Not compatible with 347 or 370 cubic-inch stroker configurations.
Installation
Drain plug is included with a 1/2"-20 thread size. Gasket, oil pickup, windage tray, and dipstick are not included and must be sourced separately for a complete installation.
Specs
| Oil Pan Material | Steel |
| Rear Main Seal | 2-Piece |
| Dipstick Provision | No |
| Dipstick | Not Included |
| Sump Style | Wet |
| Sump Location | Rear |
| Oil Capacity | 4 Quarts |
| Baffled | Yes |
| Windage Tray | Not Included |
| Oil Pick-Up | Not Included |
| Gasket | Not Included |
| Drain Plug Thread Size | 1/2"-20 |
| Drain Plug | Included |
Engine Fitment
COMPATIBLE WITH
PONTIAC V8
• 4.3 L / 265 in3
• 5.0 L / 301 in3
• 5.3 L / 326 in3
• 5.7 L / 350 in3
• 6.4 L / 389 in3
• 6.6 L / 400 in3
• 6.9 L / 421 in3
• 7.0 L / 428 in3
• 7.5 L / 455 in3
NOTES
• Fits 265/301 short-deck and 326-455 standard-deck Pontiac V8 architectures.
• Does not fit 347 or 370 CID engines.
COMMON VEHICLE APPLICATIONS
Pontiac Firebird / Trans Am / GTO / LeMans
Pontiac Grand Prix / Bonneville / Catalina
Pontiac Ventura / Phoenix (301, early 1980s)
Q&A
Does this pan fit both short-deck and standard-deck Pontiac V8s?
Yes — it's designed to fit both 265/301 short-deck and 326-455 standard-deck Pontiac V8 architectures.
Will this pan fit a 347 or 370 CID stroker engine?
No — this pan does not fit 347 or 370 cubic-inch configurations.
Does this pan include baffling?
Yes, it includes internal baffling to help manage oil movement.
Does this pan include the gasket, oil pickup, or windage tray?
No — none of these are included and must be sourced separately.
Where is the sump located on this pan?
At the rear, matching the factory Pontiac V8 layout.
What's the oil capacity of this pan?
4 quarts.
What size is the drain plug thread?
1/2"-20, with the drain plug included.
What material and finish does this pan have?
Steel with a chrome finish.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
Pontiac V8 Steel Oil Pan - Chrome
Pontiac's V8 lineup spans both short-deck (265, 301) and standard-deck (326 through 455) engine architectures, and this chrome-plated steel pan is built to fit both. It covers Pontiac V8 displacements from 4.3L (265 in³) through 7.5L (455 in³), including 301, 326, 350, 389, 400, 421, and 428 cubic inches.
The pan holds 4 quarts and includes internal baffling to help manage oil movement during acceleration and cornering. It uses a wet-sump design with the sump located at the rear, matching the factory 2-piece rear main seal Pontiac V8 layout. It has a 1/2"-20 drain plug thread with the drain plug included. The gasket, oil pickup, windage tray, and dipstick are not included and will need to be sourced separately to complete installation.
This pan does not fit 347 or 370 cubic-inch stroker configurations.
Constructed from steel with a chrome finish, the pan adds a polished, show-quality appearance to Pontiac V8 engine bays.
Applications
Fits Pontiac V8 engines: 4.3L (265 in³), 5.0L (301 in³) short-deck architecture, and 5.3L (326 in³), 5.7L (350 in³), 6.4L (389 in³), 6.6L (400 in³), 6.9L (421 in³), 7.0L (428 in³), and 7.5L (455 in³) standard-deck architecture. Two-piece rear main seal. Not compatible with 347 or 370 cubic-inch stroker configurations.
Installation
Drain plug is included with a 1/2"-20 thread size. Gasket, oil pickup, windage tray, and dipstick are not included and must be sourced separately for a complete installation.
COMPATIBLE WITH
PONTIAC V8
• 4.3 L / 265 in3
• 5.0 L / 301 in3
• 5.3 L / 326 in3
• 5.7 L / 350 in3
• 6.4 L / 389 in3
• 6.6 L / 400 in3
• 6.9 L / 421 in3
• 7.0 L / 428 in3
• 7.5 L / 455 in3
NOTES
• Fits 265/301 short-deck and 326-455 standard-deck Pontiac V8 architectures.
• Does not fit 347 or 370 CID engines.
COMMON VEHICLE APPLICATIONS
Pontiac Firebird / Trans Am / GTO / LeMans
Pontiac Grand Prix / Bonneville / Catalina
Pontiac Ventura / Phoenix (301, early 1980s)
SPECIFICATIONS
Oil Pan Material: Steel
Rear Main Seal: 2-Piece
Dipstick Provision: No
Dipstick: Not Included
Sump Style: Wet
Sump Location: Rear
Oil Capacity: 4 Quarts
Baffled: Yes
Windage Tray: Not Included
Oil Pick-Up: Not Included
Gasket: Not Included
Drain Plug Thread Size: 1/2"-20
Drain Plug: Included
