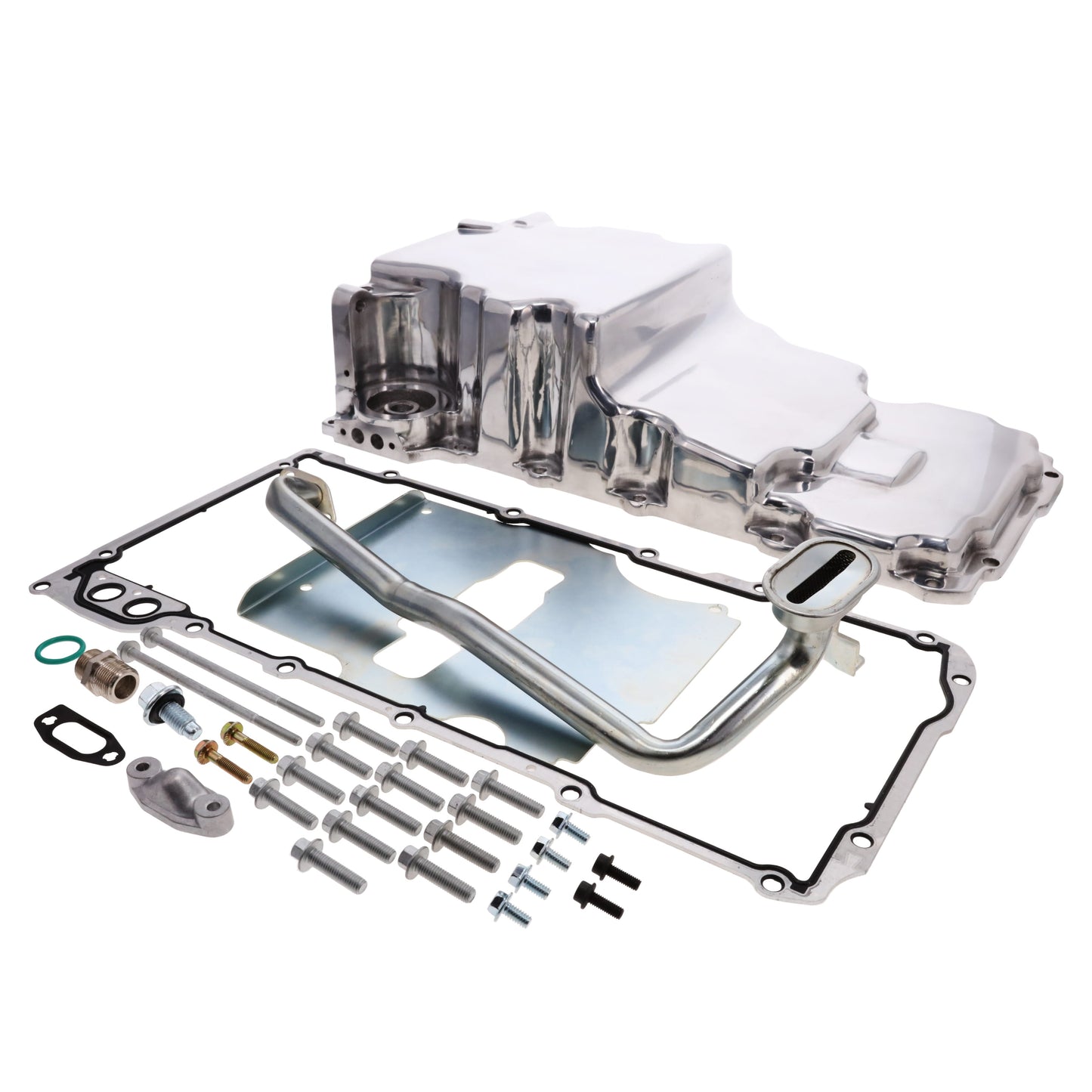

LS Aluminum Rear Sump Low-Profile Retro-Fit Oil Pan - Polished
LS Aluminum Rear Sump Low-Profile Retro-Fit Oil Pan - Polished
SKU: SKU: 81073P
In stock
Product Downloads
Product Details
Features
- Low-profile aluminum pan adds ground and chassis clearance for LS engine swaps
- Mounts to stock wet-sump LS pickup and accepts the factory-style oil filter
- Retrofits GM muscle car chassis built for a factory rear-sump SB/BB Chevy pan
- Baffled 6.0 qt. cast-aluminum sump with polished finish for consistent oil control
Description
LS engines are among the most popular for swaps for their low expense and great power potential. Unfortunately, stock LS oil pans can't always fit where you want them to. That's where TSP's low-profile, retro fit oil pan comes in. Composed of lightweight cast aluminum, it is designed to allow for increased clearance to the ground and chassis. It will fit many GM rear-wheel drive applications originally equipped with a small or big block Chevy engine and factory rear sump pan. Meticulously designed, it will mount perfectly to any wet-sump LS engine and take the stock oil filter.
Specs
| Baffle Included | Yes |
| Baffled | Yes |
| Capacity | 6.0 qt. |
| Color | Silver |
| Crank Shaft Wiper Included | No |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Drain Thread Size | M12 x 1.75 |
| Engine Oil Cooler Return Fitting | No |
| Finish | Polished |
| Gasket Or Seal Included | Yes |
| Kick Out Type Pan | No |
| Material | Aluminum |
| Maximum Depth | 5.460 in. |
| Maximum Stroke | 3.620 in. |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 17 |
| Oil Filter Location | Stock |
| Oil Filter Stud Included | Yes |
| Oil Passage Cover Included | Yes |
| Pickup Included | Yes |
| Sump Location | Rear |
| Sump Type | Wet |
| Windage Tray Included | No |
Engine Fitment
COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS BASED)
• 4.8 L / 293 in3
• 5.3 L / 325 in3
• 5.7 L / 346 in3 commonly referred to as 350
• 6.0 L / 364 in3
• 6.2 L / 376 in3
NOTES
• Ideal for Camaro/Firebird ('67-'69), Nova/Apollo/Ventura/Omega ('82-'92), GM A-body ('64-'72), G-body ('78-'87), and F-body ('82-'92) applications*.
• Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application.
• Fits most LS engines, except LS7 or LS9 dry sump applications.
• Requires the use of LS3 style dipstick and tube: GM #12669528 and 12625031, respectively.
• Takes AC Delco PF48/PF48E, K&N HP-1017, or equivalent oil filter.
Vehicle Fitment
Q&A
Will this oil pan work with an LS7 or LS9 engine?
No — this pan is designed for wet-sump LS Gen III/IV engines and does not support LS7 or LS9 dry-sump oiling systems.
What dipstick do I need with this pan?
It requires an LS3-style dipstick and tube, GM part numbers 12669528 (dipstick) and 12625031 (tube).
What oil filter fits this pan?
It retains the stock LS oil filter location and accepts an AC Delco PF48/PF48E, K&N HP-1017, or equivalent filter.
Will I need to adjust my engine mounts or position for this pan to clear?
Possibly — engine fore/aft position or height may need adjustment for chassis and crossmember clearance depending on the specific vehicle platform.
How much oil does this pan hold?
6.0 quarts, with internal baffling to help control oil movement under acceleration and cornering.
What size is the drain plug on this pan?
M12 x 1.75 thread, with the drain plug included.
Does this pan come with the gasket and mounting hardware?
Yes, both the gasket and mounting hardware are included, along with the oil pickup, oil filter stud, and oil passage cover.
Can this pan be used for an LS swap into a first-gen Camaro or Nova?
Yes — it's designed to retrofit into Camaro/Firebird ('67-'69) and Nova/Apollo/Ventura/Omega ('82-'92) chassis originally built around a factory rear-sump small or big block Chevy pan.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
The product was good
LS Aluminum Rear Sump Low-Profile Retro-Fit Oil Pan - Polished
Swapping an LS engine into a classic GM muscle car often means fighting for clearance between the oil pan, crossmember, and chassis. This cast-aluminum, low-profile rear-sump oil pan is built to solve that problem, giving LS Gen III/IV engines (4.8L, 5.3L, 5.7L/350, 6.0L, and 6.2L) a wet-sump pan that retrofits into GM rear-wheel-drive chassis originally built around a factory rear-sump small or big block Chevy pan.
The low-profile design increases ground and chassis clearance, making it a common choice for LS swaps into Camaro and Firebird (1967-1969), Nova, Apollo, Ventura, and Omega (1982-1992), and GM A-body (1964-1972) and F-body (1982-1992) platforms. Because the pan mounts to the stock LS oil pickup and accepts the factory oil filter, it's designed to bolt in without switching to a dry-sump system or relocating the filter.
Built from lightweight cast aluminum with a polished finish, the pan holds 6.0 quarts and includes internal baffling to help manage oil movement under acceleration and cornering — useful for street-driven builds as well as more spirited driving. It is not designed for LS7 or LS9 dry-sump applications, and installation requires an LS3-style dipstick and tube (GM #12669528 and #12625031). Engine position may need adjustment for clearance depending on the specific application.
Applications
Covers LS Gen III/IV displacements: 4.8L (293 ci), 5.3L (325 ci), 5.7L/350 (346 ci), 6.0L (364 ci), and 6.2L (376 ci). Designed for wet-sump LS engines only — not compatible with LS7 or LS9 dry-sump platforms. Not intended for GM G-body applications.
Installation

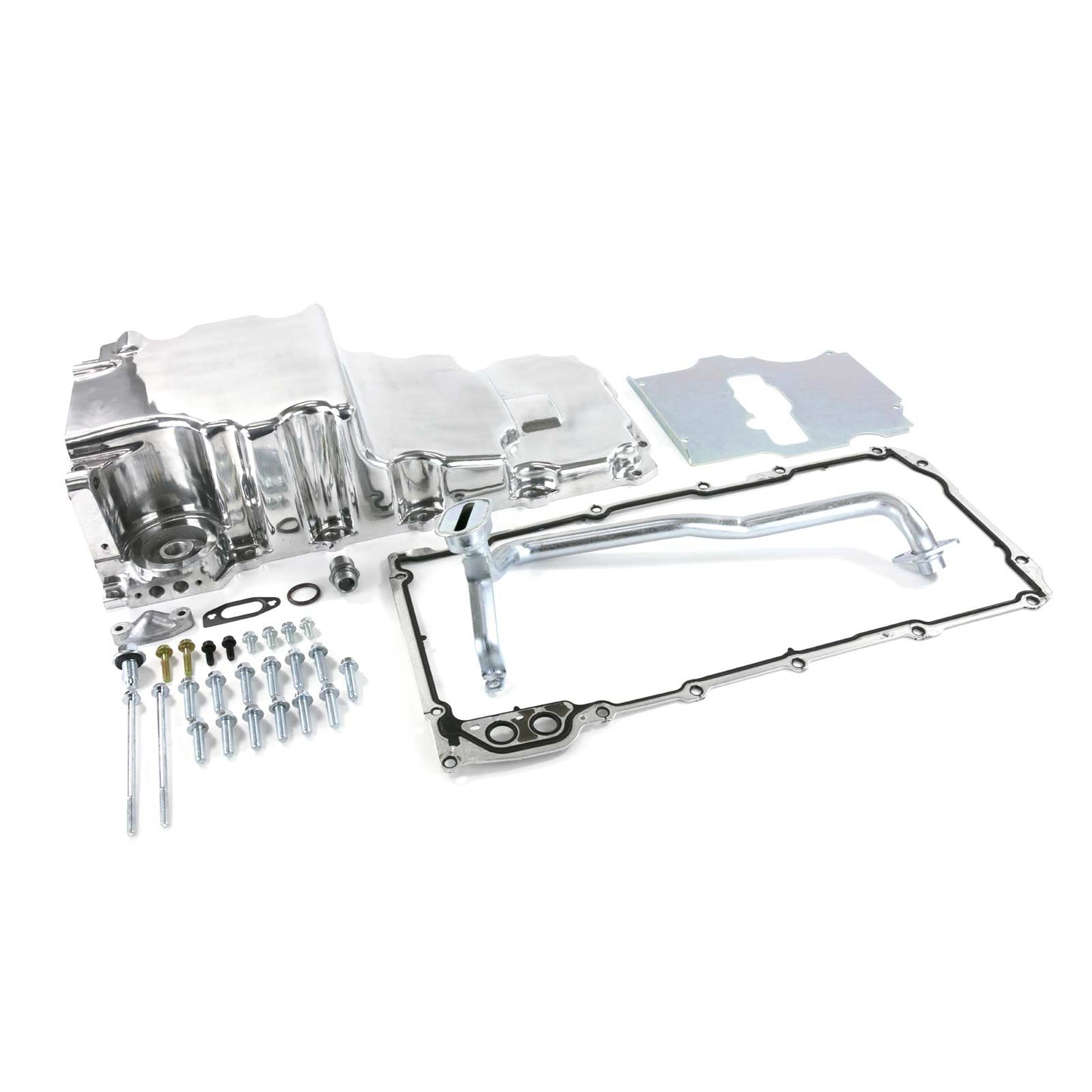

Includes gasket, mounting hardware, drain plug, oil pickup, oil filter stud, and oil passage cover. Uses 17 mounting holes and an M12 x 1.75 drain plug thread. Requires an LS3-style dipstick and tube (GM #12669528 and #12625031) — not compatible with dipstick tubes cast for other LS pan styles. Engine fore/aft position and height may need adjustment for chassis clearance depending on the vehicle.
COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS BASED)
• 4.8 L / 293 in3
• 5.3 L / 325 in3
• 5.7 L / 346 in3 commonly referred to as 350
• 6.0 L / 364 in3
• 6.2 L / 376 in3
NOTES
• Ideal for Camaro/Firebird ('67-'69), Nova/Apollo/Ventura/Omega ('82-'92), GM A-body ('64-'72), G-body ('78-'87), and F-body ('82-'92) applications*.
• Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application.
• Fits most LS engines, except LS7 or LS9 dry sump applications.
• Requires the use of LS3 style dipstick and tube: GM #12669528 and 12625031, respectively.
• Takes AC Delco PF48/PF48E, K&N HP-1017, or equivalent oil filter.
SPECIFICATIONS
Baffle Included: Yes
Baffled: Yes
Capacity: 6.0 qt.
Color: Silver
Crank Shaft Wiper Included: No
Dipstick Port: No
Drain Plug Included: Yes
Drain Thread Size: M12 x 1.75
Engine Oil Cooler Return Fitting: No
Finish: Polished
Gasket Or Seal Included: Yes
Kick Out Type Pan: No
Material: Aluminum
Maximum Depth: 5.460 in.
Maximum Stroke: 3.620 in.
Mounting Hardware Included: Yes
Mounting Hole Quantity: 17
Oil Filter Location: Stock
Oil Filter Stud Included: Yes
Oil Passage Cover Included: Yes
Pickup Included: Yes
Sump Location: Rear
Sump Type: Wet
Windage Tray Included: No
