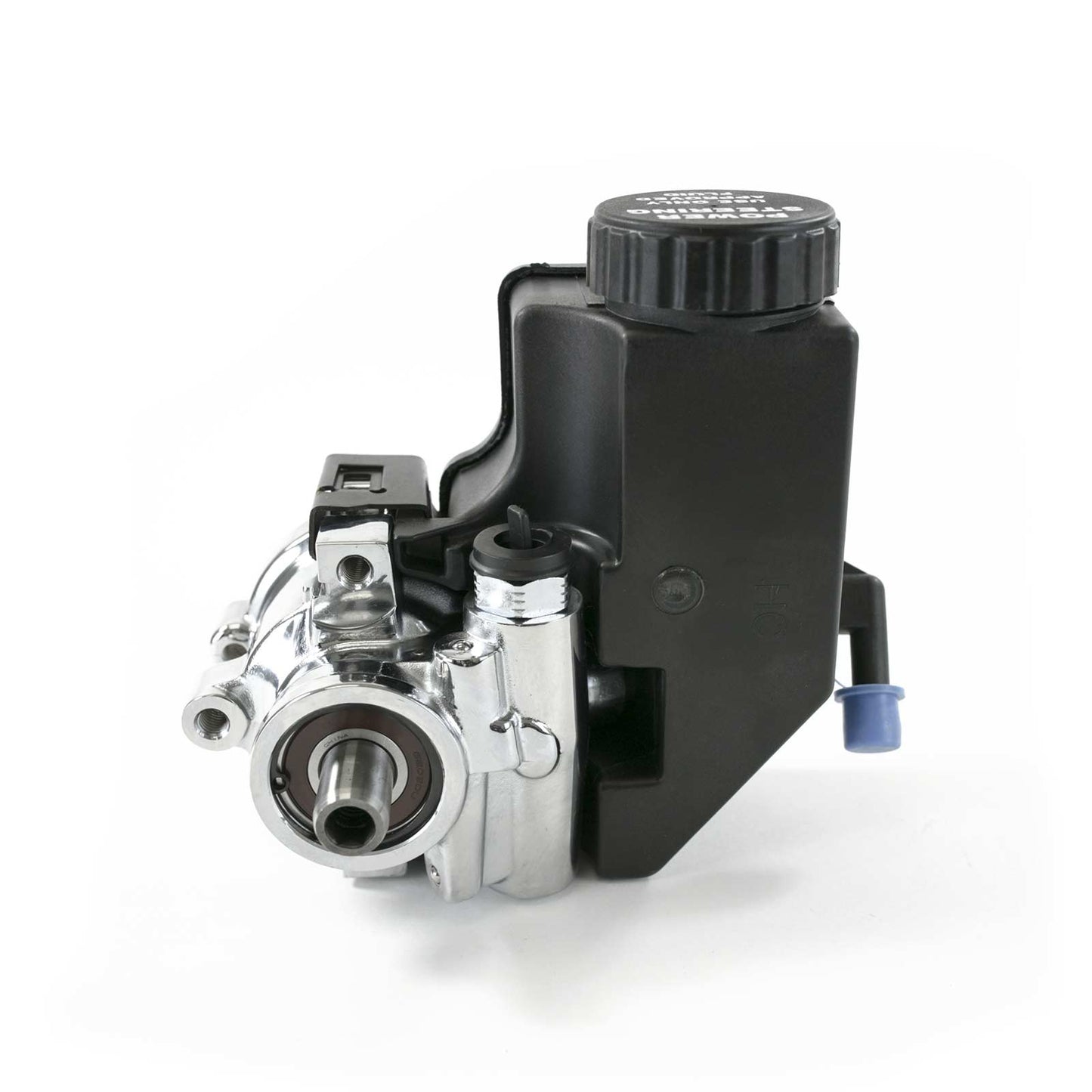

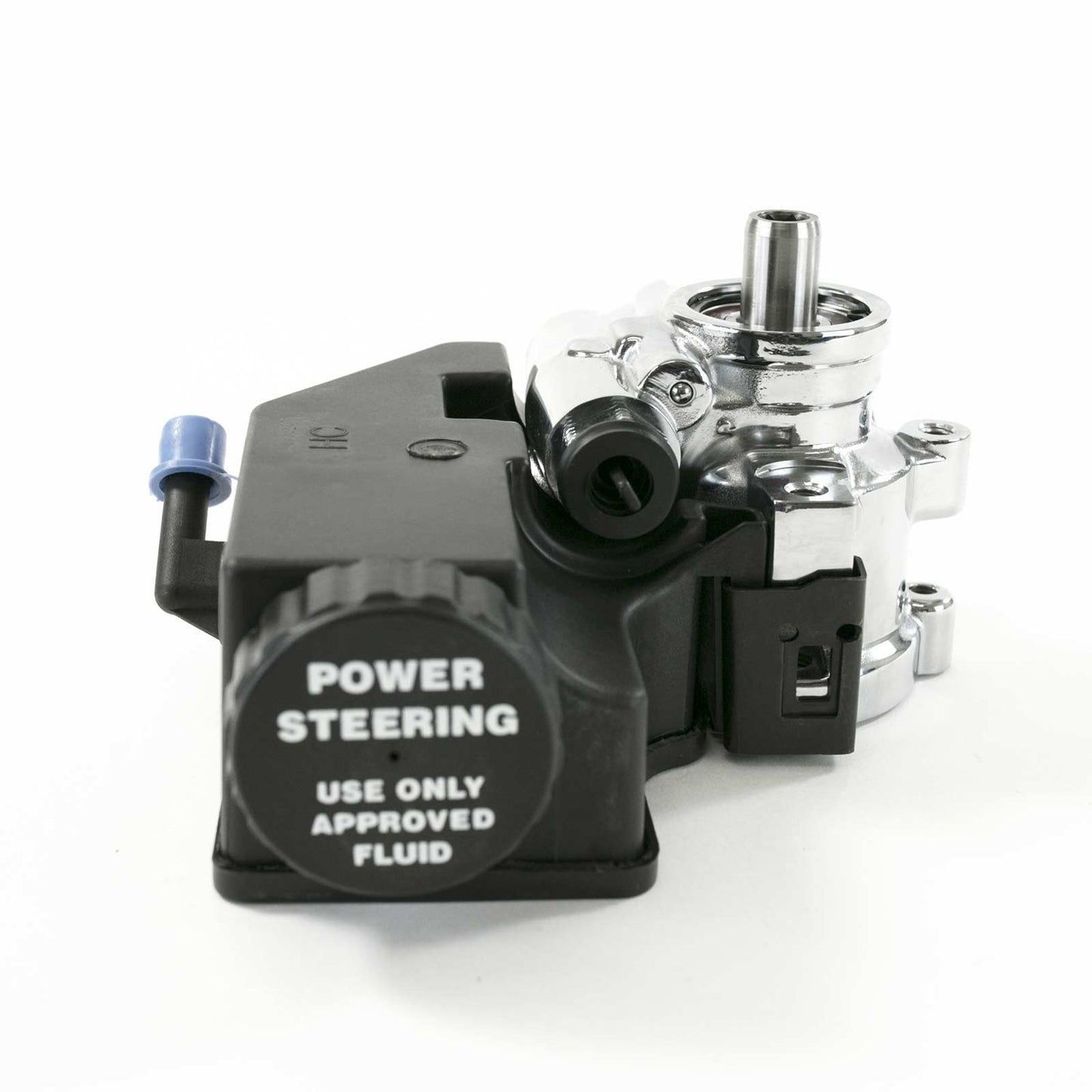

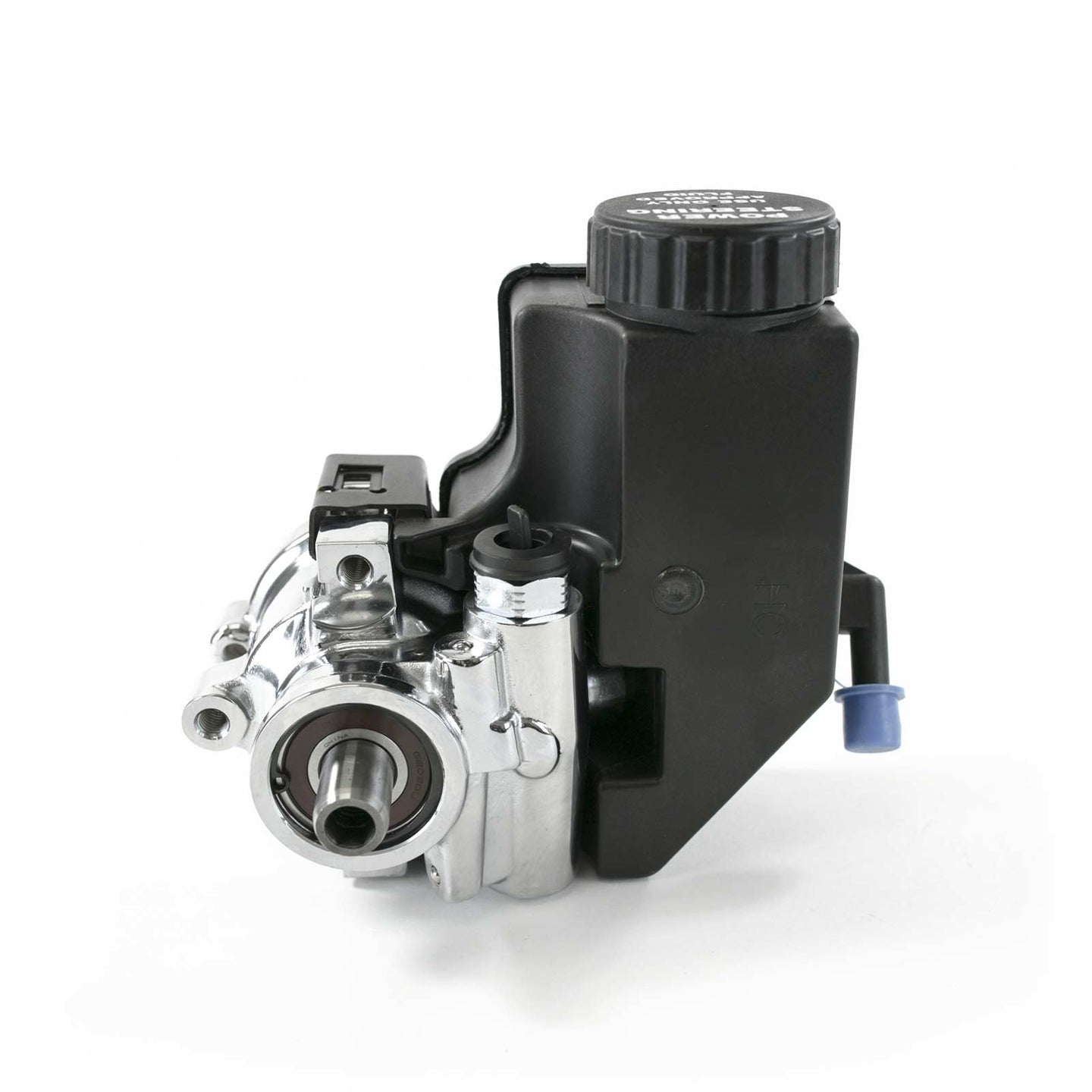

GM Type II Power Steering Pump with Integral Black Plastic Reservoir - Chrome
GM Type II Power Steering Pump with Integral Black Plastic Reservoir - Chrome
SKU: SKU: JM2011C
In stock
Product Details
Features
- GM Type II (Saginaw TC series) pump with integral 8 oz black plastic reservoir and cap, chrome housing
- 3/8" hose barb inlet and -6AN threaded outlet for compatible hose and fitting setups
- Press-on smooth shaft; compatible press-fit pulley and press-fit tool required — pulley not included
- More compact and lightweight than aluminum reservoir Type II pumps; mounting hardware not included
Description
This is a GM Type II (Saginaw TC series) hydraulic power steering pump with a chrome aluminum housing and an integral 8 oz black plastic reservoir with cap. It features a 3/8" hose barb inlet and -6AN threaded outlet, a smooth press-on shaft for press-fit pulley attachment, and an 8 oz black plastic reservoir — giving you a compact, complete pump assembly at a lower price point than the larger aluminum reservoir versions.
The 8 oz plastic reservoir keeps this pump lighter and more compact than aluminum reservoir designs, making it a practical choice for tighter Type II bracket setups where space is at a premium. The chrome housing suits builds running a chrome accessory drive theme, while the black plastic reservoir adds a contrasting two-tone appearance.
A compatible press-fit pulley and press-fit installation tool are required — the smooth press-on shaft is not compatible with screw-on hub pulleys. A compatible pulley and mounting hardware are sold separately. This pump is commonly used on GM LS engine swap projects, Corvette accessory drive systems, custom street rod and muscle car serpentine builds, and aftermarket serpentine accessory drive conversions running a GM Type II bracket system. Verify bracket compatibility, inlet and outlet fitting style, pulley fit, and reservoir clearance before installation. Fill and bleed the system after installation.
Compact Chrome Type II Pump with 8 oz Plastic Reservoir Included
This GM Type II (Saginaw TC series) pump pairs a chrome aluminum housing with an integral 8 oz black plastic reservoir and cap — a complete, compact pump assembly suited to Type II bracket setups where a lighter, smaller-capacity reservoir fits the build better than larger aluminum versions.
3/8" Hose Barb Inlet and -6AN Outlet — Confirm Fitting Style Before Ordering
This pump uses a 3/8" hose barb inlet and -6AN threaded outlet. This fitting configuration differs from Type II pumps using O-ring, NPT, or AN-threaded inlets — confirm your hose ends and fittings match the hose barb inlet and -6AN outlet before ordering.
Specs
| Filter Included | No |
| Hose Port Type | Hose Barb |
| Housing Finish | Chrome |
| Housing Material | Aluminum |
| Inlet Attachment Type | Hose Barb |
| Inlet Diameter | 0.375 AN |
| Inlet Quantity | 1 |
| Mounting Hardware Included | No |
| Outlet Attachment Type | Threaded |
| Outlet Diameter | -6 AN |
| Outlet Quantity | 1 |
| Pulley Attachment Type | Press-on |
| Pulley Included | No |
| Remote Reservoir | No |
| Remote Reservoir Included | No |
| Reservoir Cap Included | Yes |
| Reservoir Capacity | 8 oz. |
| Reservoir Finish | Black |
| Reservoir Included | Yes |
| Reservoir Material | Plastic |
| Shaft Type | Smooth |
| Type | Hydraulic |
Engine Fitment
COMPATIBLE WITH
GM TYPE II (SAGINAW TC SERIES) POWER STEERING SYSTEMS
• Fits GM Type II (Saginaw TC Series) power steering bracket systems.
• Compatible with aftermarket serpentine accessory drive systems designed for GM Type II pumps.
• Complete pump assembly with an integral black plastic reservoir.
• Fits applications using a smooth shaft with a press-fit power steering pulley.
• Verify bracket style, pulley alignment, hose routing, and fitting configuration before installation.
COMMON VEHICLE APPLICATIONS
Chevrolet LS engine swap projects
Corvette accessory drive systems
Street rod builds
Hot rod builds
Muscle car serpentine conversions
Pro Touring builds
NOTES
• Fits GM Type II (Saginaw TC Series) power steering systems only.
• Includes integral black plastic reservoir and reservoir cap.
Pulley not included.
• Uses a smooth press-fit shaft requiring a compatible press-fit pulley.
• Verify pulley compatibility, bracket alignment, hose routing, and pressure fitting configuration before ordering.
• Not compatible with GM Saginaw P-Series (Type 1) power steering pumps.
Q&A
What's included with this pump?
This assembly includes a GM Type II (Saginaw TC series) power steering pump, an integral 8 oz black plastic reservoir, and a reservoir cap. A compatible press-fit pulley and mounting hardware are not included.
What inlet and outlet port styles does this pump use?
The pump features a 3/8-inch hose barb inlet and a -6AN threaded outlet. Verify your hoses and fittings are compatible before installation.
What type of pulley shaft does this pump have?
This pump features a smooth press-fit shaft and requires a compatible GM Type II press-fit pulley. Installation and removal require the proper power steering pulley installer/remover tool.
Is the pulley included?
No. A compatible GM Type II press-fit power steering pulley is required and is sold separately.
What is the reservoir made from?
The pump includes an 8 oz black plastic reservoir. The pump housing is constructed from aluminum with a chrome finish.
How does this pump differ from the JM2022C-H?
The JM2022C-H features a 14 oz aluminum reservoir, screw-on pulley hub, and premium aluminum construction. This pump uses a more compact 8 oz black plastic reservoir, a press-fit shaft, and a 3/8-inch hose barb inlet, making it an excellent option for applications where space, cost, or bracket compatibility are priorities.
Does this fit an LS engine swap?
Yes. This pump is commonly used on GM LS engine swaps utilizing a GM Type II power steering bracket system.
Will this work with a Corvette accessory drive?
Yes. It is commonly used with Corvette-style and many aftermarket serpentine accessory drive systems designed for GM Type II pumps.
Is this compatible with a Saginaw P-Series power steering system?
No. This is a GM Type II (Saginaw TC series) power steering pump and is not interchangeable with GM Saginaw P-Series pump systems.
Does mounting hardware come included?
No. Mounting hardware is not included.
Do I need to bleed the system after installation?
Yes. Fill the system with the recommended power steering fluid and properly bleed it after installation to remove trapped air and ensure smooth, quiet steering operation.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
