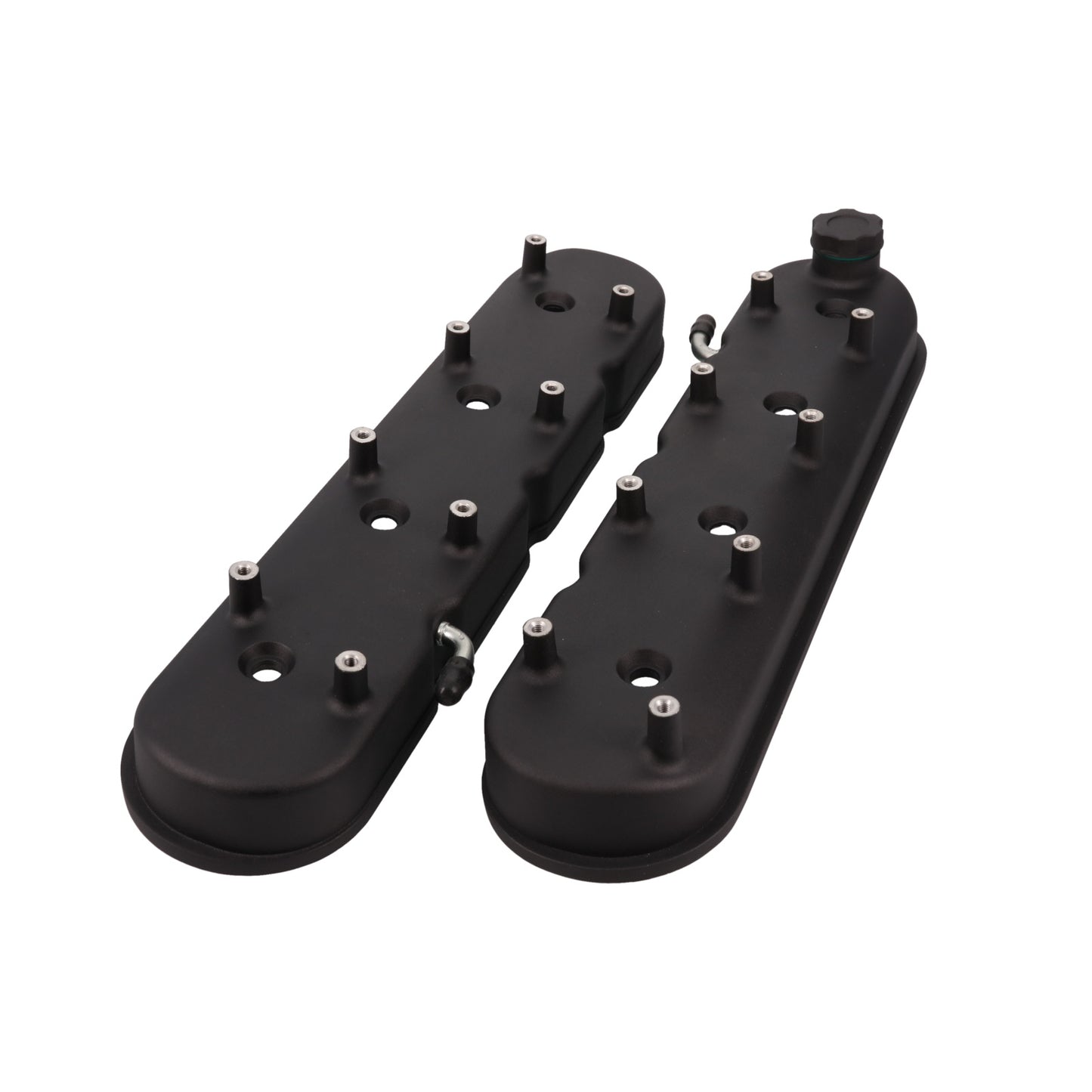

GM LS Cast Aluminum Valve Covers with Coil Mounts- Black

• Fits GM LS valve cover applications

• Cast Aluminum construction with black finish for strength, durability, and leak resistance

• Designed for proper crankcase ventilation

• Hardware may be required; verify gasket type; check rocker, coil, hood, and breather clearance before installation

GM LS Cast Aluminum Valve Covers with Coil Mounts for Sealing, Clearance, and Engine Bay Detail

These GM LS valve covers are built around the details buyers search for most: fitment, valve cover height, material, finish, ventilation, and sealing. The 3 in. profile, center bolt mounting style, and application-specific top style help match the cover to the correct engine build and clearance requirements.

These cast aluminum valve covers are available in polished, satin, or black finishes to enhance both durability and engine bay appearance. Built-in coil mounting provisions and internal baffling provide ignition system compatibility and effective oil control. Be sure to verify gasket and hardware requirements for your specific engine combination before installation.

The integrated coil mounting studs allow Delco D510C (GM Gen V LS) ignition coils to bolt directly to the valve covers using the factory 72mm mounting pattern—no separate coil relocation or mounting brackets required. TSP 81015-8 ignition coils are a direct-fit option for these valve covers.

Use these valve covers for street performance builds, restorations, swaps, and engine dress-up upgrades where appearance, oil control, and valvetrain clearance matter. Verify gasket style, breather/PCV layout, rocker clearance, and hood clearance before installation.

What applications are these valve covers compatible with?
These valve covers are designed for GM Gen III/IV LS-based Small Block V8 engines, including the 4.8L (293 CID), 5.3L (325 CID), 5.7L (346 CID/LS1), 6.0L (364 CID), 6.2L (376 CID), and 7.0L (427 CID) applications. The valve cover base fits LS1, LS2, LS3, LS6, and LS7 cylinder heads and includes provisions for Delco D510C (TSP 81015) and D580-style ignition coils.

Will these valve covers fit my engine?
These valve covers are designed for GM Gen III/IV LS engines. Verify that your engine uses LS1-, LS2-, LS3-, LS6-, or LS7-style cylinder heads and that your ignition coil configuration matches before ordering.

What do valve covers do?
Valve covers seal the top of the cylinder heads to protect the valvetrain from dirt and debris while containing engine oil and helping prevent leaks.

What material are these valve covers made from?
These valve covers are manufactured from cast aluminum, providing excellent durability, corrosion resistance, and reduced weight compared to factory steel valve covers.

What finish do these valve covers have?
These valve covers feature a black finish that provides a bright, show-quality appearance. They are also available in satin and polished finishes.

Are these valve covers baffled?
Yes. These valve covers feature internal baffling to help control oil movement inside the valve cover and reduce the amount of oil reaching the PCV or breather openings during engine operation.

Do I need gaskets for installation?
Yes. Valve cover gaskets are required for installation. Verify whether your application reuses the factory LS gasket or requires a replacement gasket before installation.

Do I need hardware for installation?
Mounting hardware may be required depending on your application. Verify whether your existing valve cover bolts can be reused or if replacement hardware is needed.

Will these valve covers help prevent oil leaks?
Yes. When installed correctly with properly matched valve cover gaskets on clean sealing surfaces, these valve covers are designed to provide a reliable seal and help prevent oil leaks.

Are these valve covers a good upgrade over stock?
Yes. Cast aluminum valve covers offer increased durability, improved appearance, integrated coil mounting provisions, and additional valvetrain clearance, making them an excellent upgrade for street performance, engine swaps, and custom builds.

Can these valve covers clear aftermarket rocker arms?
These tall-profile valve covers provide additional clearance for many aftermarket roller rocker arms and performance valvetrain components. Verify clearance for your specific rocker arm and valvetrain combination before installation.

Can these valve covers be used in performance builds?
Yes. These valve covers are well suited for street performance, racing, engine swaps, turbocharged and supercharged applications, and custom LS builds where additional valvetrain clearance and integrated coil mounting are desired.

Do these valve covers require separate coil mounting brackets?
No. These valve covers feature integrated 72 mm coil mounting studs for Delco D510C (including TSP 81015) and D580-style ignition coils. Compatible coils mount directly to the valve covers without the need for separate coil brackets.
