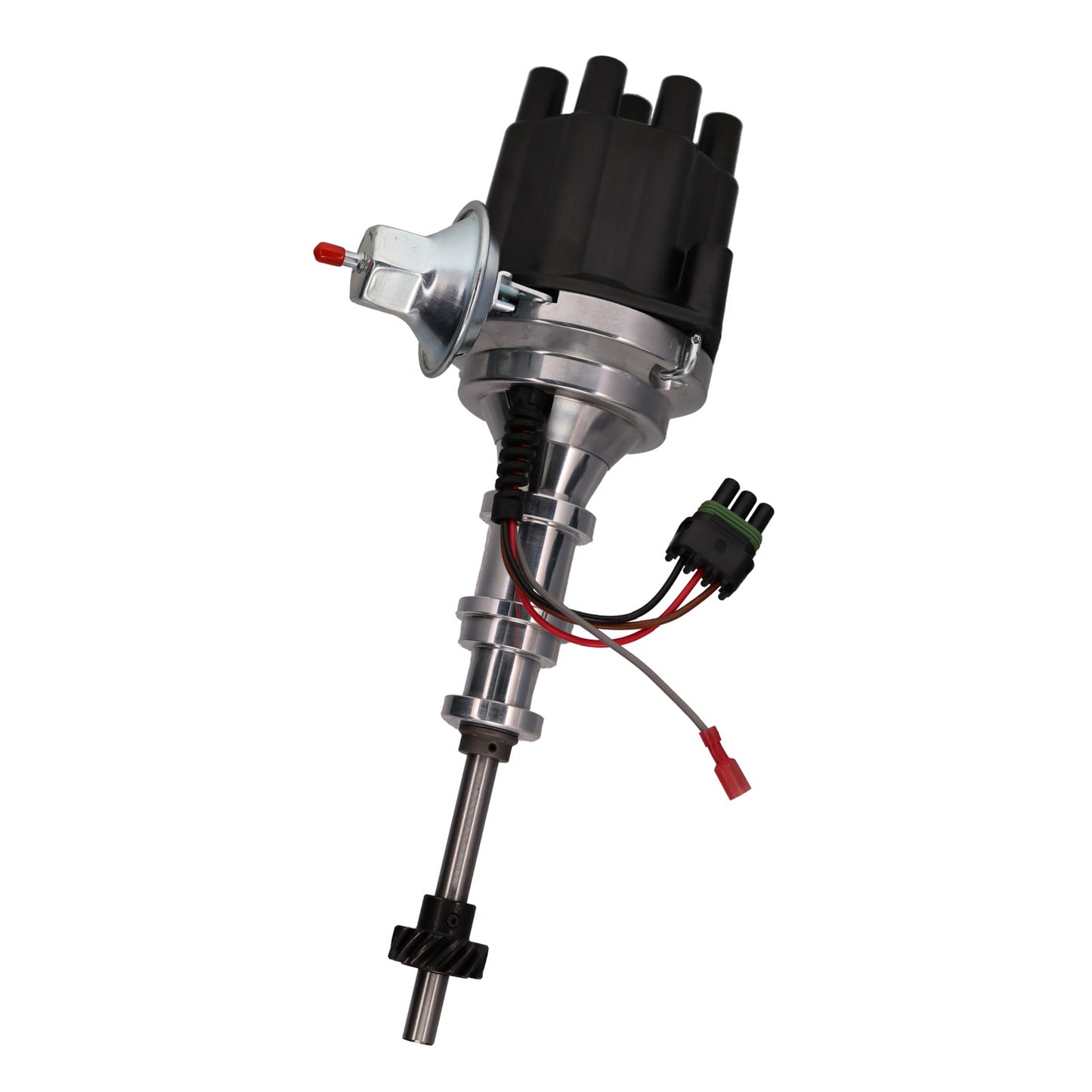

Ford Y-Block V8 Female Cap Pro Series Ready to Run Distributor
Ford Y-Block V8 Female Cap Pro Series Ready to Run Distributor
SKU: SKU: JM7742FBK
In stock
Product Downloads
Product Details
Features
- Onboard ignition module — no separate ignition box required
- External-coil design supports 35,000V+ coils for more spark energy
- Direct fit for Ford Y-Block 272/292/312 carbureted V8s (1954–1964)
- Female cap style — pairs with plug wires using male terminals
Description
Upgrade your Ford Y-Block V8 — 272, 292, or 312 CID, 1954–1964 — with this Pro Series Ready-to-Run distributor, featuring an onboard circuit board ignition module with a magnetic pickup trigger, so there's no separate ignition box to wire in, while the external-coil design keeps the flexibility to run a higher-output coil. This version uses a female-style distributor cap, which requires plug wires with male terminals. It supports Mainline, Customline, Fairlane, Crown Victoria, Galaxie, F-Series, Edsel, Mercury Monterey, and Mercury Montclair applications running a Y-Block engine.
This distributor is not designed for vehicles that used a mechanical tachometer drive, such as Thunderbird, and is not compatible with Ford's earlier Flathead V8 or later Windsor, FE, or 385-series big block engines. The housing is machined aluminum with a steel drive gear best matched to cast iron hydraulic or solid flat-tappet camshafts, and rotation is counterclockwise. This distributor requires a 12-volt electrical system with an alternator and a coil rated at 35,000 volts or higher; it is not compatible with generator-based charging systems or vehicles still running an active ballast resistor in the ignition circuit — the resistor should be removed or bypassed as part of installation.
What Is a Ready-to-Run (RTR) Distributor?
An RTR distributor has the ignition control module built directly into the housing — in this case, a circuit board module paired with a magnetic pickup trigger — so it fires off a single 12-volt source without needing a separate ignition box wired into the circuit. This version uses a female-style cap, which requires plug wires terminated with male ends, and the coil stays external, requiring a coil rated at 35,000 volts or higher.
Performance Benefits
The circuit board module and magnetic pickup trigger replace factory points-style triggering, so timing holds steady without point wear or gap drift over time. Mechanical and vacuum advance are both included, allowing the timing curve to be tuned for carbureted street or performance driving on the Y-Block specifically — an engine family that predates Ford's later Windsor and FE platforms and uses its own distinct distributor and cap configuration.
Specs
| Distributor Type | Pro Series Ready to Run |
| Engine Platform | Ford Y-Block V8 |
| Trigger Type | Circuit Board Module with Magnetic Pickup |
| Distributor Rotation | Counterclockwise |
| Advance Type | Mechanical and Vacuum |
| Cap Color | Black |
| Terminal Gender | Female |
| Mechanical Tach Drive | No |
| Slip Collar | No |
| Coil Included | No |
| Coil Type | External |
| Gear Material | Steel |
| Housing Material | Machined Aluminum |
| Ignition Box Required | No |
| Marine Use | No |
| Cylinders | 8 |
| Required Coil Output | 35,000+ V |
| Voltage Requirement | 12 V electrical system with alternator |
Engine Fitment
COMPATIBLE WITH
FORD Y-BLOCK V8
• 4.5 L / 272 in³
• 4.8 L / 292 in³
• 5.1 L / 312 in³
NOTES
• Designed for Ford Y-Block V8 carbureted applications produced from 1954–1964.
• Features a female-style distributor cap — requires plug wires with male terminals.
• Will not fit Thunderbird applications that came equipped with a mechanical tachometer drive — verify your specific application before ordering.
• Not compatible with Ford's earlier Flathead V8, or later Windsor, FE, or 385-series big block engines — those require a different distributor.
• Requires an external coil with a minimum output of 35,000V — no separate ignition box required.
• This distributor is designed for a 12 volt electrical system with an alternator and a performance ignition coil of 35,000 V or more.
• It is not compatible with a generator and cannot be used with a ballast resistor.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult camshaft manufacturer for recommended gear material before installation.
COMMON VEHICLE APPLICATIONS
Ford Mainline (272/292, 1955–1956)
Ford Customline (272/292, 1955–1956)
Ford Fairlane (272/292/312, 1955–1956)
Ford Crown Victoria (272/292/312, 1955–1956)
Ford Galaxie (292/312, 1959–1960)
Ford F-Series (272/292, 1954–1964)
Ford Edsel (292/312, 1958–1960)
Mercury Monterey (292/312, 1954–1960)
Mercury Montclair (292/312, 1955–1960)
Q&A
Will this distributor fit a Thunderbird Y-Block?
No. This distributor is not compatible with Ford Thunderbird Y-Block applications because those engines use a mechanical tachometer drive, which this distributor does not provide.
What plug wires do I need with this female-cap distributor?
This distributor uses a female-terminal cap, so it requires spark plug wires with male terminals. Verify your plug wire terminal style before ordering.
What years and vehicles does this distributor cover?
This distributor fits Ford Y-Block V8 applications from 1954–1964, including the Mainline, Customline, Fairlane, Crown Victoria, Galaxie, F-Series, Edsel, Mercury Monterey, and Mercury Montclair.
Will this fit a Ford Flathead V8 or a later Windsor or FE engine?
No. This distributor is designed exclusively for the Ford Y-Block V8 and is not compatible with the Flathead V8, Windsor, FE, or 385-series big block engine families.
Does this distributor include a coil?
No. This is a Ready-to-Run distributor that requires an external ignition coil rated at 35,000 volts or higher, which is sold separately.
What direction does the rotor turn on this distributor?
Counterclockwise, matching the factory rotation direction of the Ford Y-Block V8 family.
What distributor gear is included, and will it work with my camshaft?
This distributor includes a steel distributor gear, which is best suited for cast iron hydraulic or solid flat-tappet camshafts. If your engine uses a roller or other specialty camshaft, verify the recommended distributor gear material with your camshaft manufacturer before installation.
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
Ford Y-Block V8 Female Cap Pro Series Ready to Run Distributor
Upgrade your Ford Y-Block V8 — 272, 292, or 312 CID, 1954–1964 — with this Pro Series Ready-to-Run distributor, featuring an onboard circuit board ignition module with a magnetic pickup trigger, so there's no separate ignition box to wire in, while the external-coil design keeps the flexibility to run a higher-output coil. This version uses a female-style distributor cap, which requires plug wires with male terminals. It supports Mainline, Customline, Fairlane, Crown Victoria, Galaxie, F-Series, Edsel, Mercury Monterey, and Mercury Montclair applications running a Y-Block engine.
This distributor is not designed for vehicles that used a mechanical tachometer drive, such as Thunderbird, and is not compatible with Ford's earlier Flathead V8 or later Windsor, FE, or 385-series big block engines. The housing is machined aluminum with a steel drive gear best matched to cast iron hydraulic or solid flat-tappet camshafts, and rotation is counterclockwise. This distributor requires a 12-volt electrical system with an alternator and a coil rated at 35,000 volts or higher; it is not compatible with generator-based charging systems or vehicles still running an active ballast resistor in the ignition circuit — the resistor should be removed or bypassed as part of installation.
What Is a Ready-to-Run (RTR) Distributor?
An RTR distributor has the ignition control module built directly into the housing — in this case, a circuit board module paired with a magnetic pickup trigger — so it fires off a single 12-volt source without needing a separate ignition box wired into the circuit. This version uses a female-style cap, which requires plug wires terminated with male ends, and the coil stays external, requiring a coil rated at 35,000 volts or higher.
Performance Benefits
The circuit board module and magnetic pickup trigger replace factory points-style triggering, so timing holds steady without point wear or gap drift over time. Mechanical and vacuum advance are both included, allowing the timing curve to be tuned for carbureted street or performance driving on the Y-Block specifically — an engine family that predates Ford's later Windsor and FE platforms and uses its own distinct distributor and cap configuration.
COMPATIBLE WITH
FORD Y-BLOCK V8
• 4.5 L / 272 in³
• 4.8 L / 292 in³
• 5.1 L / 312 in³
NOTES
• Designed for Ford Y-Block V8 carbureted applications produced from 1954–1964.
• Features a female-style distributor cap — requires plug wires with male terminals.
• Will not fit Thunderbird applications that came equipped with a mechanical tachometer drive — verify your specific application before ordering.
• Not compatible with Ford's earlier Flathead V8, or later Windsor, FE, or 385-series big block engines — those require a different distributor.
• Requires an external coil with a minimum output of 35,000V — no separate ignition box required.
• This distributor is designed for a 12 volt electrical system with an alternator and a performance ignition coil of 35,000 V or more.
• It is not compatible with a generator and cannot be used with a ballast resistor.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult camshaft manufacturer for recommended gear material before installation.
COMMON VEHICLE APPLICATIONS
Ford Mainline (272/292, 1955–1956)
Ford Customline (272/292, 1955–1956)
Ford Fairlane (272/292/312, 1955–1956)
Ford Crown Victoria (272/292/312, 1955–1956)
Ford Galaxie (292/312, 1959–1960)
Ford F-Series (272/292, 1954–1964)
Ford Edsel (292/312, 1958–1960)
Mercury Monterey (292/312, 1954–1960)
Mercury Montclair (292/312, 1955–1960)
SPECIFICATIONS
Distributor Type: Pro Series Ready to Run
Engine Platform: Ford Y-Block V8
Trigger Type: Circuit board module with Magnetic Pickup
Distributor Rotation: Counterclockwise
Advance Type: Mechanical and Vacuum
Cap Color: Black
Terminal Gender: Female
Mechanical Tach Drive: No
Slip Collar: No
Coil Included: No
Coil Type: External
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: No
Marine Use: No
Cylinders: 8
Required Coil Output: 35,000+ V
Voltage Requirement: 12 V electrical system with alternator
