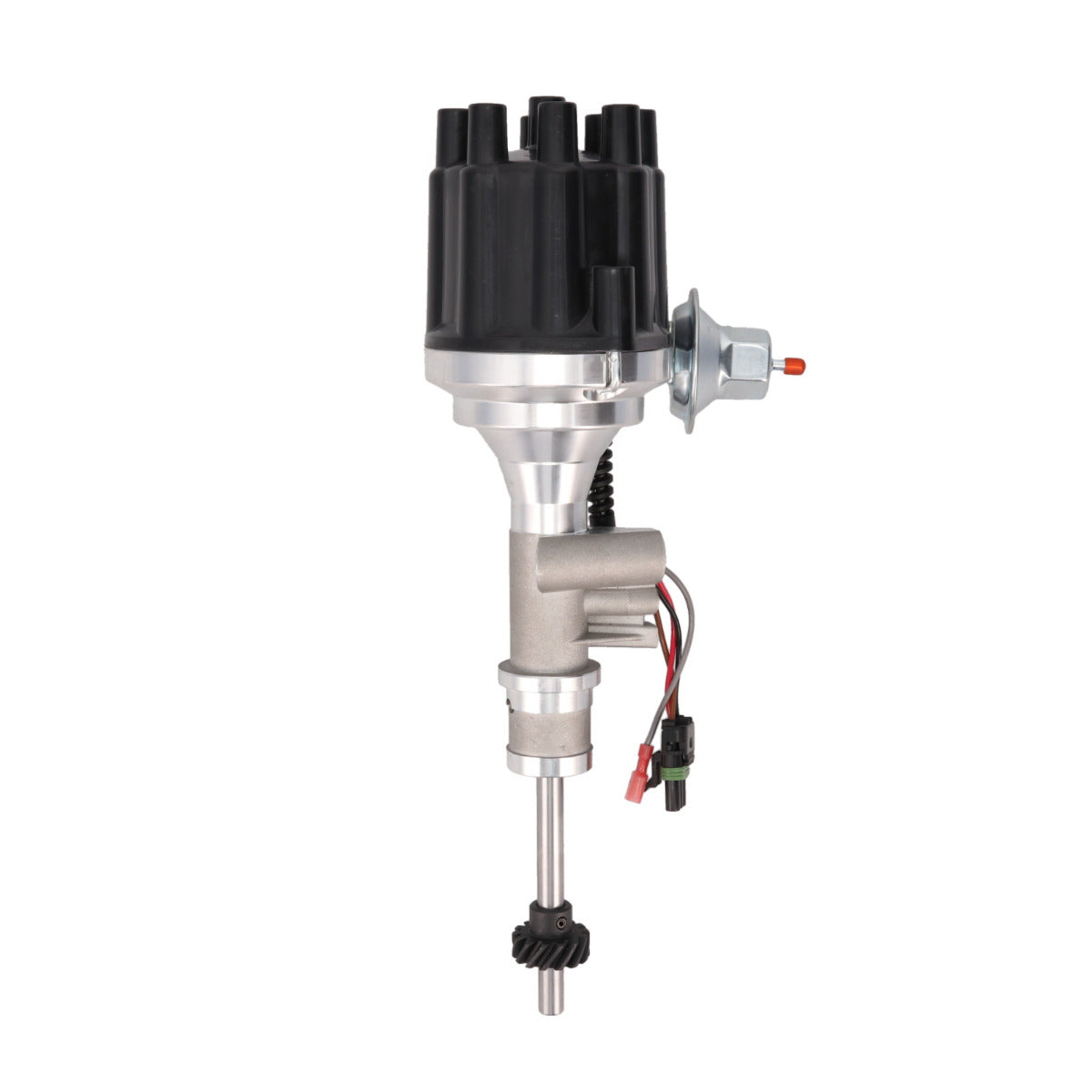

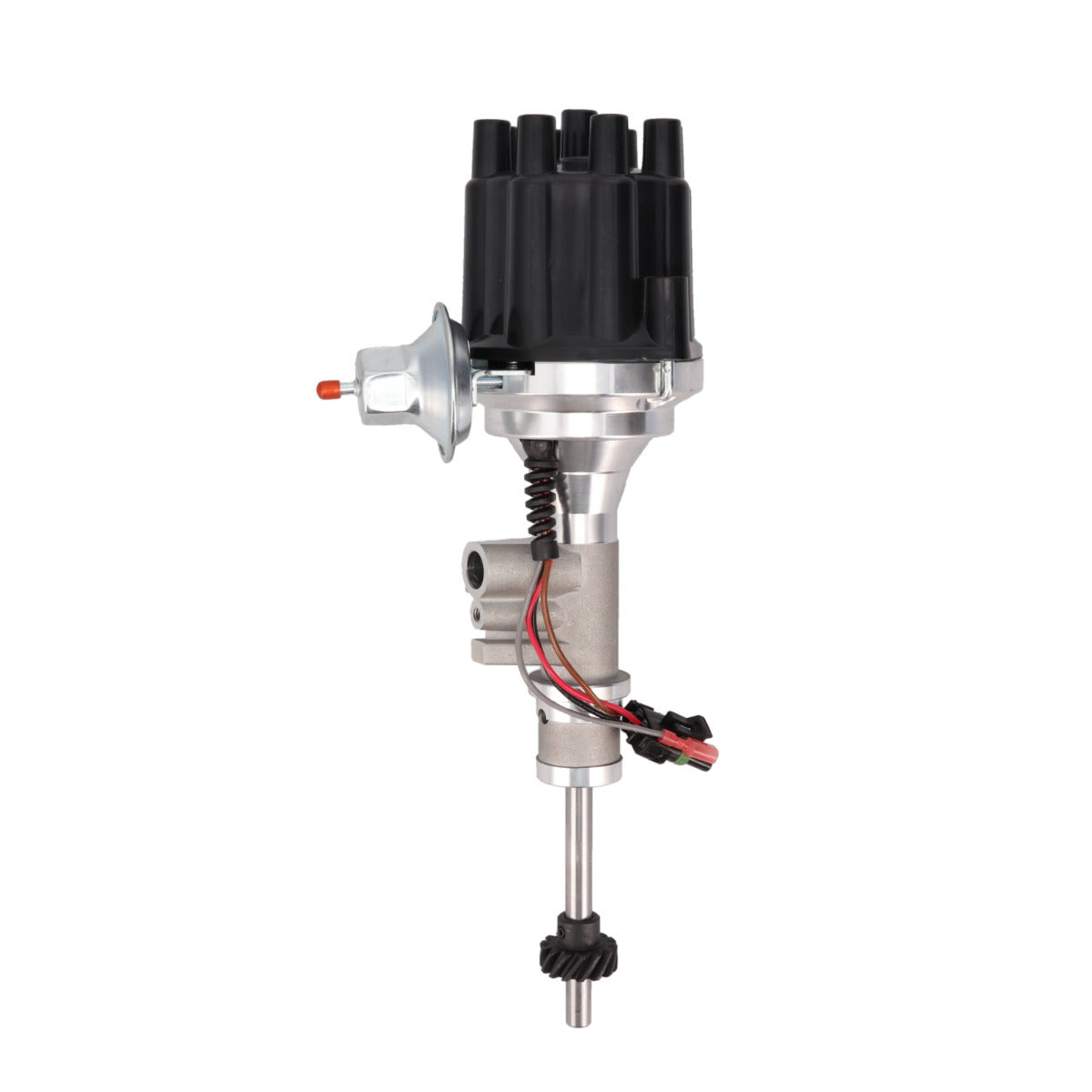

Ford Y-Block Tach Drive (272-312) Pro Series Ready to Run Distributor with Black Female Cap
Ford Y-Block Tach Drive (272-312) Pro Series Ready to Run Distributor with Black Female Cap
SKU: SKU: JM7741FBK
In stock
Product Downloads
Product Details
Features
- Onboard ignition module — no separate ignition box required
- Built specifically for Thunderbird's mechanical tachometer drive
- Direct fit for 1955–1957 Ford Thunderbird Y-Block 272/292/312
Female terminal cap for factory-style connector compatibility
Description
Upgrade your 1955–1957 Ford Thunderbird's Y-Block V8 — 272, 292, or 312 CID — with this Pro Series Ready-to-Run distributor, built specifically to support Thunderbird's factory mechanical tachometer drive. An onboard circuit board ignition module paired with a magnetic pickup trigger eliminates the need for a separate ignition box, while the external-coil design keeps the flexibility to run a higher-output coil. This version uses a female terminal cap.
This distributor is built specifically for Thunderbird applications equipped with a mechanical tach drive and is not the correct fit for other Y-Block vehicles that don't use this drive type — TSP's standard Y-Block Ready-to-Run distributor covers those applications instead. The housing is machined aluminum with a hardened steel shaft, and rotation is counterclockwise. This distributor requires a 12-volt electrical system with an alternator and a coil rated at 35,000 volts or higher; it is not compatible with generator-based charging systems or vehicles still running an active ballast resistor in the ignition circuit — the resistor should be removed or bypassed as part of installation.
What Is a Ready-to-Run (RTR) Distributor?
An RTR distributor has the ignition control module built directly into the housing, so it fires off a single 12-volt source without needing a separate ignition box wired into the circuit. This unit pairs that onboard module with a circuit board ignition control and magnetic pickup trigger, and is specifically configured to drive Thunderbird's factory mechanical tachometer. This version uses a female terminal cap for OEM-style connector compatibility.
Performance Benefits
The circuit board module and magnetic pickup trigger hold timing steady without the wear and drift of a points-based system, while the hardened steel shaft and brass terminal support long-term durability under the added mechanical load of driving the tachometer. Centrifugal and vacuum advance are both included, allowing the timing curve to be tuned for carbureted street or performance driving on the Y-Block Thunderbird specifically.
Specs
| Distributor Type | Pro Series Ready to Run |
| Engine Platform | Ford Y-Block V8 |
| Trigger Type | Circuit Board Module with Magnetic Pickup |
| Advance Type | Centrifugal (Mechanical) And Vacuum |
| Rotation Direction | Counter-Clockwise |
| Cap Color | Black |
| Terminal Gender | Female |
| Terminal Material | Brass |
| Mechanical Tach Drive | Yes |
| Slip Collar | No |
| Coil Type | External |
| Required Coil Output | 35,000+ V |
| Shaft Material | Hardened Steel |
| Housing Material | Machined Aluminum |
| Ignition Box Required | No |
| Marine Use | No |
| Cylinders | 8 |
| Voltage Requirement | 12 V electrical system with alternator |
Engine Fitment
COMPATIBLE WITH
FORD Y-BLOCK V8 (MECHANICAL TACH DRIVE)
• 4.5 L / 272 in³
• 4.8 L / 292 in³
• 5.1 L / 312 in³
NOTES
• Designed exclusively for 1955–1957 Ford Thunderbird Y-Block V8 applications equipped with a mechanical tachometer drive.
• Features a female-style distributor cap — requires plug wires with male terminals.
• Will not fit standard Y-Block applications without a mechanical tach drive — see the Ford Y-Block V8 Pro Series Ready to Run Distributor for those applications.
• Not compatible with Ford Y-Block applications in full-size cars, trucks, or other vehicles — Thunderbird fitment only.
• Requires an external coil with a minimum output of 35,000V — no separate ignition box required.
• This distributor is designed for a 12 volt electrical system with an alternator and a performance ignition coil of 35,000 V or more.
• It is not compatible with a generator and cannot be used with a ballast resistor.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult camshaft manufacturer for recommended gear material before installation.
COMMON VEHICLE APPLICATIONS
Ford Thunderbird (292/312, 1955–1957)
Q&A
What's different about this version compared to the standard male-cap Thunderbird tach drive distributor?
This version uses a female-terminal distributor cap instead of a male-terminal cap, making it compatible with spark plug wires that use male terminals. Engine fitment, mechanical tach drive, ignition performance, and all other features remain the same as the standard Thunderbird Ready-to-Run distributor.
Why is there a separate distributor just for Thunderbird?
The 1955–1957 Ford Thunderbird used a mechanical tachometer driven directly from the distributor, unlike most other Ford Y-Block applications. This distributor is specifically designed with a mechanical tach drive to support those factory tachometer-equipped Thunderbirds.
Will this fit my Fairlane or F-Series Y-Block?
No. This distributor is designed specifically for Thunderbird Y-Block applications equipped with a mechanical tachometer drive. Other Ford Y-Block vehicles, including the Fairlane and F-Series, should use TSP's standard Y-Block Ready-to-Run distributor.
Does this distributor include a coil?
No. This is an external-coil Ready-to-Run distributor and requires an ignition coil rated at 35,000 volts or higher, which is sold separately.
What direction does the rotor turn on this distributor?
Counterclockwise, viewed from above, matching the standard rotation direction of the Ford Y-Block V8 engine family.
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
Ford Y-Block Tach Drive (272-312) Pro Series Ready to Run Distributor with Black Female Cap
Upgrade your 1955–1957 Ford Thunderbird's Y-Block V8 — 272, 292, or 312 CID — with this Pro Series Ready-to-Run distributor, built specifically to support Thunderbird's factory mechanical tachometer drive. An onboard circuit board ignition module paired with a magnetic pickup trigger eliminates the need for a separate ignition box, while the external-coil design keeps the flexibility to run a higher-output coil. This version uses a female terminal cap.
This distributor is built specifically for Thunderbird applications equipped with a mechanical tach drive and is not the correct fit for other Y-Block vehicles that don't use this drive type — TSP's standard Y-Block Ready-to-Run distributor covers those applications instead. The housing is machined aluminum with a hardened steel shaft, and rotation is counterclockwise. This distributor requires a 12-volt electrical system with an alternator and a coil rated at 35,000 volts or higher; it is not compatible with generator-based charging systems or vehicles still running an active ballast resistor in the ignition circuit — the resistor should be removed or bypassed as part of installation.
What Is a Ready-to-Run (RTR) Distributor?
An RTR distributor has the ignition control module built directly into the housing, so it fires off a single 12-volt source without needing a separate ignition box wired into the circuit. This unit pairs that onboard module with a circuit board ignition control and magnetic pickup trigger, and is specifically configured to drive Thunderbird's factory mechanical tachometer. This version uses a female terminal cap for OEM-style connector compatibility.
Performance Benefits
The circuit board module and magnetic pickup trigger hold timing steady without the wear and drift of a points-based system, while the hardened steel shaft and brass terminal support long-term durability under the added mechanical load of driving the tachometer. Centrifugal and vacuum advance are both included, allowing the timing curve to be tuned for carbureted street or performance driving on the Y-Block Thunderbird specifically.
COMPATIBLE WITH
FORD Y-BLOCK V8 (MECHANICAL TACH DRIVE)
• 4.5 L / 272 in³
• 4.8 L / 292 in³
• 5.1 L / 312 in³
NOTES
• Designed exclusively for 1955–1957 Ford Thunderbird Y-Block V8 applications equipped with a mechanical tachometer drive.
• Features a female-style distributor cap — requires plug wires with male terminals.
• Will not fit standard Y-Block applications without a mechanical tach drive — see the Ford Y-Block V8 Pro Series Ready to Run Distributor for those applications.
• Not compatible with Ford Y-Block applications in full-size cars, trucks, or other vehicles — Thunderbird fitment only.
• Requires an external coil with a minimum output of 35,000V — no separate ignition box required.
• This distributor is designed for a 12 volt electrical system with an alternator and a performance ignition coil of 35,000 V or more.
• It is not compatible with a generator and cannot be used with a ballast resistor.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult camshaft manufacturer for recommended gear material before installation.
COMMON VEHICLE APPLICATIONS
Ford Thunderbird (292/312, 1955–1957)
SPECIFICATIONS
Distributor Type: Pro Series Ready to Run
Engine Platform: Ford Y-Block V8
Trigger Type: Circuit board module with Magnetic Pickup
Advance Type: Centrifugal (Mechanical) And Vacuum
Rotation Direction: Counter-Clockwise
Cap Color: Black
Terminal Gender: Female
Terminal Material: Brass
Mechanical Tach Drive: Yes
Slip Collar: No
Coil Type: External
Required Coil Output: 35,000+ V
Shaft Material: Hardened Steel
Housing Material: Machined Aluminum
Ignition Box Required: No
Marine Use: No
Cylinders: 8
Voltage Requirement: 12 V electrical system with alternator
