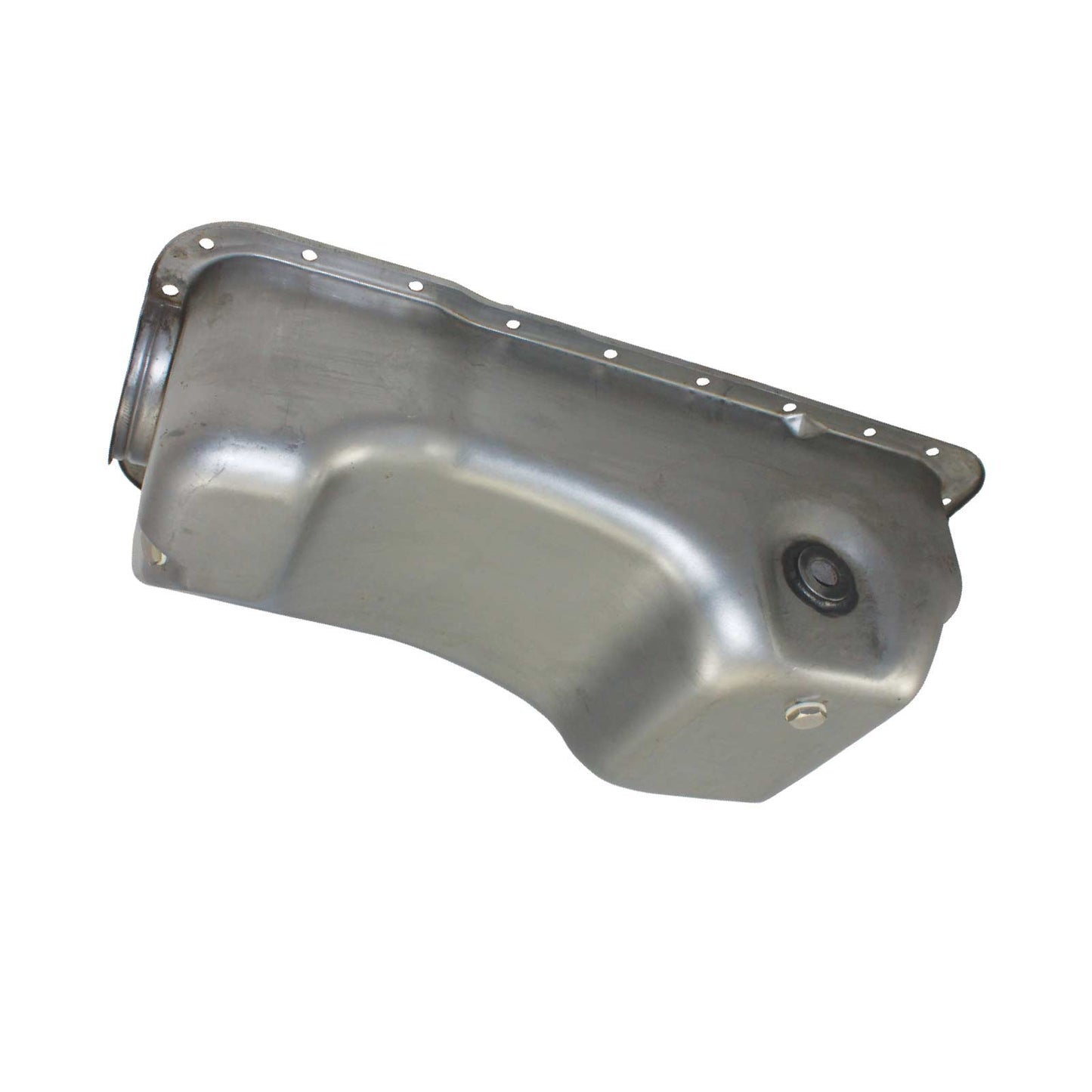

Ford Small Block Mustang Dual Sump Steel Oil Pan - Unplated
Ford Small Block Mustang Dual Sump Steel Oil Pan - Unplated
SKU: SKU: SP7457X
Out of stock
Product Details
Features
- Dual-sump steel pan direct-fits 1991-1993 Mustang 5.0L applications
- Fits 1983-1990 Mustangs when paired with 1991-93 pickup tube
- Built for Ford small block Windsor 302 dual-sump Mustang applications
- Unplated steel 4-qt. pan adds classic styling to Fox Body 5.0 builds
Description
The Fox Body Mustang GT and LX 5.0 use a dual-sump oil pan design that's different from other small block Windsor 302 applications. This unplated steel pan is a direct fit for 1991-1993 Mustang 5.0L applications, matching the factory dual-sump layout.
It can also be used in 1983-1990 Mustang 5.0L applications, but requires the 1991-1993 oil pump pickup tube to fit correctly — the 1983-1990 pickup will not work with this pan.
The pan holds 4 quarts and uses a wet-sump design with dual sump locations, matching the factory Fox Body layout. It has a 1/2"-20 drain plug thread with the drain plug included. This pan does not include internal baffling, a windage tray, gasket, or oil pickup, and does not have a dipstick provision — these will need to be sourced or accounted for separately as needed for your build.
Constructed from steel with a unplated finish, the pan adds a polished, show-quality appearance to Fox Body Mustang engine bays.
Applications
Fits Ford small block Windsor V8, 5.0L (302 in³), dual-sump configuration. Direct fit for 1991-1993 Mustang GT/LX 5.0. Also compatible with 1983-1990 Mustang GT/LX 5.0, but requires the 1991-1993 oil pump pickup tube.
Installation
Drain plug is included with a 1/2"-20 thread size. If installing on a 1983-1990 application, the 1991-1993 oil pump pickup tube is required — the earlier pickup will not work with this pan. This pan does not include internal baffling, a windage tray, gasket, or oil pickup — these must be sourced separately. No dipstick provision is included.
Specs
| Oil Pan Material | Steel |
| Dipstick Provision | No |
| Dipstick | Not Included |
| Sump Style | Wet |
| Sump Location | Dual |
| Oil Capacity | 4 Quarts |
| Baffled | No |
| Windage Tray | Not Included |
| Oil Pick-Up | Not Included |
| Gasket | Not Included |
| Drain Plug Thread Size | 1/2"-20 |
| Drain Plug | Included |
Engine Fitment
COMPATIBLE WITH
FORD SMALL BLOCK WINDSOR V8
• 5.0 L / 302 in3
NOTES
Fits double-sump small block Ford 5.0L Mustang from 1991-1993.
Fitment in 1983-1990 applications requires the use of 1991-1993 oil pump pickup.
COMMON VEHICLE APPLICATIONS
Ford Mustang GT / LX 5.0 (1991-1993, direct fit); Ford Mustang GT / LX 5.0 (1983-1990, with 1991-93 pickup tube required).
Q&A
Does this pan fit a 1983-1990 Mustang 5.0?
Yes, but it requires the 1991-1993 oil pump pickup tube — the 1983-1990 pickup will not work with this pan.
Is this pan a direct fit for 1991-1993 Mustangs?
Yes — no pickup tube swap is needed for 1991-1993 applications.
What does "dual sump" mean for this pan?
The pan has oil collection points at both the front and rear, matching the factory Fox Body Mustang oiling design.
Does this pan have a dipstick provision?
No.
Does this pan include the gasket, oil pickup, or windage tray?
No — none of these are included and must be sourced separately.
What's the oil capacity of this pan?
4 quarts.
What material and finish does this pan have?
Steel with a unplated finish.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
Ford Small Block Mustang Dual Sump Steel Oil Pan - Unplated
The Fox Body Mustang GT and LX 5.0 use a dual-sump oil pan design that's different from other small block Windsor 302 applications. This unplated steel pan is a direct fit for 1991-1993 Mustang 5.0L applications, matching the factory dual-sump layout.
It can also be used in 1983-1990 Mustang 5.0L applications, but requires the 1991-1993 oil pump pickup tube to fit correctly — the 1983-1990 pickup will not work with this pan.
The pan holds 4 quarts and uses a wet-sump design with dual sump locations, matching the factory Fox Body layout. It has a 1/2"-20 drain plug thread with the drain plug included. This pan does not include internal baffling, a windage tray, gasket, or oil pickup, and does not have a dipstick provision — these will need to be sourced or accounted for separately as needed for your build.
Constructed from steel with a unplated finish, the pan adds a polished, show-quality appearance to Fox Body Mustang engine bays.
Applications
Fits Ford small block Windsor V8, 5.0L (302 in³), dual-sump configuration. Direct fit for 1991-1993 Mustang GT/LX 5.0. Also compatible with 1983-1990 Mustang GT/LX 5.0, but requires the 1991-1993 oil pump pickup tube.
Installation
Drain plug is included with a 1/2"-20 thread size. If installing on a 1983-1990 application, the 1991-1993 oil pump pickup tube is required — the earlier pickup will not work with this pan. This pan does not include internal baffling, a windage tray, gasket, or oil pickup — these must be sourced separately. No dipstick provision is included.
COMPATIBLE WITH
FORD SMALL BLOCK WINDSOR V8
• 5.0 L / 302 in3
NOTES
Fits double-sump small block Ford 5.0L Mustang from 1991-1993.
Fitment in 1983-1990 applications requires the use of 1991-1993 oil pump pickup.
COMMON VEHICLE APPLICATIONS
Ford Mustang GT / LX 5.0 (1991-1993, direct fit); Ford Mustang GT / LX 5.0 (1983-1990, with 1991-93 pickup tube required).
SPECIFICATIONS
Oil Pan Material: Steel
Dipstick Provision: No
Dipstick: Not Included
Sump Style: Wet
Sump Location: Dual
Oil Capacity: 4 Quarts
Baffled: No
Windage Tray: Not Included
Oil Pick-Up: Not Included
Gasket: Not Included
Drain Plug Thread Size: 1/2"-20
Drain Plug: Included
