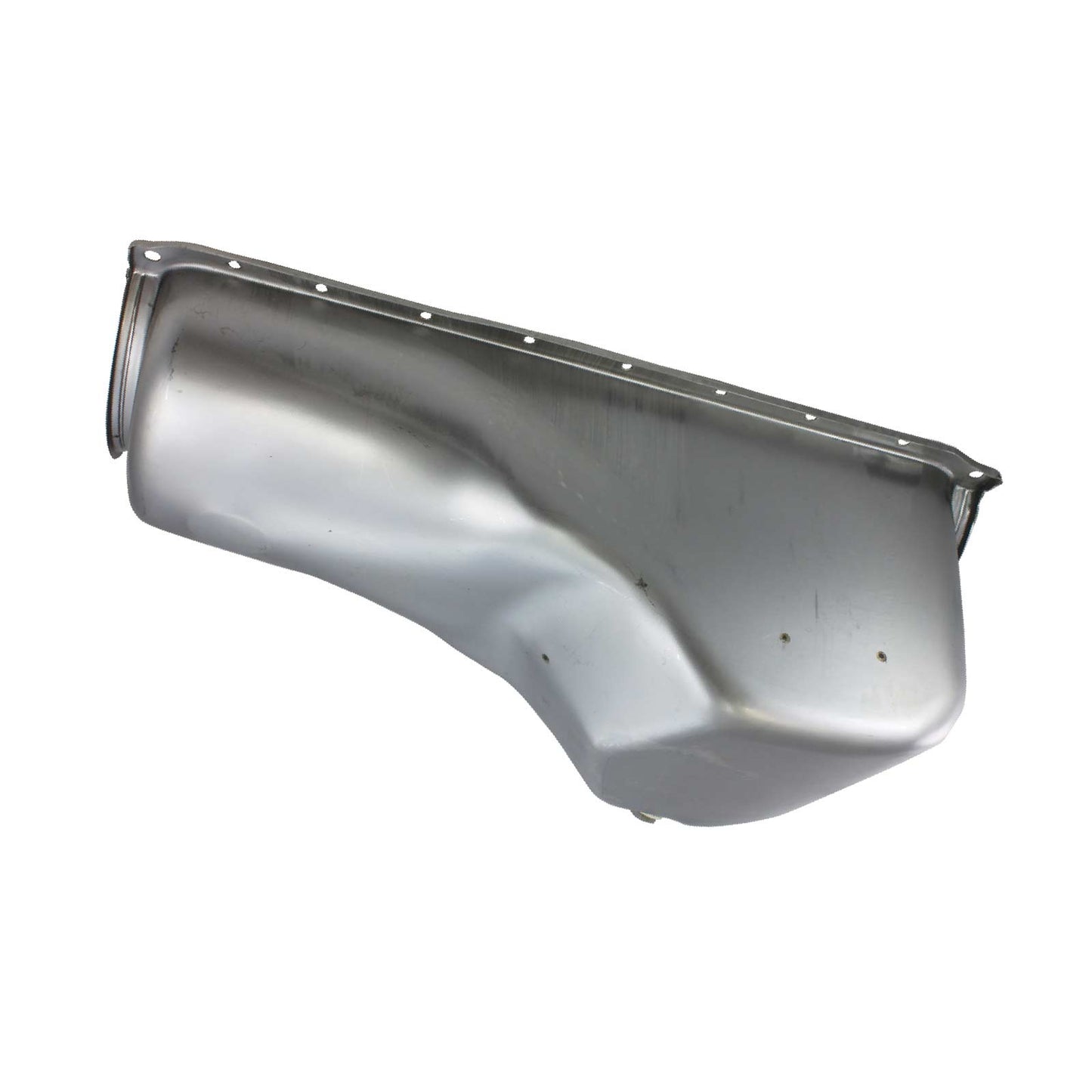

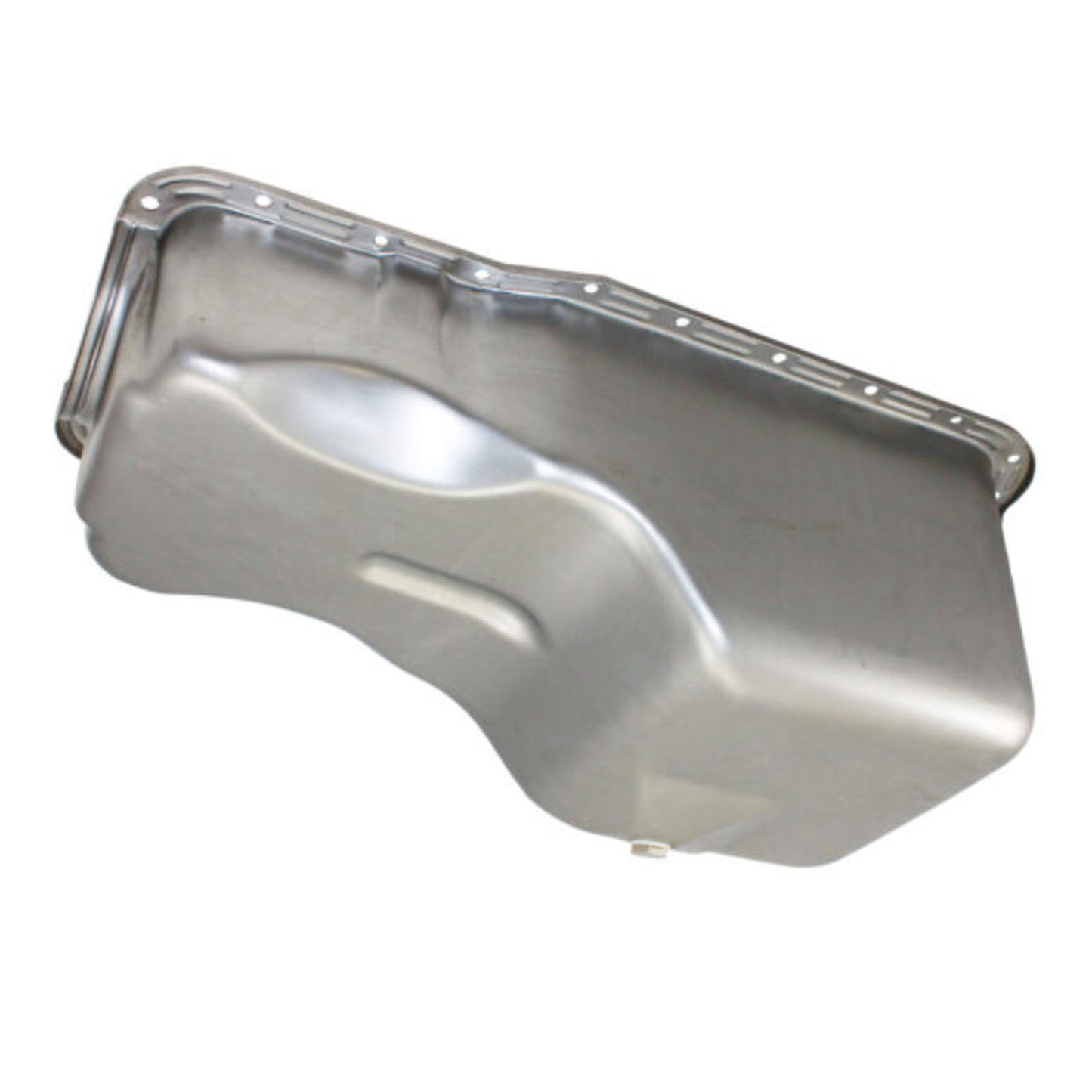

Ford Small Block 351W Front Sump Steel Oil Pan - Unplated
Ford Small Block 351W Front Sump Steel Oil Pan - Unplated
SKU: SKU: SP7452X
Low stock
Product Details
Features
- Steel front-sump pan fits Ford 351W small block V8 applications
- Matches factory front-sump oiling layout for 1969-1981 351W engines
- Fits Mustang, Torino, Cougar, and F-Series 351W-equipped vehicles
- Chrome steel 4-qt. pan adds classic styling to 351W builds
Description
Ford's 351 Windsor (351W) small block V8 uses a front-sump oiling layout distinct from the 335-series 351C/351M/400 engines. This unplated steel pan is built specifically for the 351W, fitting most front-sump applications produced from 1969 through 1981, including Mustang (1969-1973), Torino, LTD, Galaxie, Cougar, Montego, Marquis, and F-Series trucks and Bronco (2WD).
The pan holds 4 quarts and uses a wet-sump design with the sump located at the front, matching the factory 351W layout. It has a 1/2"-20 drain plug thread with the drain plug included. This pan does not include internal baffling, a windage tray, gasket, or oil pickup, and does not have a dipstick provision — these will need to be sourced or accounted for separately as needed for your build.
Constructed from steel with a unplated finish, the pan adds a polished, show-quality appearance to 351W-powered engine bays.
Applications
Fits Ford 351 Windsor (351W) small block V8, 5.8L. Front-sump applications from 1969 through 1981, including Mustang (1969-1973), Torino, LTD, Galaxie, Cougar, Montego, Marquis, and F-Series trucks and Bronco (2WD).
Installation
Drain plug is included with a 1/2"-20 thread size. This pan does not include internal baffling, a windage tray, gasket, or oil pickup — these must be sourced separately. No dipstick provision is included.
Specs
| Oil Pan Material | Steel |
| Dipstick Provision | No |
| Dipstick | Not Included |
| Sump Style | Wet |
| Sump Location | Front |
| Oil Capacity | 4 Quarts |
| Baffled | No |
| Windage Tray | Not Included |
| Oil Pick-Up | Not Included |
| Gasket | Not Included |
| Drain Plug Thread Size | 1/2"-20 |
| Drain Plug | Included |
Engine Fitment
COMPATIBLE WITH
FORD SMALL BLOCK WINDSOR V8
• 5.8 L / 351 in3 generally referred to as 351W
NOTE: Fits most front-sump 351W applications from 1969-1981.
COMMON VEHICLE APPLICATIONS
Ford Mustang (1969–1973, 351W)
Ford Torino / LTD / Galaxie
Mercury Cougar / Montego / Marquis
Ford F-Series trucks and Bronco (1969–1981, front sump, 2WD)
Q&A
What years does this pan fit?
Most front-sump 351W applications from 1969 through 1981.
Will this pan fit a 351 Cleveland (351C) or 351M engine?
No — the 351C/351M/400 use a different engine architecture (335-series) than the 351W and require a different pan.
Does this pan have a dipstick provision?
No.
Does this pan include the gasket, oil pickup, or windage tray?
No — none of these are included and must be sourced separately.
Where is the sump located on this pan?
At the front, matching the factory 351W layout.
What's the oil capacity of this pan?
4 quarts.
What material and finish does this pan have?
Steel with a unplated finish.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
