Ford Flathead V8 Pro Series Ready to Run Distributor
Ford Flathead V8 Pro Series Ready to Run Distributor
SKU: SKU: JM7740R
In stock
Product Downloads
Product Details
Features
- Onboard ignition module — no separate ignition box required
- External-coil design supports 35,000V+ coils for more spark energy
- Direct fit for 1949–1953 Ford Flathead V8: 239/255 CID
- Circuit board module with magnetic pickup holds accurate timing
Description
Upgrade your Ford Flathead V8 — 239 or 255 CID, 1949–1953 — with this Pro Series Ready-to-Run distributor, featuring an onboard circuit board ignition module paired with a magnetic pickup trigger, so there's no separate ignition box to wire in, while the external-coil design keeps the flexibility to run a higher-output coil. This distributor supports Ford Deluxe, Super Deluxe, Custom, F-Series, Mercury Eight, and hot rod Flathead V8 applications.
This distributor is built for the 1949–1953 Flathead's front-mounted, Loadamatic-style distributor configuration and will not fit 1948-and-earlier Flathead engines, which used a direct camshaft-driven horizontal distributor design instead. The housing is machined aluminum with a steel drive gear best matched to cast iron hydraulic or solid flat-tappet camshafts, and rotation is clockwise. This distributor requires a 12-volt electrical system with an alternator and a coil rated at 35,000 volts or higher; it is not compatible with generator-based charging systems or vehicles still running an active ballast resistor in the ignition circuit — the resistor should be removed or bypassed as part of installation.
What Is a Ready-to-Run (RTR) Distributor?
An RTR distributor has the ignition control module built directly into the housing, so it fires off a single 12-volt source without needing a separate ignition box wired into the circuit. This unit pairs that onboard module with a circuit board ignition control and magnetic pickup trigger, replacing the original Loadamatic distributor's points and vacuum-only advance control. The coil stays external here, requiring a coil rated at 35,000 volts or higher.
Performance Benefits
The circuit board module and magnetic pickup trigger hold timing steady without the wear and drift of a points-based system — a meaningful upgrade over the flathead's original vacuum-only Loadamatic advance control. Mechanical and vacuum advance are both included, allowing the timing curve to be tuned for carbureted street or performance driving on this early flathead V8 platform.
Specs
| Distributor Type | Pro Series Ready to Run |
| Engine Platform | Ford Flathead V8 |
| Trigger Type | Circuit Board Module with Magnetic Pickup |
| Advance Type | Mechanical and Vacuum |
| Rotation Direction | Clockwise |

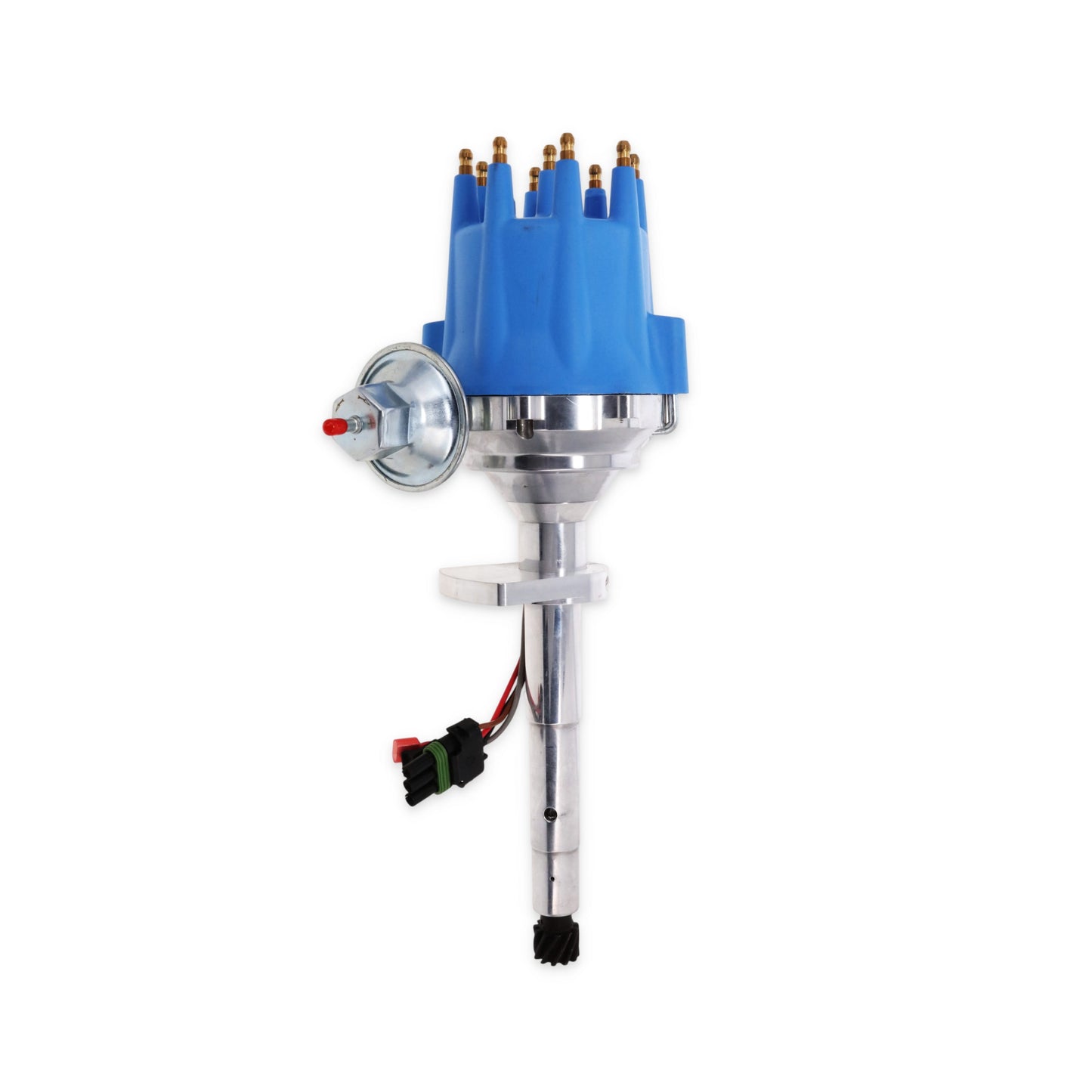

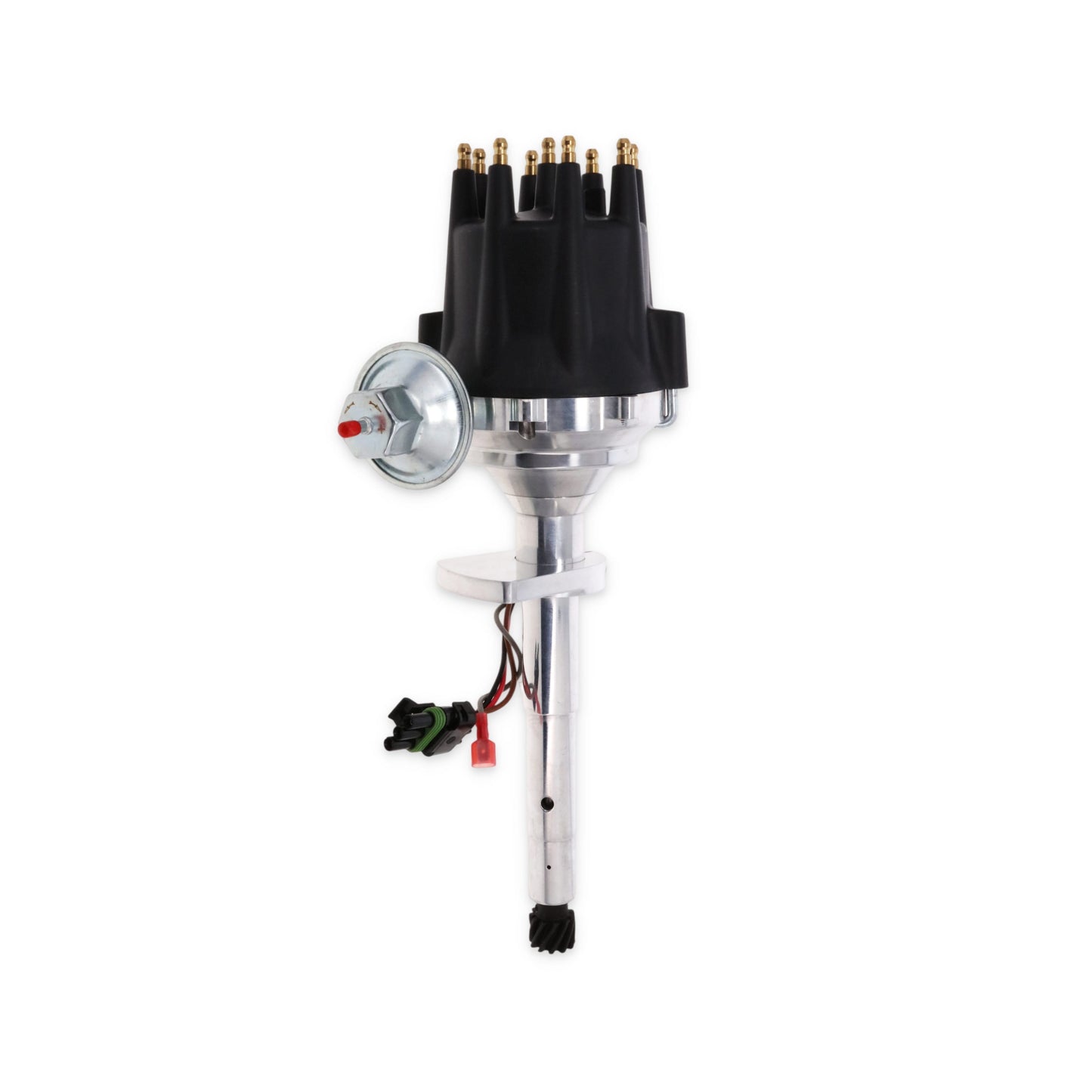

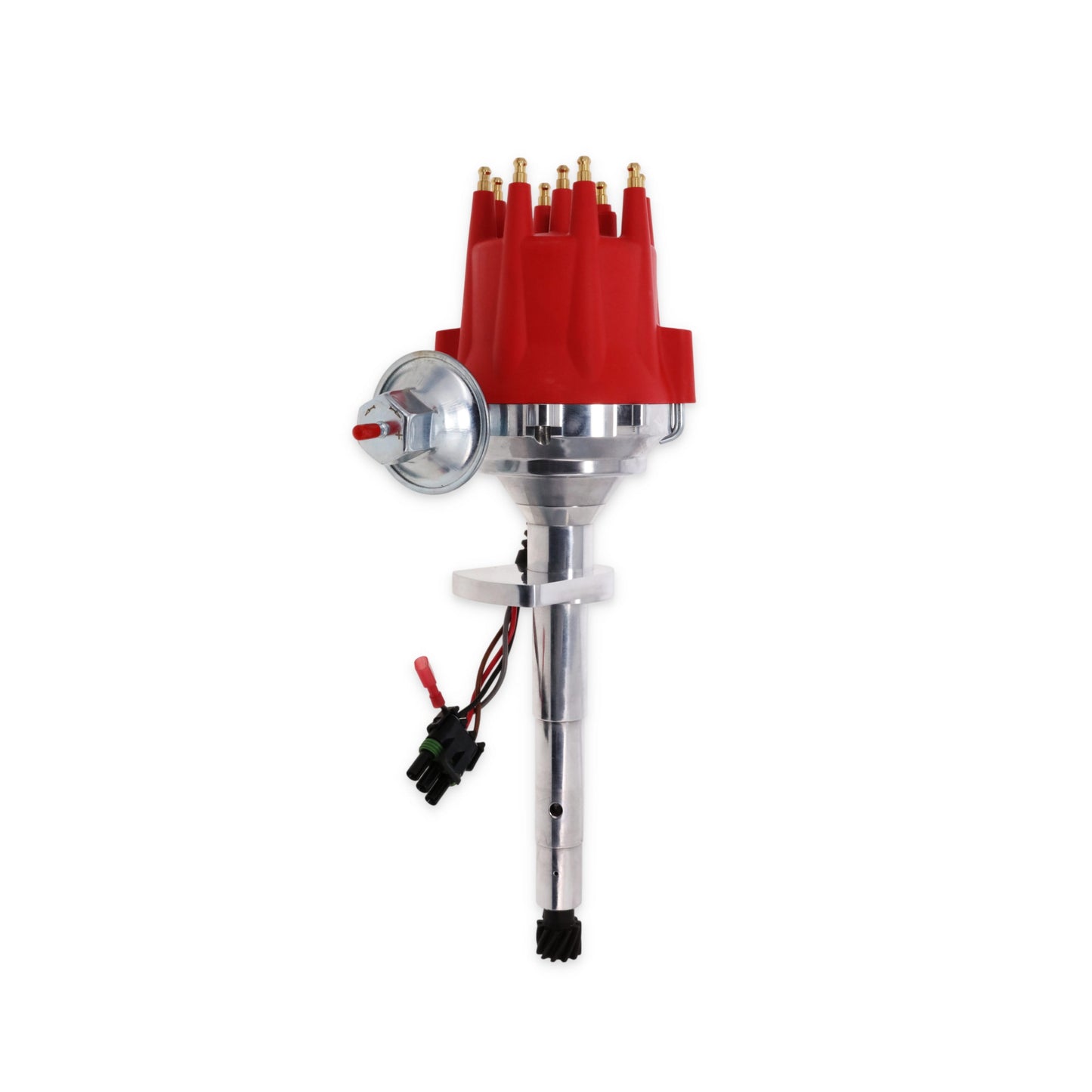

| Cap Color | Available in Black, Blue, Red |
| Terminal Gender | Male |
| Mechanical Tach Drive | No |
| Slip Collar | No |
| Coil Included | No |
| Coil Type | External |
| Required Coil Output | 35,000+ V |
| Gear Material | Steel |
| Housing Material | Machined Aluminum |
| Ignition Box Required | No |
| Marine Use | No |
| Cylinders | 8 |
| Voltage Requirement | 12 V electrical system with alternator |
Engine Fitment
COMPATIBLE WITH
FORD FLATHEAD V8
• 3.9 L / 239 in³
• 4.2 L / 255 in³
NOTES
• Designed for 1949–1953 Ford Flathead V8 applications using a front-mounted, vertically-oriented distributor configuration.
• Will not fit 1948 and earlier Flathead engines — those use a camshaft-driven, horizontally-oriented distributor and require a different unit.
• Not compatible with Ford's later Y-Block, FE, or Windsor V8 engines — those require a different distributor.
• Requires an external coil with a minimum output of 35,000V — no separate ignition box required.
• This distributor is designed for a 12 volt electrical system with an alternator and a performance ignition coil of 35,000 V or more.
• It is not compatible with a generator and cannot be used with a ballast resistor.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult camshaft manufacturer for recommended gear material before installation.
COMMON VEHICLE APPLICATIONS
Ford Custom (239/255, 1949–1953)
Ford Custom Deluxe (239/255, 1951–1952)
Ford Mainline (239/255, 1952–1953)
Ford Crestline (239/255, 1952–1953)
Ford Customline (239/255, 1952–1953)
Ford F-Series (239, 1949–1953)
Mercury Eight (255, 1950–1953)
Q&A
Will this distributor fit my 1948 or earlier Flathead V8?
No. Pre-1949 Ford Flathead V8 engines used a direct camshaft-driven horizontal distributor design that is not compatible with this distributor. This unit is designed for 1949–1953 Flathead V8 engines equipped with the Loadamatic-style distributor configuration.
Do I need a separate ignition box with this distributor?
No. The ignition control module is built into the distributor housing, so no external ignition box or CDI unit is required.
Does this distributor include a coil?
No. This is an external-coil Ready-to-Run distributor and requires an ignition coil rated at 35,000 volts or higher, which is sold separately.
What direction does the rotor turn on this distributor?
Clockwise, viewed from above, matching the standard rotation direction of the 1949–1953 Ford Flathead V8.
What distributor gear is included, and will it work with my camshaft?
This distributor includes a steel distributor gear, which is best suited for cast iron hydraulic or solid flat-tappet camshafts. If your engine uses a roller or other specialty camshaft, verify the recommended distributor gear material with your camshaft manufacturer before installation.
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
