Ford FE V8 Pro Series Pro Billet Distributor
Ford FE V8 Pro Series Pro Billet Distributor
SKU: SKU: JM7608R
In stock
Product Downloads
Product Details
Features
- Magnetic pickup trigger for precise timing with an external ignition box
- Pairs with a 35,000V+ coil and ignition box for high-output builds
- Direct fit for light-duty Ford FE V8s: 330/352/360/390/406/410/427/428
- Machined aluminum housing with steel gear for durable timing control
Description
Upgrade your Ford FE big block V8 with this Pro Series Pro Billet distributor, built with a magnetic pickup trigger for use with a compatible external ignition box and coil. This setup is designed for higher-output ignition systems on Galaxie, Fairlane, Mustang, Thunderbird, F-Series, Cougar, and Comet applications.
This distributor is built for standard light-duty FE engines using a 1/4-inch oil pump/distributor shaft and will not fit heavy-duty FE/FT truck applications with a 5/16-inch shaft. The housing is machined aluminum with a steel drive gear best matched to cast iron hydraulic or solid flat-tappet camshafts, and rotation is counterclockwise. Requires a compatible external ignition box and a coil rated at 35,000 volts or higher; also requires a 12-volt electrical system with an alternator and is not compatible with generator-based charging systems or vehicles still running an active ballast resistor in the ignition circuit — the resistor should be removed or bypassed as part of installation. Designed for carbureted applications only.
What Is a Pro Billet Distributor?
A Pro Billet distributor uses a magnetic pickup trigger but, unlike HEI or Ready-to-Run designs, requires a separate external ignition box in addition to an external coil rather than housing that control on board. This setup is common in higher-output or race-oriented ignition systems where the buyer wants to pair the distributor with a specific external box and coil combination rather than an all-in-one unit.
Performance Benefits
The magnetic pickup trigger delivers consistent, wear-free timing signal without the point drift of older breaker-point systems. Because the ignition box and coil are external and separately selected, this setup allows the ignition system to be matched to higher-output requirements than a self-contained distributor typically supports on the FE big block platform.
Specs
| Trigger Style | Magnetic |
| Advance Type | Mechanical |
| Terminal Gender | Male |
| Rotation Direction | Counterclockwise |

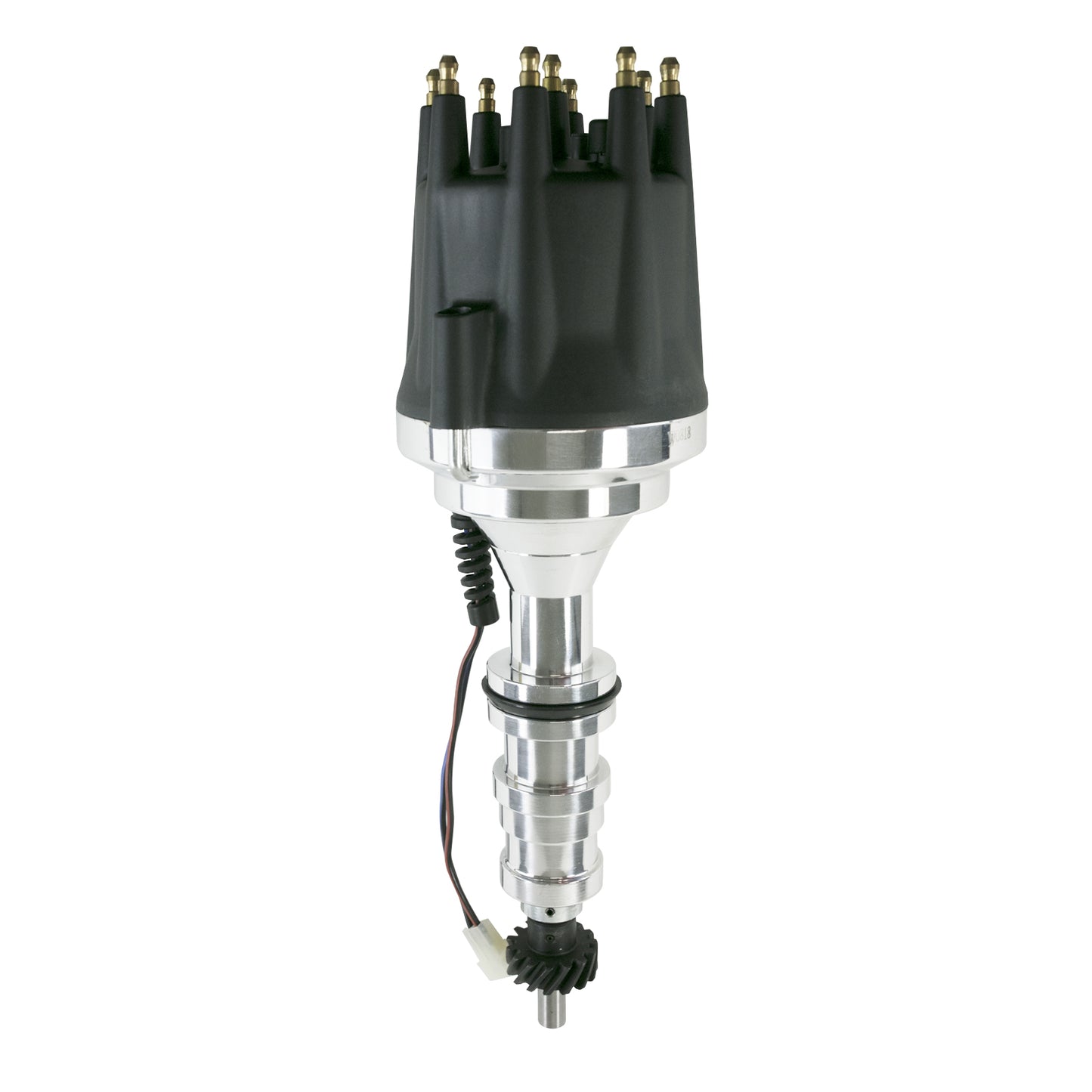

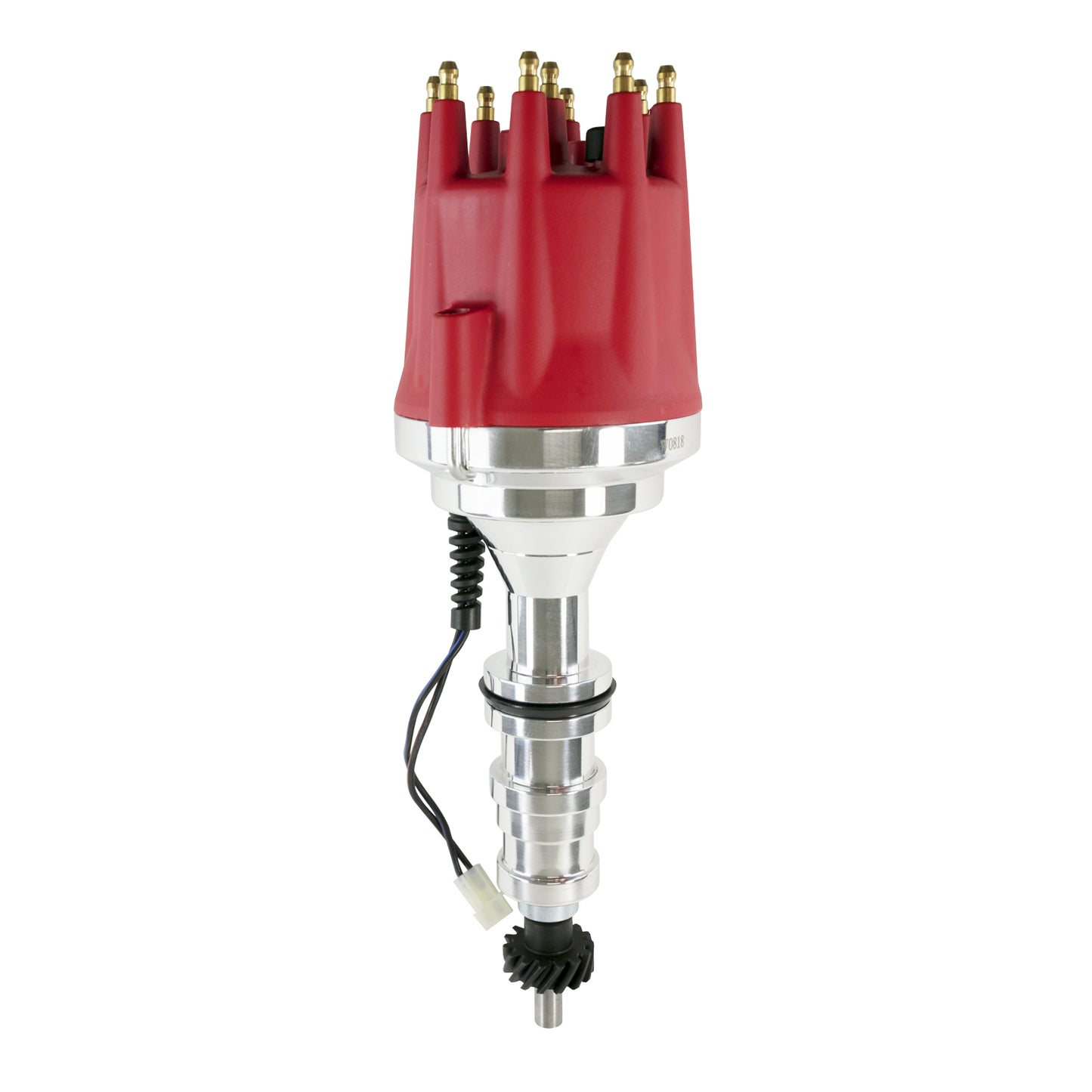

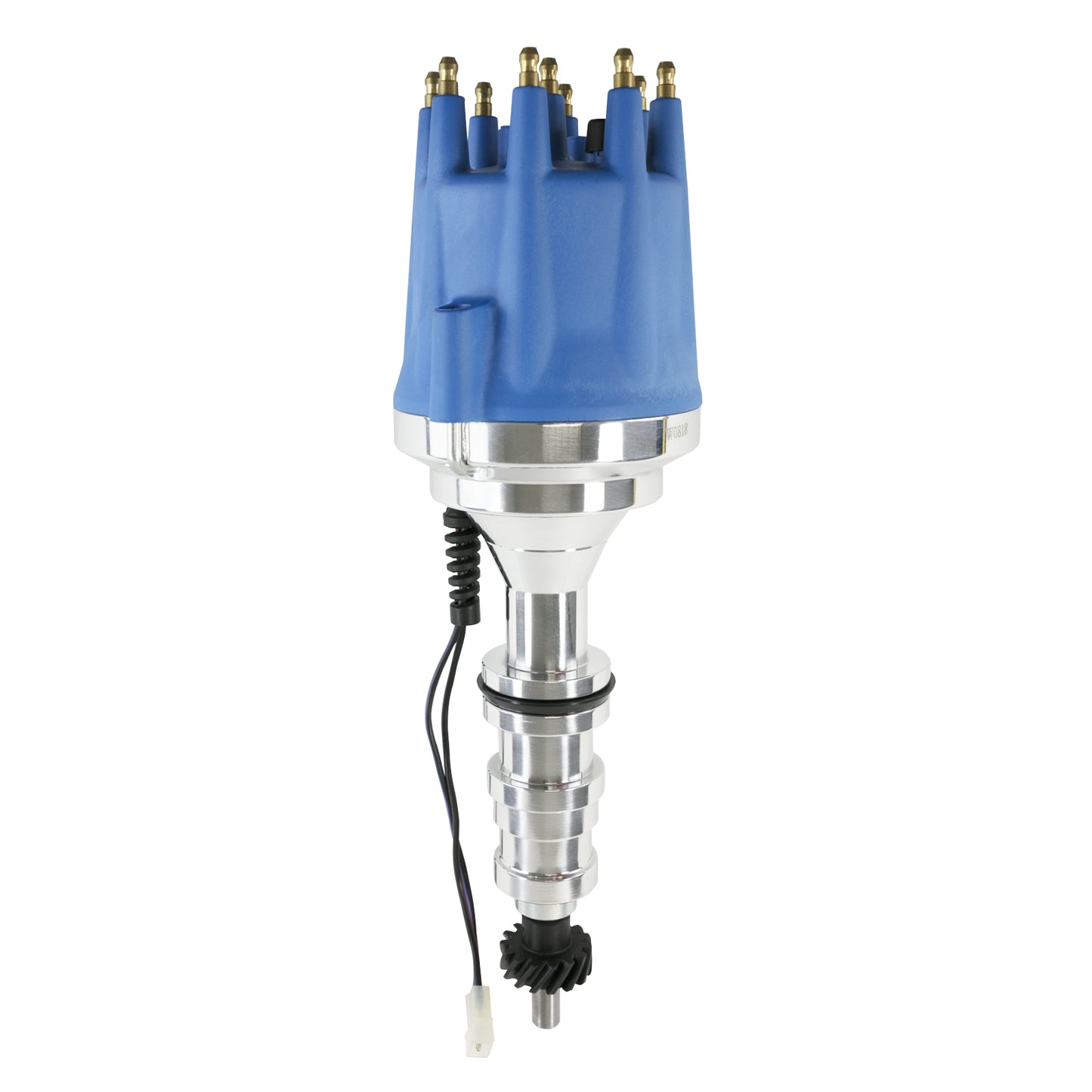

| Cap Color | Available in Red, Blue, Black |
| Mechanical Tach Drive | No |
| Slip Collar | Yes |
| Coil Included | No |
| Coil Type | External |
| Coil Output | 35,000+ V |
| Gear Material | Steel |
| Housing Material | Machined Aluminum |
| Ignition Box Required | Yes |
| Marine Use | No |
| Cylinders | 8 |
| Included | 3 Bushings and 4 Springs for Mechanical Advance Color-Matched Spark Plug Wire Retainer with Screws |
Engine Fitment
COMPATIBLE WITH
FORD FE BIG BLOCK V8
• 5.4 L / 330 in³ (light-duty)
• 5.8 L / 352 in³
• 5.9 L / 360 in³
• 6.4 L / 390 in³
• 6.7 L / 406 in³
• 6.7 L / 410 in³ (Mercury only)
• 7.0 L / 427 in³
• 7.0 L / 428 in³
NOTES
• Designed for standard light-duty Ford FE passenger car engines using a ¼ in. oil pump/distributor shaft.
• Will not fit heavy-duty FE/FT truck applications with a 5/16 in. shaft — see the Ford FE/FT Heavy-Duty V8 HEI Distributor for those applications.
• The 406 was produced in 1962–1963 only; the 410 was used exclusively in 1966–1967 Mercury vehicles.
• Designed for carbureted applications only.
• Requires an external coil with a minimum output of 35,000V — no separate ignition box required.
• This distributor is designed for a 12 volt electrical system with an alternator and a performance ignition coil of 35,000 V or more.
• It is not compatible with a generator and cannot be used with a ballast resistor.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult camshaft manufacturer for recommended gear material before installation.
COMMON VEHICLE APPLICATIONS
Ford Galaxie (352/390/406/427/428, 1958–1971)
Ford Fairlane (390/427/428, 1966–1969)
Ford Torino (390/428, 1968–1971)
Ford Mustang (390/427/428, 1967–1970)
Ford Thunderbird (352/390/428, 1958–1971)
Ford Ranchero (390/428, 1967–1971)
Ford LTD (390/428, 1966–1971)
Ford F-Series (352/360/390, 1965–1976)
Mercury Monterey (352/390/428, 1958–1971)
Mercury Cougar (390/410/427/428, 1967–1970)
Mercury Cyclone (390/427/428, 1966–1969)
Mercury Montego (390/428, 1968–1969)
Q&A
Do I need an external ignition box with this distributor?
Yes. This Pro Billet distributor requires a compatible external ignition box in addition to an external ignition coil. Unlike Ready-to-Run or HEI distributors, it will not operate without an ignition box.
Will this distributor fit my FE big block truck?
It depends on the oil pump/distributor shaft size. This distributor is designed for light-duty Ford FE engines with a 1/4-inch shaft and is not compatible with heavy-duty FE/FT truck engines that use a 5/16-inch shaft.
Does this distributor include a coil or ignition box?
No. Neither the ignition coil nor the ignition box is included. This distributor requires an external ignition coil rated at 35,000 volts or higher and a compatible external ignition box, both sold separately.
What direction does the rotor turn on this distributor?
Counterclockwise, viewed from above, matching the standard rotation direction of the Ford FE big block engine family.
What type of distributor gear is included, and will it work with my camshaft?
This distributor includes a steel distributor gear, which is best suited for cast iron hydraulic or solid flat-tappet camshafts. If your engine uses a roller or other specialty camshaft, verify the recommended distributor gear material with your camshaft manufacturer before installation.
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
Ford FE V8 Pro Series Pro Billet Distributor
Upgrade your Ford FE big block V8 with this Pro Series Pro Billet distributor, built with a magnetic pickup trigger for use with a compatible external ignition box and coil. This setup is designed for higher-output ignition systems on Galaxie, Fairlane, Mustang, Thunderbird, F-Series, Cougar, and Comet applications.
This distributor is built for standard light-duty FE engines using a 1/4-inch oil pump/distributor shaft and will not fit heavy-duty FE/FT truck applications with a 5/16-inch shaft. The housing is machined aluminum with a steel drive gear best matched to cast iron hydraulic or solid flat-tappet camshafts, and rotation is counterclockwise. Requires a compatible external ignition box and a coil rated at 35,000 volts or higher; also requires a 12-volt electrical system with an alternator and is not compatible with generator-based charging systems or vehicles still running an active ballast resistor in the ignition circuit — the resistor should be removed or bypassed as part of installation. Designed for carbureted applications only.
What Is a Pro Billet Distributor?
A Pro Billet distributor uses a magnetic pickup trigger but, unlike HEI or Ready-to-Run designs, requires a separate external ignition box in addition to an external coil rather than housing that control on board. This setup is common in higher-output or race-oriented ignition systems where the buyer wants to pair the distributor with a specific external box and coil combination rather than an all-in-one unit.
Performance Benefits
The magnetic pickup trigger delivers consistent, wear-free timing signal without the point drift of older breaker-point systems. Because the ignition box and coil are external and separately selected, this setup allows the ignition system to be matched to higher-output requirements than a self-contained distributor typically supports on the FE big block platform.
COMPATIBLE WITH
FORD FE BIG BLOCK V8
• 5.4 L / 330 in³ (light-duty)
• 5.8 L / 352 in³
• 5.9 L / 360 in³
• 6.4 L / 390 in³
• 6.7 L / 406 in³
• 6.7 L / 410 in³ (Mercury only)
• 7.0 L / 427 in³
• 7.0 L / 428 in³
NOTES
• Designed for standard light-duty Ford FE passenger car engines using a ¼ in. oil pump/distributor shaft.
• Will not fit heavy-duty FE/FT truck applications with a 5/16 in. shaft — see the Ford FE/FT Heavy-Duty V8 HEI Distributor for those applications.
• The 406 was produced in 1962–1963 only; the 410 was used exclusively in 1966–1967 Mercury vehicles.
• Designed for carbureted applications only.
• Requires an external coil with a minimum output of 35,000V — no separate ignition box required.
• This distributor is designed for a 12 volt electrical system with an alternator and a performance ignition coil of 35,000 V or more.
• It is not compatible with a generator and cannot be used with a ballast resistor.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult camshaft manufacturer for recommended gear material before installation.
COMMON VEHICLE APPLICATIONS
Ford Galaxie (352/390/406/427/428, 1958–1971)
Ford Fairlane (390/427/428, 1966–1969)
Ford Torino (390/428, 1968–1971)
Ford Mustang (390/427/428, 1967–1970)
Ford Thunderbird (352/390/428, 1958–1971)
Ford Ranchero (390/428, 1967–1971)
Ford LTD (390/428, 1966–1971)
Ford F-Series (352/360/390, 1965–1976)
Mercury Monterey (352/390/428, 1958–1971)
Mercury Cougar (390/410/427/428, 1967–1970)
Mercury Cyclone (390/427/428, 1966–1969)
Mercury Montego (390/428, 1968–1969)
SPECIFICATIONS
Trigger Style: Magnetic
Advance Type: Mechanical
Terminal Gender: Male
Rotation Direction: Counterclockwise
Cap Color: Available in Red, Blue, Black
Mechanical Tach Drive: No
Slip Collar: Yes
Coil Included: No
Coil Type: External
Coil Output: 35,000+ V
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: Yes
Marine Use: No
Cylinders: 8
Included: 3 Bushings and 4 Springs for Mechanical Advance
Color-Matched Spark Plug Wire Retainer with Screws
