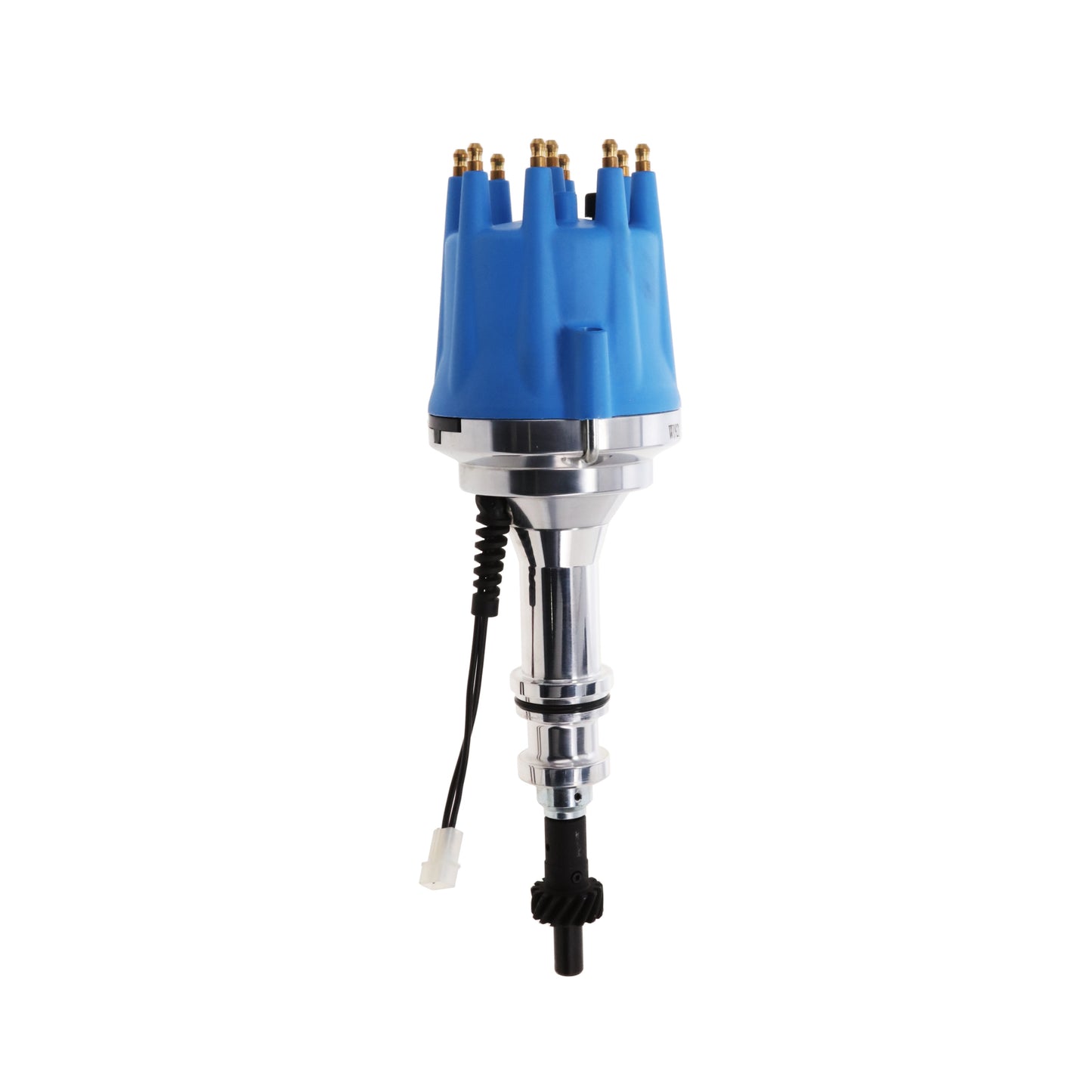

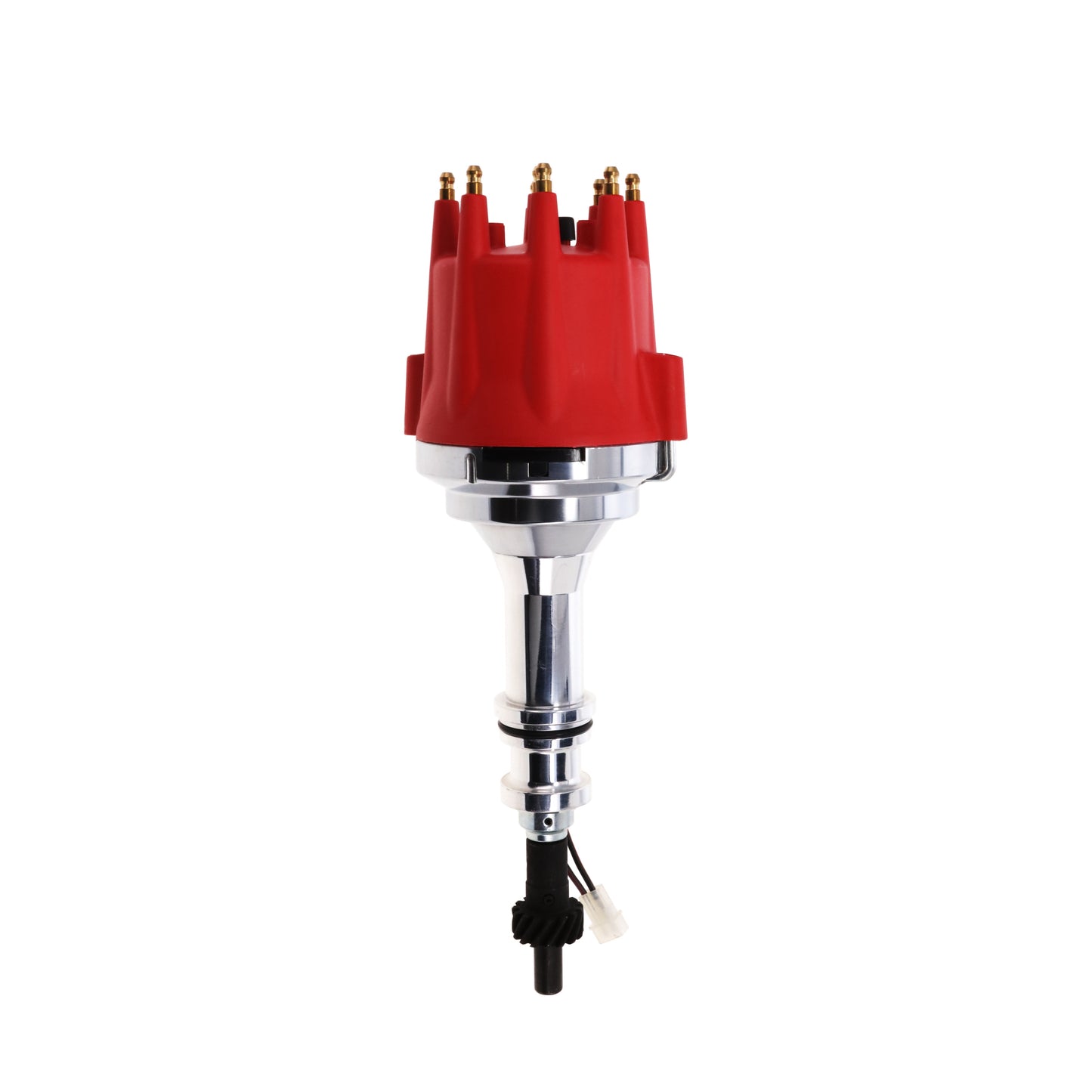

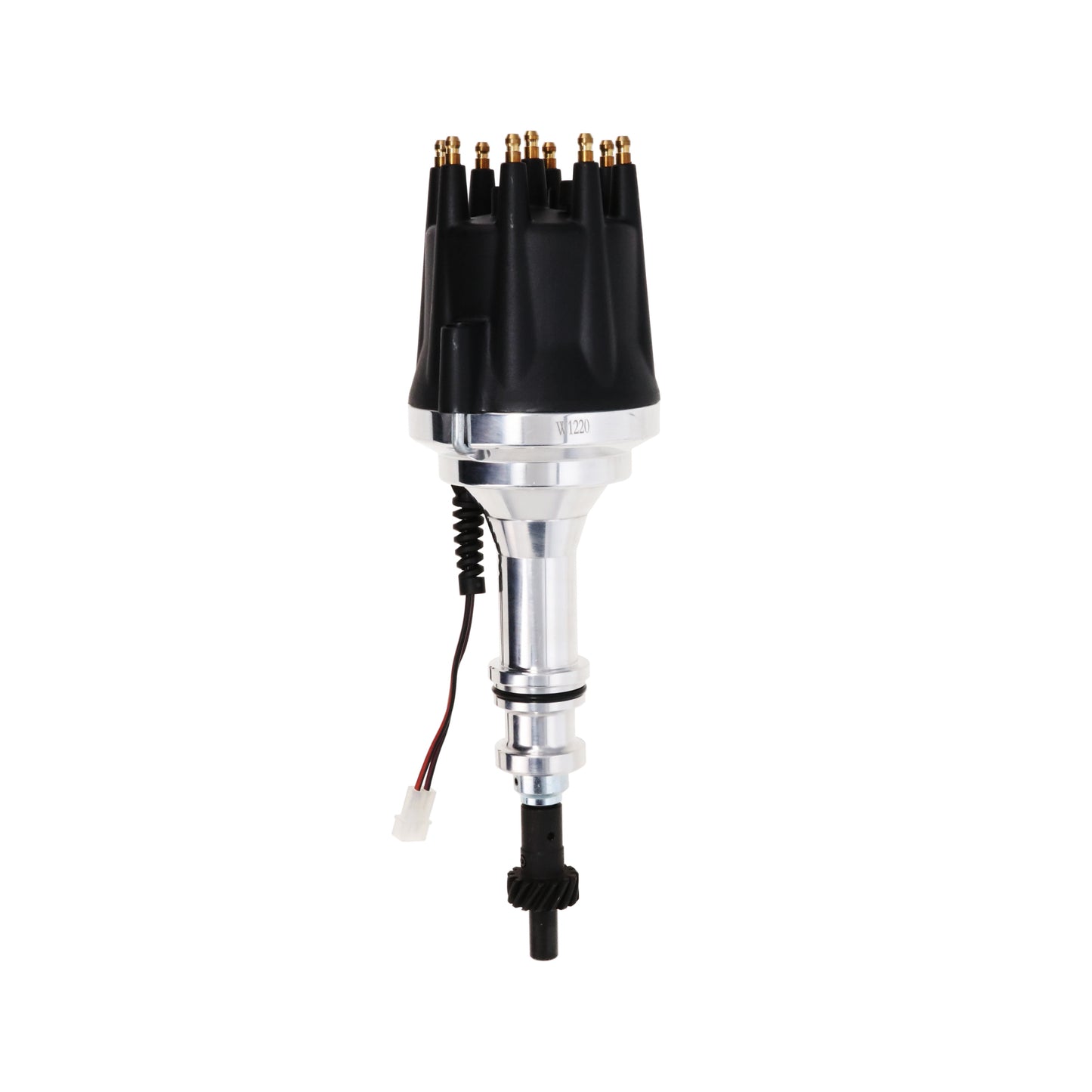

Ford 351W V8 Pro Series Pro Billet Distributor
Ford 351W V8 Pro Series Pro Billet Distributor
SKU: SKU: JM7610R
In stock
Product Downloads
Product Details
Features
- Magnetic pickup trigger for precise timing with an external ignition box
- Pairs with a 35,000V+ coil and ignition box for high-output builds
- Direct fit for Ford 351W — not 351C, 351M, or smaller Windsors
- Machined aluminum housing with steel gear for durable timing control
Description
Upgrade your Ford 351 Windsor (351W) V8 with this Pro Series Pro Billet distributor, built with a magnetic pickup trigger for use with a compatible external ignition box and coil. This setup is designed for higher-output ignition systems on Mustang, Bronco, F-Series, Torino, Ranchero, Cougar, and Montego applications.
This distributor is built specifically for the 351W and will not fit 351 Cleveland (351C), 351 Modified (351M), or any other Windsor displacement (221, 260, 289, 302). The housing is machined aluminum with a steel drive gear best matched to cast iron hydraulic or solid flat-tappet camshafts, and rotation is counterclockwise. Requires a compatible external ignition box and a coil rated at 35,000 volts or higher; also requires a 12-volt electrical system with an alternator and is not compatible with generator-based charging systems or vehicles still running an active ballast resistor in the ignition circuit — the resistor should be removed or bypassed as part of installation. Timing is set through mechanical advance only.
What Is a Pro Billet Distributor?
A Pro Billet distributor uses a magnetic pickup trigger but, unlike HEI or Ready-to-Run designs, requires a separate external ignition box in addition to an external coil rather than housing that control on board. This setup is common in higher-output or race-oriented ignition systems where the buyer wants to pair the distributor with a specific external box and coil combination rather than an all-in-one unit.
Performance Benefits
The magnetic pickup trigger delivers consistent, wear-free timing signal without the point drift of older breaker-point systems. Because the ignition box and coil are external and separately selected, this setup allows the ignition system to be matched to higher-output requirements than a self-contained distributor typically supports. Mechanical advance handles the timing curve on the 351W specifically, keeping the system straightforward to set up and tune.
Specs
| Distributor Type | Pro Series Pro Billet |
| Engine Platform | Ford Small Block Windsor V8 |
| Trigger Type | Magnetic |
| Advance Type | Mechanical |
| Rotation Direction | Counterclockwise |
| Cap Color | Available in Black, Blue, Red |
| Terminal Gender | Male |
| Mechanical Tach Drive | No |
| Slip Collar | Yes |
| Coil Included | No |
| Coil Type | External |
| Coil Output | 35,000+ V |
| Gear Material | Steel |
| Housing Material | Machined Aluminum |
| Ignition Box Required | Yes |
| Marine Use | No |
| Cylinders | 8 |
| Required Coil Output | 35,000+ V |
Engine Fitment
COMPATIBLE WITH
FORD SMALL BLOCK WINDSOR V8
• 5.8 L / 351 in³ (351W)
NOTES
• Designed for Ford 351 Windsor carbureted applications.
Will not fit 351C (Cleveland) or 351M (Modified) engines — those are a different engine family.
• Will not fit any other Windsor displacements (221, 260, 289, 302).
• The 351W was produced with a carburetor through 1988; after 1988 all 351W engines were equipped with EFI and are not compatible with this distributor.
• Requires an external coil with a minimum output of 35,000V — no separate ignition box required.
• This distributor is designed for a 12 volt electrical system with an alternator and a performance ignition coil of 35,000 V or more.
• It is not compatible with a generator and cannot be used with a ballast resistor.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult camshaft manufacturer for recommended gear material before installation.
COMMON VEHICLE APPLICATIONS
Ford Mustang (351W, 1969–1973)
Ford Fairlane (351W, 1969–1970)
Ford Torino (351W, 1969–1976)
Ford Ranchero (351W, 1969–1979)
Ford Galaxie (351W, 1969–1974)
Ford LTD (351W, 1969–1982)
Ford Thunderbird (351W, 1977–1979)
Ford Bronco (351W, 1969–1988)
Ford F-Series (351W, 1969–1988)
Ford E-Series / Econoline (351W, 1969–1988)
Mercury Cougar (351W, 1969–1973)
Mercury Montego (351W, 1969–1976)
Q&A
Do I need an external ignition box with this distributor?
Yes. This Pro Billet distributor requires a compatible external ignition box in addition to an external ignition coil. Unlike Ready-to-Run or HEI distributors, it will not operate without an ignition box.
Will this fit a 351 Cleveland or 351 Modified?
No. This distributor is designed specifically for the Ford 351 Windsor (351W) and is not compatible with 351 Cleveland (351C) or 351 Modified (351M) engines.
Will this fit a 302 or other small Windsor engine?
No. This distributor is built exclusively for the 351 Windsor (351W) and will not fit 221, 260, 289, or 302 Windsor engines.
What type of advance does this distributor use?

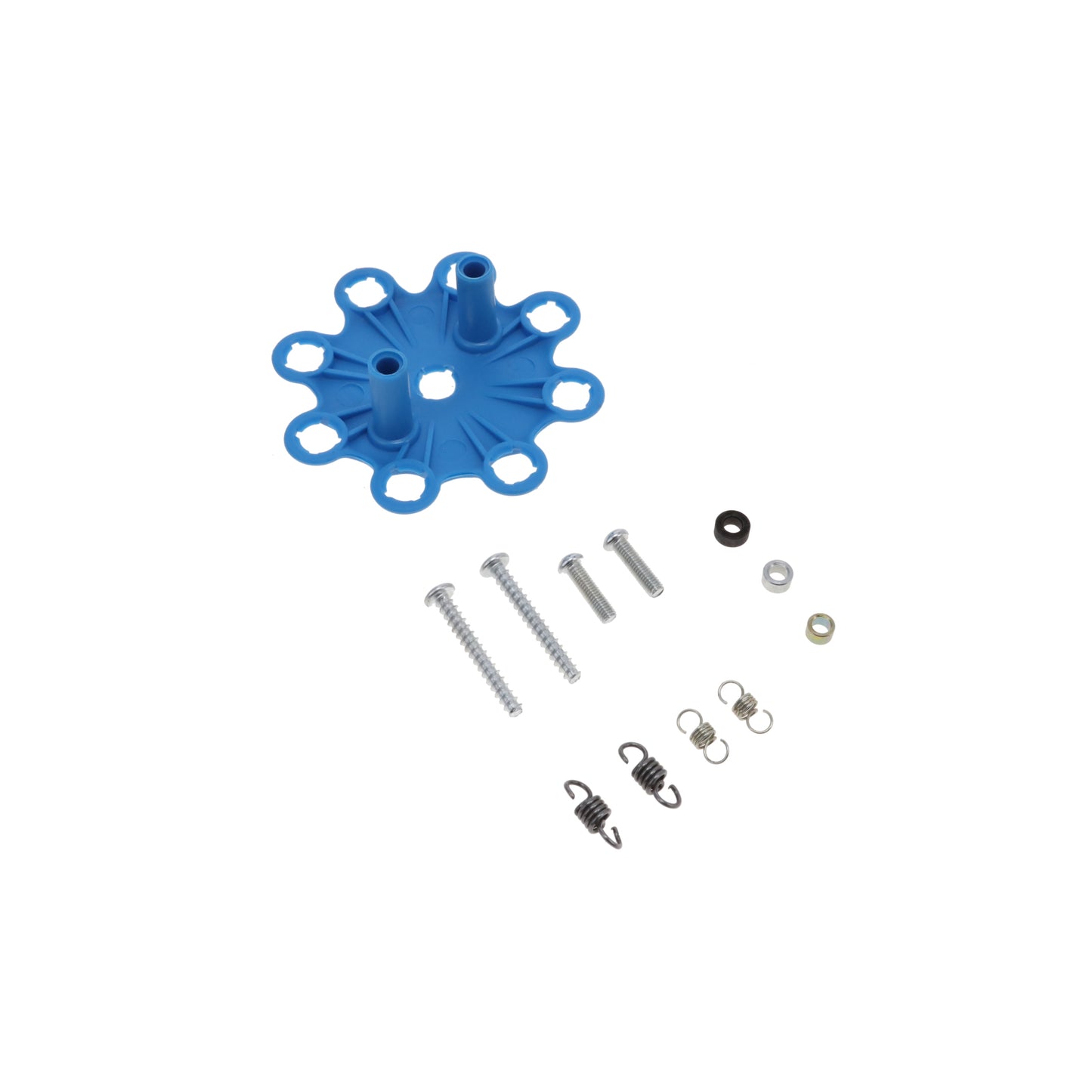

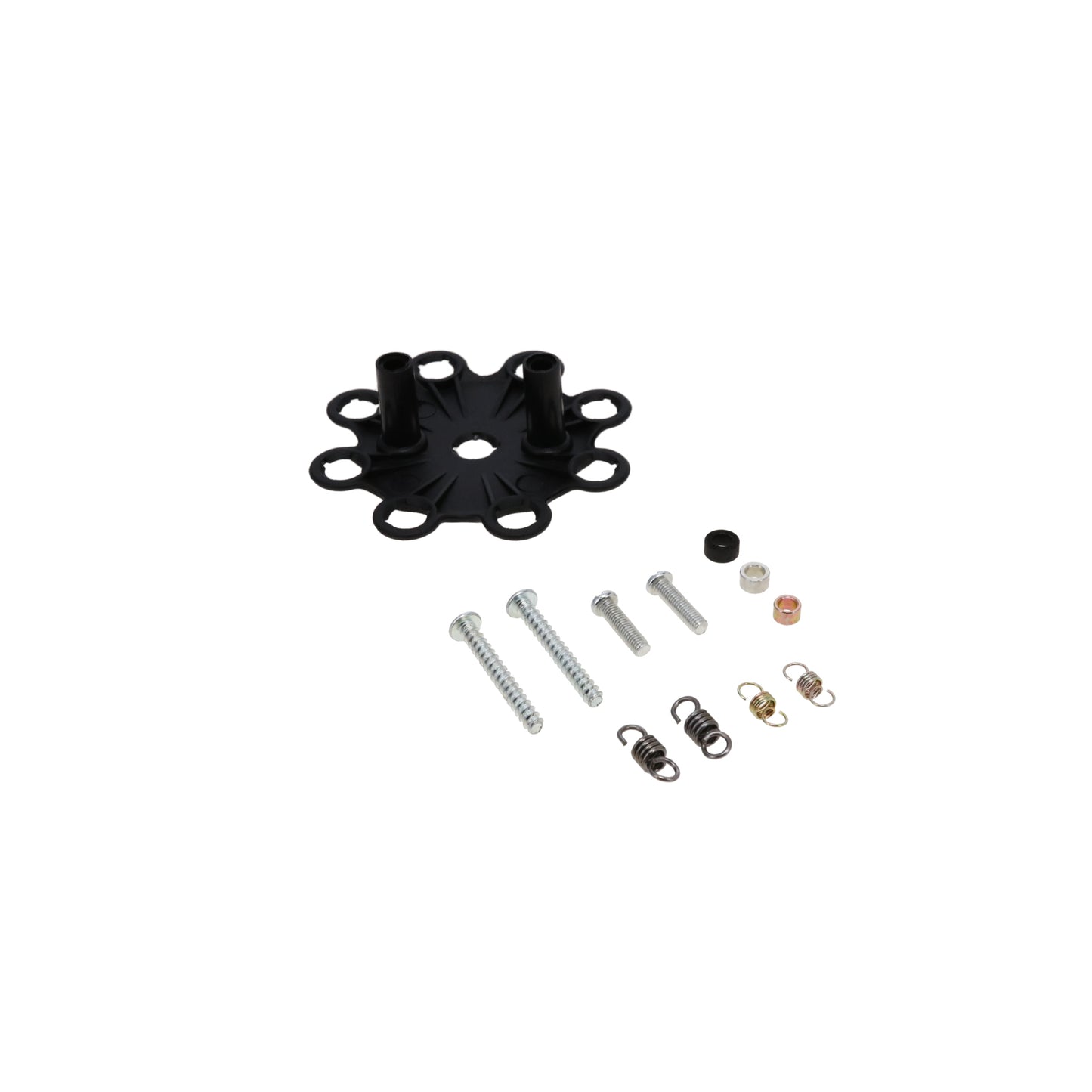

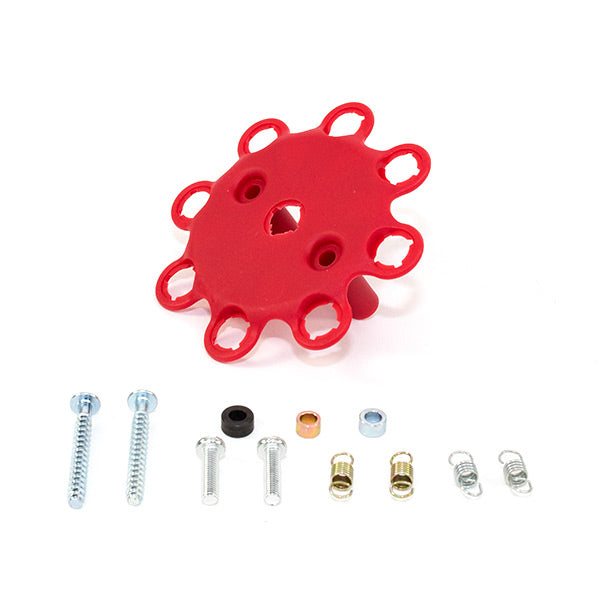

This distributor uses mechanical (centrifugal) advance only. Three advance bushings and four advance springs are included, allowing you to customize the advance curve for your engine combination.
Does this distributor include a coil or ignition box?
No. Neither the ignition coil nor the ignition box is included. This distributor requires an external ignition coil rated at 35,000 volts or higher and a compatible external ignition box, both sold separately.
What direction does the rotor turn on this distributor?
Counterclockwise, viewed from above, matching the standard rotation direction of the Ford Windsor V8 family, including the 351W.
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
Ford 351W V8 Pro Series Pro Billet Distributor
Upgrade your Ford 351 Windsor (351W) V8 with this Pro Series Pro Billet distributor, built with a magnetic pickup trigger for use with a compatible external ignition box and coil. This setup is designed for higher-output ignition systems on Mustang, Bronco, F-Series, Torino, Ranchero, Cougar, and Montego applications.
This distributor is built specifically for the 351W and will not fit 351 Cleveland (351C), 351 Modified (351M), or any other Windsor displacement (221, 260, 289, 302). The housing is machined aluminum with a steel drive gear best matched to cast iron hydraulic or solid flat-tappet camshafts, and rotation is counterclockwise. Requires a compatible external ignition box and a coil rated at 35,000 volts or higher; also requires a 12-volt electrical system with an alternator and is not compatible with generator-based charging systems or vehicles still running an active ballast resistor in the ignition circuit — the resistor should be removed or bypassed as part of installation. Timing is set through mechanical advance only.
What Is a Pro Billet Distributor?
A Pro Billet distributor uses a magnetic pickup trigger but, unlike HEI or Ready-to-Run designs, requires a separate external ignition box in addition to an external coil rather than housing that control on board. This setup is common in higher-output or race-oriented ignition systems where the buyer wants to pair the distributor with a specific external box and coil combination rather than an all-in-one unit.
Performance Benefits
The magnetic pickup trigger delivers consistent, wear-free timing signal without the point drift of older breaker-point systems. Because the ignition box and coil are external and separately selected, this setup allows the ignition system to be matched to higher-output requirements than a self-contained distributor typically supports. Mechanical advance handles the timing curve on the 351W specifically, keeping the system straightforward to set up and tune.
COMPATIBLE WITH
FORD SMALL BLOCK WINDSOR V8
• 5.8 L / 351 in³ (351W)
NOTES
• Designed for Ford 351 Windsor carbureted applications.
Will not fit 351C (Cleveland) or 351M (Modified) engines — those are a different engine family.
• Will not fit any other Windsor displacements (221, 260, 289, 302).
• The 351W was produced with a carburetor through 1988; after 1988 all 351W engines were equipped with EFI and are not compatible with this distributor.
• Requires an external coil with a minimum output of 35,000V — no separate ignition box required.
• This distributor is designed for a 12 volt electrical system with an alternator and a performance ignition coil of 35,000 V or more.
• It is not compatible with a generator and cannot be used with a ballast resistor.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult camshaft manufacturer for recommended gear material before installation.
COMMON VEHICLE APPLICATIONS
Ford Mustang (351W, 1969–1973)
Ford Fairlane (351W, 1969–1970)
Ford Torino (351W, 1969–1976)
Ford Ranchero (351W, 1969–1979)
Ford Galaxie (351W, 1969–1974)
Ford LTD (351W, 1969–1982)
Ford Thunderbird (351W, 1977–1979)
Ford Bronco (351W, 1969–1988)
Ford F-Series (351W, 1969–1988)
Ford E-Series / Econoline (351W, 1969–1988)
Mercury Cougar (351W, 1969–1973)
Mercury Montego (351W, 1969–1976)
SPECIFICATIONS
Distributor Type: Pro Series Pro Billet
Engine Platform: Ford Small Block Windsor V8
Trigger Type: Magnetic
Advance Type: Mechanical
Rotation Direction: Counterclockwise
Cap Color: Available in Black, Blue, Red
Terminal Gender: Male
Mechanical Tach Drive: No
Slip Collar: Yes
Coil Included: No
Coil Type: External
Coil Output: 35,000+ V
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: Yes
Marine Use: No
Cylinders: 8
Required Coil Output: 35,000+ V
