Electric Fuel Pump and Filter Kit - 40 Microns - Red
Electric Fuel Pump and Filter Kit - 40 Microns - Red
SKU: SKU: JM1040KT-40-R
In stock
Product Details
Features
- 044-style high-pressure electric EFI pump, 320 LPH (85 GPH) at up to 90 PSI

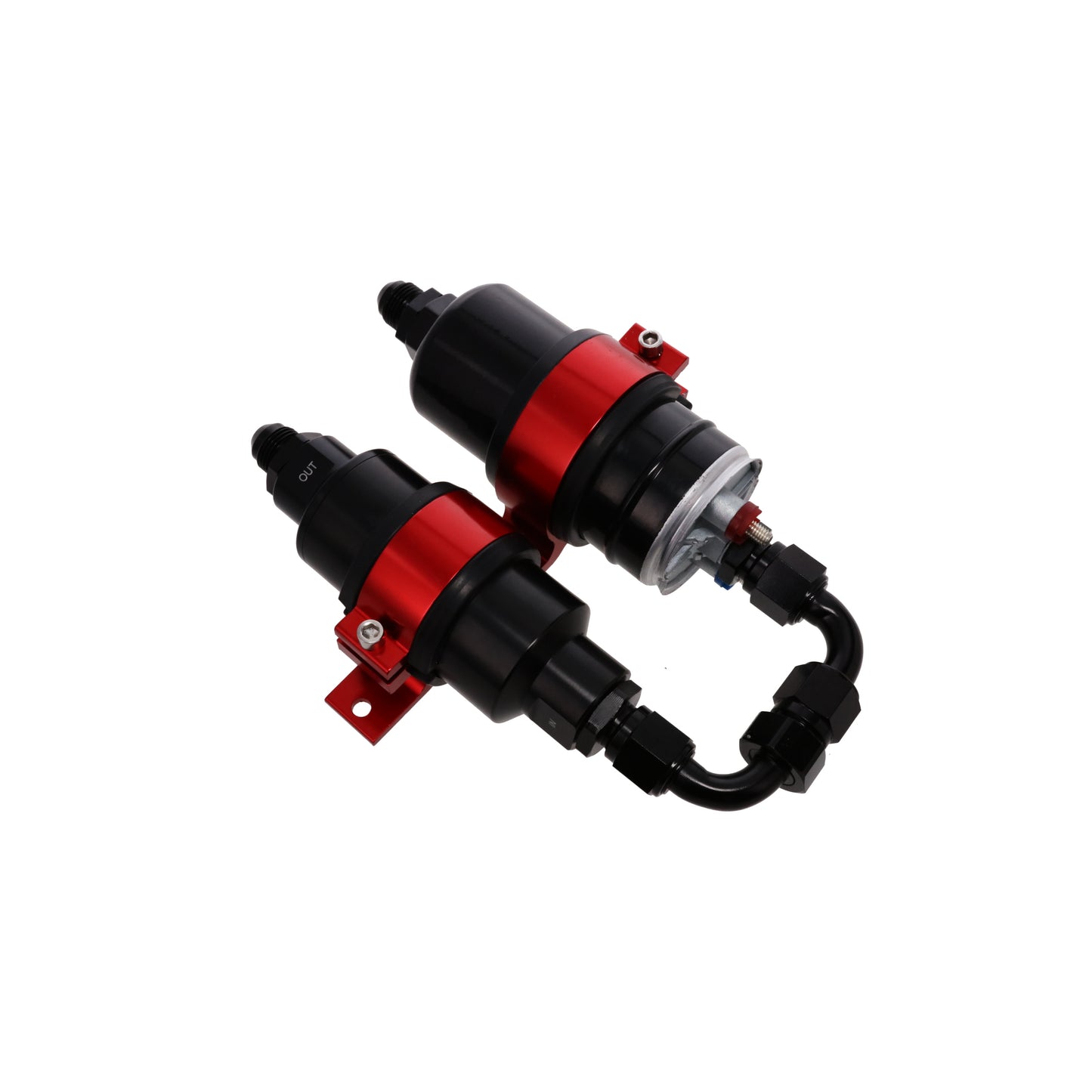

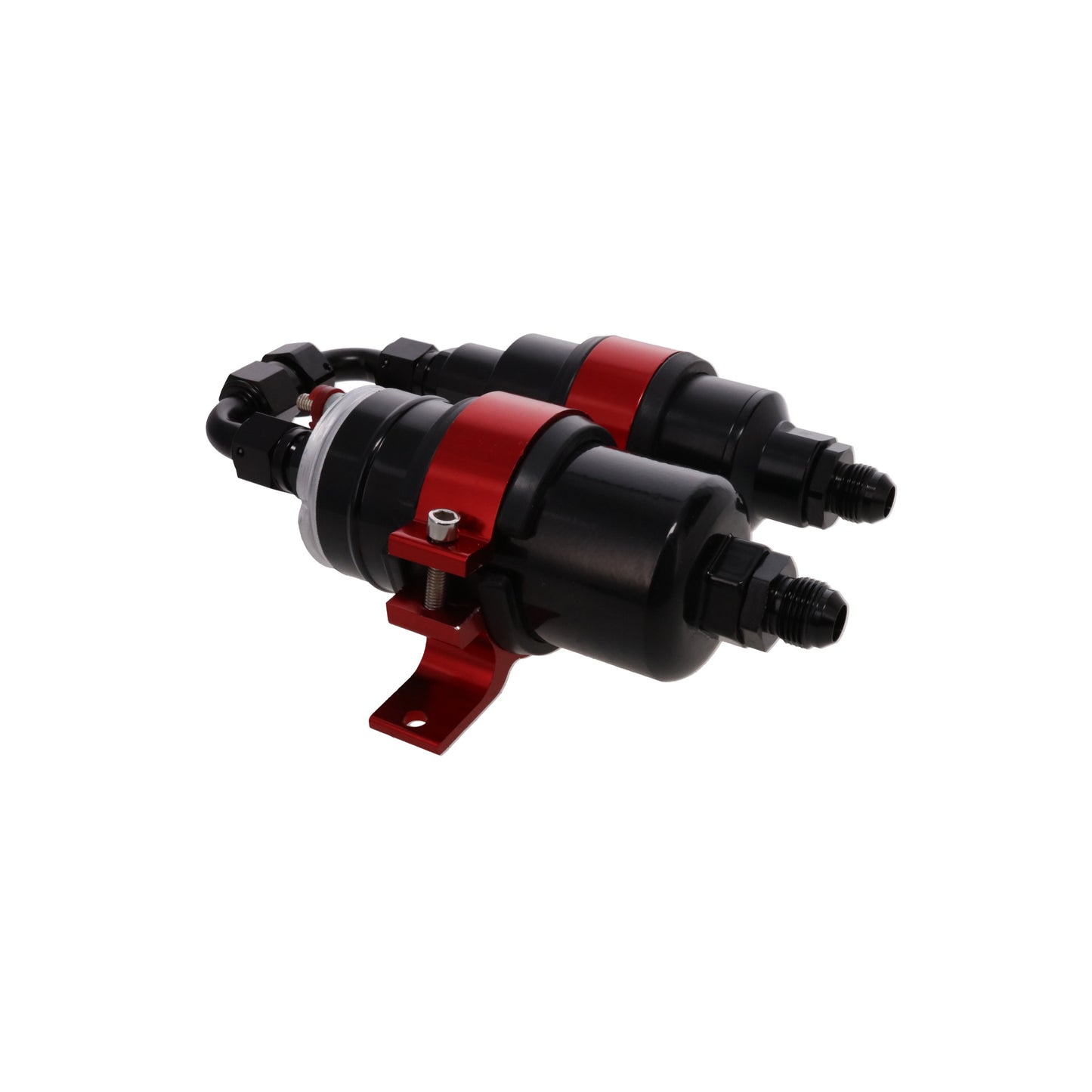

- Billet aluminum two-in-one bracket mounts pump and filter together
- 40-micron filter can be configured as pre-filter or post-filter

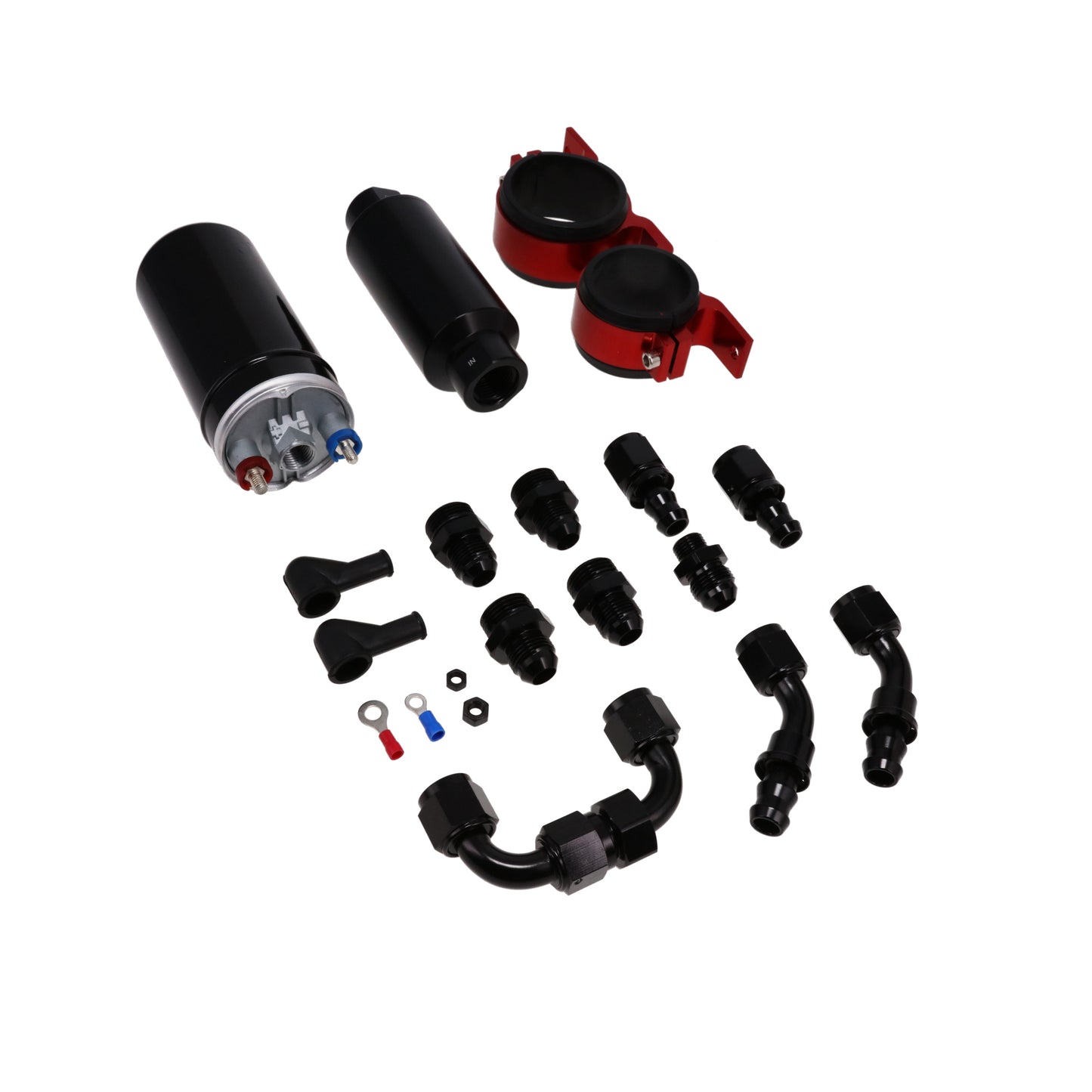

Complete kit: fittings and electrical hardware included
Description
This complete electric fuel pump and filter kit combines a high-flow 044-style external electric fuel pump with a billet aluminum 40-micron fuel filter, both mounted on a single billet bracket for a clean, simplified installation. It's built for gasoline EFI applications requiring dependable, high-volume fuel delivery.
The pump delivers up to 320 LPH (85 GPH) at up to 90 PSI, suited for upgraded EFI fuel systems demanding consistent flow. The included 40-micron filter captures contaminants while maintaining excellent flow with minimal pressure drop, and can be configured as either a pre-filter or post-filter depending on your fuel system layout. TSP also recommends a separate 100-micron pre-filter upstream of the pump for additional protection — this is in addition to, not a replacement for, the included 40-micron filter.
Fittings and electrical hardware are included. This kit is intended for gasoline EFI applications and is not a direct factory replacement unless your fuel system specifications match.
Applications
Universal fit for gasoline EFI fuel systems, including LS engine swaps, restomod builds, street performance and drag racing vehicles, off-road applications, and custom fuel cell installations.
Installation
Mount the pump and filter assembly away from excessive heat and debris using the included billet bracket. Configure the 40-micron filter as a pre-filter or post-filter based on your fuel system layout. TSP recommends an additional 100-micron pre-filter upstream of the pump (not included) for extra protection against larger contaminants. Verify fuel pressure requirements, regulator selection, wiring capacity, hose size, and fitting compatibility before installation.
Specs
| Bracket Color | Red |
| Bracket Material | Aluminum |
| Bracket Mounting Hole Quantity | 2 |
| Bracket Style | Clamp |
| Compatible Fuel Type | Gasoline |
| Element Material | Stainless Steel |
| Filter Body Color | Black |
| Filter Body Diameter | 2.000 in. |
| Filter Body Material | Aluminum |
| Filter Inlet Thread Type | -10 AN O-Ring |
| Filter Inlet Type | Threaded |
| Filter Length | 5.500 in. |
| Filter Outlet Thread Type | -10 AN O-Ring |
| Filter Outlet Type | Threaded |
| Fittings Included | Yes |
| Fuel Delivery Type | Electric |
| Fuel Pump Body Color | Black |
| Fuel Pump Body Material | Aluminum |
| Fuel Pump Inlet Type | Threaded |
| Fuel Sending Unit Included | No |
| Fuel Type | Gasoline |
| Gasket Or Seal Included | No |
| Inlet Fitting Thread Size | -10 AN |
| Inlet Thread Diameter | -10 AN |
| Inlet Type | Threaded |
| Internal Or External | External |
| Maximum Flow Rating | 85 GPH |
| Maximum Pressure | 90 PSI |
| Micron Rating | 40 |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Mounting Hardware Included | No |
| Outlet Fitting Thread Size | -6 AN |
| Outlet Quantity | 1 |
| Outlet Thread Diameter | -6 AN |
| Outlet Type | Threaded |
| Pre or Post Pump Filter | Pre-pump |
| Primary Or Secondary Filter | Primary |
| Pump Design | 044 Style |
| Regulator Included | No |
| Ring Terminals Included | Yes |
| Terminal Post Boots Included | Yes |
| Universal Or Specific Fit | Universal |
| Voltage | 12 V |
| Wiring Harness Included | No |
Engine Fitment
COMPATIBLE WITH
UNIVERSAL
• Universal gasoline EFI fuel systems
• External inline electric fuel pump installations
• Custom EFI fuel systems
• Street performance EFI applications
• Racing EFI applications
COMMON VEHICLE APPLICATIONS
EFI fuel system upgrades
LS engine swaps
Restomod fuel systems
Street performance vehicles
Drag racing vehicles
Off-road vehicles
Custom fuel cell installations
Universal external EFI fuel systems
NOTES
• Universal external electric fuel pump and filter kit.
• Compatible with gasoline EFI fuel systems only.
• Bosch 044-style external inline electric fuel pump.
• Flows up to 320 LPH (85 GPH) with a maximum pressure of 90 PSI.
• Pump requires a 100-micron pre-filter for proper protection.
• Includes a 40-micron billet aluminum inline fuel filter for intermediate fuel filtration.
• Verify fuel pressure requirements, regulator selection, wiring capacity, hose size, and fitting compatibility before installation.
• Not intended as a direct factory replacement unless all fuel system specifications match.
Q&A
Is this fuel pump designed for EFI or carbureted applications?
This fuel pump is designed for gasoline EFI fuel systems. The included high-pressure electric fuel pump is intended for electronic fuel injection applications and is capable of delivering the pressure required by EFI systems.
Is this an external fuel pump?
Yes. This kit includes an 044-style external inline electric fuel pump designed to be mounted outside the fuel tank.
What is the maximum fuel flow?
The fuel pump delivers up to 320 LPH (85 GPH) to support high-performance EFI fuel systems.
What is the maximum fuel pressure?
The pump is capable of producing up to 90 PSI.
What is the purpose of the 40-micron filter?
The included 40-micron fuel filter helps remove contaminants while maintaining excellent fuel flow. It can be configured as either a pre-filter or post-filter, depending on your fuel system design and filtration requirements.
Does this kit include a mounting bracket?
Yes. The kit includes a CNC-machined billet aluminum mounting bracket for securely mounting the fuel pump and filter.
Are fittings and electrical hardware included?
Yes. The kit includes the necessary fittings and electrical connection hardware for installation.
Does the fuel pump require a pre-filter?
Yes. TSP recommends installing a 100-micron pre-filter upstream of the fuel pump to help protect it from larger contaminants and maximize pump service life. The included 40-micron filter may be used as a pre-filter or post-filter depending on your fuel system configuration.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
