Electric Fuel Pump and Filter Kit - 40 Microns - Black
Electric Fuel Pump and Filter Kit - 40 Microns - Black
SKU: SKU: JM1040KT-40-BK
In stock
Product Details
Features
- 320 LPH pump supports demanding EFI systems
- 40-micron filter protects pumps and components
- Billet bracket provides secure mounting

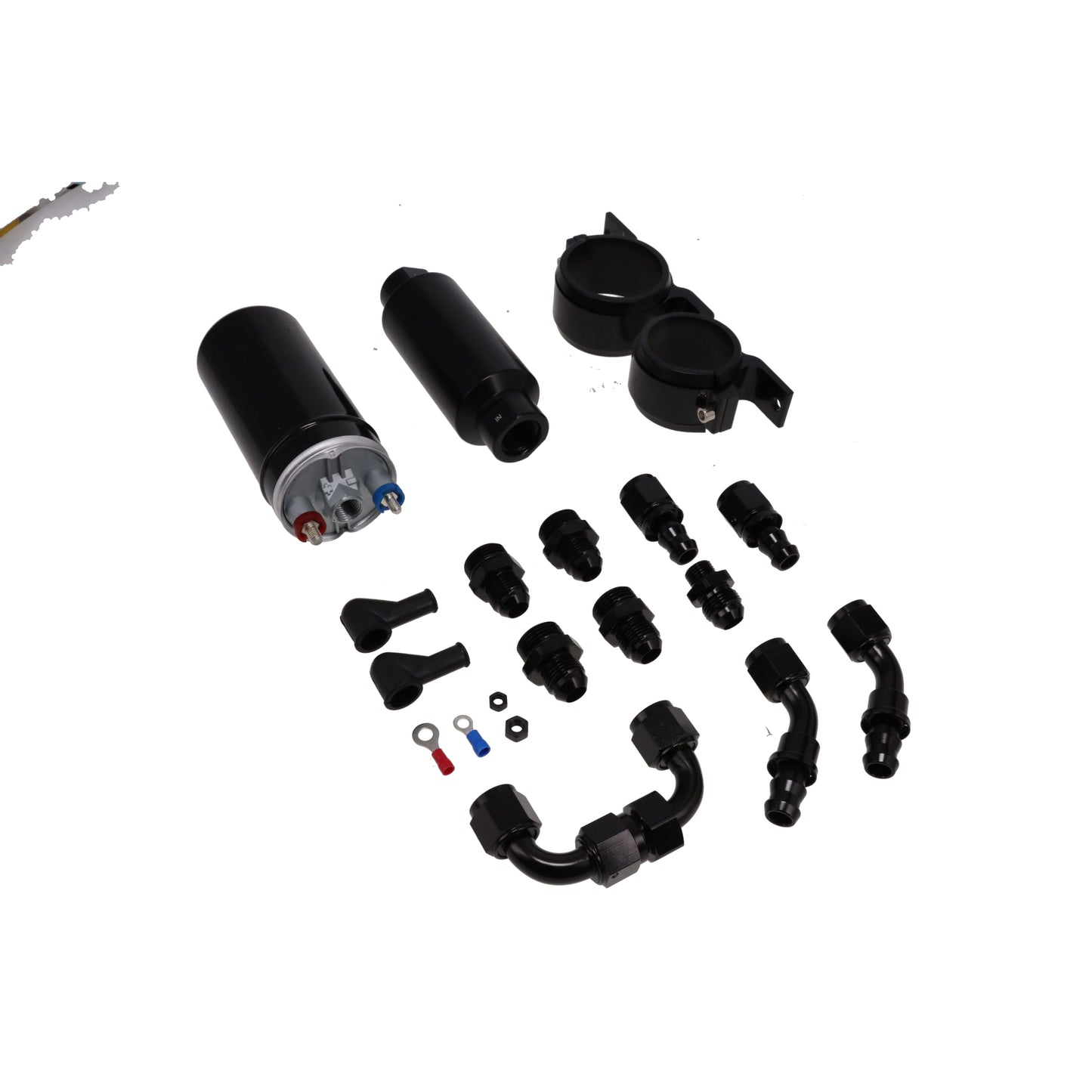

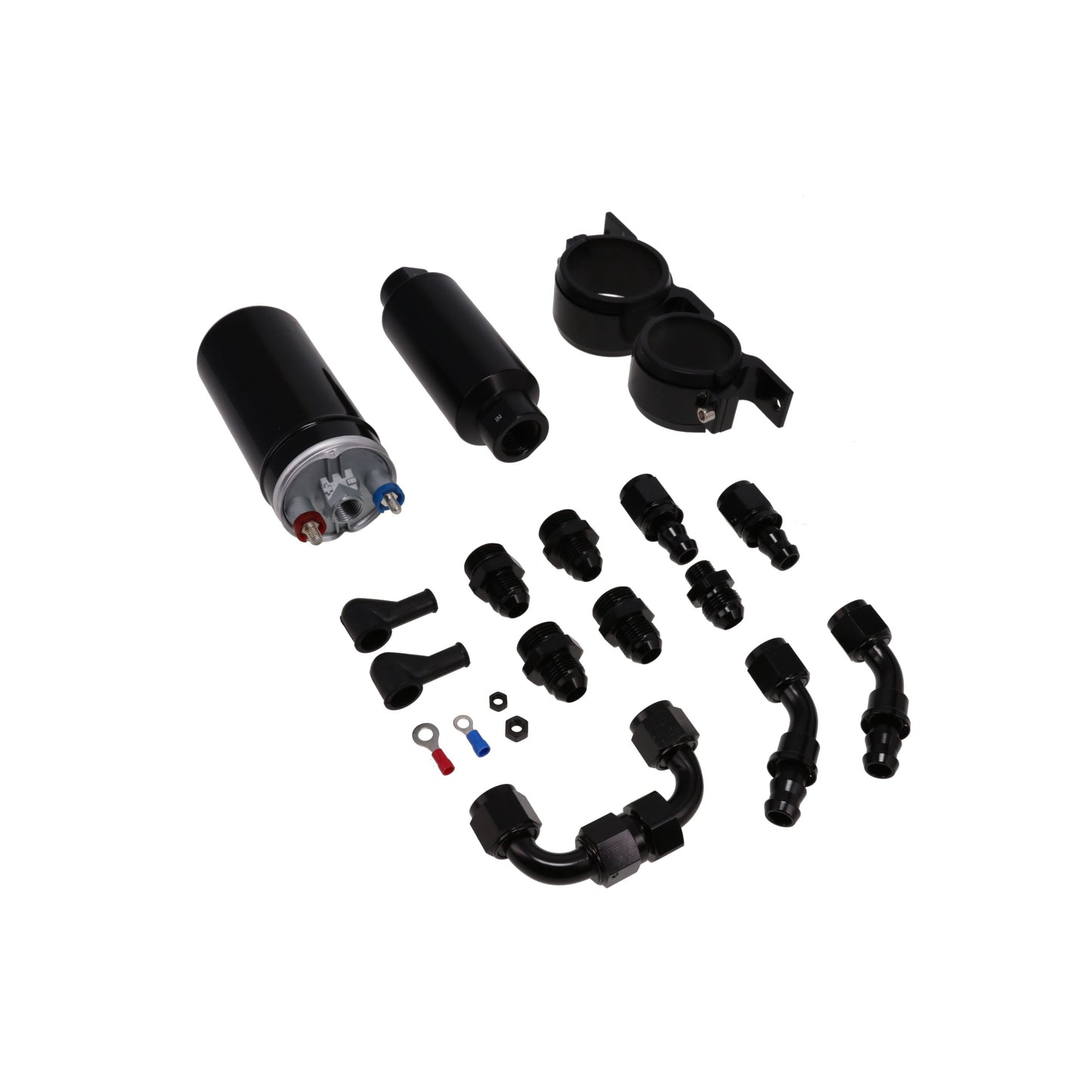

- Complete kit with pump, filter, and fittings
Description
Upgrade your fuel system with the Top Street Performance Electric Fuel Pump and Filter Kit, a complete fuel delivery solution for gasoline EFI applications. This universal kit combines a high-flow 044-style external electric fuel pump, a billet aluminum 40-micron fuel filter, and a CNC-machined billet mounting bracket to simplify installation while delivering reliable fuel flow for street performance, racing, engine swaps, and custom fuel system builds.
The external electric fuel pump delivers up to 320 LPH (85 GPH) with a maximum operating pressure of 90 PSI, providing the fuel volume required for many upgraded EFI fuel systems. The included 40-micron billet aluminum fuel filter captures contaminants before they circulate through the fuel system while maintaining excellent flow characteristics with minimal pressure drop.

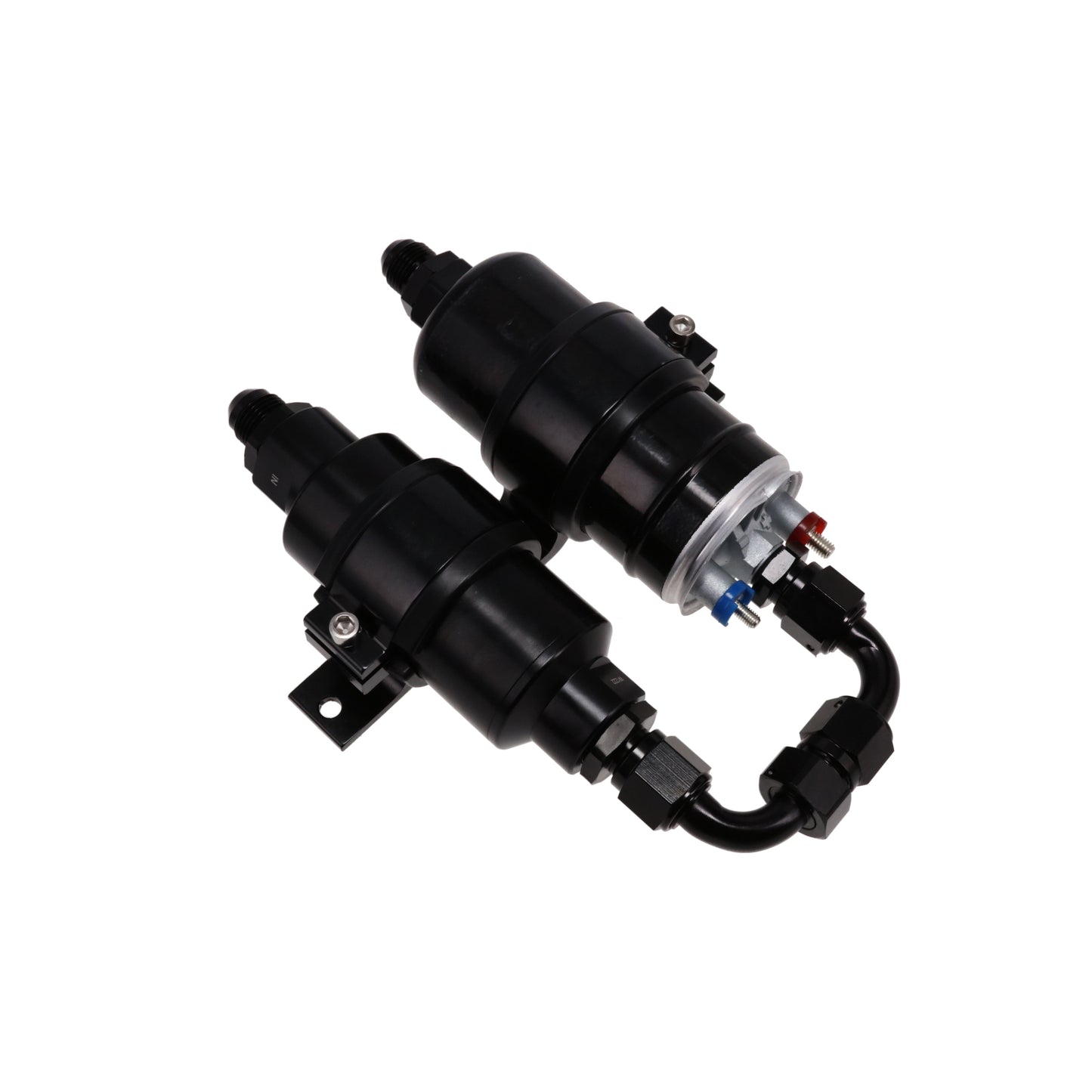

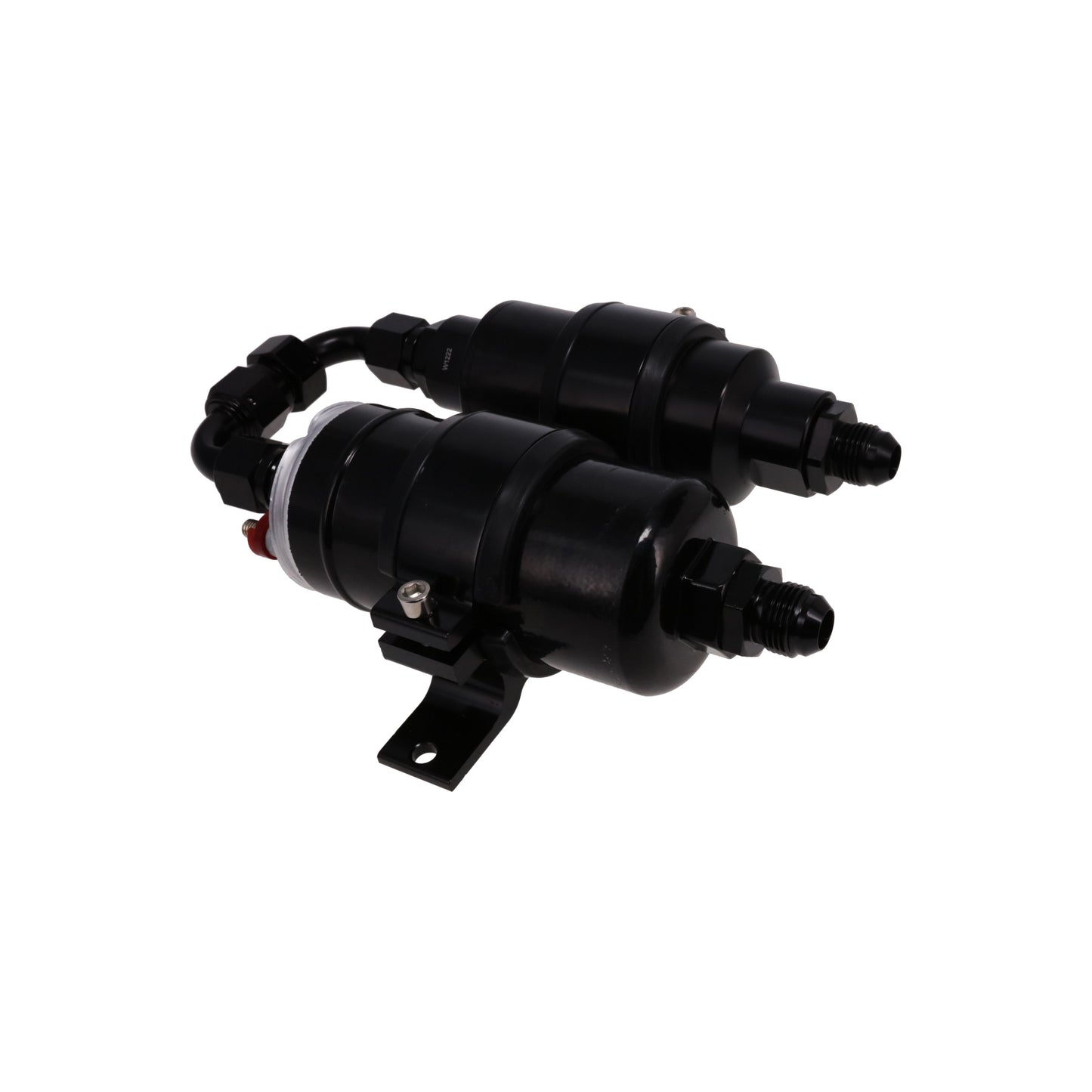

A lightweight billet aluminum mounting bracket securely holds both the fuel pump and filter in a compact assembly for a clean, organized installation. The kit also includes the necessary fittings and electrical hardware, making it an excellent choice for custom fuel systems, EFI conversions, performance upgrades, and replacement fuel delivery systems. This kit is intended for gasoline EFI applications, requires a 100-micron pre-filter before the pump, and the included 40-micron filter may be configured as either a pre-filter or post-filter depending on the fuel system design.
High-Flow Fuel System Performance
Designed around a proven 044-style external electric fuel pump, this kit provides dependable fuel delivery for upgraded EFI fuel systems requiring consistent flow and pressure. With a free-flow rating of 320 LPH (85 GPH) and pressure capability up to 90 PSI, the pump is well suited for performance street vehicles, engine swaps, custom fuel systems, and racing applications where reliable fuel supply is essential.
Efficient Fuel Filtration
The included billet aluminum 40-micron fuel filter helps remove contaminants while maintaining high fuel flow with minimal restriction. Its versatile design allows the filter to be configured as either a pre-filter or post-filter, depending on the fuel system layout. Combined with the billet mounting bracket, the kit provides a durable and organized fuel delivery solution for a wide variety of universal gasoline fuel system installations.
Specs
| Bracket Color | Black |
| Bracket Material | Aluminum |
| Bracket Mounting Hole Quantity | 2 |
| Bracket Style | Clamp |
| Compatible Fuel Type | Gasoline |
| Element Material | Stainless Steel |
| Filter Body Color | Black |
| Filter Body Diameter | 2.000 in. |
| Filter Body Material | Aluminum |
| Filter Inlet Thread Type | -10 AN O-Ring |
| Filter Inlet Type | Threaded |
| Filter Length | 5.500 in. |
| Filter Outlet Thread Type | -10 AN O-Ring |
| Filter Outlet Type | Threaded |
| Fittings Included | Yes |
| Fuel Delivery Type | Electric |
| Fuel Pump Body Color | Black |
| Fuel Pump Body Material | Aluminum |
| Fuel Pump Inlet Type | Threaded |
| Fuel Sending Unit Included | No |
| Fuel Type | Gasoline |
| Gasket Or Seal Included | No |
| Inlet Fitting Thread Size | -10 AN |
| Inlet Thread Diameter | -10 AN |
| Inlet Type | Threaded |
| Internal Or External | External |
| Maximum Flow Rating | 85 GPH |
| Maximum Pressure | 90 PSI |
| Micron Rating | 10 |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Mounting Hardware Included | No |
| Outlet Fitting Thread Size | -6 AN |
| Outlet Quantity | 1 |
| Outlet Thread Diameter | -6 AN |
| Outlet Type | Threaded |
| Pre or Post Pump Filter | Pre-pump |
| Primary Or Secondary Filter | Primary |
| Pump Design | 044 Style |
| Regulator Included | No |
| Ring Terminals Included | Yes |
| Terminal Post Boots Included | Yes |
| Universal Or Specific Fit | Universal |
| Voltage | 12 V |
| Wiring Harness Included | No |
Engine Fitment
COMPATIBLE WITH
UNIVERSAL
• Universal gasoline EFI fuel systems
• External inline electric fuel pump installations
• Custom EFI fuel systems
• Street performance EFI applications
• Racing EFI applications
COMMON VEHICLE APPLICATIONS
EFI fuel system upgrades
LS engine swaps
Restomod fuel systems
Street performance vehicles
Drag racing vehicles
Off-road vehicles
Custom fuel cell installations
Universal external EFI fuel systems
NOTES
• Universal external electric fuel pump and filter kit.
• Compatible with gasoline EFI fuel systems only.
• Bosch 044-style external inline electric fuel pump.
• Flows up to 320 LPH (85 GPH) with a maximum pressure of 90 PSI.
• Pump requires a 100-micron pre-filter for proper protection.
• Includes a 40-micron billet aluminum inline fuel filter for intermediate fuel filtration.
• Verify fuel pressure requirements, regulator selection, wiring capacity, hose size, and fitting compatibility before installation.
• Not intended as a direct factory replacement unless all fuel system specifications match.
Q&A
Is this fuel pump designed for EFI or carbureted applications?
The fuel pump is designed for gasoline EFI fuel systems.
Is this an external fuel pump?
Yes. It is an external inline 044-style electric fuel pump.
What is the maximum fuel flow?
The pump delivers up to 320 LPH (85 GPH).
What is the maximum fuel pressure?
The pump is capable of producing up to 90 PSI.
What is the purpose of the 40-micron filter?
It helps remove contaminants while maintaining excellent fuel flow and can be configured as either a pre-filter or post-filter.
Does this kit include a mounting bracket?
Yes. A CNC-machined billet aluminum mounting bracket is included.
Are fittings and electrical hardware included?
Yes. The kit includes the necessary fittings and electrical connection hardware for installation.
Does the fuel pump require a pre-filter?
Yes. A 100-micron pre-filter should always be installed ahead of the fuel pump to help protect the pump from larger contaminants.
Can the included filter be used on carbureted fuel systems?
Yes. The 40-micron filter can be used with carbureted or EFI fuel systems, although the included pump is intended for EFI gasoline applications.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
