Electric Fuel Pump and Filter Kit - 100 Microns - Red
Electric Fuel Pump and Filter Kit - 100 Microns - Red
SKU: SKU: JM1040KT-100-R
In stock
Product Details
Features
- 044-style high-pressure electric EFI pump, 320 LPH (85 GPH) at up to 90 PSI

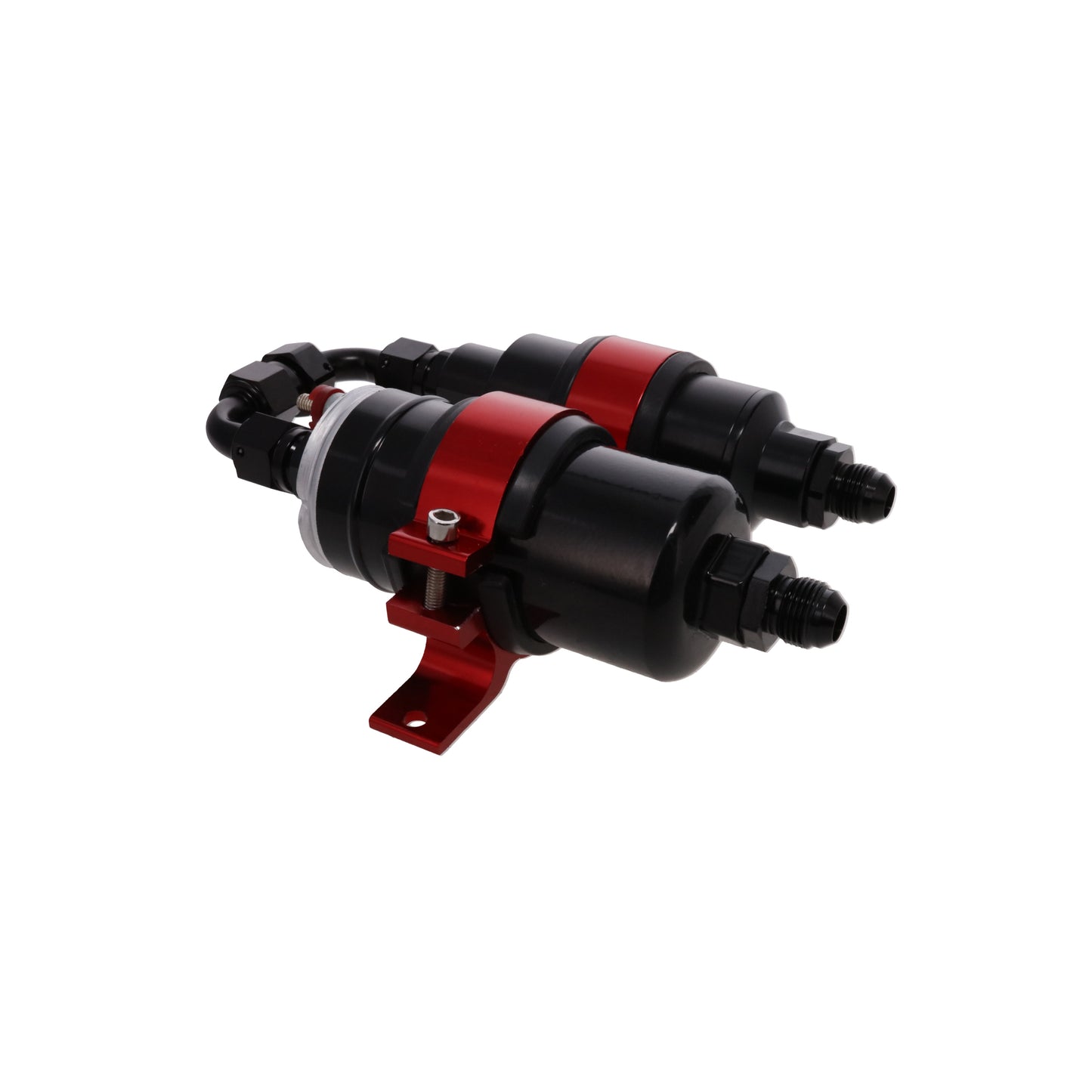

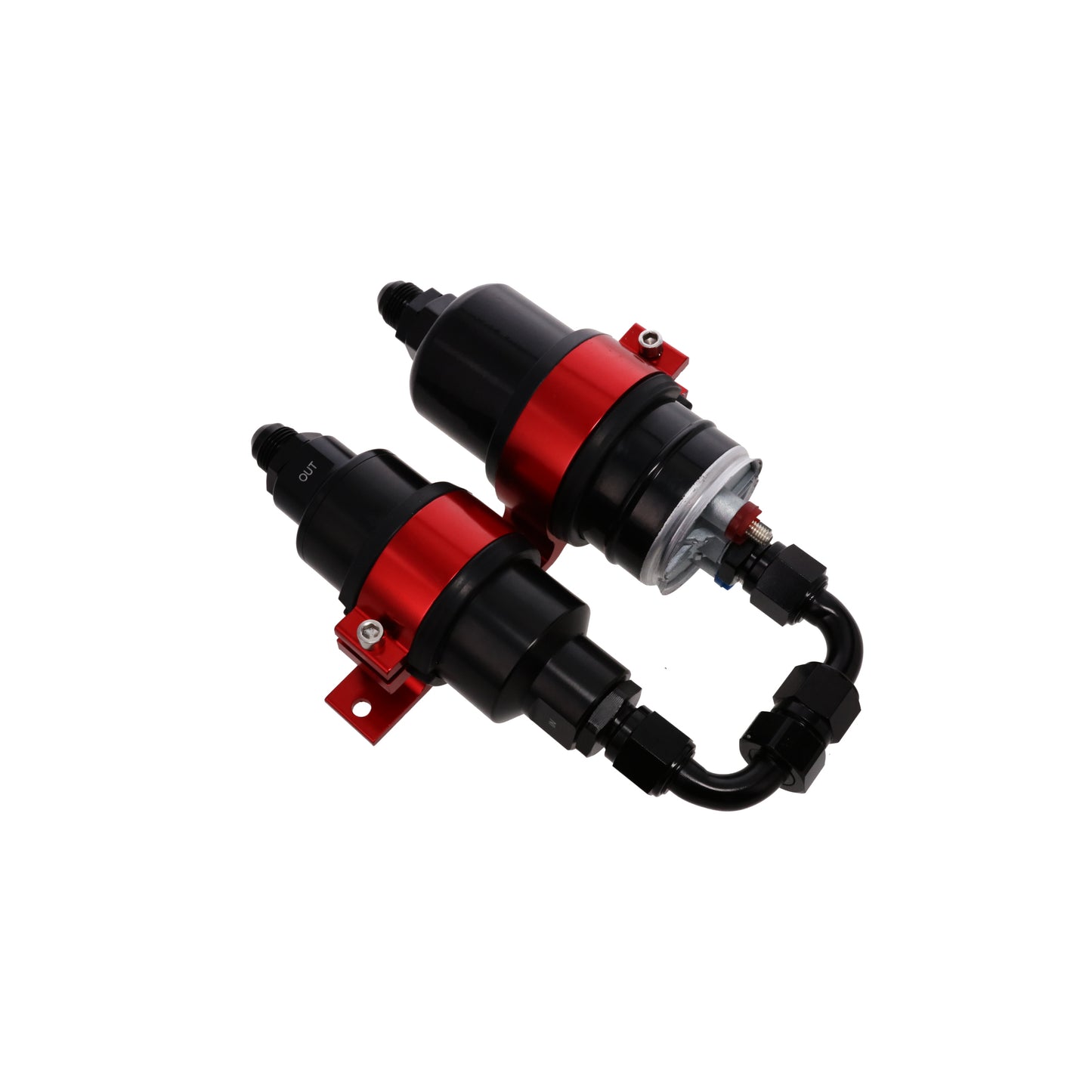

- Billet aluminum two-in-one bracket mounts pump and filter together
- 100-micron pre-pump filter protects against rust, debris, and tank contaminants

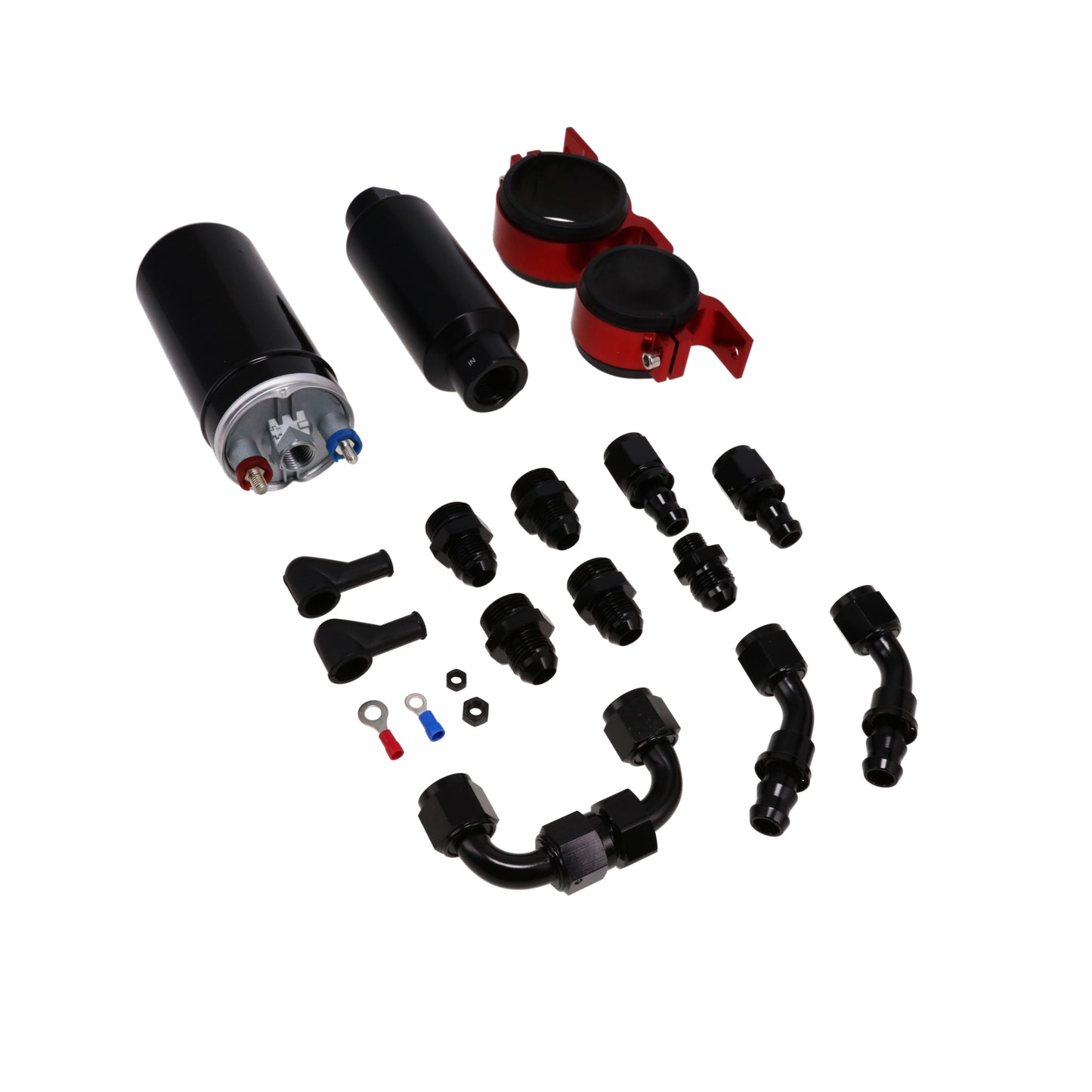

- Complete kit: fittings and electrical hardware included
Description
This complete electric fuel pump and filter kit combines a high-flow 044-style external electric fuel pump with a billet aluminum 100-micron fuel filter, both mounted on a single billet bracket for a clean, simplified installation. It's built for gasoline EFI applications requiring dependable, high-volume fuel delivery.
The pump delivers up to 320 LPH (85 GPH) at up to 90 PSI, suited for upgraded EFI fuel systems demanding consistent flow. The included 100-micron filter is designed for pre-pump filtration, capturing larger contaminants — rust, tank debris — before they reach the pump, helping extend pump life while maintaining excellent flow with minimal restriction.
Fittings and electrical hardware are included. This kit is intended for gasoline EFI applications and is not a direct factory replacement unless your fuel system specifications match.
Applications
Universal fit for gasoline EFI fuel systems, including LS engine swaps, restomod builds, street performance and drag racing vehicles, off-road applications, and custom fuel cell installations.
Installation
Mount the pump and filter assembly away from excessive heat and debris using the included billet bracket. The 100-micron filter is designed for pre-pump installation, ahead of the pump, to protect it from larger contaminants. Verify fuel pressure requirements, regulator selection, wiring capacity, hose size, and fitting compatibility before installation.
Specs
| Bracket Color | Red |
| Bracket Material | Aluminum |
| Bracket Mounting Hole Quantity | 2 |
| Bracket Style | Clamp |
| Compatible Fuel Type | Gasoline |
| Element Material | Stainless Steel |
| Filter Body Color | Black |
| Filter Body Diameter | 2.000 in. |
| Filter Body Material | Aluminum |
| Filter Inlet Thread Type | -10 AN O-Ring |
| Filter Inlet Type | Threaded |
| Filter Length | 5.500 in. |
| Filter Outlet Thread Type | -10 AN O-Ring |
| Filter Outlet Type | Threaded |
| Fittings Included | Yes |
| Fuel Delivery Type | Electric |
| Fuel Pump Body Color | Black |
| Fuel Pump Body Material | Aluminum |
| Fuel Pump Inlet Type | Threaded |
| Fuel Sending Unit Included | No |
| Fuel Type | Gasoline |
| Gasket Or Seal Included | No |
| Inlet Fitting Thread Size | -10 AN |
| Inlet Thread Diameter | -10 AN |
| Inlet Type | Threaded |
| Internal Or External | External |
| Maximum Flow Rating | 85 GPH |
| Maximum Pressure | 90 PSI |
| Micron Rating | 100 |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Mounting Hardware Included | No |
| Outlet Fitting Thread Size | -6 AN |
| Outlet Quantity | 1 |
| Outlet Thread Diameter | -6 AN |
| Outlet Type | Threaded |
| Pre or Post Pump Filter | Pre-pump |
| Primary Or Secondary Filter | Primary |
| Pump Design | 044 Style |
| Regulator Included | No |
| Ring Terminals Included | Yes |
| Terminal Post Boots Included | Yes |
| Universal Or Specific Fit | Universal |
| Voltage | 12 V |
| Wiring Harness Included | No |
Engine Fitment
COMPATIBLE WITH
UNIVERSAL
• Universal gasoline EFI fuel systems
• External inline electric fuel pump installations
• Custom EFI fuel systems
• Street performance EFI applications
• Racing EFI applications
NOTES
• Universal external electric fuel pump and filter kit.
• Compatible with gasoline EFI fuel systems only.
• Bosch 044-style external inline electric fuel pump.
• Delivers up to 320 LPH (85 GPH) with a maximum pressure of 90 PSI.
• Includes a 100-micron billet aluminum fuel filter, ideal for pre-pump filtration.
• Helps protect the fuel pump from rust, tank debris, and larger contaminants before fuel enters the pump.
• Verify fuel pressure requirements, regulator selection, wiring capacity, hose size, fitting compatibility, and mounting location before installation.
• Not intended as a direct factory replacement unless all fuel system specifications match.
COMMON VEHICLE APPLICATIONS
EFI fuel system upgrades
LS engine swaps
Restomod fuel systems
Street performance vehicles
Drag racing vehicles
Off-road vehicles
Custom fuel cell installations
Universal external EFI fuel systems
Q&A
Is this fuel pump designed for EFI or carbureted applications?
This fuel pump is designed for gasoline EFI fuel systems. The included high-pressure electric fuel pump is intended for electronic fuel injection applications and is capable of delivering the pressure required by EFI systems.
Is this an external fuel pump?
Yes. This kit includes an 044-style external inline electric fuel pump designed to be mounted outside the fuel tank.
What is the maximum fuel flow?
The fuel pump delivers up to 320 LPH (85 GPH) to support high-performance EFI fuel systems.
What is the maximum fuel pressure?
The pump is capable of producing up to 90 PSI.
What is the purpose of the 100-micron filter?
The included 100-micron fuel filter is designed to capture larger contaminants before they enter the fuel pump. This helps protect the pump while maintaining excellent fuel flow.
Is the 100-micron filter installed before or after the fuel pump?
The 100-micron filter is designed for pre-pump filtration and should be installed upstream of the fuel pump to help prevent debris from entering and damaging the pump.
Does this kit include a mounting bracket?
Yes. The kit includes a billet aluminum mounting bracket for securely mounting the fuel pump and filter.
Are fittings and electrical hardware included?
Yes. The kit includes the necessary fittings and electrical hardware for installation.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
Electric Fuel Pump and Filter Kit - 100 Microns - Red
This complete electric fuel pump and filter kit combines a high-flow 044-style external electric fuel pump with a billet aluminum 100-micron fuel filter, both mounted on a single billet bracket for a clean, simplified installation. It's built for gasoline EFI applications requiring dependable, high-volume fuel delivery.
The pump delivers up to 320 LPH (85 GPH) at up to 90 PSI, suited for upgraded EFI fuel systems demanding consistent flow. The included 100-micron filter is designed for pre-pump filtration, capturing larger contaminants — rust, tank debris — before they reach the pump, helping extend pump life while maintaining excellent flow with minimal restriction.
Fittings and electrical hardware are included. This kit is intended for gasoline EFI applications and is not a direct factory replacement unless your fuel system specifications match.
Applications
Universal fit for gasoline EFI fuel systems, including LS engine swaps, restomod builds, street performance and drag racing vehicles, off-road applications, and custom fuel cell installations.
Installation
Mount the pump and filter assembly away from excessive heat and debris using the included billet bracket. The 100-micron filter is designed for pre-pump installation, ahead of the pump, to protect it from larger contaminants. Verify fuel pressure requirements, regulator selection, wiring capacity, hose size, and fitting compatibility before installation.
COMPATIBLE WITH
UNIVERSAL
• Universal gasoline EFI fuel systems
• External inline electric fuel pump installations
• Custom EFI fuel systems
• Street performance EFI applications
• Racing EFI applications
NOTES
• Universal external electric fuel pump and filter kit.
• Compatible with gasoline EFI fuel systems only.
• Bosch 044-style external inline electric fuel pump.
• Delivers up to 320 LPH (85 GPH) with a maximum pressure of 90 PSI.
• Includes a 100-micron billet aluminum fuel filter, ideal for pre-pump filtration.
• Helps protect the fuel pump from rust, tank debris, and larger contaminants before fuel enters the pump.
• Verify fuel pressure requirements, regulator selection, wiring capacity, hose size, fitting compatibility, and mounting location before installation.
• Not intended as a direct factory replacement unless all fuel system specifications match.
COMMON VEHICLE APPLICATIONS
EFI fuel system upgrades
LS engine swaps
Restomod fuel systems
Street performance vehicles
Drag racing vehicles
Off-road vehicles
Custom fuel cell installations
Universal external EFI fuel systems
SPECIFICATIONS
Bracket Color: Red
Bracket Material: Aluminum
Bracket Mounting Hole Quantity: 2
Bracket Style: Clamp
Compatible Fuel Type: Gasoline
Element Material: Stainless Steel
Filter Body Color: Black
Filter Body Diameter: 2.000 in.
Filter Body Material: Aluminum
Filter Inlet Thread Type: -10 AN O-Ring
Filter Inlet Type: Threaded
Filter Length: 5.500 in.
Filter Outlet Thread Type: -10 AN O-Ring
Filter Outlet Type: Threaded
Fittings Included: Yes
Fuel Delivery Type: Electric
Fuel Pump Body Color: Black
Fuel Pump Body Material: Aluminum
Fuel Pump Inlet Type: Threaded
Fuel Sending Unit Included: No
Fuel Type: Gasoline
Gasket Or Seal Included: No
Inlet Fitting Thread Size: -10 AN
Inlet Thread Diameter: -10 AN
Inlet Type: Threaded
Internal Or External: External
Maximum Flow Rating: 85 GPH
Maximum Pressure: 90 PSI
Micron Rating: 100
Mounting Bracket Included: No
Mounting Hardware Included: No
Outlet Fitting Thread Size: -6 AN
Outlet Quantity: 1
Outlet Thread Diameter: -6 AN
Outlet Type: Threaded
Pre or Post Pump Filter: Pre-pump
Primary Or Secondary Filter: Primary
Pump Design: 044 Style
Regulator Included: No
Ring Terminals Included: Yes
Terminal Post Boots Included: Yes
Universal Or Specific Fit: Universal
Voltage: 12 V
Wiring Harness Included: No
