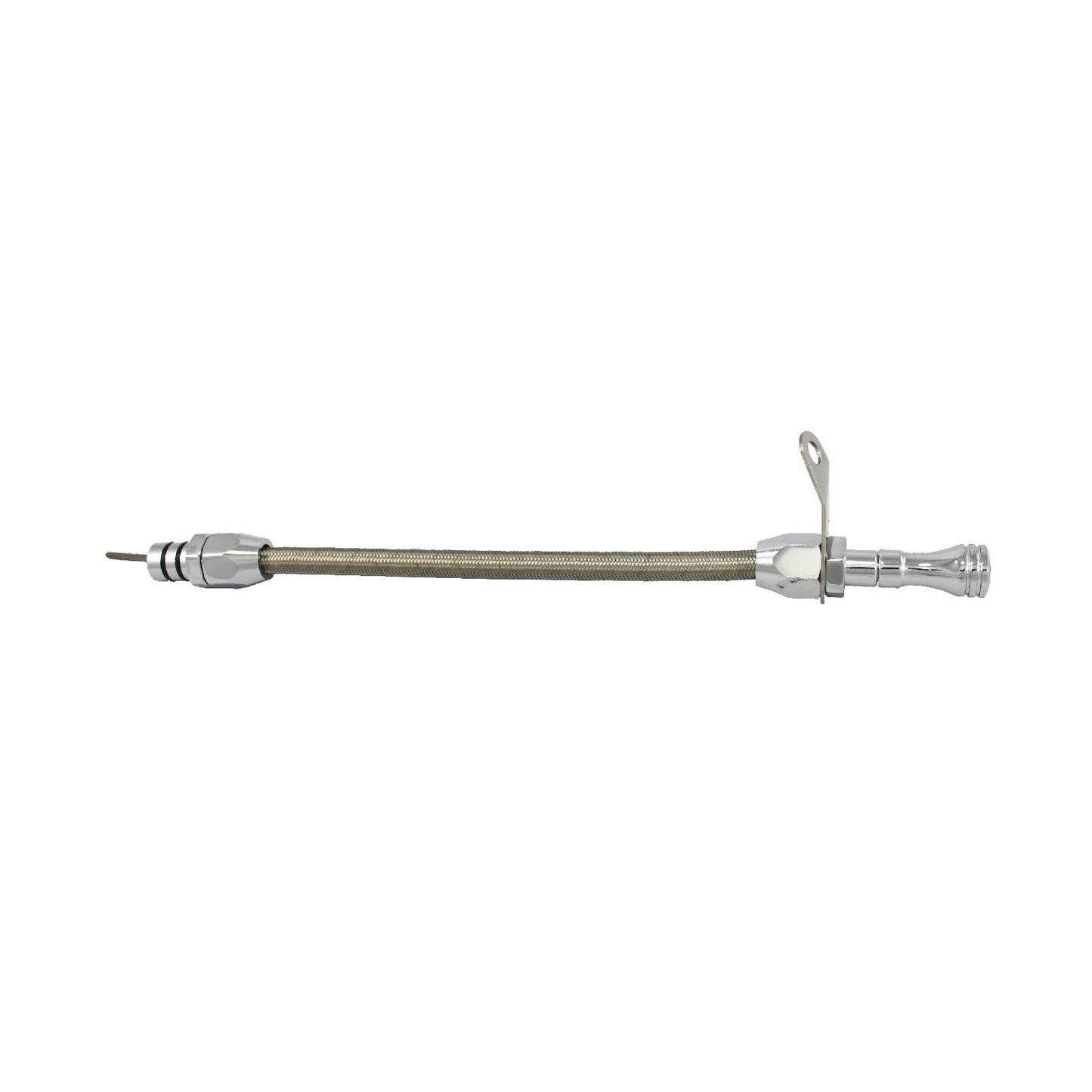

GM 700R4 / 4L60 Bellhousing Mount Flexible Braided Stainless Steel Transmission Dipstick
GM 700R4 / 4L60 Bellhousing Mount Flexible Braided Stainless Steel Transmission Dipstick
SKU: SKU: SP8202
Low stock
Product Details
Features
- Bellhousing-mount dipstick clears headers and crossmembers in swaps
- Flexible braided stainless tube eases routing in tight engine bays
- Fits GM 700R4, 4L60, 4L60E, 4L65E, and 4L70E transmissions
- Chrome aluminum handle with 13-7/8 in. flexible stainless tube
Description
Engine swaps and header installations often block access to a standard transmission-case-mounted dipstick, especially on LS swap builds. This bellhousing-mount dipstick solves that problem, fitting GM Turbo-Hydramatic 700R4 (TH700R4/THM700R4), 4L60, 4L60E, 4L65E, and 4L70E transmissions.
The dipstick uses a flexible braided stainless steel tube measuring 13-7/8 inches, which mounts at the bellhousing rather than the transmission case — a shorter, more direct path that's useful when headers, crossmembers, or other engine bay components interfere with standard dipstick routing. It is a fixed, non-locking design.
Featuring a chrome-finished aluminum handle, the dipstick adds a polished, show-quality appearance to the engine bay.
Applications
Fits GM Turbo-Hydramatic 700R4 (TH700R4/THM700R4), 4L60, 4L60E, 4L65E, and 4L70E. Common in Chevrolet/GMC trucks and SUVs (700R4/4L60E-equipped, 1982-2007), Camaro/Firebird (700R4-equipped), and LS swap/engine conversion builds requiring bellhousing-mount clearance.
Installation
Bellhousing-mount design, entering at the transmission case via the bellhousing rather than a standard case-mount location. Recommended when headers, crossmembers, or other engine bay components interfere with a standard transmission-case-mounted dipstick tube. Fixed length, non-locking.
Specs
| Handle Material | Aluminum |
| Handle Finish | Chrome |
| Tube Included | Yes |
| Tube Material | Braided Stainless Steel |
| Tube Finish | Natural |
| Dipstick Length | 13 7/8" |
| Dipstick Entry | Transmission Case |
| Mounting Location | Bellhousing |
| Locking | No |
Engine Fitment
COMPATIBLE WITH
• GM Turbo-Hydramatic 700R4 ("TH700R4" or "THM700R4")
• GM 4L60
• GM 4L60E / 4L65E / 4L70E
NOTE: Bellhousing-mount dipsticks are recommended when headers, crossmembers, or other engine bay components interfere with a standard transmission-case-mounted dipstick tube — common in engine swap applications.
COMMON VEHICLE APPLICATIONS
Chevrolet/GMC trucks and SUVs (700R4/4L60E-equipped, 1982-2007)
Camaro/Firebird (700R4-equipped)
Common in LS-swap and engine conversion builds requiring bellhousing-mount clearance
Q&A
What transmissions does this dipstick fit?
GM Turbo-Hydramatic 700R4 (TH700R4/THM700R4), 4L60, 4L60E, 4L65E, and 4L70E.
Why would I need a bellhousing-mount dipstick instead of a standard one?
Bellhousing-mount dipsticks are recommended when headers, crossmembers, or other engine bay components interfere with a standard transmission-case-mounted dipstick tube — common in engine swap applications.
How long is the dipstick?
13-7/8 inches.
What vehicles commonly use this transmission?
Chevrolet/GMC trucks and SUVs (700R4/4L60E-equipped, 1982-2007), Camaro/Firebird (700R4-equipped), and LS swap/engine conversion builds requiring bellhousing-mount clearance.
Is this dipstick locking or adjustable?
No, it's a fixed, non-locking design.
What material and finish does this dipstick have?
Chrome-finished aluminum handle; braided stainless steel tube with a natural finish.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
GM 700R4 / 4L60 Bellhousing Mount Flexible Braided Stainless Steel Transmission Dipstick
Engine swaps and header installations often block access to a standard transmission-case-mounted dipstick, especially on LS swap builds. This bellhousing-mount dipstick solves that problem, fitting GM Turbo-Hydramatic 700R4 (TH700R4/THM700R4), 4L60, 4L60E, 4L65E, and 4L70E transmissions.
The dipstick uses a flexible braided stainless steel tube measuring 13-7/8 inches, which mounts at the bellhousing rather than the transmission case — a shorter, more direct path that's useful when headers, crossmembers, or other engine bay components interfere with standard dipstick routing. It is a fixed, non-locking design.
Featuring a chrome-finished aluminum handle, the dipstick adds a polished, show-quality appearance to the engine bay.
Applications
Fits GM Turbo-Hydramatic 700R4 (TH700R4/THM700R4), 4L60, 4L60E, 4L65E, and 4L70E. Common in Chevrolet/GMC trucks and SUVs (700R4/4L60E-equipped, 1982-2007), Camaro/Firebird (700R4-equipped), and LS swap/engine conversion builds requiring bellhousing-mount clearance.
Installation
Bellhousing-mount design, entering at the transmission case via the bellhousing rather than a standard case-mount location. Recommended when headers, crossmembers, or other engine bay components interfere with a standard transmission-case-mounted dipstick tube. Fixed length, non-locking.
COMPATIBLE WITH
• GM Turbo-Hydramatic 700R4 ("TH700R4" or "THM700R4")
• GM 4L60
• GM 4L60E / 4L65E / 4L70E
NOTE: Bellhousing-mount dipsticks are recommended when headers, crossmembers, or other engine bay components interfere with a standard transmission-case-mounted dipstick tube — common in engine swap applications.
COMMON VEHICLE APPLICATIONS
Chevrolet/GMC trucks and SUVs (700R4/4L60E-equipped, 1982-2007)
Camaro/Firebird (700R4-equipped)
Common in LS-swap and engine conversion builds requiring bellhousing-mount clearance
SPECIFICATIONS
Handle Material: Aluminum
Handle Finish: Chrome
Tube Included: Yes
Tube Material: Braided Stainless Steel
Tube Finish: Natural
Dipstick Length: 13 7/8"
Dipstick Entry: Transmission Case
Mounting Location: Bellhousing
Locking: No
