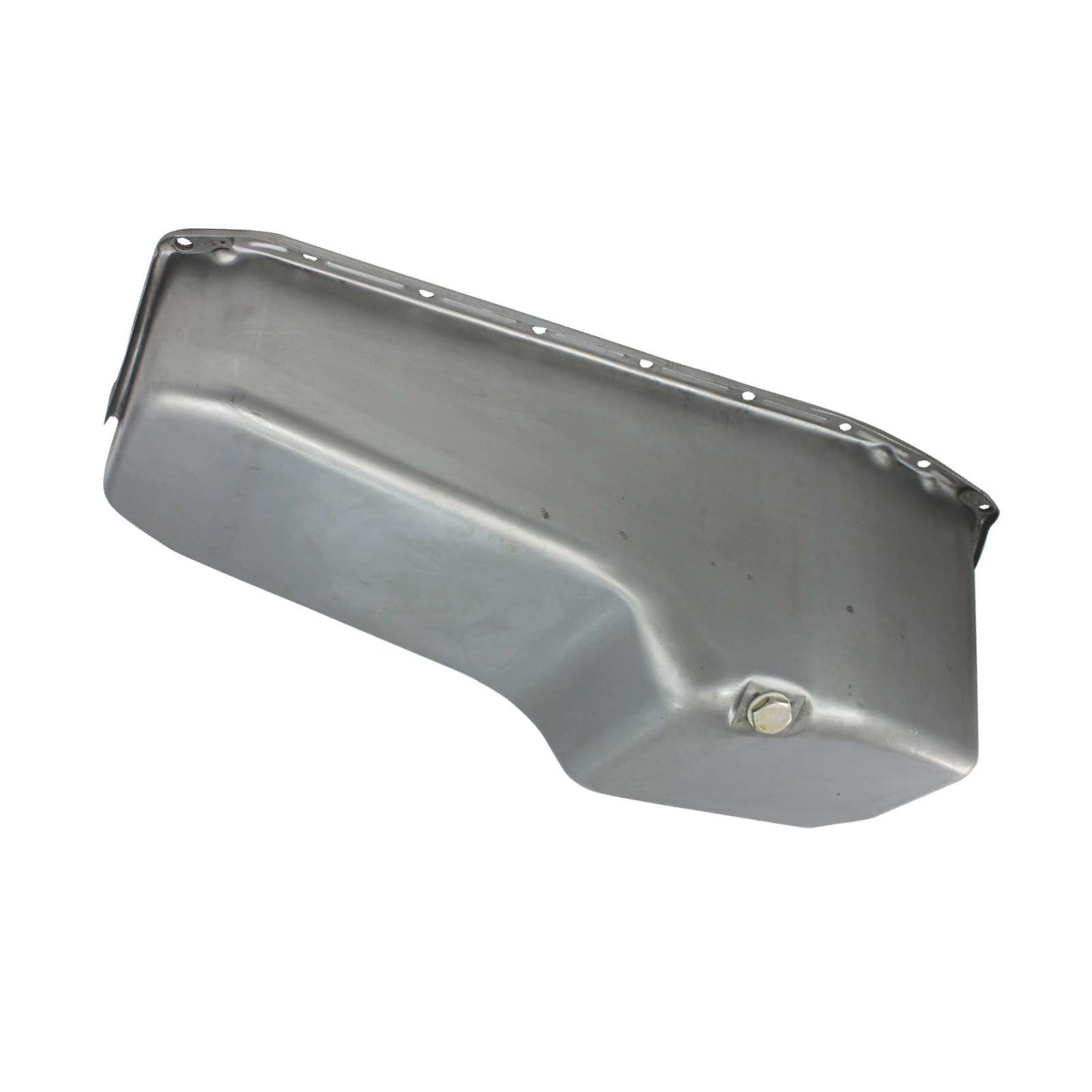

Chevy Small Block Passenger Side Dipstick Steel Oil Pan - Unplated
Chevy Small Block Passenger Side Dipstick Steel Oil Pan - Unplated
SKU: SKU: SP7443X
Low stock
Product Details
Features
- Chrome steel pan fits 1980-1985 Chevy small block V8 applications
- Matches factory 2-piece rear main seal and passenger-side dipstick
- Fits Chevrolet 305 and 350 cubic-inch small block V8 engines
- Baffled 4-qt. steel pan with a unplated finish for polished looks
Description
Chevy small block engines built between 1980 and 1985 use a two-piece rear main seal paired with a passenger-side dipstick — a transitional configuration between earlier and later small block designs that requires a specific oil pan. This unplated steel pan is built for that exact window, fitting Chevrolet small block V8 Gen. I engines in 5.0L (305 in³) and 5.7L (350 in³) displacements.
The pan holds 4 quarts and includes internal baffling to help manage oil movement during acceleration and cornering. It uses a wet-sump design with the sump located at the rear of the pan, and a 1/2"-20 drain plug thread with the drain plug included. The gasket, oil pickup, windage tray, and dipstick are not included and will need to be sourced separately to complete installation.
Constructed from steel with a unplated finish, the pan adds a polished, show-quality appearance to small block engine bays while providing a durable surface finish.
Applications
Fits Chevrolet small block V8 Gen. I engines: 5.0L (305 in³) and 5.7L (350 in³). Designed specifically for engines using a two-piece rear main seal and passenger-side dipstick, produced from 1980 through 1985.
Installation
Drain plug is included with a 1/2"-20 thread size. Gasket, oil pickup, windage tray, and dipstick are not included and must be sourced separately for a complete installation.
Specs
| Oil Pan Material | Steel |
| Rear Main Seal | 2-Piece |
| Dipstick Location | Passenger Side |
| Dipstick Provision | Yes |
| Dipstick | Not Included |
| Sump Style | Wet |
| Sump Location | Rear |
| Oil Capacity | 4 Quarts |
| Baffled | Yes |
| Windage Tray | Not Included |
| Oil Pick-Up | Not Included |
| Gasket | Not Included |
| Drain Plug Thread Size | 1/2"-20 |
| Drain Plug | Included |
Engine Fitment
COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. I
• 5.0 L / 305 in3
• 5.7 L / 350 in3
NOTE: Fits most Chevy small block applications with a two-piece rear main seal and passenger-side dipstick from 1980-1985.
COMMON VEHICLE APPLICATIONS
Chevrolet Camaro / Corvette / Malibu / Monte Carlo (305/350, 1980-1985)
Chevrolet C/K-series trucks, Suburban, Blazer (1980-1985)
GMC C/K-series trucks, Jimmy (1980-1985)
Pontiac Firebird (305/350, 1980-1985)
Q&A
What years does this pan fit?
1980 through 1985 Chevy small block engines with a two-piece rear main seal and passenger-side dipstick.
Will this pan fit a 1986 or newer small block?
No — 1986-and-later small blocks use a one-piece rear main seal, which requires a different pan.
Will this pan fit a pre-1980 small block?
No — earlier small blocks with a two-piece rear main seal use a driver-side dipstick, which requires a different pan.
Does this pan include the gasket and oil pickup?
No — gasket, oil pickup, windage tray, and dipstick are not included and must be sourced separately.
What's the oil capacity of this pan?
4 quarts, with internal baffling to help control oil movement.
What size is the drain plug thread?
1/2"-20, with the drain plug included.
What material and finish does this pan have?
Steel with a unplated finish.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
Chevy Small Block Passenger Side Dipstick Steel Oil Pan - Unplated
Chevy small block engines built between 1980 and 1985 use a two-piece rear main seal paired with a passenger-side dipstick — a transitional configuration between earlier and later small block designs that requires a specific oil pan. This unplated steel pan is built for that exact window, fitting Chevrolet small block V8 Gen. I engines in 5.0L (305 in³) and 5.7L (350 in³) displacements.
The pan holds 4 quarts and includes internal baffling to help manage oil movement during acceleration and cornering. It uses a wet-sump design with the sump located at the rear of the pan, and a 1/2"-20 drain plug thread with the drain plug included. The gasket, oil pickup, windage tray, and dipstick are not included and will need to be sourced separately to complete installation.
Constructed from steel with a unplated finish, the pan adds a polished, show-quality appearance to small block engine bays while providing a durable surface finish.
Applications
Fits Chevrolet small block V8 Gen. I engines: 5.0L (305 in³) and 5.7L (350 in³). Designed specifically for engines using a two-piece rear main seal and passenger-side dipstick, produced from 1980 through 1985.
Installation
Drain plug is included with a 1/2"-20 thread size. Gasket, oil pickup, windage tray, and dipstick are not included and must be sourced separately for a complete installation.
COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. I
• 5.0 L / 305 in3
• 5.7 L / 350 in3
NOTE: Fits most Chevy small block applications with a two-piece rear main seal and passenger-side dipstick from 1980-1985.
COMMON VEHICLE APPLICATIONS
Chevrolet Camaro / Corvette / Malibu / Monte Carlo (305/350, 1980-1985)
Chevrolet C/K-series trucks, Suburban, Blazer (1980-1985)
GMC C/K-series trucks, Jimmy (1980-1985)
Pontiac Firebird (305/350, 1980-1985)
SPECIFICATIONS
Oil Pan Material: Steel
Rear Main Seal: 2-Piece
Dipstick Location: Passenger Side
Dipstick Provision: Yes
Dipstick: Not Included
Sump Style: Wet
Sump Location: Rear
Oil Capacity: 4 Quarts
Baffled: Yes
Windage Tray: Not Included
Oil Pick-Up: Not Included
Gasket: Not Included
Drain Plug Thread Size: 1/2"-20
Drain Plug: Included
