Top Street Performance

Chevy Small Block Cylinder Head Dowel Pins

Chevy Small Block Cylinder Head Dowel Pins

SKU: JM4149

$5.50
$5.50 $6.25
Shipping calculated at checkout.

In stock

Top Street Performance (TSP) is committed to providing high-quality performance parts while complying with emissions regulations. This product is designed for use on vehicles that comply with federal emissions regulations. It is the customer’s responsibility to verify that this part is legal for use in their state or local jurisdiction. Check with your local emissions authority before purchasing.

Product Details

Features

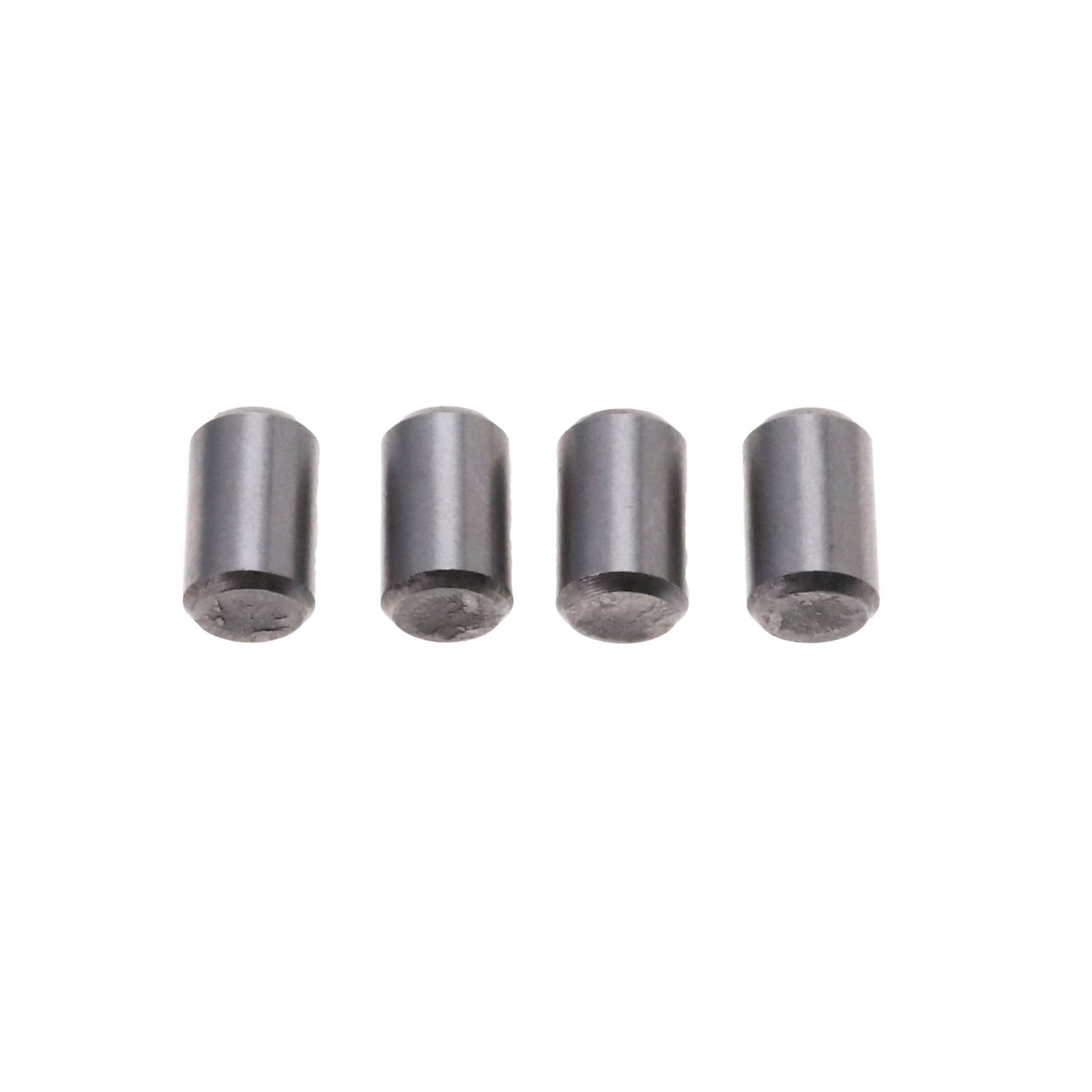

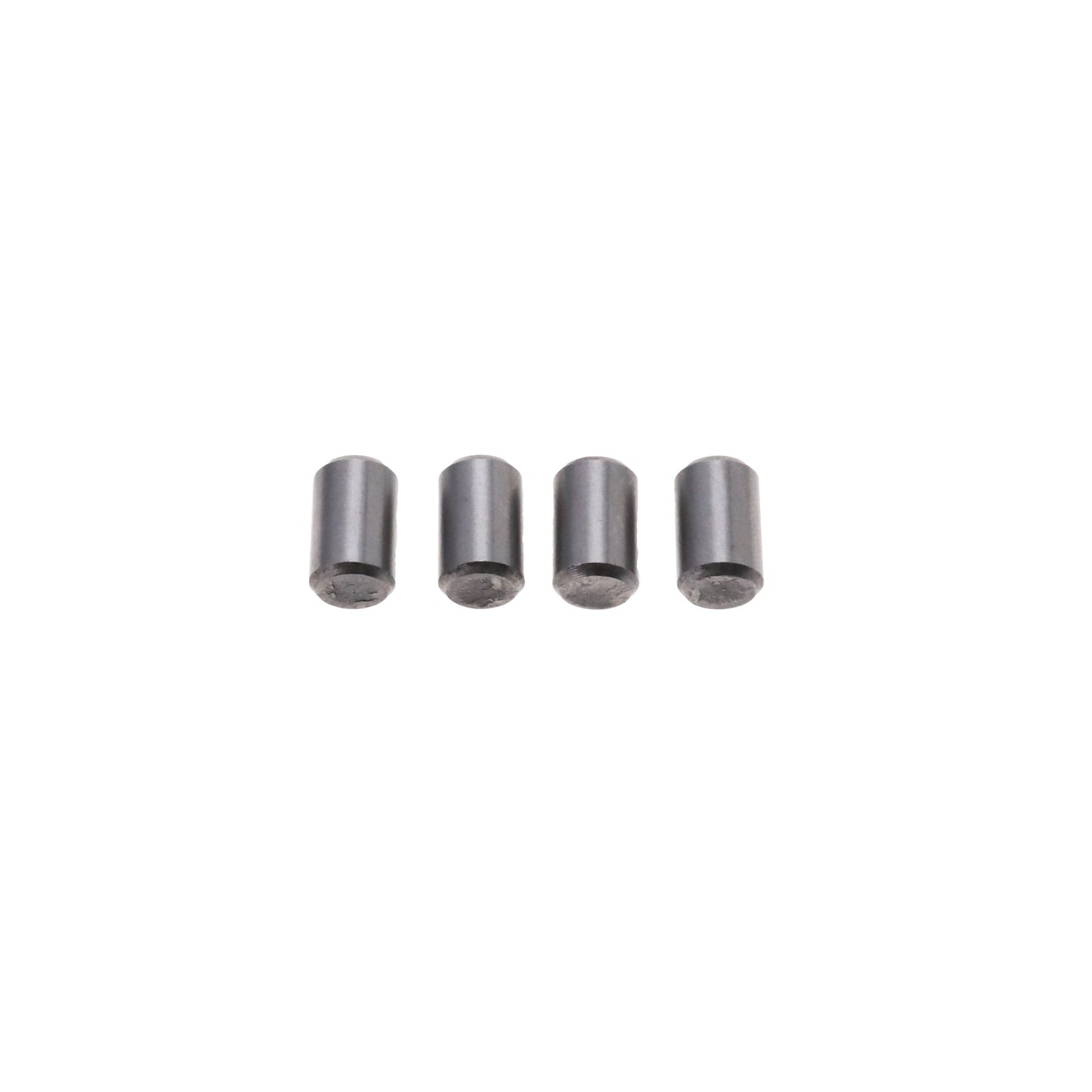

  • Steel 8 mm x 12.7 mm (0.31 in. x 0.50 in.) dowel pins locate the cylinder head on the block
  • Replaces damaged, missing, or worn dowel pins during head service or rebuilds
  • Fits Gen I small block Chevy V8s, 262 to 400 in³, including 383 and 406 strokers
  • Not for LT1/LT4 Gen II, LS-based, or big block Chevy engines

Description

These steel dowel pins locate the cylinder head on the block of a Gen I small block Chevy V8. Correct head location helps keep the head gasket aligned with the block and combustion chambers, so the pins are worth replacing whenever the originals are damaged, missing, or worn during head service, rebuilds, or performance assemblies.


Applications
Fits Gen I Chevrolet small block V8 engines: 4.3L/262, 4.3L/265, 4.4L/267, 4.6L/283, 4.9L/302, 5.0L/305, 5.0L/307, 5.4L/327, 5.7L/350, and 6.6L/400 in³, including common 383 and 406 stroker builds. Common vehicles (SBC-equipped): Chevrolet Camaro (1967–1992), Chevelle (1964–1977), Nova (1962–1979), C10/C/K trucks (1960–1995), Corvette (1955–1991), and Impala/Caprice (not the 1994–1996 LT1).

Installation
Verify head design and block/head combination before installation. Not compatible with Gen II LT1/LT4, LS-based, or big block Chevy engines.

Material & Finish
Steel, natural finish. Each pin measures 0.31 in. (8 mm) in diameter and 0.50 in. (12.7 mm) long. Sold as a kit.

Specs

Material Steel
Finish Natural
Pin Diameter 0.31 in. (8 mm)
Pin Length 0.50 in. (12.7 mm)
Quantity 4-Piece Kit

Engine Fitment

COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. I
• 4.3L / 262 in³
• 4.3L / 265 in³
• 4.4L / 267 in³
• 4.6L / 283 in³
• 4.9L / 302 in³
• 5.0L / 305 in³
• 5.0L / 307 in³
• 5.4L / 327 in³
• 5.7L / 350 in³
• 6.6L / 400 in³

NOTES
• Fits Gen I small block Chevy engines [confirm the 1955–1995 range]
• Compatible with common SBC stroker builds (383 / 406)
• Verify head design and block/head combination before installation
• Not compatible with Gen II LT1/LT4, LS-based, or big block Chevy engines

COMMON VEHICLE APPLICATIONS
Chevrolet Camaro (1967–1992, SBC equipped)
Chevrolet Chevelle (1964–1977, SBC)
Chevrolet Nova (1962–1979, SBC)
Chevrolet C10 / C/K Trucks (1960–1995, SBC)
Chevrolet Impala / Caprice [add years; exclude the 1994–1996 LT1]
Chevrolet Corvette (1955–1991)

Q&A

What do these dowel pins do?
They locate the cylinder head on the block, which helps keep the head gasket aligned with the block and combustion chambers.

Which engines do they fit?
Gen I small block Chevy V8s from 262 to 400 in³ (262, 265, 267, 283, 302, 305, 307, 327, 350, 400), including common 383 and 406 stroker builds.

Will they fit an LS, LT1, or big block engine?
No. They’re not compatible with Gen II LT1/LT4, LS-based, or big block Chevy engines.

What are they made of?
Steel with a natural finish.

When should I replace my dowel pins?
When the originals are damaged, missing, or worn during cylinder head service, rebuilds, or performance assemblies.

Which vehicles use these engines?
SBC-equipped Chevrolet Camaro (1967–1992), Chevelle (1964–1977), Nova (1962–1979), C10/C/K trucks (1960–1995), Corvette (1955–1991), and Impala/Caprice.

What should I verify before installing?
Your head design and block/head combination.

Emissions Notice

This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
