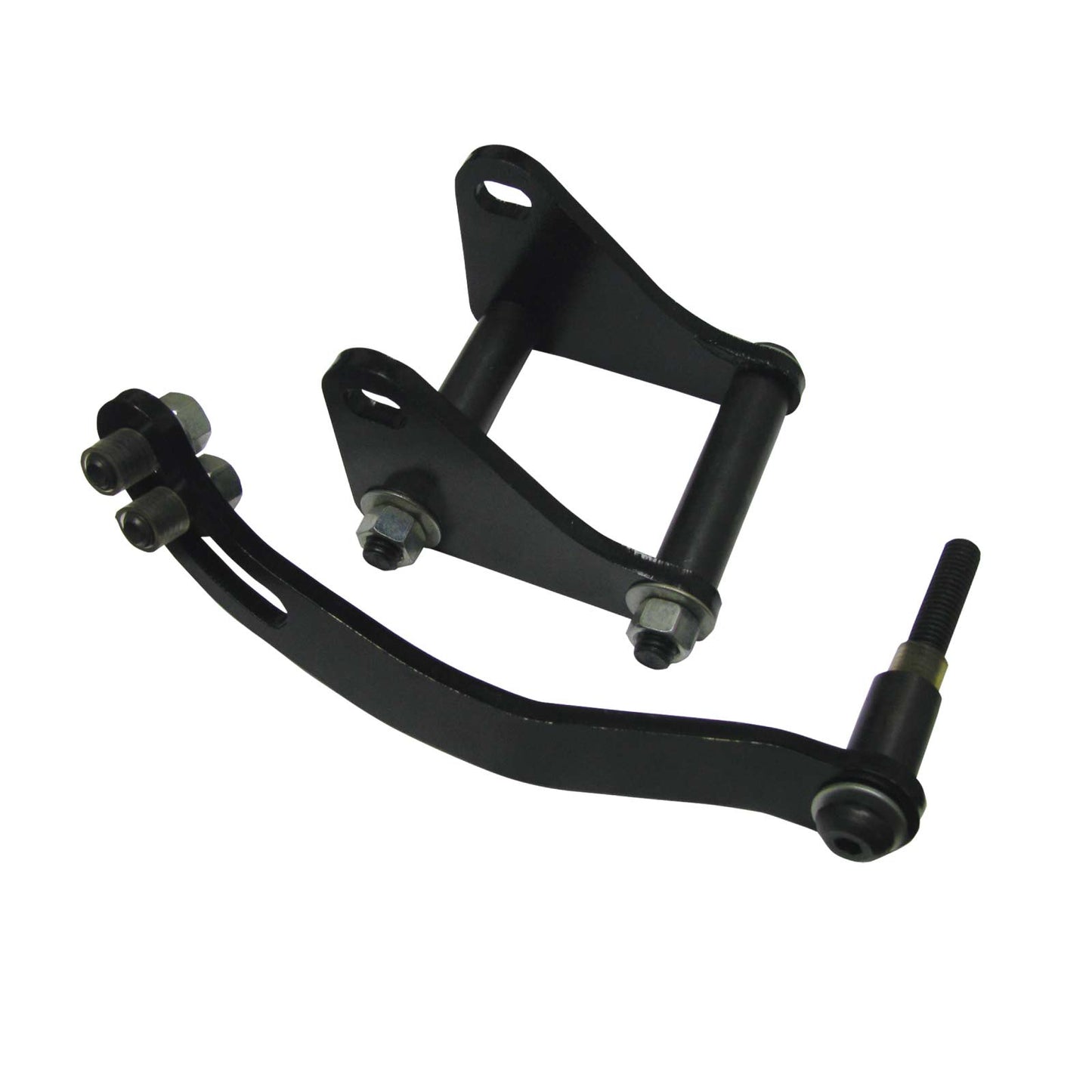

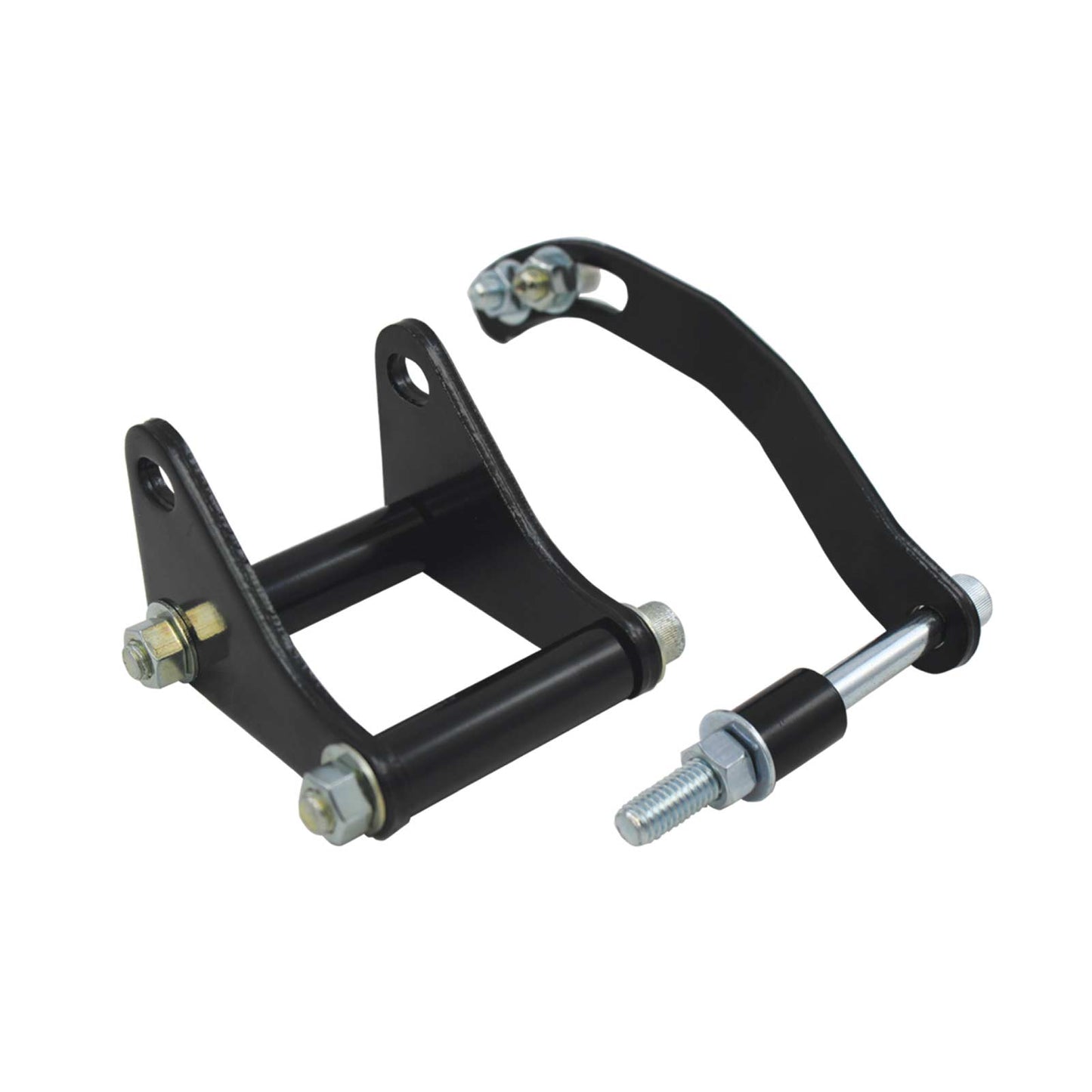

Chevy Small Block Adjustable Steel Driver Side Power Steering Pump Bracket Kit - Black

• Adjustable steel bracket mounts power steering pump to block and water pump

• Fits long or short water pump, single or double-groove pulley setups

• Mounts Saginaw P-series pumps with 1966–1978 threaded rear stud (3/8"-16)

• Blak finish, hardware included; passenger-side alternator bracket sold separately

This adjustable steel bracket mounts a Saginaw P-series power steering pump to the driver side of a Chevrolet Small Block V8 Gen. I engine, bolting to the water pump and lower block via the timing-cover bolt holes. It's designed for 1966–1978 Saginaw pumps with a threaded mounting stud on the rear of the pump.

The bracket accommodates both long and short water pump configurations and works with single or double-groove pulleys — confirm which water pump style your engine uses before ordering, since the two are not interchangeable on this bracket.

This is the driver-side (power steering pump) bracket only. A separate passenger-side alternator bracket is required to complete the accessory drive. Some later-production Saginaw pumps use metric mounting threads instead of the 3/8"-16 threads this bracket is built around — verify your pump's thread type before installation.

Applications
Fits Chevrolet Small Block V8 Gen. I engines (262–400 CID), commonly found in Camaro, Chevelle, Nova, Impala, C10/C-K trucks, and C2/C3 Corvette applications from 1966–1978.

Installation
Mounts to the lower driver-side front of the block using the timing-cover bolt holes and to the water pump at the upper mounting point. Confirm your block has this mounting provision, and confirm long vs. short water pump style before installing, since bracket geometry differs between the two.

Does this bracket fit long or short water pumps?
This bracket is compatible with both long and short water pump configurations for Chevrolet Gen I Small Block V8 engines. Be sure to verify which water pump style your engine uses before ordering, as bracket positioning differs between the two.

Do I need anything else to complete my accessory drive?
Yes. This is the driver-side power steering pump bracket only. A separate passenger-side alternator bracket is required to complete the accessory drive system.

Will this fit my Saginaw pump?
This bracket is designed for 1966–1978 Saginaw power steering pumps with a 3/8"-16 threaded mounting stud on the rear of the pump. Some later Saginaw pumps use metric threads instead, so verify your pump's thread size before purchasing.

Does this work with a single-groove or double-groove pulley?
Yes. This bracket is compatible with both single-groove and double-groove power steering pulley configurations.

Is this bracket for Big Block engines too?
No. This bracket is designed specifically for Chevrolet Gen I Small Block V8 engines (262–400 CID) and is not compatible with Chevrolet Big Block V8 engines.
