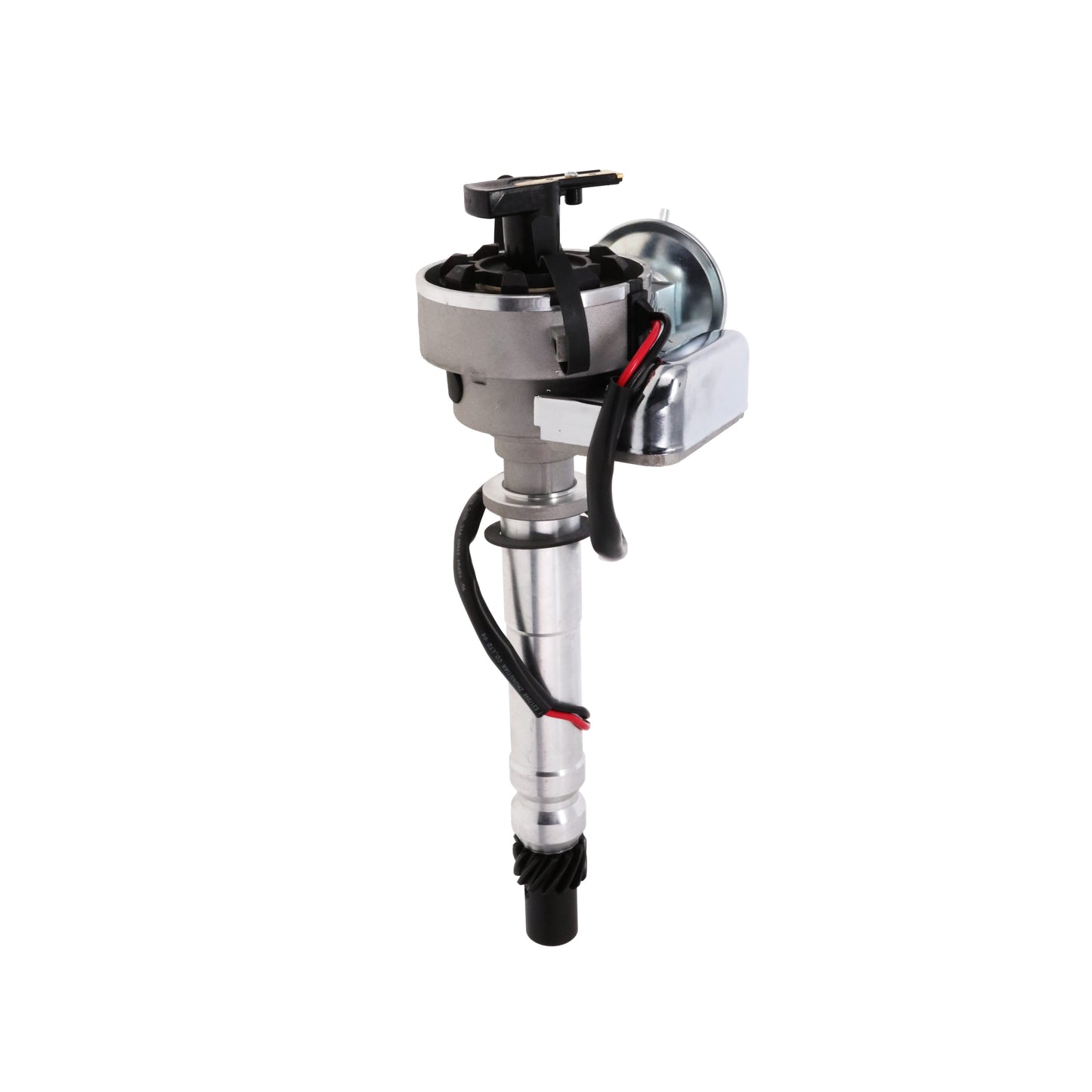

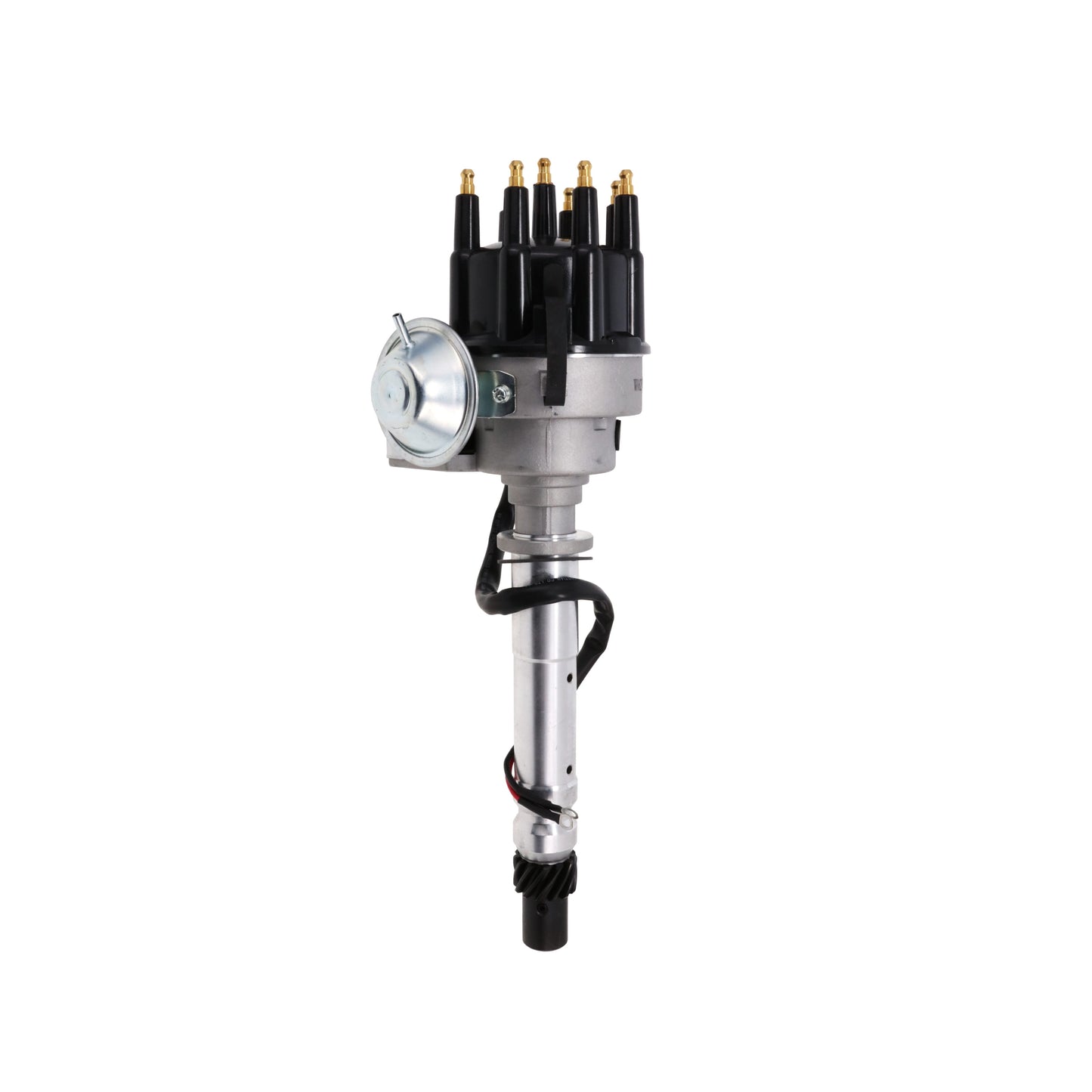

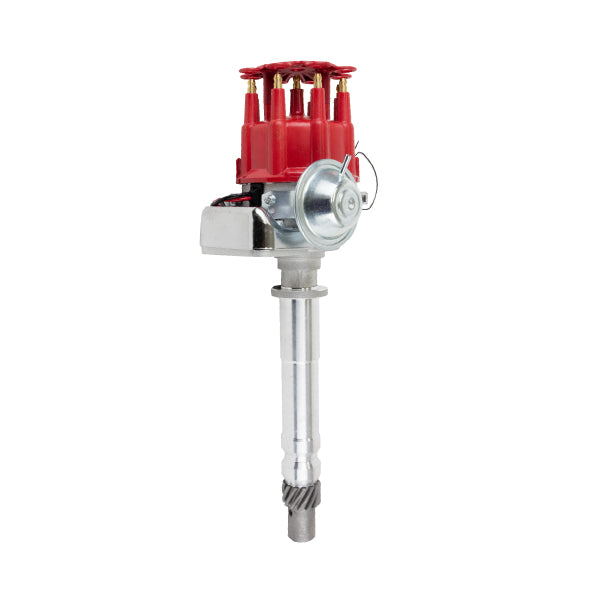

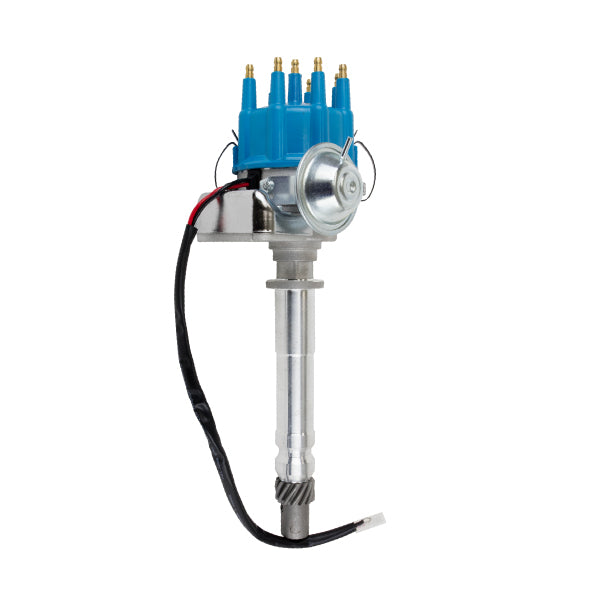

Chevy SBC/BBC V8 Small Cap Ready-to-Run Distributor

• Small cap design — fits tight engine bays where large HEI caps won't clear firewall or accessories

• Hall Effect multi-pole reluctor trigger — precise, clean signal, no points or condenser needed

• Fits SBC Gen. I 262–400 and standard deck BBC 396, 402, 427, and 454 — carbureted

• External coil required (35,000V+) — no ignition box needed, mechanical and vacuum advance

The TSP Small Cap Ready-to-Run Distributor for the Chevy SBC and BBC is a compact-cap electronic ignition upgrade for the Gen. I Chevrolet small block V8 (262–400 CID) and the standard-deck Mark IV big block V8 (396, 402, 427, and 454 CID) in carbureted applications. The defining advantage of this distributor over the TSP large-cap HEI and Pro Series units is the small cap design — a significantly more compact cap footprint that fits engine bays where a large-cap HEI distributor would interfere with the firewall, air cleaner, valve covers, or other components. This makes it the preferred distributor for vintage builds, pre-1975 cars, classic trucks, and any application where large-cap clearance is a problem.

The small cap design is particularly well established in 1955–1957 Chevrolet cars and trucks, early Camaros, and other builds where the engine sits close to the firewall. Where a large-cap HEI requires firewall modification or component relocation to fit, this small cap unit drops in cleanly without body or accessory modifications.

Inside, a multi-pole Hall Effect reluctor trigger replaces the points and condenser with a precise, maintenance-free electronic signal source. The Hall Effect system provides a cleaner, more consistent trigger signal than a traditional single-pole magnetic reluctor pickup — particularly at low RPM and during cold starts where precise cam position sensing improves ignition consistency. An external ignition coil rated at 35,000 volts or higher is required — coil is not included. No separate ignition control box or CDI unit is needed — the module is integrated into the distributor. Both mechanical and vacuum advance are included.

For builds where an integrated coil and single 12V wire is preferred, see the TSP Chevy HEI (JM6501). For builds requiring advance curve tuning with custom bushings and springs, a tachometer output, and a vacuum advance block-off plate, see the TSP Chevy Pro Series Ready-to-Run (JM7715).

Why Choose the Small Cap Ready-to-Run Over the Large-Cap HEI?
The large-cap HEI is the simplest Chevy ignition upgrade — integrated coil, single wire, drop-in replacement. But the large cap creates a real clearance problem in many classic and vintage applications. In 1955–1957 Chevrolets, early Camaros, and other builds where the engine sits close to the firewall or cowl, the large HEI cap physically contacts the firewall and requires modification to fit. This small cap Ready-to-Run solves that problem — the compact cap footprint clears tight engine bays that would require firewall modification with a large-cap HEI, without sacrificing electronic ignition performance. You still get a maintenance-free trigger, no points, no condenser, and mechanical and vacuum advance. The only difference is you supply an external coil (35,000V minimum), which gives you the flexibility to run a coil matched to your ignition system.

Three Chevy Distributor Options — Choosing the Right One
TSP offers three distinct distributor designs for the carbureted Chevy SBC and BBC:
The HEI (JM6501) is the simplest option — large cap, integrated coil, single 12V wire, no external coil needed. Best for straightforward street and restoration builds where cap clearance is not a concern.
This Small Cap Ready-to-Run (JM6701) is the compact option — small cap for tight engine bays, Hall Effect trigger, external coil required. Best for pre-1975 cars, vintage builds, and any application where the large HEI cap won't fit cleanly.
The Pro Series Ready-to-Run (JM7715) is the performance tuning option — large cap, external coil, advance tuning kit with bushings and springs, vacuum advance block-off plate, tachometer output cable. Best for performance builds where the advance curve needs to be matched to a specific camshaft, compression ratio, and carburetor calibration.

Hall Effect Trigger — What It Is and Why It Matters
The multi-pole Hall Effect reluctor in this distributor differs from both a traditional single-pole magnetic reluctor and the optical trigger in the LT1 Opti-Spark. A Hall Effect sensor uses a semiconductor chip that generates a precise square-wave trigger signal in response to changes in a magnetic field from a multi-pole reluctor wheel. The multi-pole design provides a higher-resolution signal than a single-pole unit — particularly beneficial for low-RPM precision and clean signal delivery at cold start. The Hall Effect system is also more durable than a traditional magnetic pickup and requires no routine maintenance over the life of the distributor.

What makes this distributor different from the TSP Chevy HEI and Pro Series distributors?
Three things set this unit apart. First is the small cap design—the most compact cap footprint in the TSP Chevy lineup, purpose-built for engine bays where a large-cap HEI interferes with the firewall, cowl, air cleaner, or other components. This is the correct choice for pre-1975 builds and classic cars where large-cap clearance is a documented problem. Second is the Hall Effect multi-pole reluctor trigger, which provides a more precise signal than a traditional single-pole magnetic reluctor. Third, this unit requires an external coil (no integrated coil) but does not include the advance tuning kit or tachometer output cable found on the Pro Series, making it the middle option between the simple HEI and the fully featured Pro Series.

What engines does this distributor fit?
This distributor fits the Chevrolet Gen. I small block V8—262, 265, 267, 283, 302, 305, 307, 327, 350, and 400 CID—and the standard-deck Mark IV big block—396, 402, 427, and 454 CID—in carbureted applications. It is not compatible with tall-deck big block engines, governor-equipped applications, LS engines, or EFI and computer-controlled ignition systems.

Why would I choose this over the larger HEI distributor?
The primary reason is the compact cap size. In many classic cars and trucks—particularly 1955–1957 Chevrolets, early Camaros, and other tight-engine-bay applications—the large cap on an HEI distributor contacts the firewall or other components and requires modification to fit. This small cap distributor eliminates that problem, fitting engine bays where a large-cap HEI will not without firewall or accessory modification. If cap clearance is not an issue in your build, the HEI is the simpler choice with an integrated coil and a single 12V wire. If clearance is a concern, this is the correct unit.

What is a Hall Effect trigger and why does it matter?
A Hall Effect sensor is a semiconductor-based trigger that generates a precise square-wave signal in response to changes in a magnetic field produced by a rotating multi-pole reluctor wheel. Compared to a traditional single-pole magnetic reluctor pickup, the multi-pole Hall Effect design provides a cleaner, higher-resolution trigger signal, particularly at low RPM and during cold starts, where signal precision most directly impacts ignition timing consistency. The Hall Effect system is also more durable than a magnetic pickup and requires no routine maintenance.

Does this distributor require an external coil?
Yes. This is a Ready-to-Run design with no coil integrated into the cap. An external ignition coil rated at 35,000 volts or higher is required and must be sourced separately.

Do I need an external ignition box or CDI unit?
No. The internal module handles all ignition control. No external ignition box, CDI unit, points, or condenser is required.

Will this fit a 1955–1957 Chevrolet without firewall modification?
Yes. This is one of the primary applications for this distributor. The small cap design was specifically developed for pre-1975 applications and tight engine bays where the large-cap HEI does not fit without firewall modification. The compact cap footprint clears the firewall in 1955–1957 Chevrolets and similar builds without requiring body or accessory modifications.

Does this distributor include an advance tuning kit?
No. This unit does not include advance bushings, springs, a vacuum advance block-off plate, or a tachometer output cable. For advance curve customization with a bushing and spring kit, vacuum block-off plate, and tachometer output, see the TSP Chevy Pro Series Ready-to-Run distributor (JM7715).

Will this fit a tall-deck big block Chevy?
No. This distributor is compatible with standard-deck Mark IV big block engines only—396, 402, 427, and 454 CID standard deck. It is not compatible with tall-deck big block Chevy applications.

What type of advance does this distributor use?
This distributor uses both mechanical (centrifugal) advance and vacuum advance. There is no advance curve tuning kit included with this unit. For bushing and spring advance curve customization, see the TSP Chevy Pro Series Ready-to-Run distributor (JM7715).

What type of distributor gear is included?
This distributor includes a steel distributor gear. It is most compatible with cast iron hydraulic or solid flat tappet camshafts. For roller camshaft applications, consult your camshaft manufacturer for the recommended gear material before installation.

Do I need to set ignition timing after installation?
Yes. Set base ignition timing with a timing light after installation. For most carbureted SBC 350 applications, 8–12 degrees BTDC at idle is a common starting reference. Optimal timing varies by compression ratio, camshaft profile, and carburetor tune.

Is this compatible with a 6-volt system or generator?
No. This distributor requires a 12-volt electrical system with a charging alternator. It is not compatible with 6-volt systems, generators, or ballast resistors.
