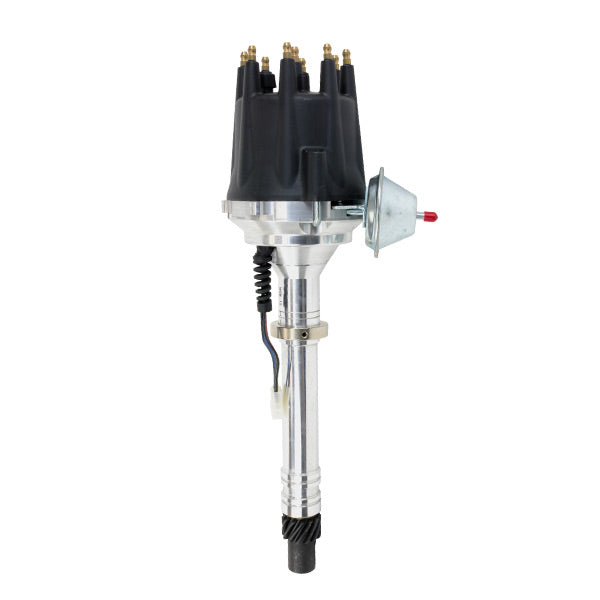

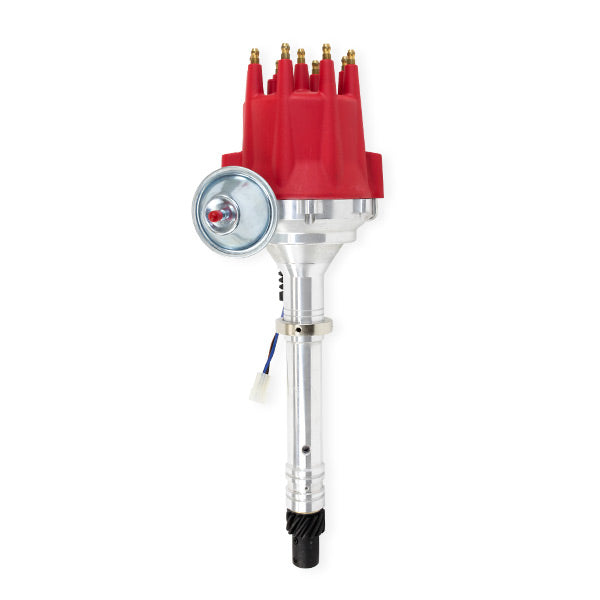

Chevy SB/BB V8 Pro Series Pro Billet Distributor with Vacuum Advance

• Ignition box required — MSD, Mallory, Crane, or equivalent CDI unit needed to operate

• Vacuum advance included — mechanical AND vacuum advance for street drivability

• Fits SBC Gen. I 262–400 and standard deck BBC 396, 402, 427, and 454 — carbureted

• Slip collar, 3 bushings, 4 springs, billet housing — external coil required (35,000V+)

The TSP Pro Series Pro Billet Distributor with Vacuum Advance for the Chevy SBC and BBC delivers the premium billet construction, slip collar timing precision, and advance curve tunability of the Pro Series Pro Billet — with the addition of vacuum advance for street-driven applications. This is the street-optimized version of the Pro Series Pro Billet, designed for performance builds that use an external CDI ignition box but also benefit from vacuum advance for light-throttle drivability, idle quality, and part-throttle fuel economy.

An external ignition control box is required. Without a compatible CDI box — MSD 6A, MSD 6AL, Mallory HyFire, Crane HI-6, or equivalent — this distributor will not function. An external ignition coil rated at 35,000 volts or higher is also required. Neither the box nor the coil is included. If you need a self-contained ignition upgrade without an external box, see the TSP HEI (JM6501), small cap Ready-to-Run (JM6701), or Pro Series Ready-to-Run (JM7715).

Vacuum Advance vs. Mechanical Only — Choosing the Right Pro Series Pro Billet:
The mechanical-only version (JM7601) and this vacuum advance version (JM7601-1) are the same price and share the same premium billet construction, slip collar, advance tuning kit, and ignition box requirement. The difference is in how timing advances at light throttle and idle. Vacuum advance adds additional ignition timing under light throttle and cruise conditions — improving idle quality, reducing fuel consumption at part throttle, and improving drivability on the street. At full throttle and high RPM, vacuum advance typically drops out and has no effect on peak performance. For performance street builds where the car is also daily driven or driven on the street regularly, this vacuum advance version is the correct choice. For dedicated race, track-only, or dyno applications where vacuum advance is not wanted, the mechanical-only version (JM7601) is the correct unit.

The slip collar allows the distributor to be rotated for precise timing adjustment and locked firmly in position, preventing timing movement under high-RPM and high-vibration conditions. Three advance bushings and four advance springs are included for mechanical advance curve customization. A color-matched spark plug wire retainer with screws is included.

Ignition Box + Vacuum Advance — How They Work Together
Running vacuum advance with an external CDI ignition box is a common and effective setup for street performance builds. The mechanical advance curve provides the base timing advance at RPM, the vacuum advance adds timing at light throttle and idle, and the external ignition box provides the high-energy spark output and any additional timing control features your box offers (such as MSD's built-in rev limiter or timing retard). The three advance bushings and four springs allow the mechanical advance curve to be precisely calibrated for your engine, while the vacuum advance canister handles the light-throttle timing addition automatically.

Premium Billet Features — What You're Getting
Slip collar: Locks the distributor housing in precise position after timing is set, preventing timing movement under high-RPM vibration — standard equipment on quality billet race distributors.
Advance tuning kit: Three bushings and four springs for full mechanical advance curve customization matched to your specific engine, camshaft, and RPM range.
Billet aluminum housing: Compact design providing additional clearance in performance engine bays where larger distributor housings may interfere with aftermarket intakes or other components.

Does this distributor require an external ignition box?
Yes. Like the mechanical-only Pro Series Pro Billet (JM7601), this distributor requires an external CDI ignition control box, such as an MSD 6A, MSD 6AL, Mallory HyFire, Crane HI-6, or equivalent. Without an external ignition box, this distributor will not function. An external ignition coil rated at 35,000 volts or higher is also required. Neither the ignition box nor the coil is included. If you need a self-contained ignition upgrade without an external ignition box, see the TSP Chevy HEI, small cap Ready-to-Run, or Pro Series Ready-to-Run distributors.

What is the difference between this distributor and the mechanical-only Pro Series Pro Billet (JM7601)?

These two distributors are identical in price, construction, slip collar, ignition box requirement, external coil requirement, and advance tuning kit. The only difference is that this version includes vacuum advance in addition to mechanical advance, while JM7601R uses mechanical advance only. Vacuum advance adds ignition timing during idle and light-throttle cruising, improving drivability, idle quality, and part-throttle fuel economy on street-driven vehicles. At full throttle and high RPM, vacuum advance disengages and has no effect on peak performance. Choose this vacuum advance version for street performance builds. Choose the mechanical-only version (JM7601) for dedicated race and track applications where vacuum advance is not desired.

If my ignition box controls timing, what does vacuum advance add?
Most external CDI ignition boxes control total ignition timing through the mechanical advance curve and the ignition box's own timing features, but they do not replace the distributor's vacuum advance canister. Vacuum advance adds ignition timing specifically during high manifold vacuum conditions, such as idle and light-throttle cruising, where it improves combustion efficiency, idle quality, and fuel economy. At wide-open throttle, manifold vacuum drops, causing the vacuum advance to disengage and allowing the mechanical advance and ignition box to control total timing. These systems work together: mechanical advance controls RPM-based timing, vacuum advance controls load-based timing, and the ignition box provides high-energy spark output and any additional timing functions it supports.

What engines does this distributor fit?
This distributor fits the Chevrolet Gen. I small block V8—262, 265, 267, 283, 302, 305, 307, 327, 350, and 400 CID—and the standard-deck Mark IV big block—396, 402, 427, and 454 CID—in carbureted applications. It is not compatible with tall-deck big block engines, governor-equipped applications, LS engines, or EFI systems.

What external ignition boxes is this distributor compatible with?
This distributor's magnetic pickup is compatible with most popular CDI ignition control boxes, including MSD 6A, MSD 6AL, MSD 6AL-2, Mallory HyFire, Crane HI-6, Crane HI-6RC, Accel, and similar performance ignition systems. Verify your specific ignition box's wiring requirements and magnetic pickup compatibility before ordering.

What is a slip collar and why does it matter?
A slip collar clamps around the distributor housing where it enters the engine block, allowing the distributor to be rotated for precise timing adjustment and then securely locked in place. Under high-RPM operation, a standard distributor hold-down clamp can allow slight distributor movement, altering ignition timing. The slip collar helps prevent timing changes by securing the distributor housing in a fixed position after adjustment, making it valuable for both high-performance street and racing applications.

Can I tune the advance curve on this distributor?
Yes. Three advance bushings and four advance springs are included for complete mechanical advance curve customization, allowing you to control how quickly ignition timing advances as engine RPM increases. This works alongside the vacuum advance system, which provides additional timing during idle and light-throttle operation, creating a comprehensive ignition timing setup for street performance applications.

Does this distributor include a coil?
No. An external ignition coil rated at 35,000 volts or higher is required and must be sourced separately. Use an ignition coil that is compatible with your specific external CDI ignition control box.

What type of distributor gear is included?
This distributor includes a steel distributor gear. Verify compatibility with your specific camshaft material before installation. Contact TSP if you need confirmation of distributor gear specifications for your application.

How do I set timing with this distributor?
Follow the timing procedure recommended by your specific external ignition box manufacturer. Set base timing with a timing light at idle while the mechanical advance is fully retracted. Verify total timing—base timing plus full mechanical advance—at the RPM specified by your ignition box manufacturer or engine tuner. The vacuum advance will add additional timing at idle and during light-throttle operation, which is normal and will be visible when checking timing.

Is this compatible with a 6-volt system or generator?
No. This distributor requires a 12-volt electrical system with a charging alternator. It is not compatible with 6-volt systems, generators, or ballast resistors.
