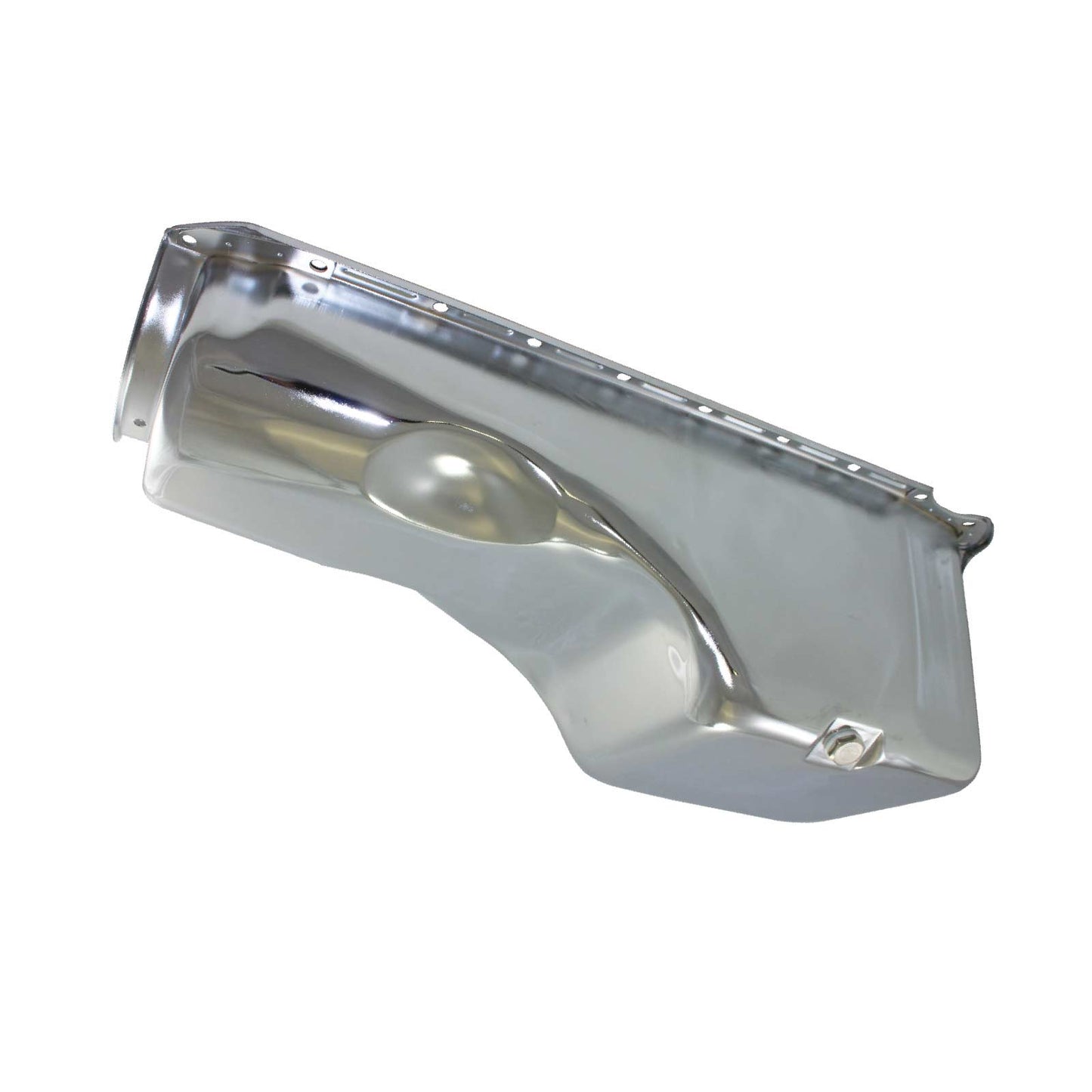

Chevy Big Block 2-Piece Rear Main Seal Steel Oil Pan - Chrome

• Chrome-plated steel pan adds classic show-quality style to big block engines

• Baffled 4-qt. wet-sump design helps control oil movement during hard driving

• Fits Chevy big block 2-piece rear main seal engines with passenger-side dipstick

• Steel construction with a chrome finish for durable, polished looks

Chevy big block engines with a two-piece rear main seal need a rear-sump pan built to match that seal design and passenger-side dipstick location — this chrome-plated steel pan is built for exactly that application. It's designed for Chevrolet big block V8 Gen. II (Mark IV) engines, including 366, 396, 402, 427, and 454 cubic-inch displacements, and fits most big block applications using a two-piece rear main seal produced up through 1990.

The pan holds 4 quarts and includes internal baffling to help manage oil movement during acceleration, braking, and cornering. It uses a wet-sump design with the sump located at the rear of the pan, and a 1/2"-20 drain plug thread with the drain plug included. The gasket, oil pickup, and dipstick are not included and will need to be sourced separately to complete installation.

Constructed from steel with a chrome finish, the pan adds a polished, show-quality appearance to big block engine bays while providing a durable surface finish.

Applications
Fits Chevrolet big block V8 Gen. II (Mark IV) engines: 6.0L (366 in³), 6.5L (396 in³), 6.6L (402 in³), 7.0L (427 in³), and 7.4L (454 in³). Designed specifically for engines using a two-piece rear main seal and passenger-side dipstick, produced up through 1990.

Installation
Drain plug is included with a 1/2"-20 thread size. Gasket, oil pickup, and dipstick are not included and must be sourced separately for a complete installation.

Does this pan include the gasket and oil pickup?
No — the gasket, oil pickup, and dipstick are not included and need to be sourced separately.

What size is the drain plug thread on this pan?
1/2"-20, with the drain plug included.

Will this pan fit a small block Chevy?
No — this pan is designed for Chevy big block V8 Gen. II (Mark IV) engines with a two-piece rear main seal, not small block engines.

Does this pan work with a one-piece rear main seal engine?
No — it's designed specifically for two-piece rear main seal big block engines.

Where is the dipstick located on this pan?
Passenger side, matching the factory dipstick location for two-piece rear main seal big block engines. The dipstick itself is not included.

What's the oil capacity of this pan?
4 quarts, with internal baffling to help control oil movement during acceleration and cornering.

What material is this pan made from?
Steel, with a chrome finish for a durable, polished appearance.
