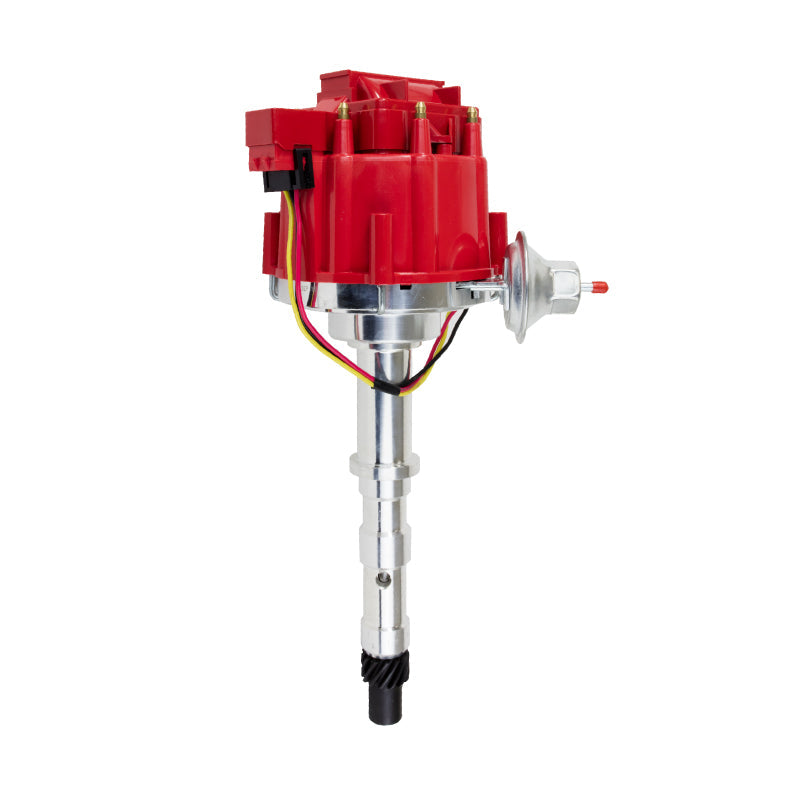

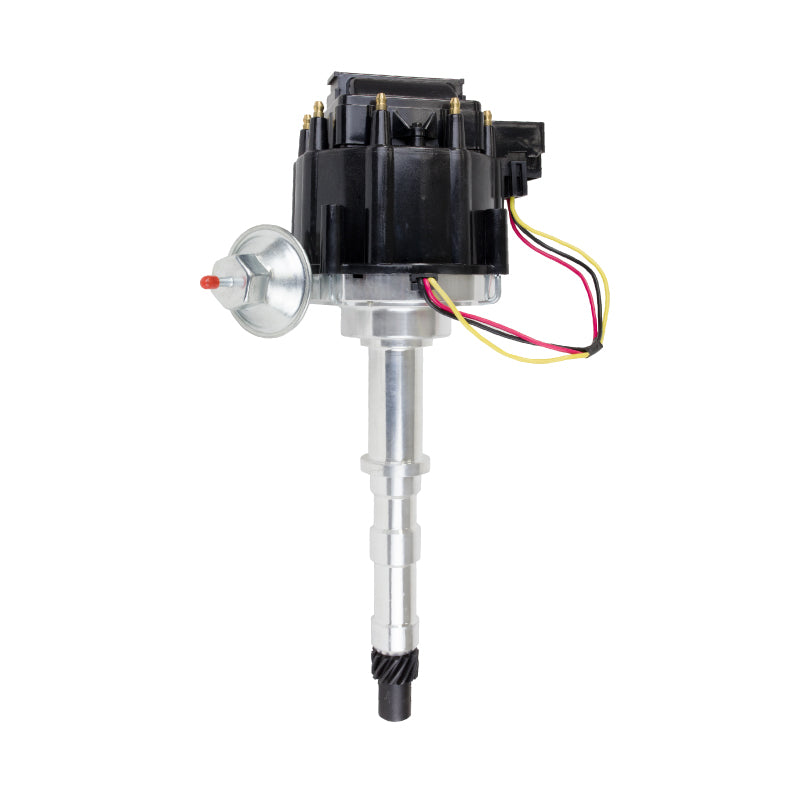

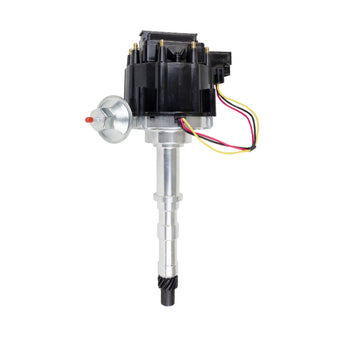

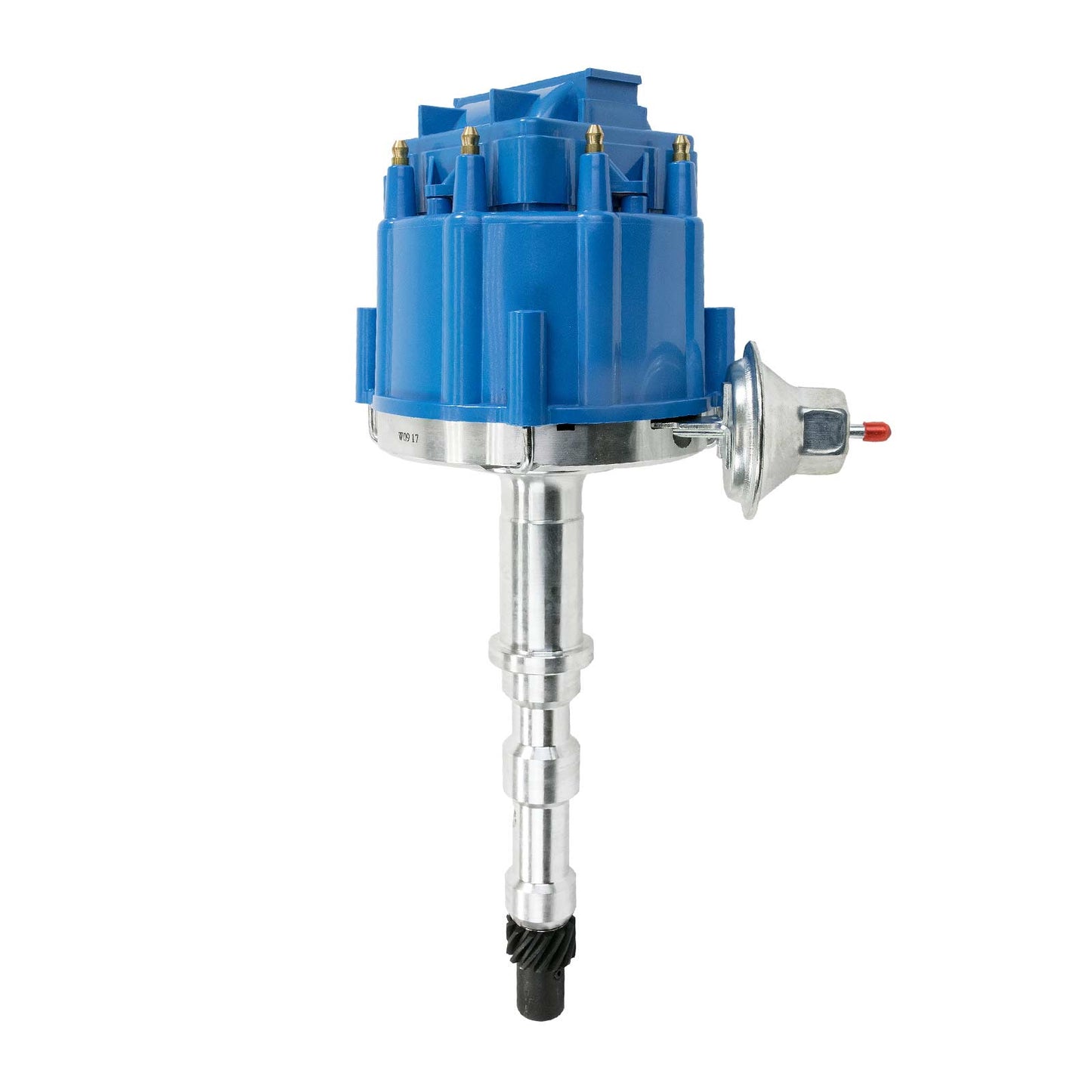

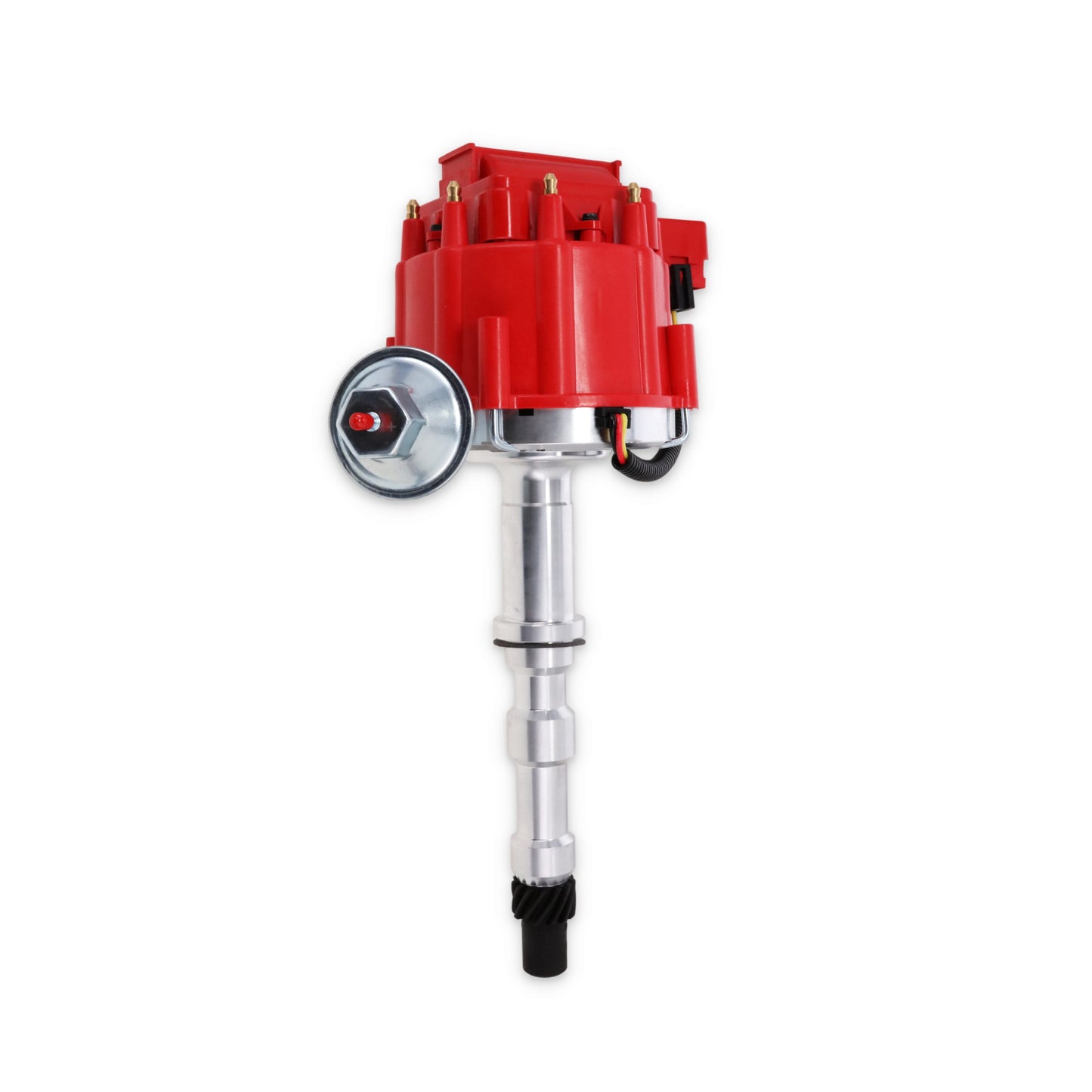

Cadillac 472/500 V8 HEI Distributor

• Fits Cadillac V8 368, 425, 472, and 500 CID — 1968–1984 carbureted applications

• 65,000-Volt internal HEI coil — single 12V wire, no external coil or box needed

• Fits DeVille, Eldorado, Fleetwood, Calais, Brougham, and Commercial Chassis

• Mechanical and vacuum advance — vacuum adjustment tool and instructions included

The TSP HEI Distributor for the Cadillac V8 is a self-contained large-cap HEI ignition upgrade covering the complete Cadillac big block V8 family — 368 CID (6.0L), 425 CID (7.0L), 472 CID (7.7L), and 500 CID (8.2L) — in carbureted applications from 1968 through 1984. The integrated HEI design combines the ignition coil, ignition module, cap, and rotor into a single unit, connecting to a single 12-volt source with no external coil, ignition box, or condenser required.

The Cadillac big block V8 powered the full range of Cadillac's lineup across four displacements and three decades — from the 472 CID introduced in 1968 through the 500 CID of the early-to-mid 1970s, into the 425 CID of the late 1970s, and the 368 CID used through the early 1980s. Whether the application is a DeVille, Eldorado, Fleetwood, Calais, Brougham, or Commercial Chassis, this single HEI distributor spans the complete carbureted Cadillac big block production era.

The 65,000-volt internal HEI coil delivers substantially stronger spark than a factory points-style distributor, supporting easier cold starts, cleaner idle quality, and more consistent ignition performance across the RPM range. A magnetic pickup trigger replaces the mechanical points contact and requires no routine maintenance — a meaningful advantage on Cadillac V8 engines where original ignition components may be decades old. Both mechanical and vacuum advance are included, with a vacuum advance adjustment tool shipped with the distributor for advance curve tuning.

The Cadillac Big Block V8 Family — What This Distributor Covers
The Cadillac big block V8 is a distinct engine family produced exclusively for Cadillac vehicles from 1968 through 1984. It is not related to the Chevrolet big block, Buick big block, or any other GM V8 despite similar displacement figures in some cases. The family progressed through four displacements — 472 (1968–1974), 500 (1970–1976), 425 (1977–1979), and 368 (1980–1984) — driven by emissions requirements and fuel economy standards. All four share compatible distributor architecture, making this HEI unit the correct ignition upgrade across the entire carbureted Cadillac big block production run.

Factory points-style distributors on these engines are now fifty-plus years old on the earliest applications. Points wear, timing drifts, and cold-start performance degrades — problems that an HEI upgrade directly addresses. The self-contained HEI design eliminates the points, condenser, and external coil in a single installation, replacing them with a sealed magnetic trigger system and integrated 65,000-volt coil that requires no routine maintenance.

Performance Benefit
The 65,000-volt internal HEI coil fires spark plugs more consistently than a factory points setup across the full RPM range. The result is stronger cold-start performance, cleaner idle quality, and more stable ignition timing over the life of the engine — particularly important on high-displacement Cadillac V8 applications where consistent combustion across all eight cylinders matters for smooth operation. Both mechanical and vacuum advance are included, and the vacuum advance adjustment tool allows the vacuum advance curve to be tuned for your specific application and driving conditions.

What Cadillac engines and vehicles does this distributor fit?
This distributor fits all four Cadillac big block V8 displacements — 472 CID (7.7L, 1968–1974), 500 CID (8.2L, 1970–1976), 425 CID (7.0L, 1977–1979), and 368 CID (6.0L, 1980–1984) — in carbureted applications. Supported vehicles include the Cadillac DeVille, Sedan de Ville, Coupe de Ville, Eldorado, Fleetwood, Fleetwood Brougham, Calais (1968–1976), Seville (1980–1984 with 368 V8), Series 75 Limousine, and Commercial Chassis in applicable years. This distributor is not compatible with the Cadillac HT4100, Northstar, or any fuel-injected Cadillac V8.

The title says 472/500 — does this also fit the Cadillac 368 and 425?
Yes. This distributor fits all four Cadillac big block displacements — 368, 425, 472, and 500 CID. The 472 and 500 were the primary engines from 1968 through 1976. The 425 replaced them from 1977 through 1979. The 368 was introduced in 1980 and used through 1984. All four share compatible distributor architecture.

Does this distributor include an ignition coil?
Yes. The ignition coil is built into the distributor cap as part of the HEI design. No external coil is required. The only external connection needed is a single 12-volt hot wire.

Do I need an external ignition box or control module?
No. The ignition control module is integrated internally within the distributor. No external ignition box, CDI unit, points, or condenser is required.

What is the coil output voltage on this distributor?
This distributor produces 65,000 volts of coil output, significantly higher than a factory points-style distributor, delivering a stronger, more consistent spark for improved cold starts, idle stability, and throttle response across the full RPM range.

Will this fit a Cadillac Eldorado?
Yes, for 1968–1979 Cadillac Eldorado models equipped with the carbureted Cadillac big block V8 — the 472 CID (1968–1974), 500 CID (1970–1978), and 425 CID (1977–1979). The Eldorado's front-wheel-drive layout does not affect distributor fitment, as the Cadillac big block engine and its ignition system are consistent across Eldorado and rear-wheel-drive applications.

Will this fit a Cadillac Seville?
Yes, for 1980–1984 Seville models equipped with the 368 CID (6.0L) Cadillac V8. The 1976–1979 Seville used the Oldsmobile 350 V8, not the Cadillac big block, and is not compatible with this distributor.

Is this the same as a Chevrolet big block or other GM V8 distributor?
No. The Cadillac big block V8 (368/425/472/500) is a completely separate engine family from the Chevrolet, Buick, Oldsmobile, and Pontiac big blocks. Despite similar displacement figures in some cases, these are distinct engines that require application-specific distributors.

What type of advance does this distributor use?
This distributor uses both mechanical (centrifugal) advance and vacuum advance. Mechanical advance increases ignition timing as engine RPM rises. Vacuum advance adds additional timing under light throttle and cruise conditions. A vacuum advance adjustment tool is included to allow tuning of the vacuum advance curve for your specific application.

What type of distributor gear is included, and what camshafts is it compatible with?
This distributor includes a steel distributor gear. The gear is most compatible with cast iron hydraulic or solid flat tappet camshafts. For roller camshaft applications, consult your camshaft manufacturer for the recommended gear material before installation.

Do I need to set ignition timing after installing this distributor?
Yes. Base ignition timing must be set with a timing light after installation. For most carbureted Cadillac 472 and 500 applications, a starting point of 8–10 degrees BTDC at idle is a common reference, though the optimal setting will vary based on your engine's condition, compression ratio, camshaft profile, and carburetor tune.

Is this distributor compatible with a 6-volt system or generator?
No. This distributor requires a 12-volt electrical system with a charging alternator. It is not compatible with 6-volt systems, generators, or ballast resistors.

Does this distributor have a mechanical tachometer drive or tachometer output?
No. This distributor does not include a mechanical tachometer drive or tachometer output signal. Vehicles requiring a tachometer signal will need an electronic tachometer with a compatible signal adapter.
