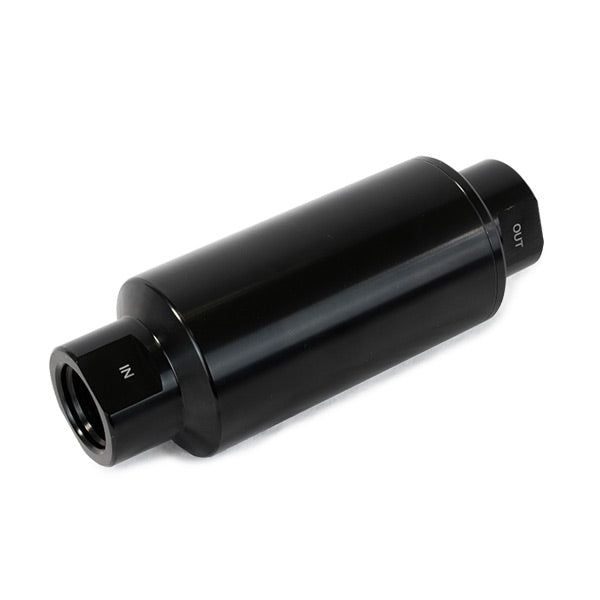

40 Micron Billet Aluminum Fuel Filter - Black
40 Micron Billet Aluminum Fuel Filter - Black
SKU: SKU: JM1022BK
In stock
Product Details
Features
- 40 micron filtration with stainless steel helps protect downstream fuel-system components.
- Aluminum body construction with black finish supports corrosion resistance and clean service access.
- -10 AN O-Ring inlet and -10 AN O-Ring outlet thread configuration should be matched to hose ends and fuel-line layout.
- Designed for pre-pump placement; verify micron rating, fuel type, and mounting clearance before installation.
Description
Designed for Universal fuel-system applications, this 40 fuel filter helps support cleaner fuel delivery and dependable component protection in properly matched fuel systems.
Fuel Filtration & Flow Performance
The 40-micron filtration rating helps capture particles before they reach the pump, carburetor, regulator, or EFI components. The filter is listed for pre-pump placement. Fuel compatibility is listed as Gasoline. Match filtration level to the pump location and fuel-system requirements before installation.
Construction & Fuel-System Durability

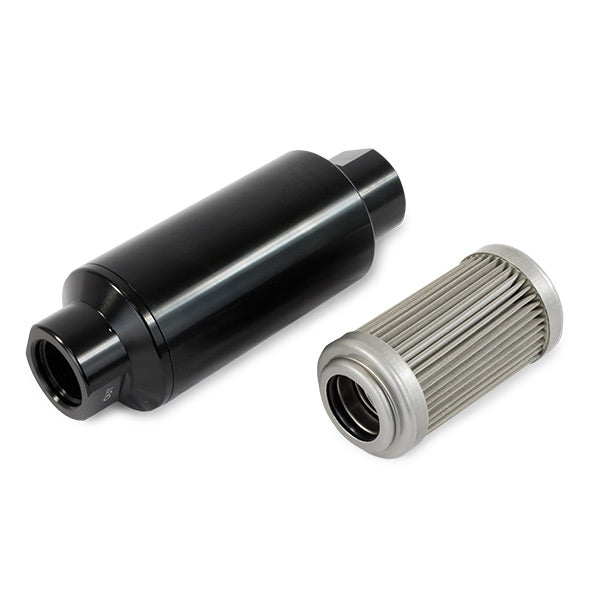

The aluminum body uses a black finish with stainless steel filtration media to support durability, corrosion resistance, and service access in the engine bay or chassis-mounted locations.
Sizing, Ports & Installation Details
Connection details include -10 AN O-Ring inlet threads and -10 AN O-Ring outlet threads. Body diameter is 2.000 in. Overall length is 5.500 in.
System Matching & Serviceability
Confirm fuel type, micron rating, hose ends, mounting clearance, and service access before final assembly.
Specs
| Body Color | Black |
| Body Diameter | 2.000 in. |
| Body Material | Aluminum |
| Element Material | Stainless Steel |
| Fuel Type | Gasoline |
| Inlet Thread Type | -10 AN O-Ring |
| Inlet Type | Threaded |
| Length | 5.500 in. |
| Maximum Fuel Pressure | 250 PSI |
| Micron Rating | 40 |
| Outlet Thread Type | -10 AN O-Ring |
| Outlet Type | Threaded |
| Pre or Post Pump | Pre-pump |
| Primary Or Secondary | Primary |
Engine Fitment
COMPATIBLE WITH
UNIVERSAL
COMMON VEHICLE APPLICATIONS
Street performance applications
Restoration projects
Custom fuel-system builds
Q&A
What is this filter's micron rating?
40 microns, using a stainless steel filtration element designed to capture larger debris before it reaches the fuel pump, carburetor, regulator, or EFI components.
Where should this filter be installed?
This is a pre-pump (primary) fuel filter — install it between the fuel tank and fuel pump, not after the pump.
What fittings does this filter use?
The inlet and outlet use -10 AN O-ring (ORB) threads. Verify your fuel lines and adapter fittings are compatible before ordering.
What is the maximum fuel pressure rating?
250 PSI.
Is the stainless steel element cleanable and reusable?
Stainless steel filter elements are generally cleanable and reusable. Follow the manufacturer's recommended cleaning procedure and service interval for this specific filter.
Is this filter compatible with E85 or alcohol-based fuels?
The specifications list gasoline compatibility only. Confirm with the manufacturer before using E85 or other alcohol-blended fuels.
How does 40-micron filtration compare to a finer filter?
A 40-micron element provides coarser filtration for capturing larger debris and protecting the fuel pump. For applications requiring finer filtration farther downstream, such as before fuel injectors, a finer filter such as a 10-micron element may be more appropriate.
What is the body size, and will it fit my mounting location?
The filter measures 2.000 inches in body diameter and 5.500 inches in overall length. Verify available clearance before installation.
Emissions Notice
This Top Street Performance (TSP) product is designed for racing and off-road competition use only. It is not legal for use on public roads or emissions-controlled vehicles and does not comply with federal, state, or local emissions regulations. The buyer assumes all responsibility for legal use and installation.
What is a Emissions-Controlled Vehicle?
"An emissions-controlled vehicle is any vehicle equipped with a factory-installed emissions control system designed to reduce air pollution. These systems include catalytic converters, oxygen sensors, EGR (Exhaust Gas Recirculation) valves, and diesel particulate filters (DPF). Most vehicles manufactured after 1975 are considered emissions-controlled and must comply with federal and state emissions laws when used on public roads."
40 Micron Billet Aluminum Fuel Filter - Black
Designed for Universal fuel-system applications, this 40 fuel filter helps support cleaner fuel delivery and dependable component protection in properly matched fuel systems.
Fuel Filtration & Flow Performance
The 40-micron filtration rating helps capture particles before they reach the pump, carburetor, regulator, or EFI components. The filter is listed for pre-pump placement. Fuel compatibility is listed as Gasoline. Match filtration level to the pump location and fuel-system requirements before installation.
Construction & Fuel-System Durability
The aluminum body uses a black finish with stainless steel filtration media to support durability, corrosion resistance, and service access in the engine bay or chassis-mounted locations.
Sizing, Ports & Installation Details
Connection details include -10 AN O-Ring inlet threads and -10 AN O-Ring outlet threads. Body diameter is 2.000 in. Overall length is 5.500 in.
System Matching & Serviceability
Confirm fuel type, micron rating, hose ends, mounting clearance, and service access before final assembly.
COMPATIBLE WITH
UNIVERSAL
COMMON VEHICLE APPLICATIONS
Street performance applications
Restoration projects
Custom fuel-system builds
SPECIFICATIONS
Body Color: Black
Body Diameter: 2.000 in.
Body Material: Aluminum
Element Material: Stainless Steel
Fuel Type: Gasoline
Inlet Thread Type: -10 AN O-Ring
Inlet Type: Threaded
Length: 5.500 in.
Maximum Fuel Pressure: 250 PSI
Micron Rating: 40
Outlet Thread Type: -10 AN O-Ring
Outlet Type: Threaded
Pre or Post Pump: Pre-pump
Primary Or Secondary: Primary
