2005-2013 Corvette Engine Oil Pan - Polished
2005-2013 Corvette Engine Oil Pan - Polished
SKU: SKU: 81077P
In stock
Product Details
Features
- Wet-sump aluminum pan supports oil control in Corvette C6 LS engine bays

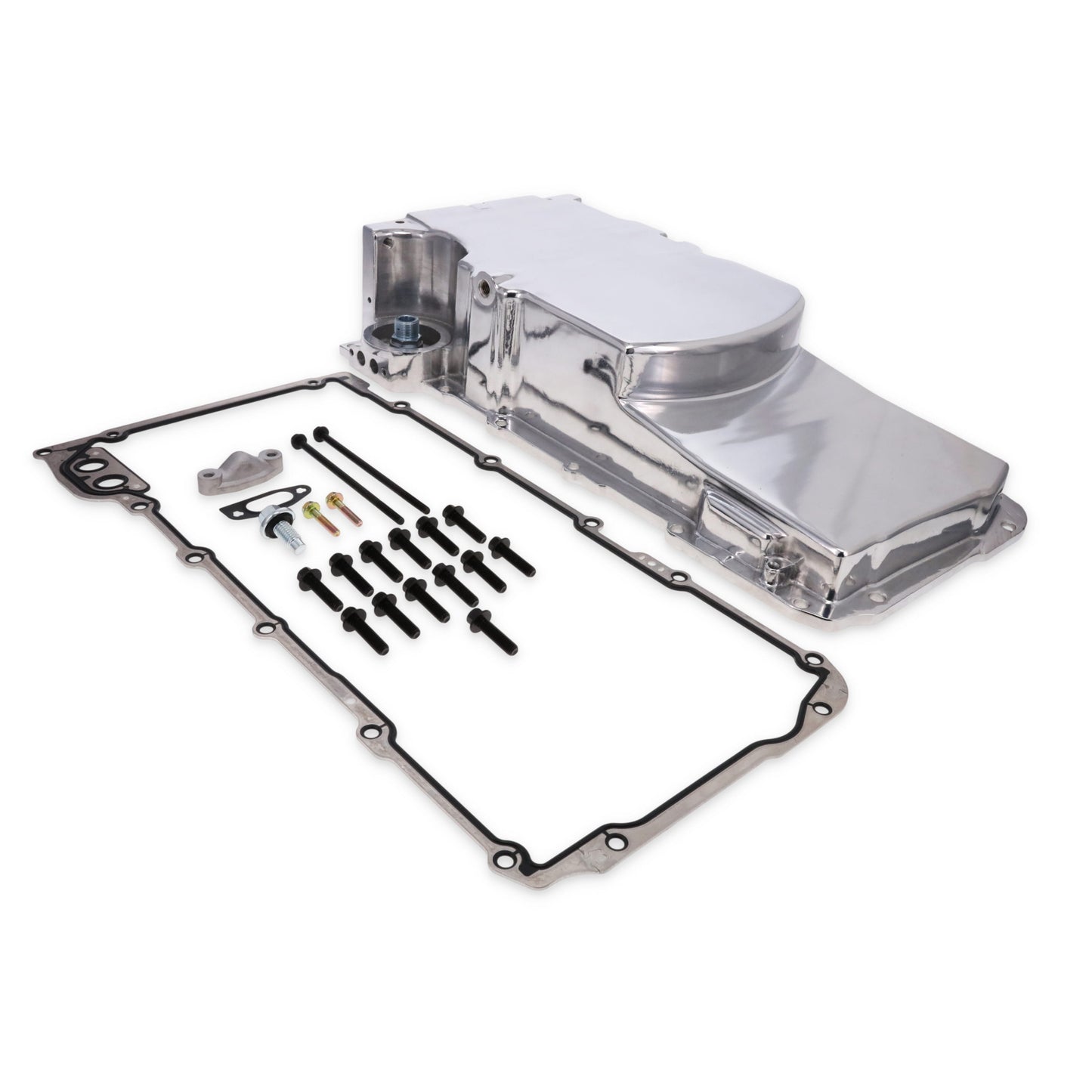

- Includes gasket and mounting hardware for a complete pan swap
- Fits 2005-2013 Corvette C6 wet-sump LS2 (6.0L) and LS3 (6.2L) engines
- Polished finish holds 6.0 qt. with a 15-hole mounting pattern
Description
This polished aluminum oil pan is designed for 2005-2013 Chevrolet Corvette C6 wet-sump applications, supporting oil control and chassis clearance in LS-based Corvette engine bays. It fits 2005-2007 LS2 (6.0L/364 in³) and 2008-2013 LS3 (6.2L/376 in³) wet-sump engines.
A gasket and mounting hardware are included. Confirm your Corvette uses a wet-sump system before ordering — C6 Z06, ZR1, and certain manual Grand Sport applications used a dry-sump setup and require different oiling components.
Applications
Fits 2005-2007 Chevrolet Corvette Base LS2 and 2008-2013 Corvette Base LS3 wet-sump applications, including convertible/coupe and select wet-sump LS swap builds.
Installation
Includes a gasket and mounting hardware. Pickup tube is not included — confirm pickup, dipstick location, and windage tray compatibility with your specific engine combination before installation.
Specs
| Baffle Included | Yes |
| Baffled | Yes |
| Capacity | 6.0 qt. |
| Color | Silver |
| Crank Shaft Wiper Included | No |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Drain Thread Size | M12 x 1.75 |
| Engine Oil Cooler Return Fitting | No |
| Finish | Polished |
| Gasket Or Seal Included | Yes |
| Kick Out Type Pan | No |
| Material | Aluminum |
| Maximum Depth | 5.000 in. |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 15 |
| Oil Filter Location | Stock |
| Oil Filter Stud Included | Yes |
| Oil Passage Cover Included | Yes |
| Pickup Included | No |
| Sump Location | Rear |
| Sump Type | Wet |
| Windage Tray Included | No |
Engine Fitment
COMPATIBLE WITH
Chevrolet Corvette C6 Wet-Sump Applications
• 2005-2007 Corvette 6.0L / 364 in³ LS2
• 2008-2013 Corvette 6.2L / 376 in³ LS3 wet-sump applications
NOTES:
• Designed for compatible 2005-2013 Chevrolet Corvette C6 wet-sump applications.
• Not intended for dry-sump Corvette applications unless verified with the complete oiling system.
• Verify compatibility with oil pickup tube, gasket, dipstick, windage tray, and installation hardware before installation.
• Corvette C6 Z06, ZR1, and certain Grand Sport manual applications used dry-sump oiling configurations and should be verified before purchase.
COMMON VEHICLE APPLICATIONS
• 2005-2007 Chevrolet Corvette Base LS2
• 2008-2013 Chevrolet Corvette Base LS3
• 2008-2013 Chevrolet Corvette convertible/coupe LS3 wet-sump applications
• Select C6 Corvette wet-sump LS swap applications
Q&A
What Corvette engines does this oil pan fit?
2005-2007 LS2 (6.0L/364 in³) and 2008-2013 LS3 (6.2L/376 in³) Corvette C6 wet-sump engines.
Will this pan fit a Corvette Z06 or ZR1?
No — Z06, ZR1, and certain manual Grand Sport C6 Corvettes use a dry-sump oiling system, which requires different components than this wet-sump pan.
What is the oil capacity?
6.0 quarts.
Is a gasket included?
Yes, a gasket and mounting hardware are included.
Is the oil pickup tube included?
No — confirm pickup tube compatibility with your specific engine combination before installation.
What's the drain thread size?
M12 x 1.75.
Does this pan include a dipstick port?
No — confirm your dipstick location and setup before installation.
Is this pan baffled?
Yes, it includes internal baffling to help maintain oil pickup during hard driving.
Emissions Notice
This product does not require an Executive Order in California. By nature of its design this product does not require an emissions certification.
2005-2013 Corvette Engine Oil Pan - Polished
This polished aluminum oil pan is designed for 2005-2013 Chevrolet Corvette C6 wet-sump applications, supporting oil control and chassis clearance in LS-based Corvette engine bays. It fits 2005-2007 LS2 (6.0L/364 in³) and 2008-2013 LS3 (6.2L/376 in³) wet-sump engines.
A gasket and mounting hardware are included. Confirm your Corvette uses a wet-sump system before ordering — C6 Z06, ZR1, and certain manual Grand Sport applications used a dry-sump setup and require different oiling components.
Applications
Fits 2005-2007 Chevrolet Corvette Base LS2 and 2008-2013 Corvette Base LS3 wet-sump applications, including convertible/coupe and select wet-sump LS swap builds.
Installation
Includes a gasket and mounting hardware. Pickup tube is not included — confirm pickup, dipstick location, and windage tray compatibility with your specific engine combination before installation.
COMPATIBLE WITH
Chevrolet Corvette C6 Wet-Sump Applications
• 2005-2007 Corvette 6.0L / 364 in³ LS2
• 2008-2013 Corvette 6.2L / 376 in³ LS3 wet-sump applications
NOTES:
• Designed for compatible 2005-2013 Chevrolet Corvette C6 wet-sump applications.
• Not intended for dry-sump Corvette applications unless verified with the complete oiling system.
• Verify compatibility with oil pickup tube, gasket, dipstick, windage tray, and installation hardware before installation.
• Corvette C6 Z06, ZR1, and certain Grand Sport manual applications used dry-sump oiling configurations and should be verified before purchase.
COMMON VEHICLE APPLICATIONS
• 2005-2007 Chevrolet Corvette Base LS2
• 2008-2013 Chevrolet Corvette Base LS3
• 2008-2013 Chevrolet Corvette convertible/coupe LS3 wet-sump applications
• Select C6 Corvette wet-sump LS swap applications
SPECIFICATIONS
Baffle Included: Yes
Baffled: Yes
Capacity: 6.0 qt.
Color: Silver
Crank Shaft Wiper Included: No
Dipstick Port: No
Drain Plug Included: Yes
Drain Thread Size: M12 x 1.75
Engine Oil Cooler Return Fitting: No
Finish: Polished
Gasket Or Seal Included: Yes
Kick Out Type Pan: No
Material: Aluminum
Maximum Depth: 5.000 in.
Mounting Hardware Included: Yes
Mounting Hole Quantity: 15
Oil Filter Location: Stock
Oil Filter Stud Included: Yes
Oil Passage Cover Included: Yes
Pickup Included: No
Sump Location: Rear
Sump Type: Wet
Windage Tray Included: No
