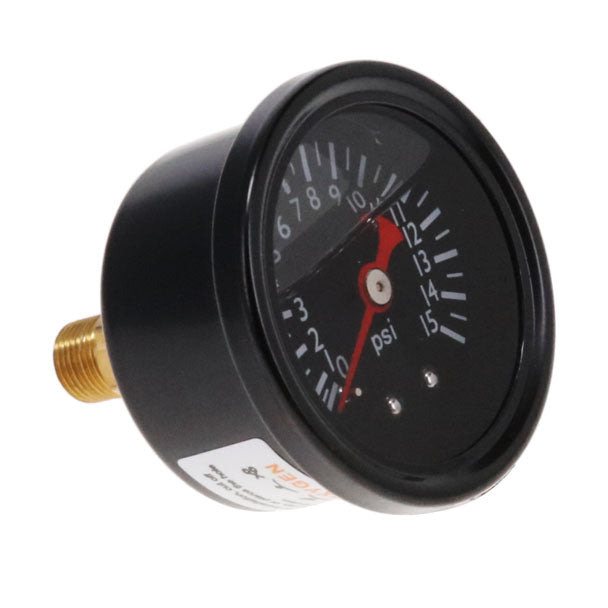

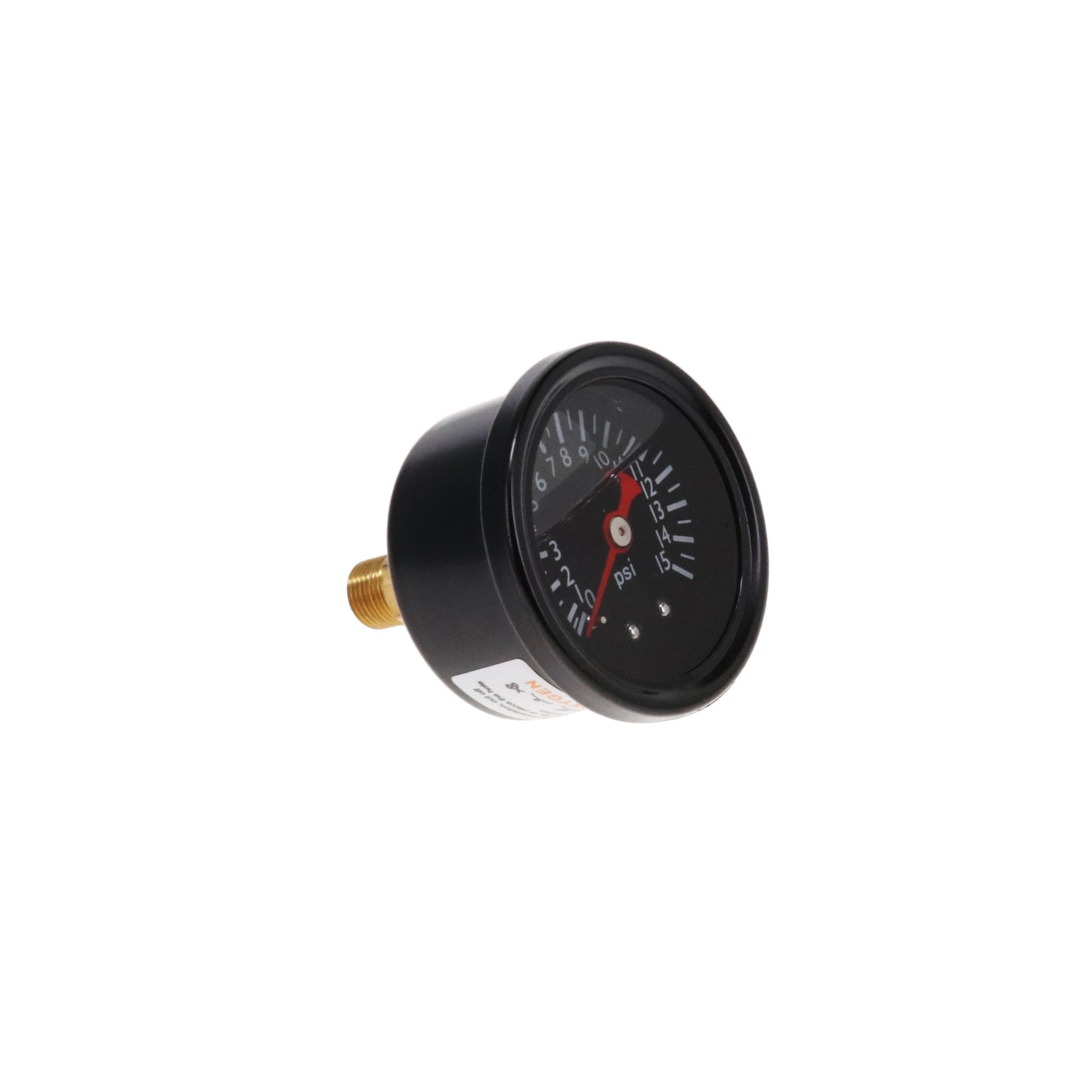

0-15 PSI Liquid-Filled Fuel Pressure Gauge - Black
0-15 PSI Liquid-Filled Fuel Pressure Gauge - Black
SKU: SKU: JM1017BK
In stock
Product Details
Features
- Liquid-filled gauge dampens vibration for stable carbureted readings
- 0-15 PSI range suits typical carbureted fuel pump pressure
- 1/8" NPT inlet, 1.5" black face, black housing, clear lens
- Mounting hardware not included
Description
This 0-15 PSI liquid-filled fuel pressure gauge gives builders and technicians a clear under-hood pressure reference for carbureted fuel systems. The 1.5" round black face, 1/8" NPT inlet, clear lens, and black housing make it useful for regulator adjustment, pressure verification, and fuel system troubleshooting.
Use it during fuel system setup or service to confirm pressure changes at the regulator, carburetor feed, fuel rail, or test port. Being liquid-filled, this gauge dampens vibration and heat-related pointer flutter for a steadier, easier-to-read pressure signal than a dry gauge. Confirm the pressure range, inlet thread, mounting orientation, and fuel system type before installation. Mounting hardware is not included.
Applications
Universal fit. With a 0-15 PSI range, this gauge is intended for carbureted applications. Commonly used on carbureted hot rod, muscle car, truck, and performance fuel systems.
Installation
1/8" NPT inlet. Mounting hardware not included. Verify gauge pressure range, inlet thread, mounting location, and fuel system type before installation.
Specs
| Body Color | Black |
| Face Color | Black |
| Face Diameter | 1.500 in. |
| Face Shape | Round |
| Gauge Inlet | 0.125 in. NPT |
| Grade Type | Performance |
| Illuminated | No |
| Lens Color | Clear |
| Liquid-filled | Yes |
| Maximum Pressure Reading | 15 PSI |
| Minimum Pressure Reading | 0 PSI |
| Mounting Hardware Included | No |
| Number Color | White |
| Pointer Color | Red |
| Sensor | Analog |
| Type | Mechanical |
| Universal Or Specific Fit | Universal |
Engine Fitment
COMPATIBLE WITH
UNIVERSAL
NOTES
• With a range of 0-15 PSI, this gauge is intended for carbureted applications.
• It is important to note that as temperature increases, so does pressure inside the case, thus affecting the gauge reading.
• Verify the gauge pressure range, inlet thread, mounting location, and fuel system type before installation.
COMMON VEHICLE APPLICATIONS
Carbureted hot rod, muscle car, truck, and performance fuel systems using the matching gauge pressure range
Q&A
Is this gauge for carbureted or fuel-injected systems?
Carbureted. Its 0-15 PSI range suits typical carbureted fuel pump pressure; for fuel-injected systems, see TSP's higher-range gauges (0-100 PSI).
What's the benefit of a liquid-filled gauge over a dry gauge?
Liquid fill dampens vibration and reduces pointer flutter from underhood heat and engine vibration, giving a steadier, easier-to-read pressure signal.
Does this come with mounting hardware?
No — mounting hardware is not included.
What size is this gauge, and what's the inlet thread?
1.5" diameter, 1/8" NPT inlet.
What's the difference between this and the black version?
This gauge has a black body. TSP's white version (SKU JM1017) has the same 0-15 PSI range, liquid-fill, and specs in a vhrome-finished body instead.
What's the difference between this and the dry 0-15 PSI gauge?
This gauge is liquid-filled, dampening vibration and heat-related reading flutter. TSP's dry 0-15 PSI gauge (SKU SP9715) has the same pressure range without liquid fill.
Emissions Notice
This product does not affect vehicle emissions and is not subject to emissions compliance regulations.
